Front Safety Belt Retractor: Removal

4-Door, 5-Door And Wagon

Detach the safety belt lower anchor.

Fig 1: Detaching Safety Belt Lower Anchor

Courtesy of FORD MOTOR CO.

3-Door

Detach the safety belt lower anchor.

1. Remove the Torx bolt from the anchor rail.
2. Slide the safety belt off the anchor rail.

Fig 2: Detaching Safety Belt Lower Anchor

Courtesy of FORD MOTOR CO.

All Vehicles

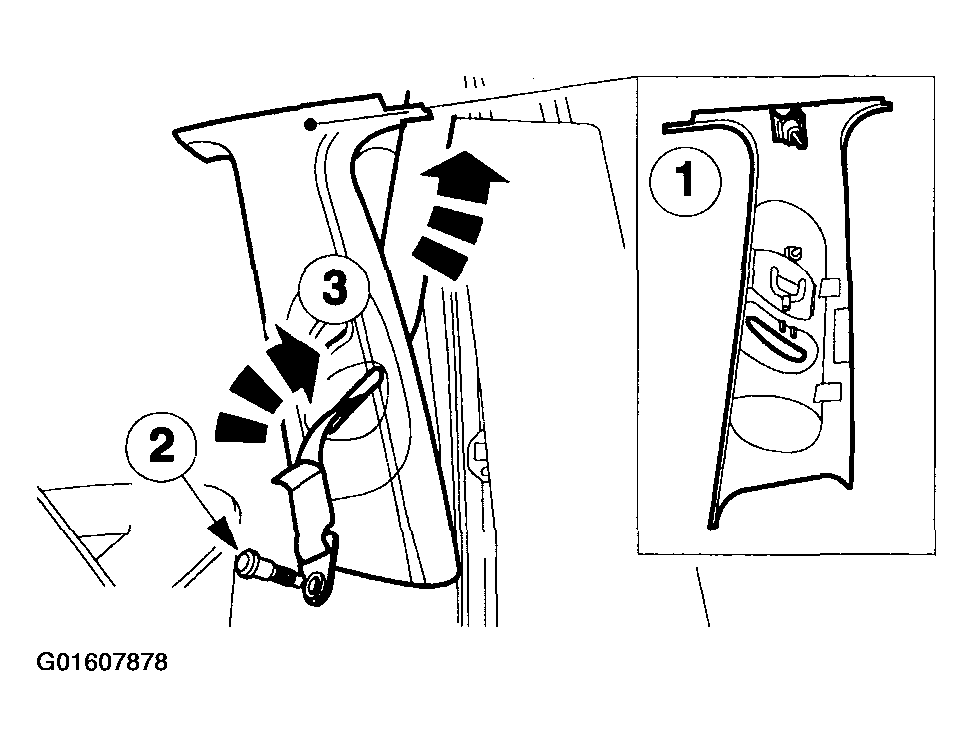

Detach the B-pillar upper trim panel.

NOTE: Certain production trim panels have a retaining clip on the front edge.
1. Detach the retaining clips.
2. Remove the lower anchor bolt and spacer from the safety belt webbing (4-door and Wagon shown).
3. Feed the safety belt webbing through the B-pillar upper trim panel.

Fig 3: Detaching B-Pillar Upper Trim Panel

Courtesy of FORD MOTOR CO.

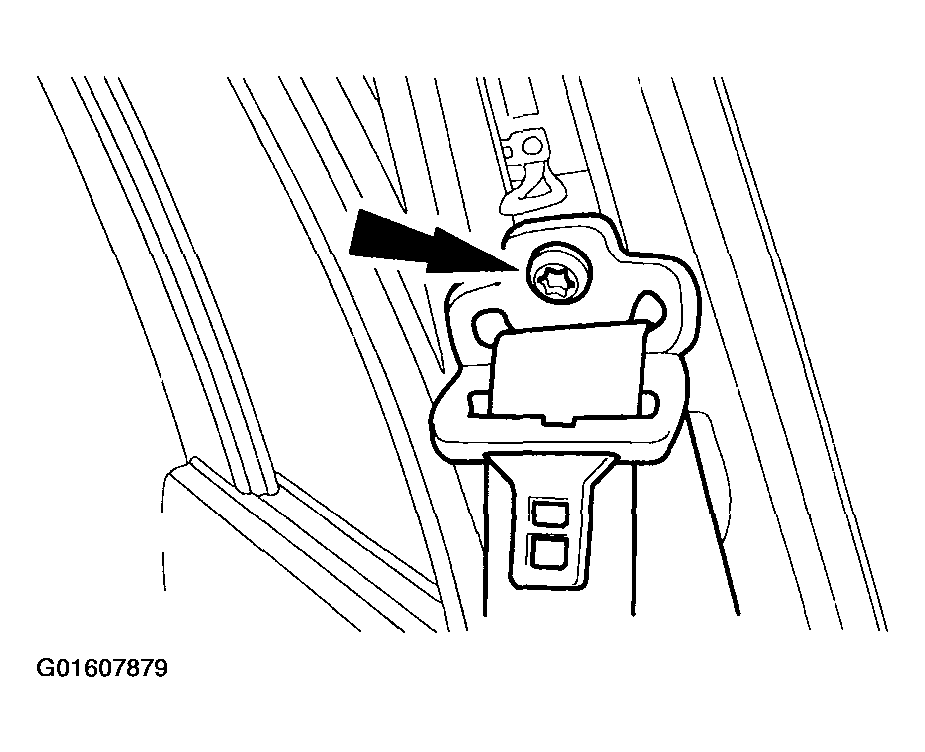

Detach the upper safety belt anchor.

Fig 4: Detaching Upper Safety Belt Anchor

Courtesy of FORD MOTOR CO.

4-Door, 5-Door And Wagon

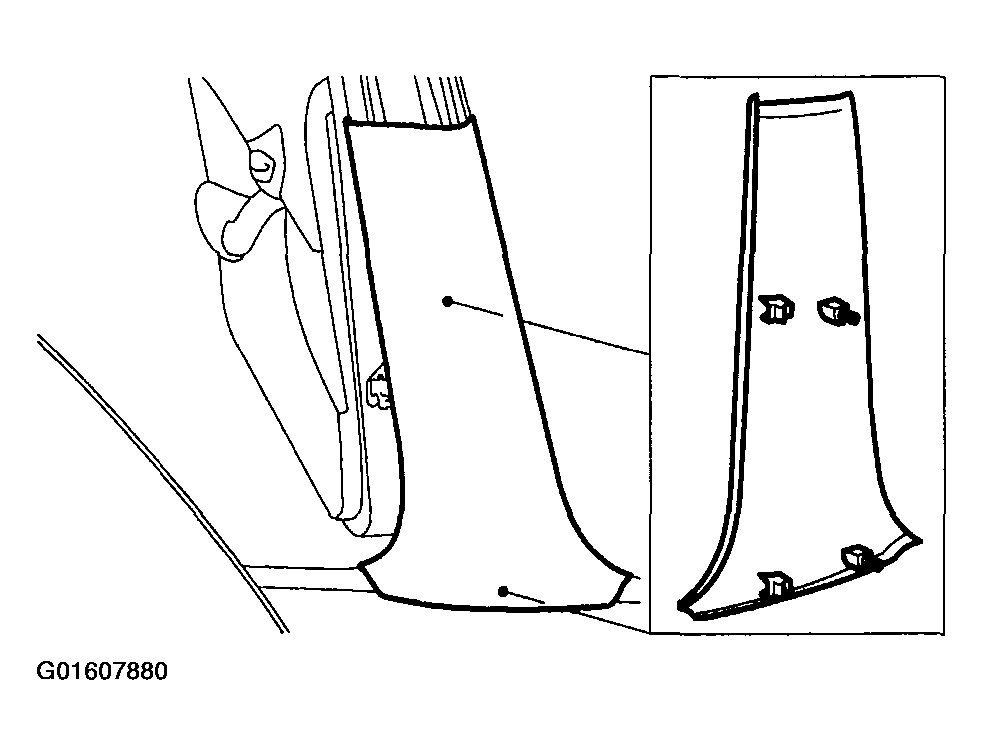

Remove the B-pillar lower trim panel.

Fig 5: Removing B-Pillar Lower Trim Panel

Courtesy of FORD MOTOR CO.

3-Door

Fig 6: Removing Lower Trim Panel

Courtesy of FORD MOTOR CO.

All Vehicles

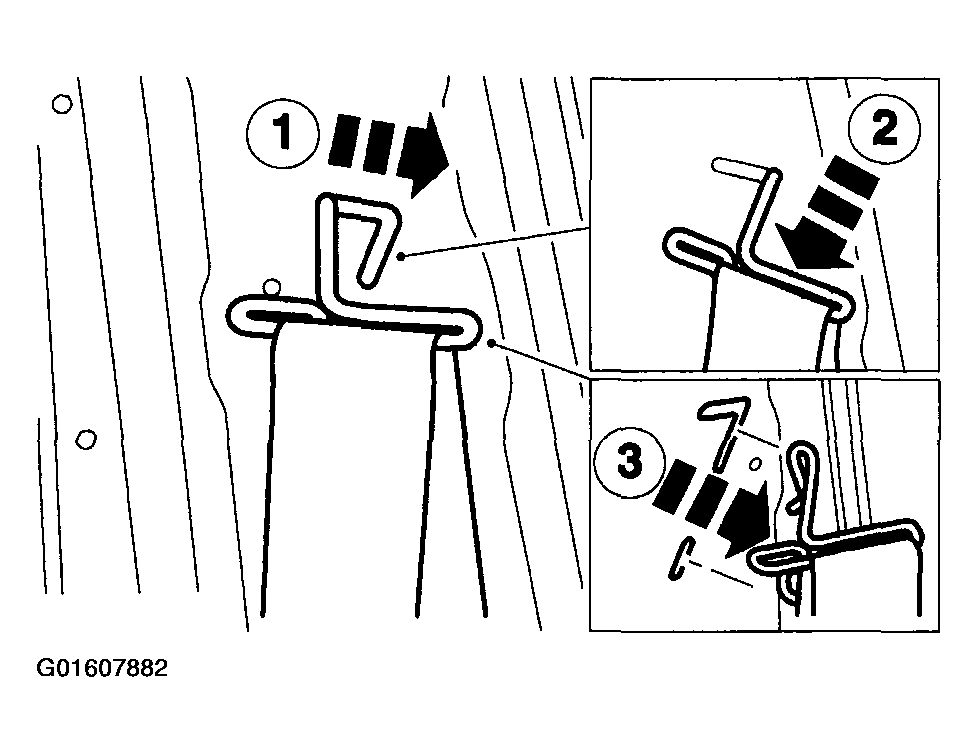

Detach the waist guide loop.

1. Slide the waist guide loop backwards.
2. Slide the waist guide loop down.
3. Detach the waist guide loop.

Fig 7: Detaching Waist Guide Loop

Courtesy of FORD MOTOR CO.

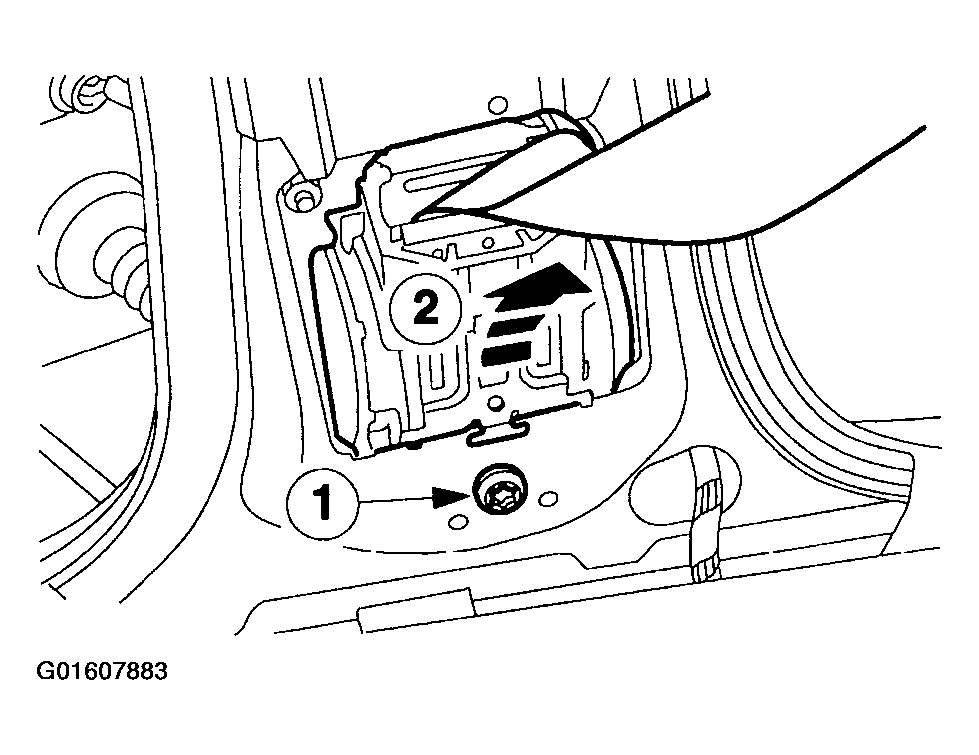

Remove the safety belt retractor.

1. Remove the bolt.
2. Lift the retractor from its locating tang.

Fig 8: Removing Safety Belt Retractor

Courtesy of FORD MOTOR CO.
