Symptom Chart

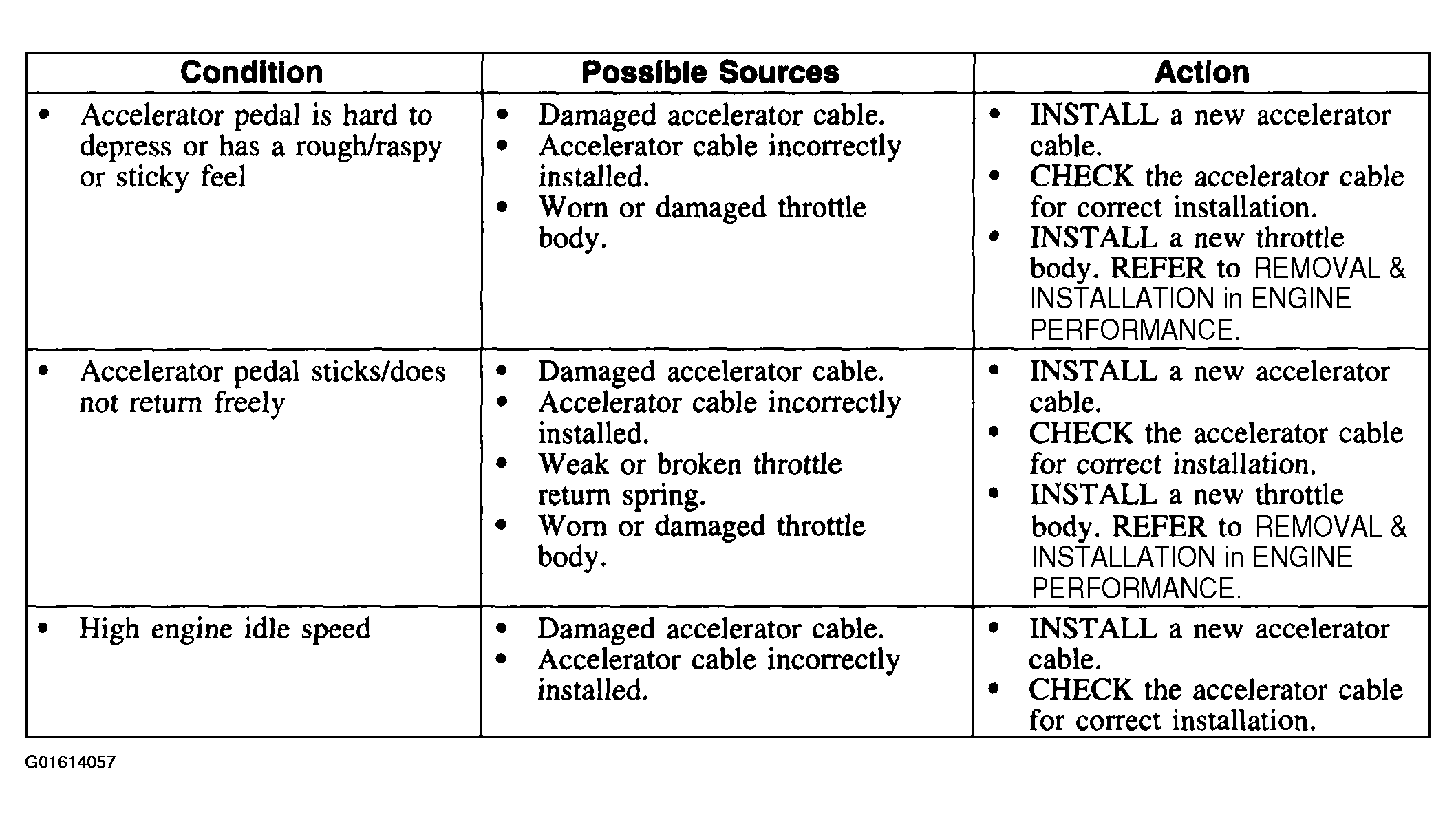

Fig 1: Acceleration Control Symptom Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
