Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Auxiliary Fuse Box | On right side of engine compartment, on fender. |

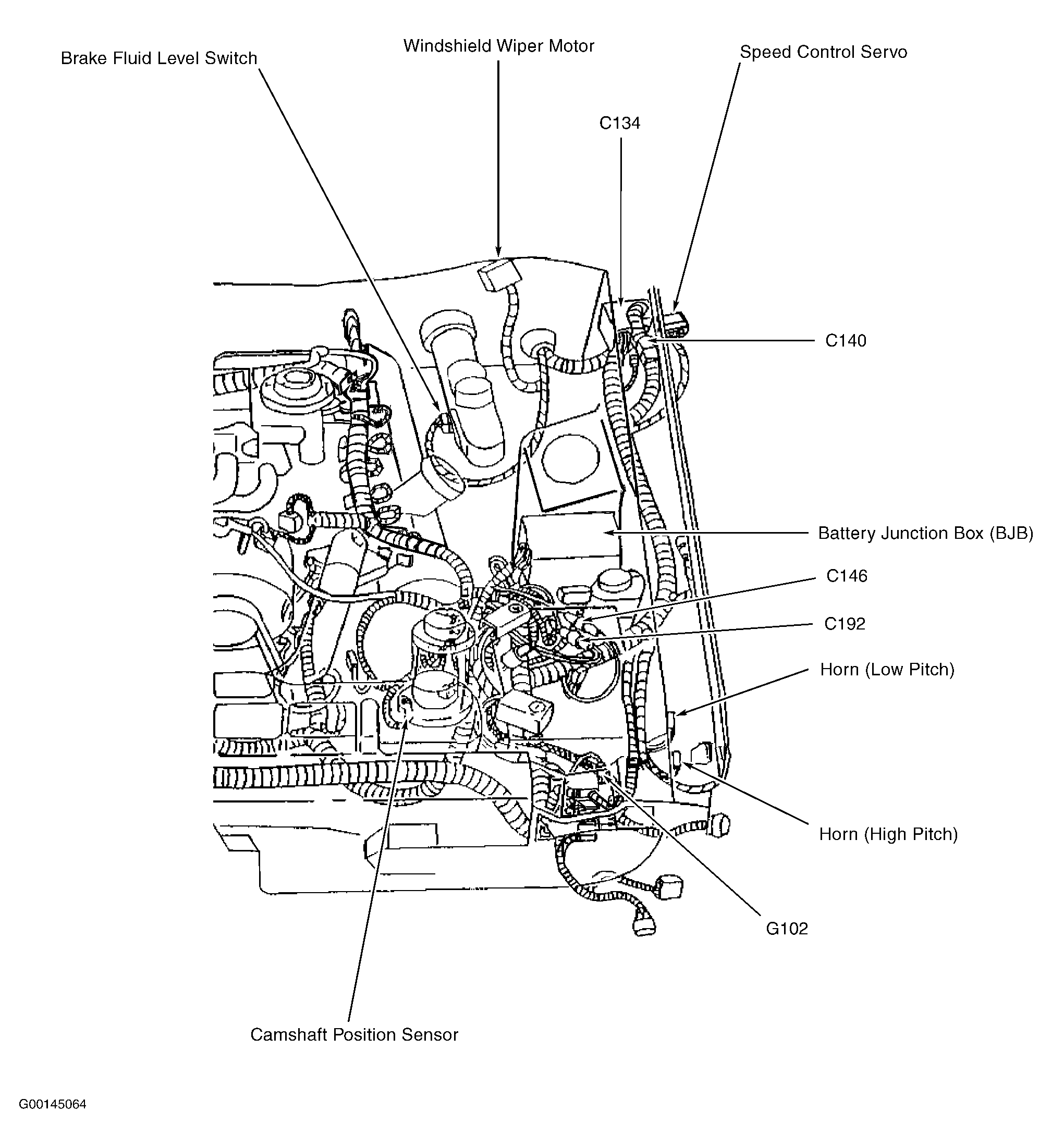

| Battery Junction Box (BJB) (3.8L) | On left side of engine compartment, forward of strut tower. See Figure. |
| Battery Junction Box (BJB) (4.6L) | On left side of engine compartment, forward of strut tower. See Figure. |

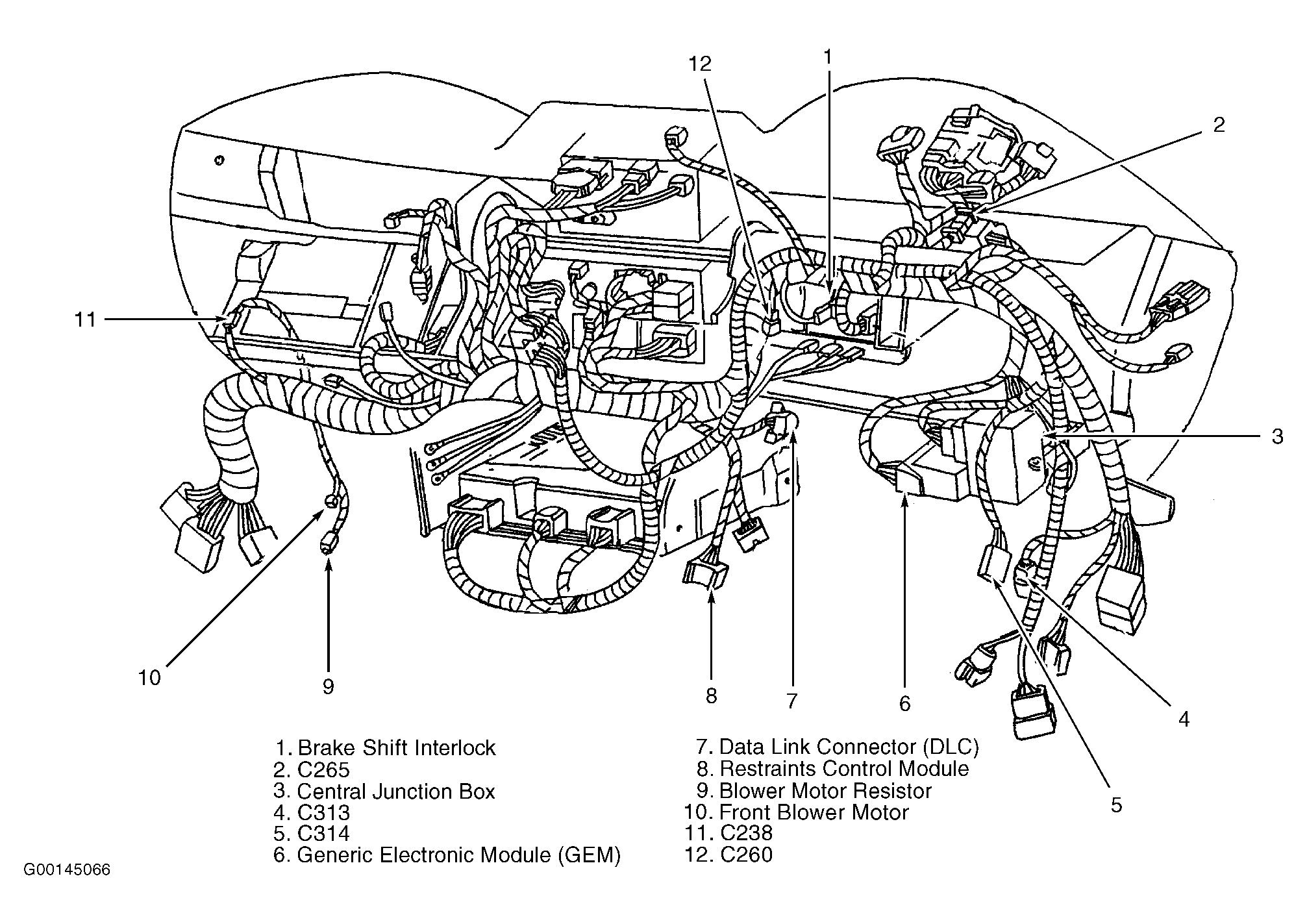

| Central Junction Box (CJB) | Behind dash, left of steering column. See Figure. |
| Fuse Link A/B | On generator rectifier system harness, near battery junction box. |
| Relay Box | Behind left side of dash, near central junction box. |
