Inspection and Verification

  1. Verify the customer's concern by operating the acceleration control system to duplicate the condition.
  2. Inspect to determine if any of the following mechanical concerns apply:

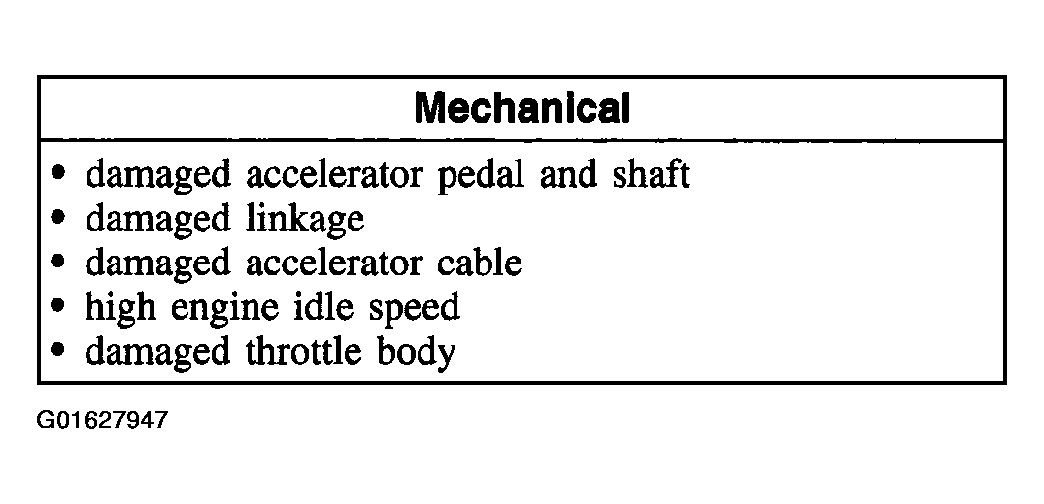

    Fig 1: Identifying Acceleration Control Visual Inspection Chart
    G01627947Courtesy of FORD MOTOR CO.
  3. If the inspection reveals an obvious concern that can be readily identified, repair as required.
  4. If the concern remains after the inspection, determine the symptom(s) and GO to SYMPTOM CHART .
