Symptom Chart

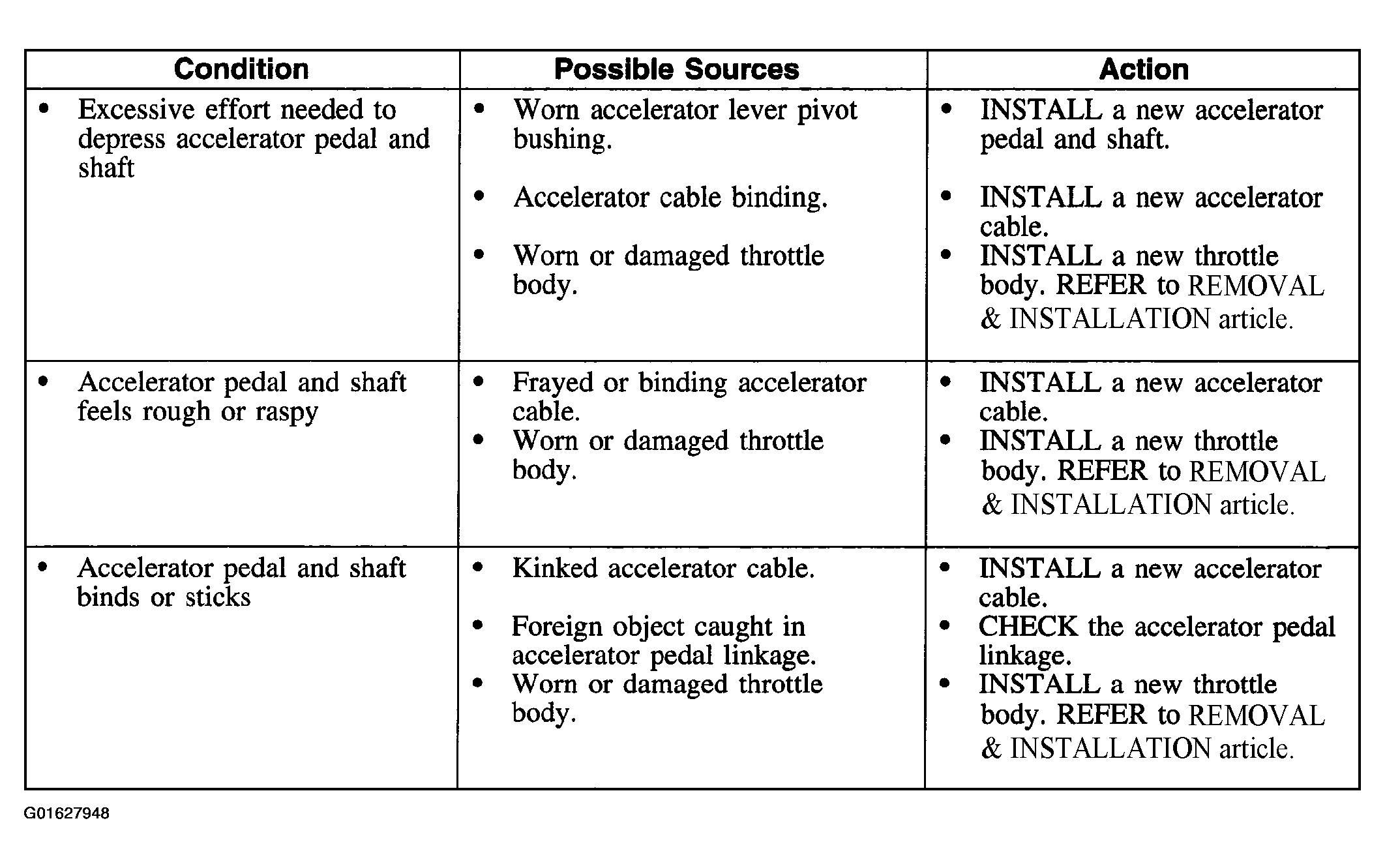

Fig 1: Acceleration Control Symptom Diagnostic Chart (1 Of 2)
G01627948Courtesy of FORD MOTOR CO.

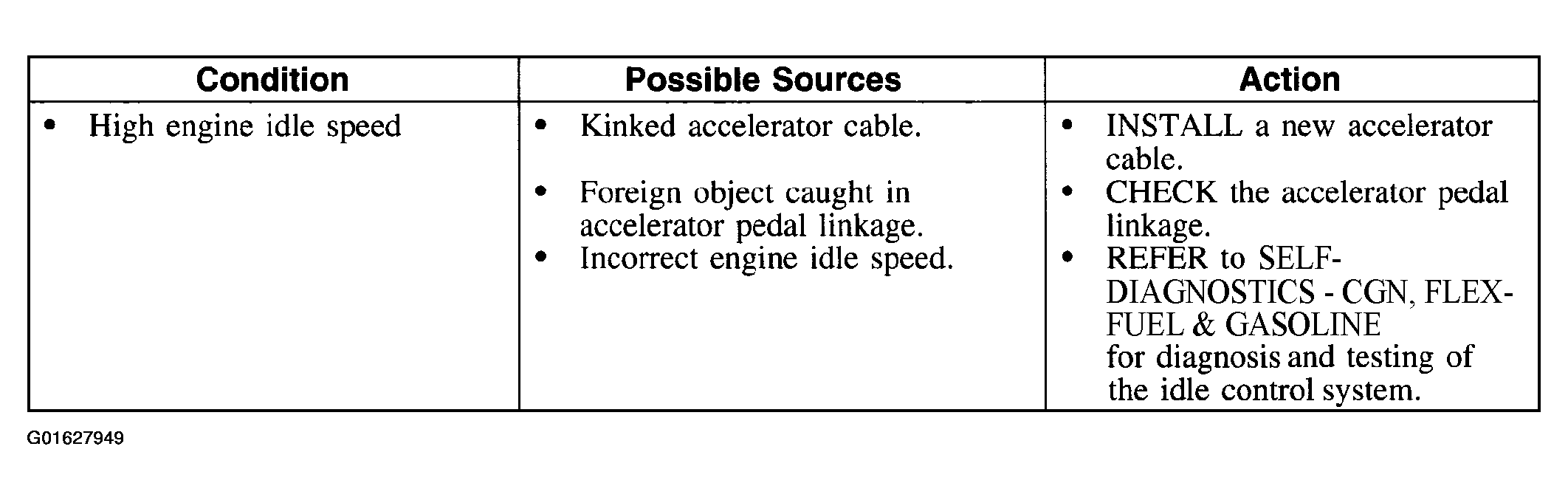

Fig 2: Acceleration Control Symptom Diagnostic Chart (2 Of 2)
G01627949Courtesy of FORD MOTOR CO.
