Torque Specifications

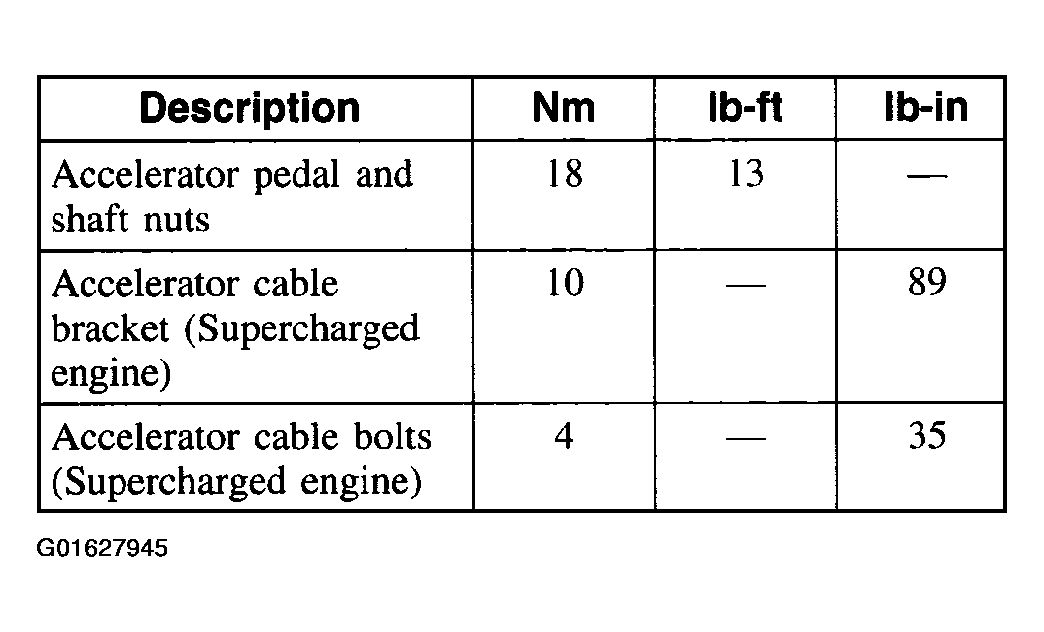

Fig 1: Acceleration Control Torque Specification
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
