Spring Lock Couplings: Connect

NOTE: Inspect and clean both the coupling ends. Lubricate the O-ring seals with clean engine oil.

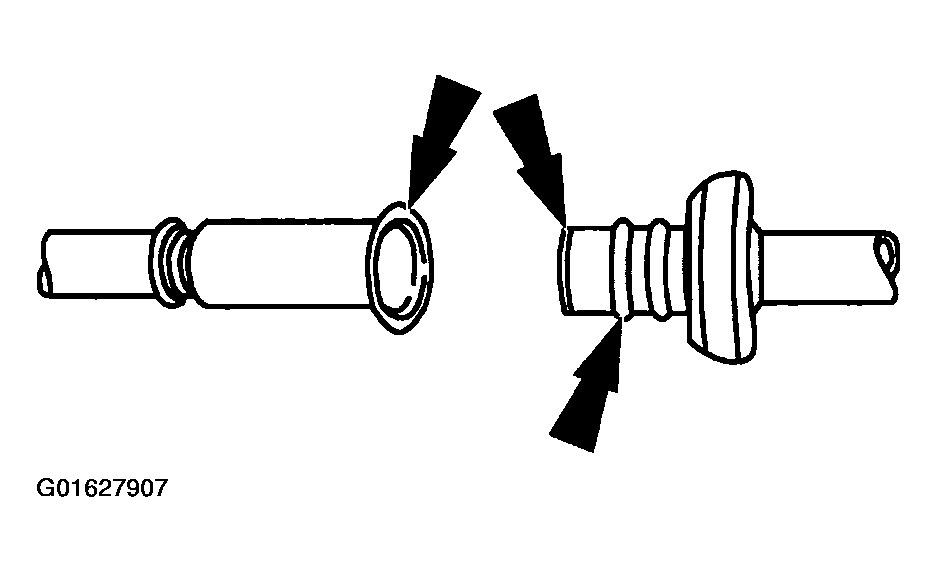

Fig 1: Connecting Fitting

Courtesy of FORD MOTOR CO.

Connect the fitting.
- Pull on the fitting to make sure it is fully engaged.
- Install the safety clip.
