Symptom Chart

NOTE: Before using the Symptom Chart, disconnect accelerator cable from the throttle body lever, and disconnect the speed control actuator cable from the throttle body, if equipped.

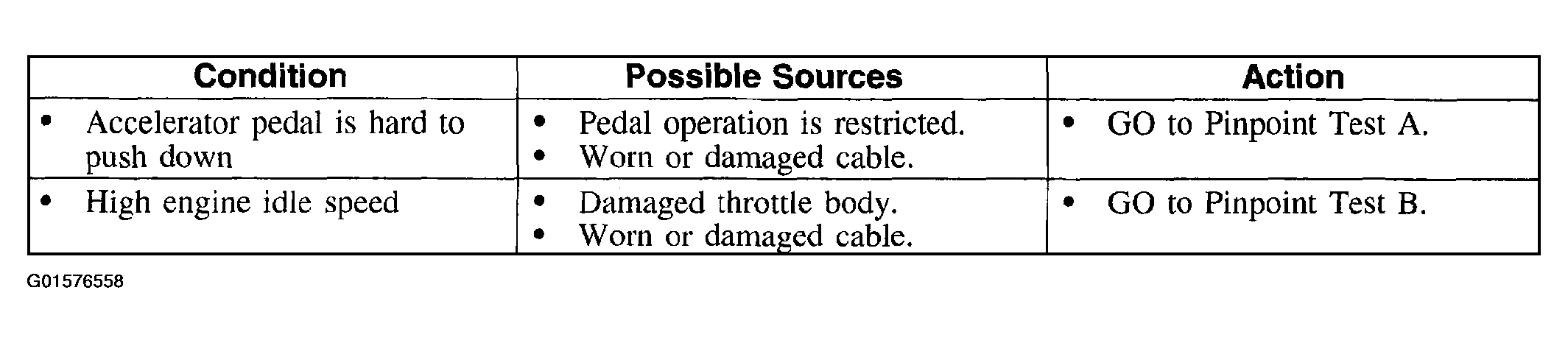

Fig 1: Symptom Chart
G01576558Courtesy of FORD MOTOR CO.
