Symptom Chart

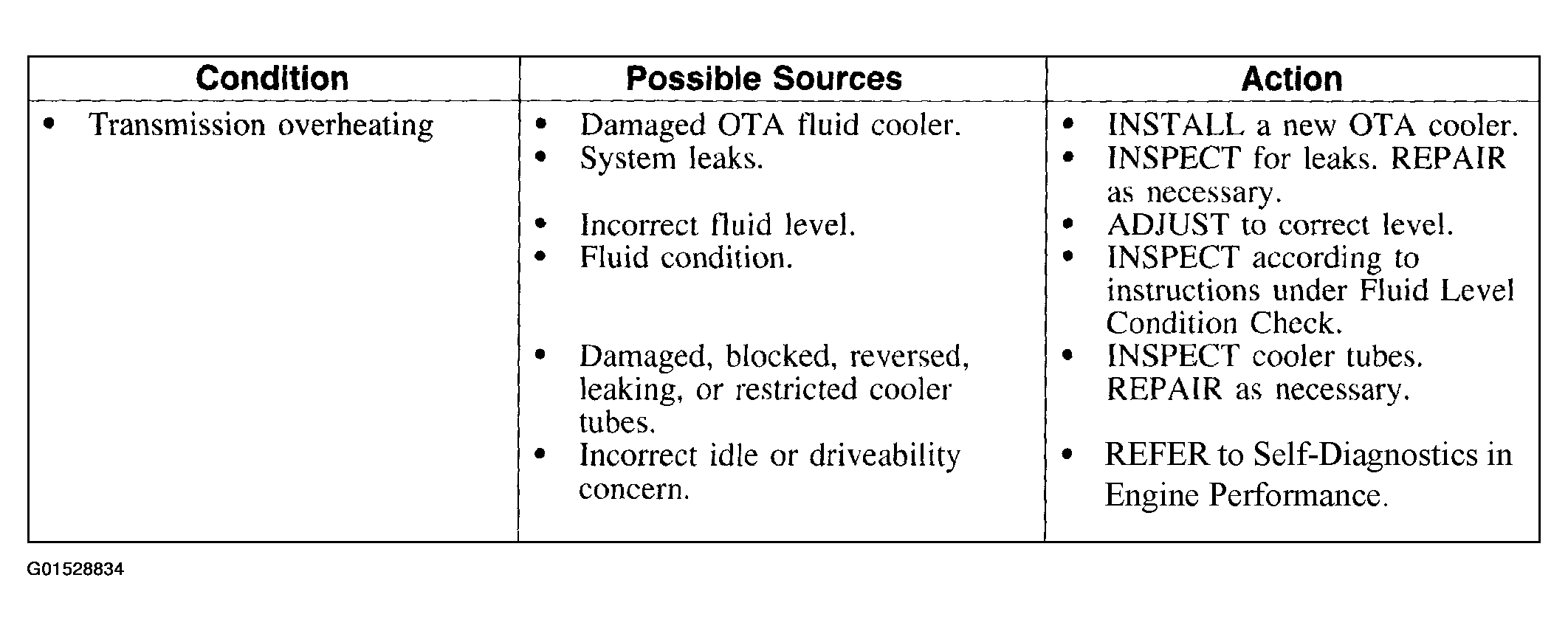

Fig 1: Transmission Overheating Symptom Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
