Park System: Removal: Notes
NOTE:
If damage to the park gear is found, the transmission must be removed and disassembled to install a new park gear.
NOTE:
The park pawl, park pawl return spring and the park pawl shaft may fall out when removing the extension housing.
NOTE:
The transmission fluid pan gasket is reusable. Clean and inspect. If damage to the gasket is found, a new gasket must be installed.
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

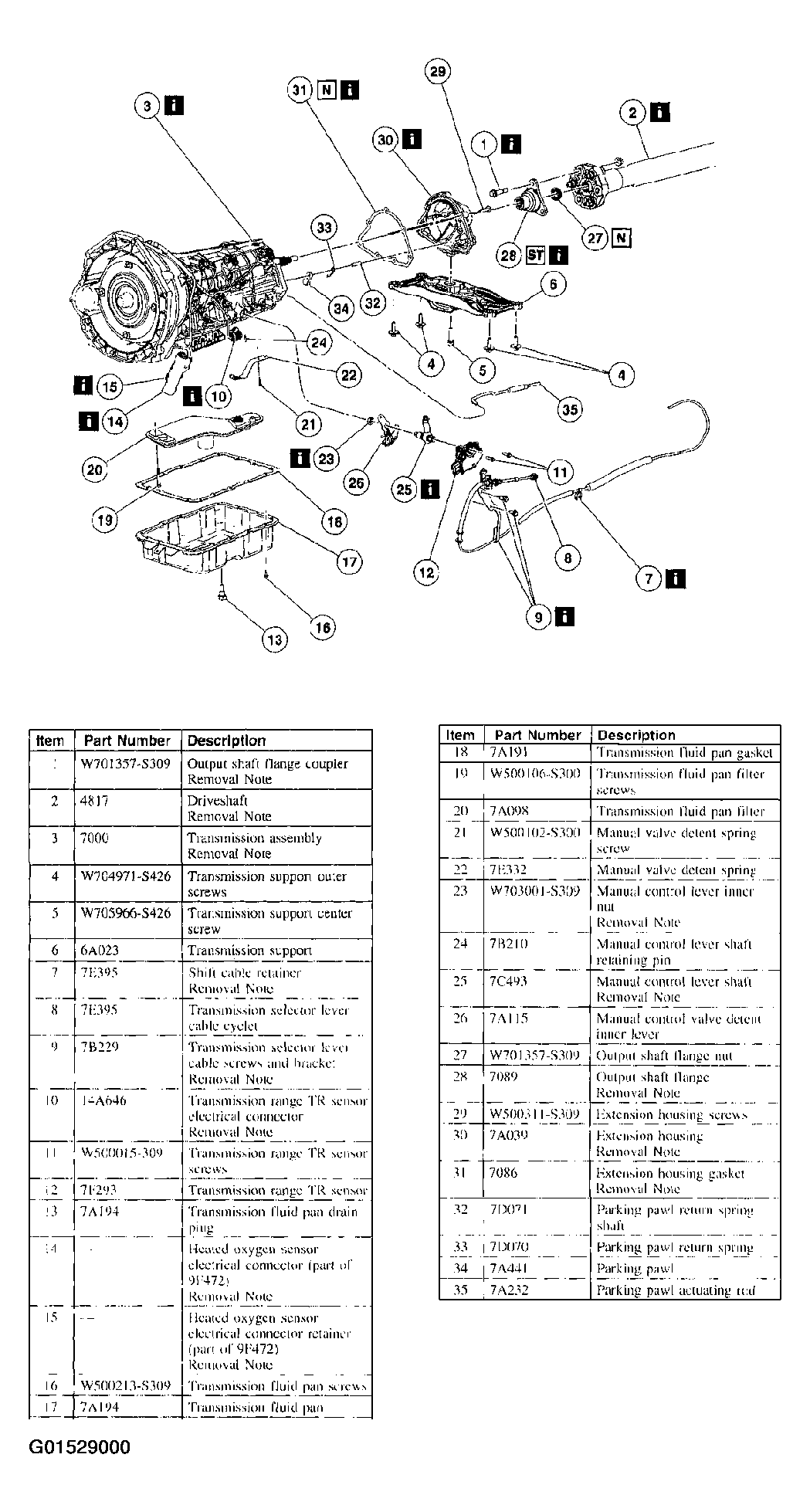

- Remove the components in the order indicated in the following illustration and table.
