Second Row Side Window Glass: Removal

  1. Remove the rear quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
    2. NOTE: Gently pull the glass away from the butyl.

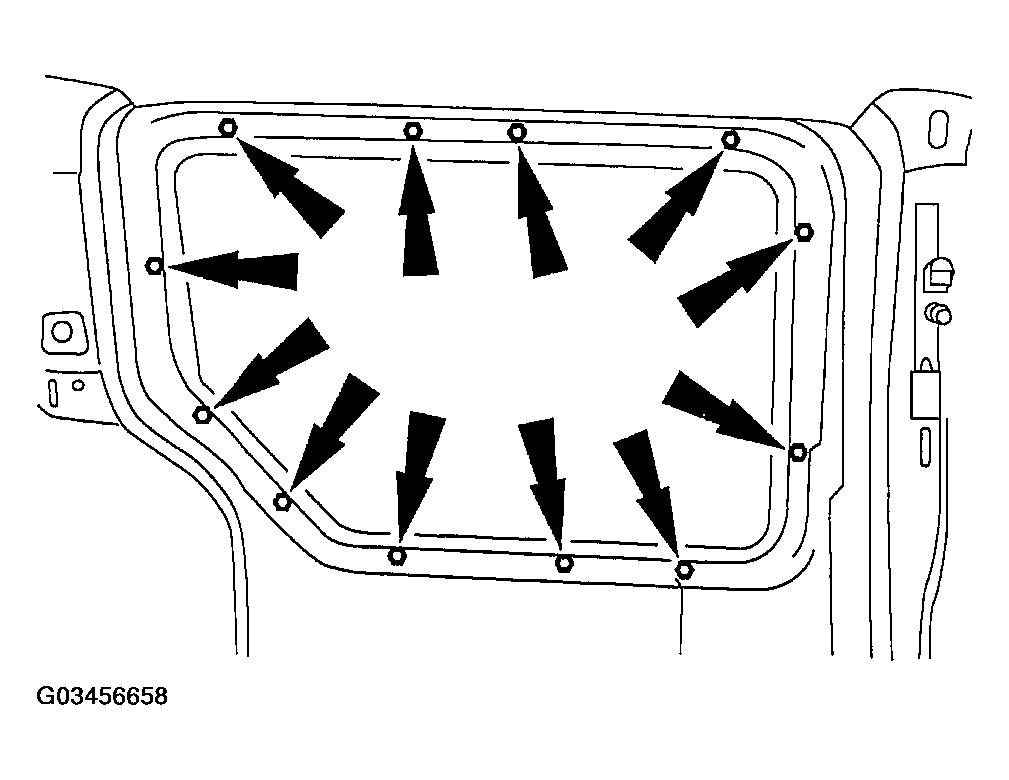

    Fig 1: Removing Nuts And Side Window Glass
    G03456658Courtesy of FORD MOTOR CO.
  2. Remove the nuts and the side window glass.
