Connector Views

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07833449

Courtesy of FORD MOTOR CO.

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07833450

Courtesy of FORD MOTOR CO.

Fig 3: Generator Connector End View (C102a)

G07833451

Courtesy of FORD MOTOR CO.

Fig 4: Generator Connector End View (C102b)

G07833452

Courtesy of FORD MOTOR CO.

Fig 5: Oil Pressure Switch Connector End View (C103)

G07833453

Courtesy of FORD MOTOR CO.

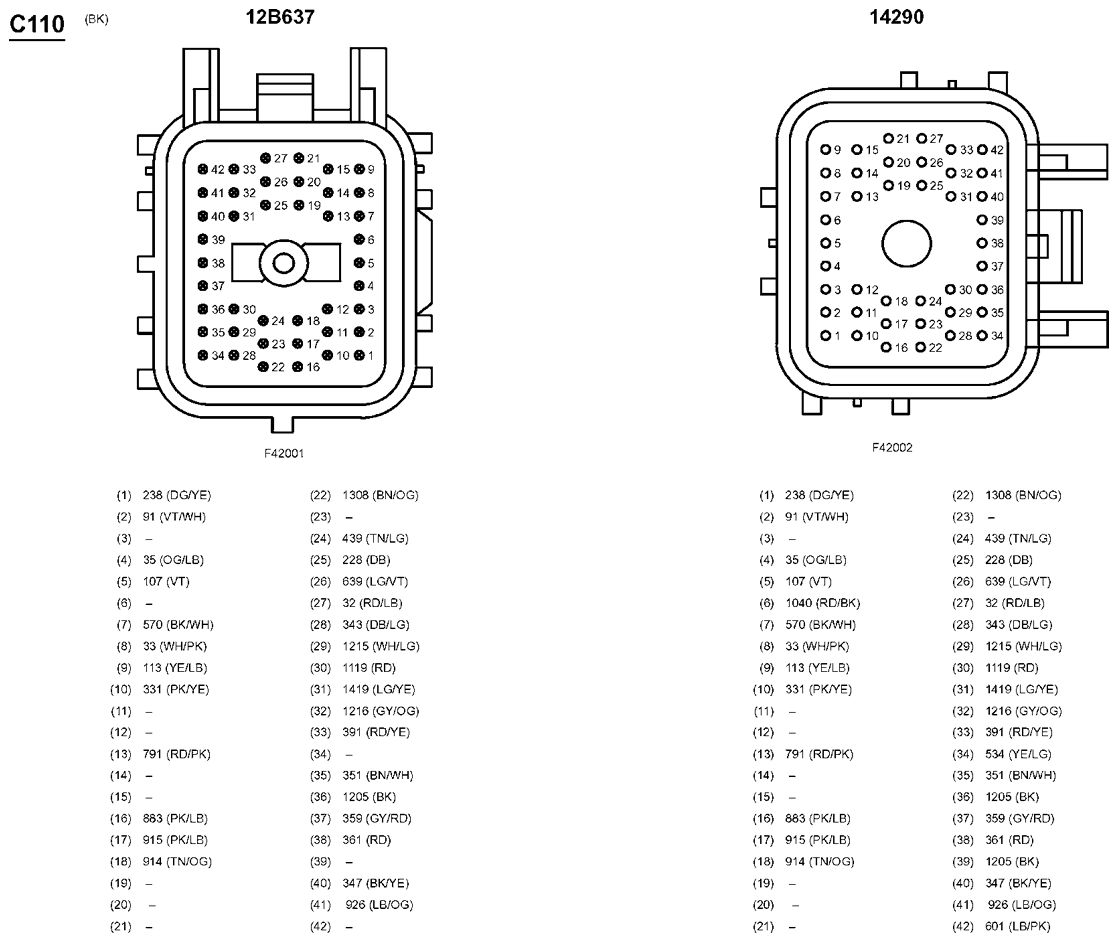

Fig 6: Inline Connector End View (C110)

G07833454

Courtesy of FORD MOTOR CO.

Fig 7: Power Steering Pressure Switch Connector End View (C121)

G07833455

Courtesy of FORD MOTOR CO.

Fig 8: Speed Control Servo Connector End View (C122)

G07833456

Courtesy of FORD MOTOR CO.

Fig 9: EVAP Canister Purge Valve Connector End View (C123)

G07833457

Courtesy of FORD MOTOR CO.

Fig 10: Brake Fluid Level Switch Connector End View (C124)

G07833458

Courtesy of FORD MOTOR CO.

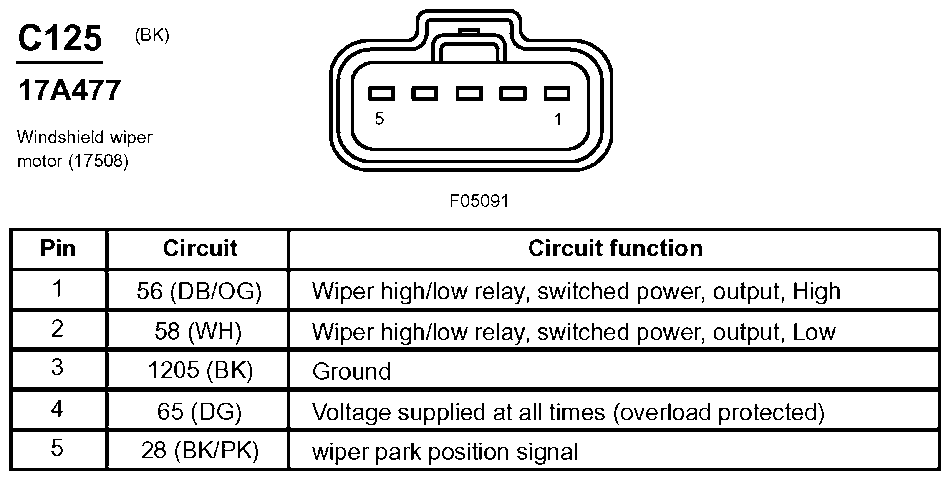

Fig 11: Windshield Wiper Motor Connector End View (C125)

G07833459

Courtesy of FORD MOTOR CO.

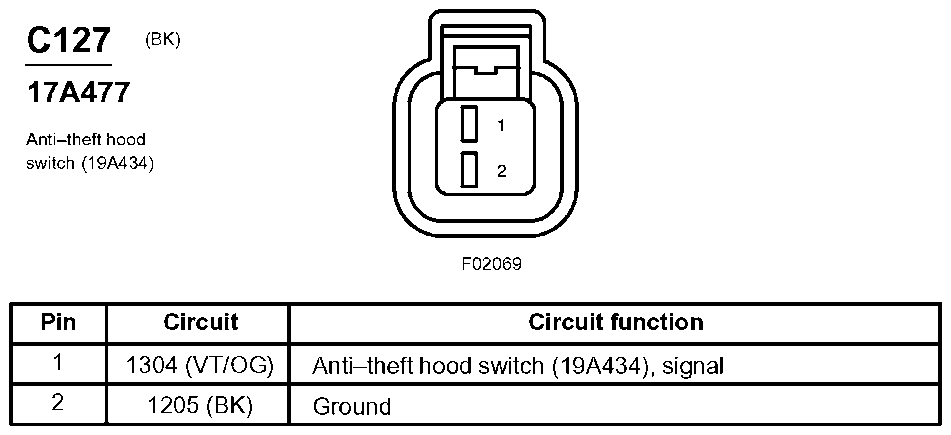

Fig 12: Anti-Theft Hood Switch Connector End View (C127)

G07833460

Courtesy of FORD MOTOR CO.

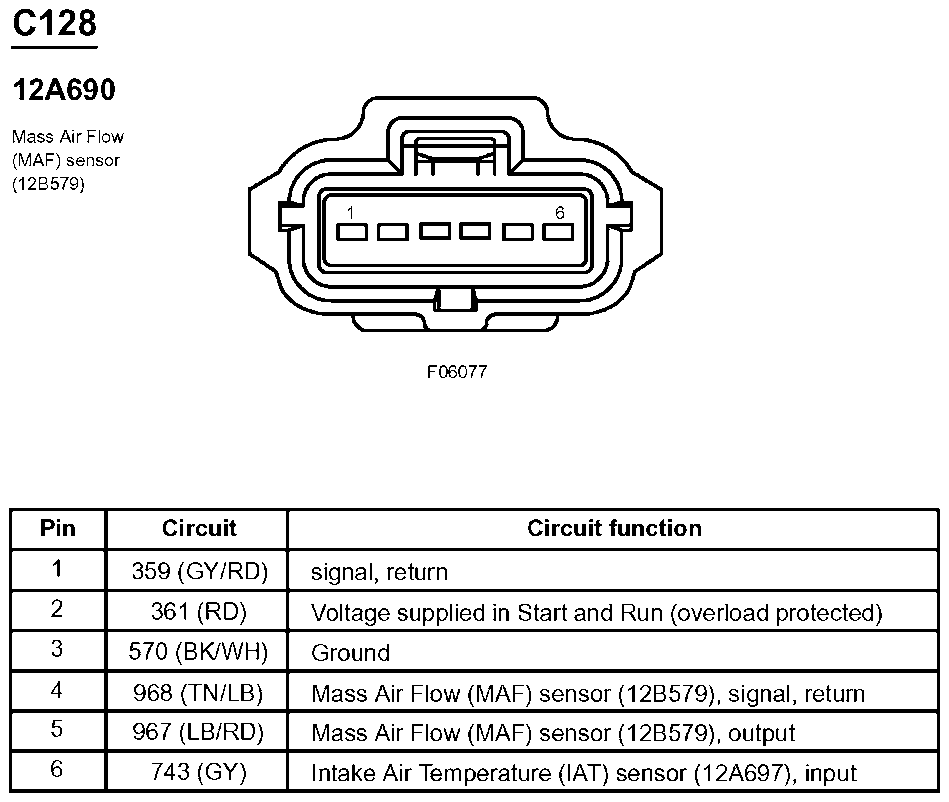

Fig 13: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07833461

Courtesy of FORD MOTOR CO.

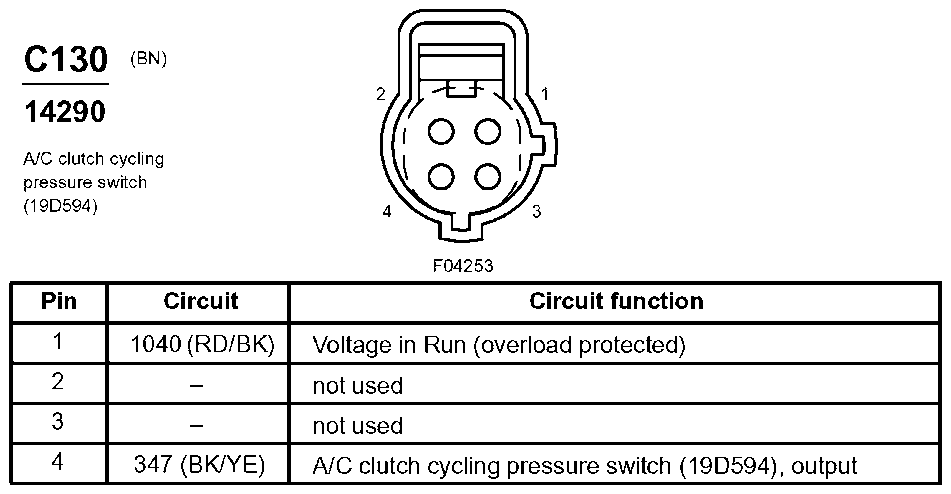

Fig 14: A/C Clutch Cycling Pressure Switch Connector End View (C130)

G07833462

Courtesy of FORD MOTOR CO.

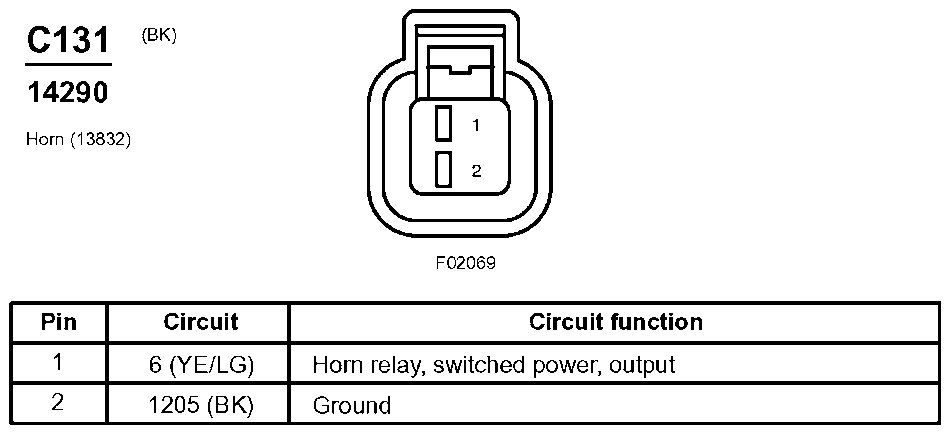

Fig 15: Horn Connector End View (C131)

G07833463

Courtesy of FORD MOTOR CO.

Fig 16: Ambient Air Temperature Sensor Connector End View (C132)

G07833464

Courtesy of FORD MOTOR CO.

Fig 17: Inline Connector End View (C133)

G07833465

Courtesy of FORD MOTOR CO.

Fig 18: Inline Connector End View (C134)

G07833466

Courtesy of FORD MOTOR CO.

Fig 19: ABS Control Module Connector End View (C135)

G03776586

Courtesy of FORD MOTOR CO.

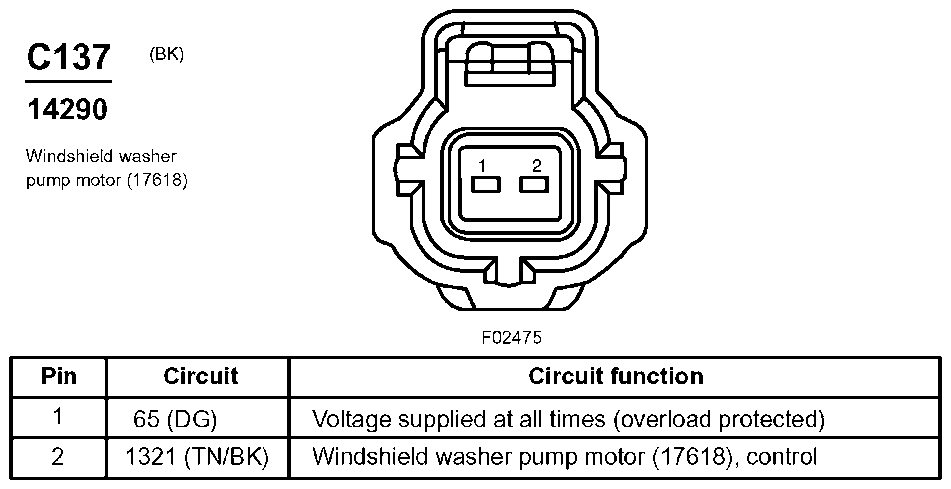

Fig 20: Windshield Washer Pump Motor Connector End View (C137)

G07833467

Courtesy of FORD MOTOR CO.

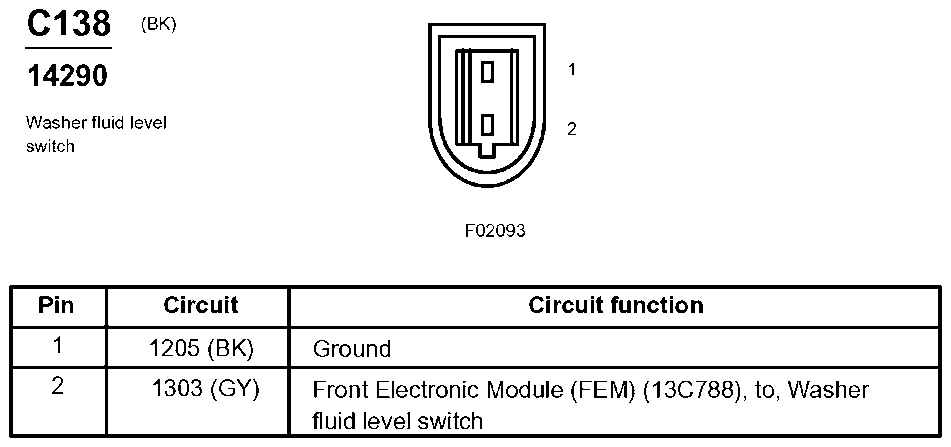

Fig 21: Washer Fluid Level Switch Connector End View (C138)

G07833468

Courtesy of FORD MOTOR CO.

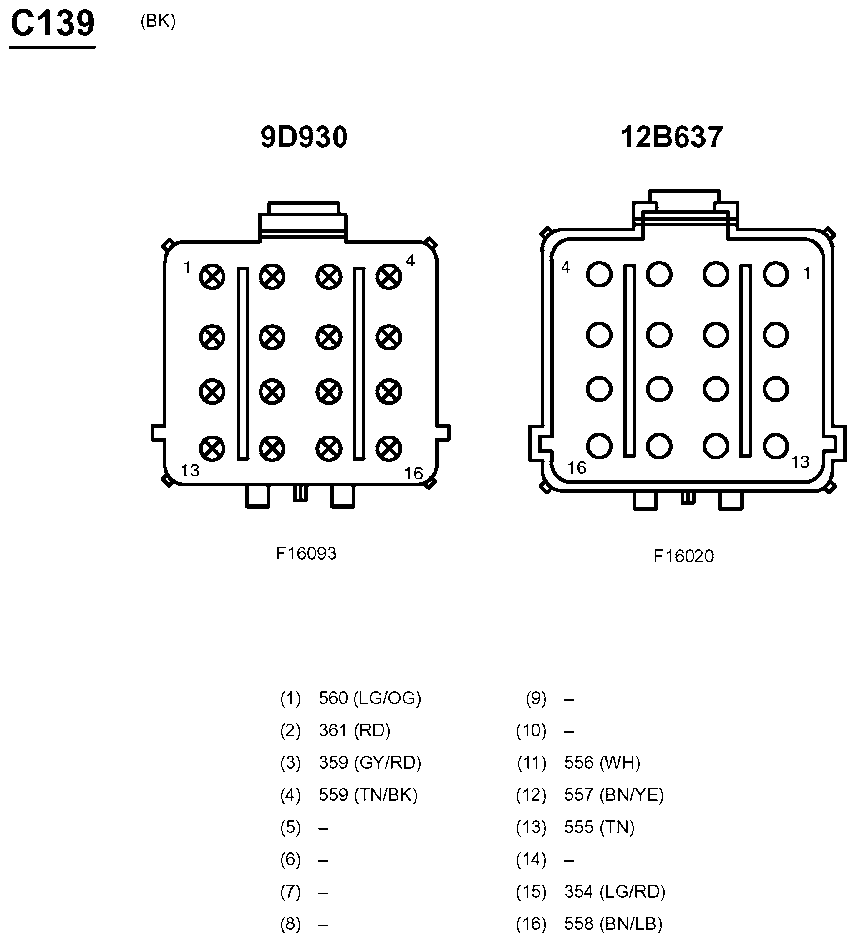

Fig 22: Inline Connector End View (C139)

G07833469

Courtesy of FORD MOTOR CO.

Fig 23: Inline Connector End View (C140)

G07833470

Courtesy of FORD MOTOR CO.

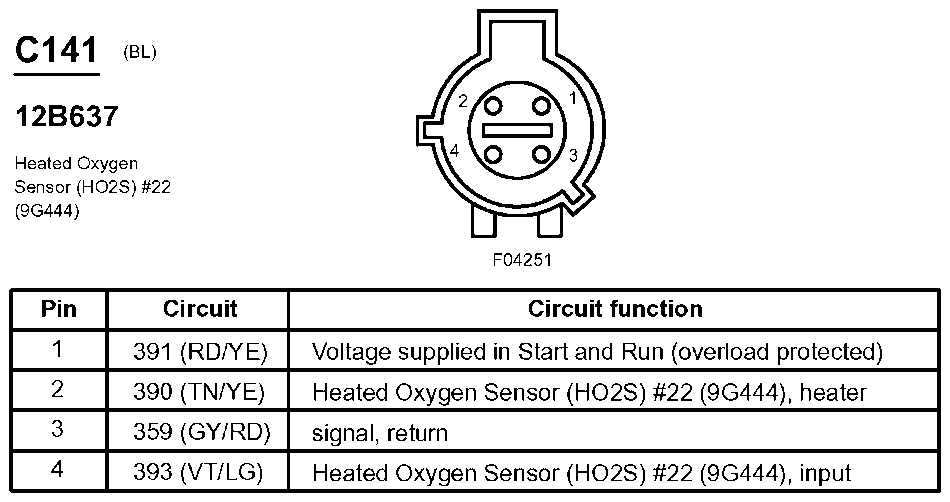

Fig 24: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G07833471

Courtesy of FORD MOTOR CO.

Fig 25: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07833472

Courtesy of FORD MOTOR CO.

Fig 26: Turbine Shaft Speed Sensor Connector End View (C143)

G07833473

Courtesy of FORD MOTOR CO.

Fig 27: Inline Connector End View (C144)

G07833474

Courtesy of FORD MOTOR CO.

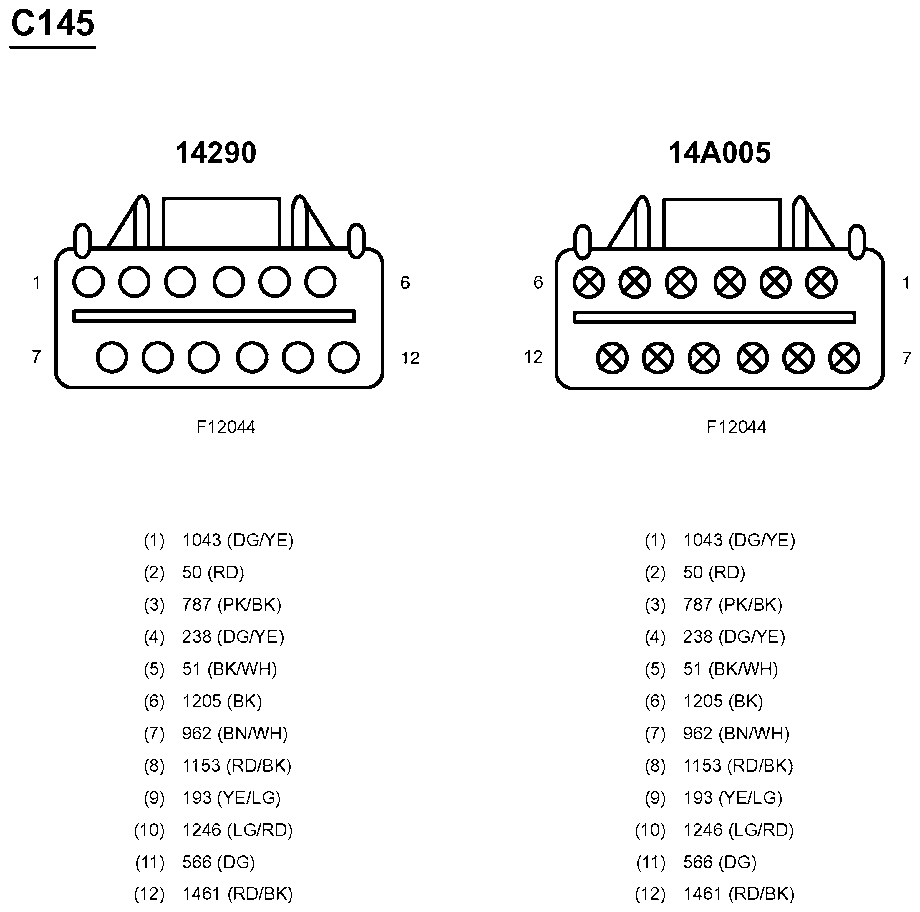

Fig 28: Inline Connector End View (C145)

G07833475

Courtesy of FORD MOTOR CO.

Fig 29: Inline Connector End View (C146)

G07833476

Courtesy of FORD MOTOR CO.

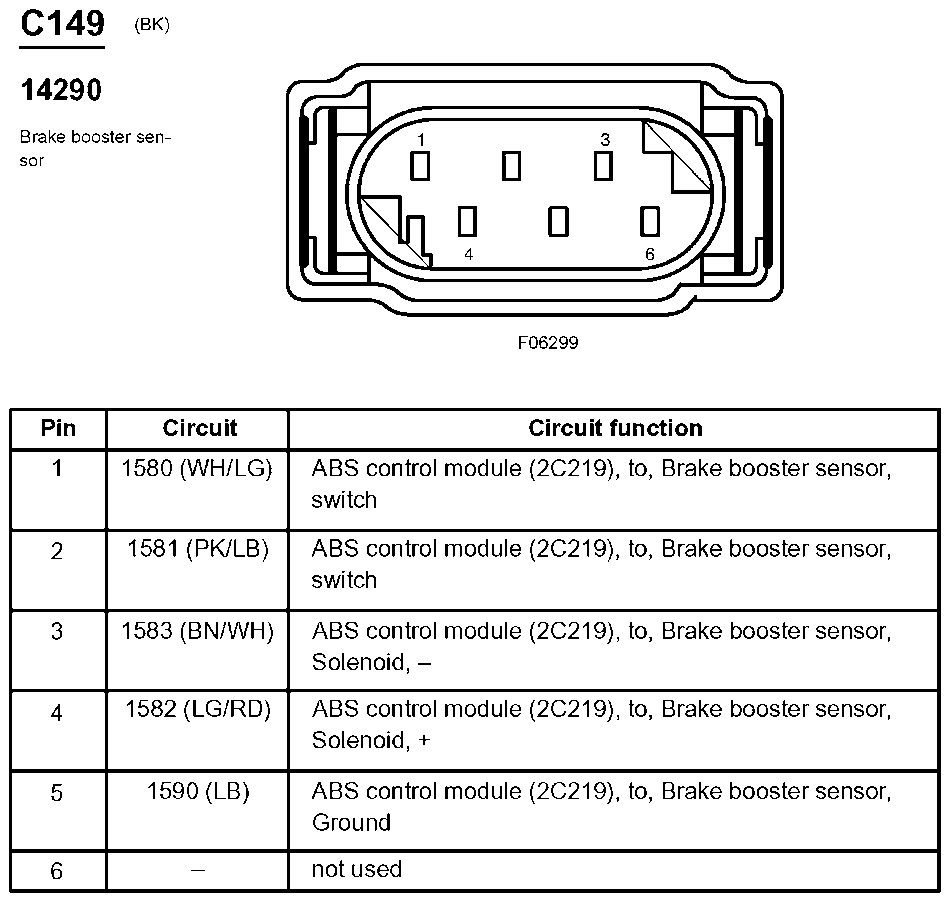

Fig 30: Brake Booster Sensor Connector End View (C149)

G07833477

Courtesy of FORD MOTOR CO.

Fig 31: Side Lamp, Left Front Connector End View (C151)

G03776591

Courtesy of FORD MOTOR CO.

Fig 32: ABS Control Module Connector End View (C155) (1 Of 2)

G03776592

Courtesy of FORD MOTOR CO.

Fig 33: ABS Control Module Connector End View (C155) (2 Of 2)

G03776593

Courtesy of FORD MOTOR CO.

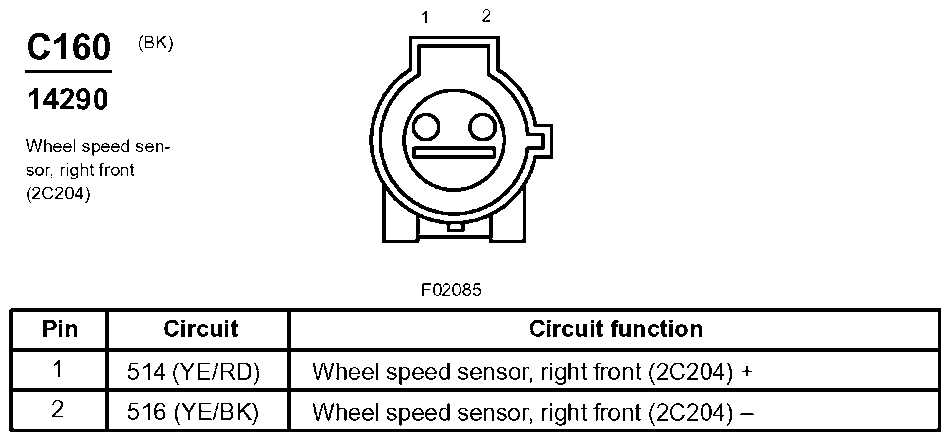

Fig 34: Wheel Speed Sensor, Right Front Connector End View (C160)

G07833478

Courtesy of FORD MOTOR CO.

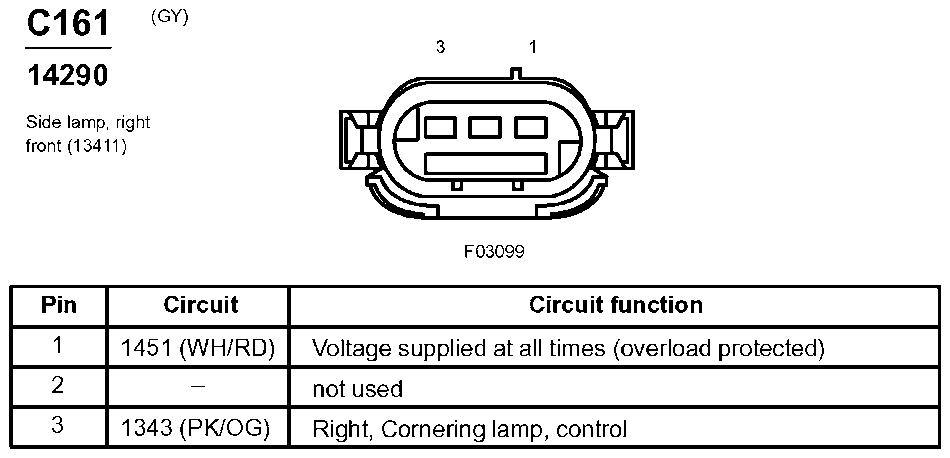

Fig 35: Side Lamp, Right Front Connector End View (C161)

G07833479

Courtesy of FORD MOTOR CO.

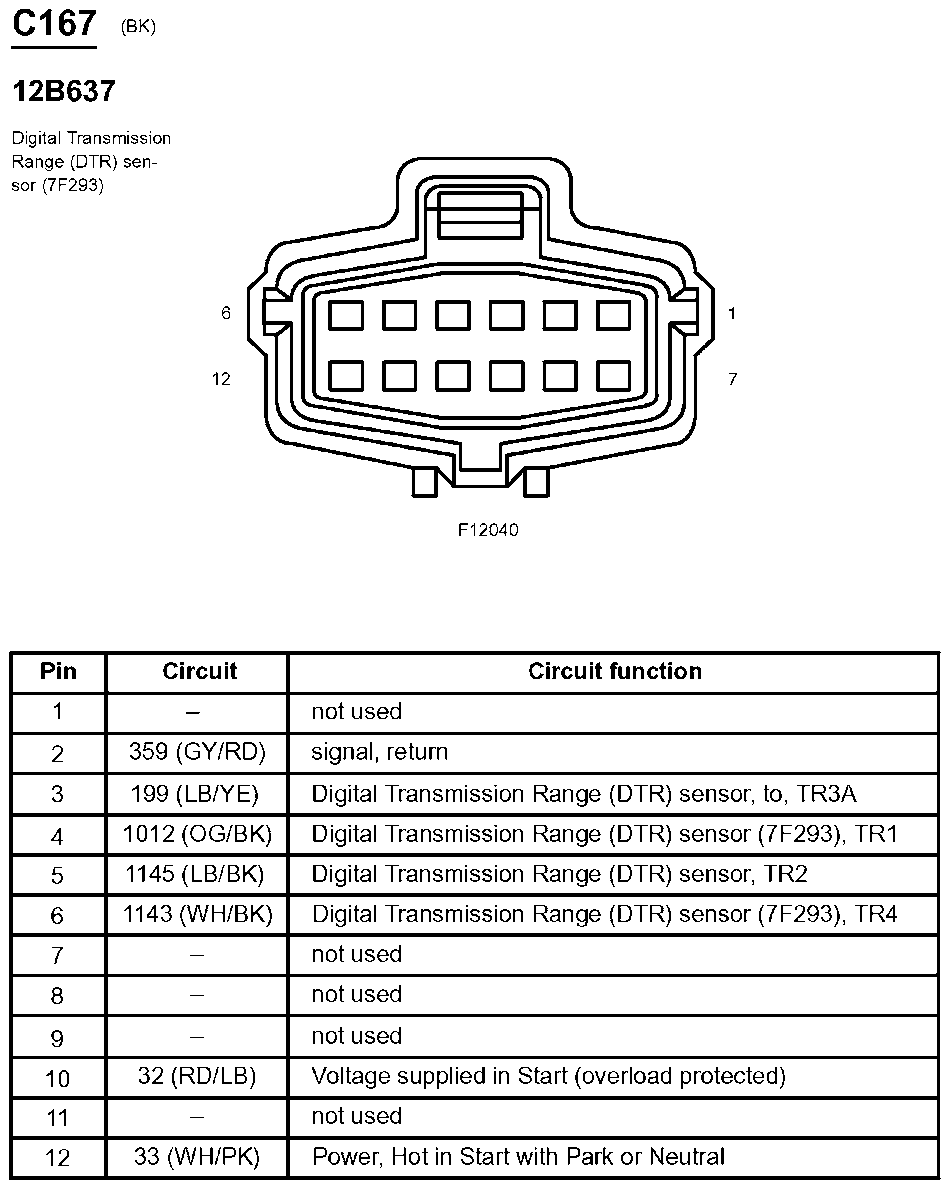

Fig 36: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07833480

Courtesy of FORD MOTOR CO.

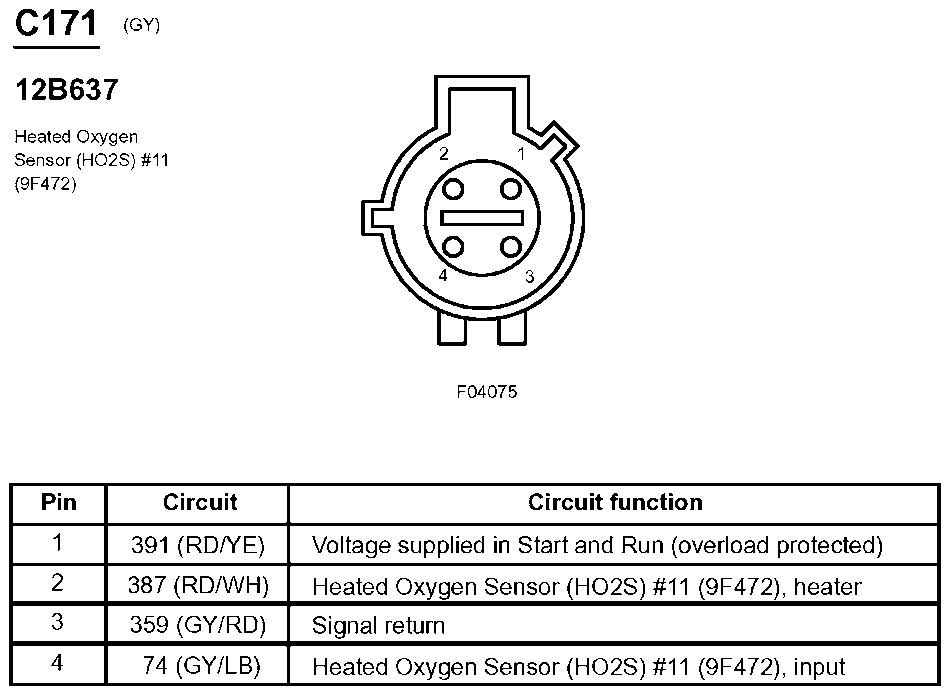

Fig 37: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07833481

Courtesy of FORD MOTOR CO.

Fig 38: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07833482

Courtesy of FORD MOTOR CO.

Fig 39: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)

G03776596

Courtesy of FORD MOTOR CO.

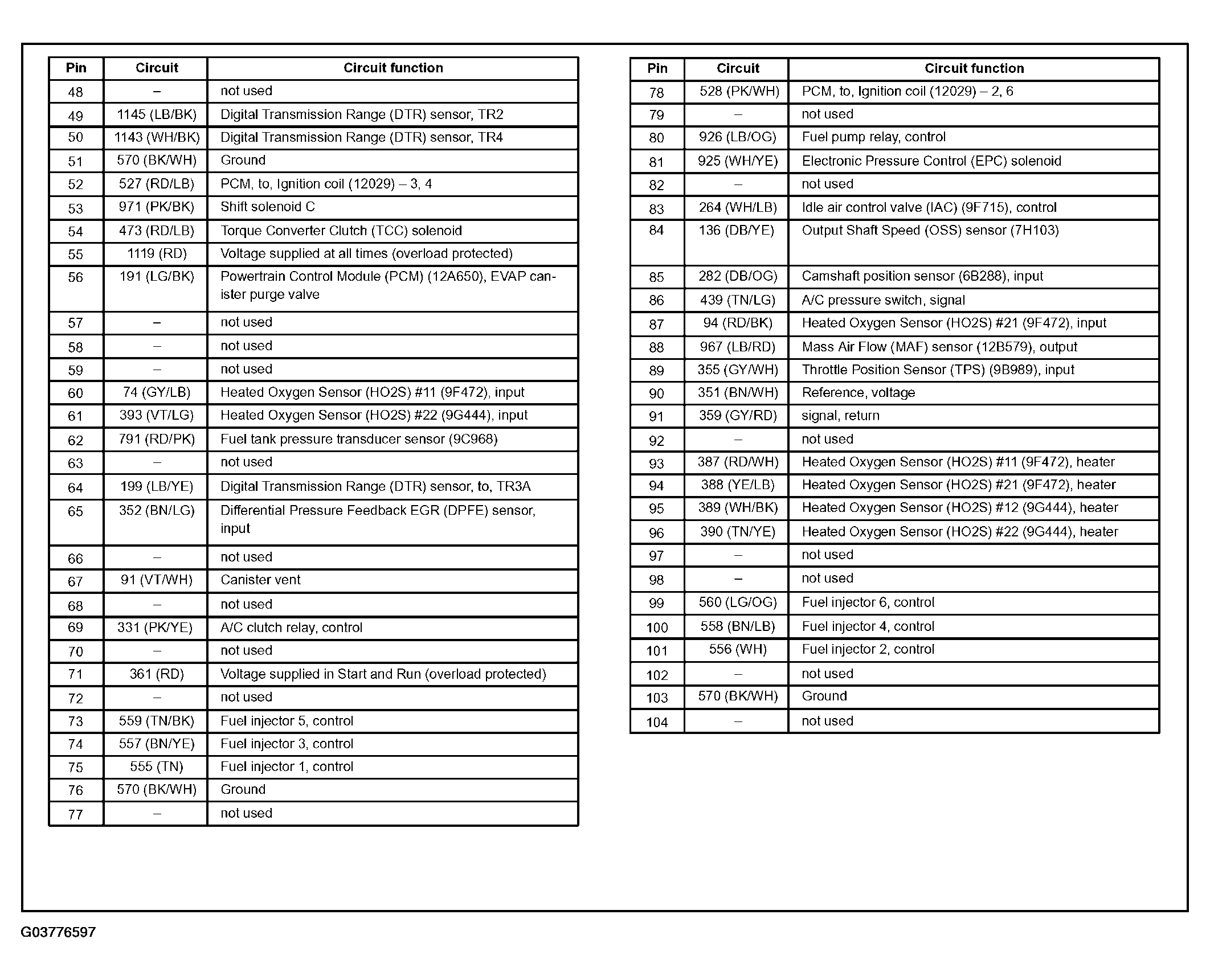

Fig 40: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)

G03776597

Courtesy of FORD MOTOR CO.

Fig 41: Forward Crash Sensor Connector End View (C177)

G07833483

Courtesy of FORD MOTOR CO.

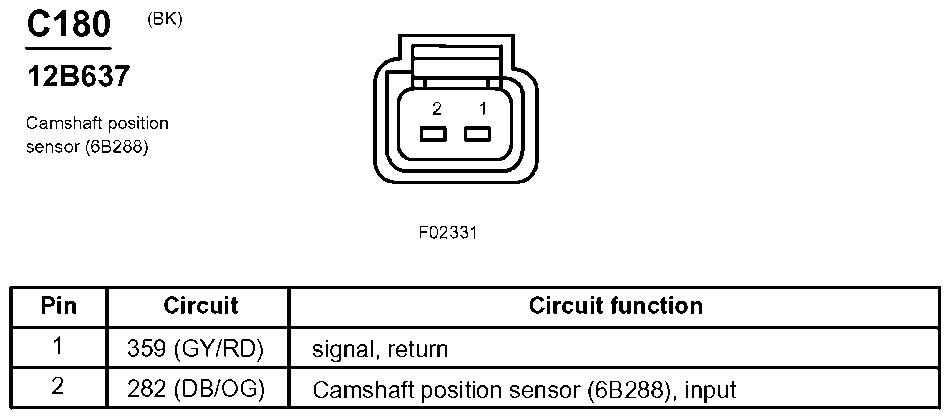

Fig 42: Camshaft Position Sensor Connector End View (C180)

G07833484

Courtesy of FORD MOTOR CO.

Fig 43: Fuel Injector 1 Connector End View (C181)

G07833485

Courtesy of FORD MOTOR CO.

Fig 44: Fuel Injector 2 Connector End View (C182)

G07833486

Courtesy of FORD MOTOR CO.

Fig 45: Fuel Injector 3 Connector End View (C183)

G07833487

Courtesy of FORD MOTOR CO.

Fig 46: Fuel Injector 4 Connector End View (C184)

G07833488

Courtesy of FORD MOTOR CO.

Fig 47: Fuel Injector 5 Connector End View (C185)

G07833489

Courtesy of FORD MOTOR CO.

Fig 48: Fuel Injector 6 Connector End View (C186)

G07833490

Courtesy of FORD MOTOR CO.

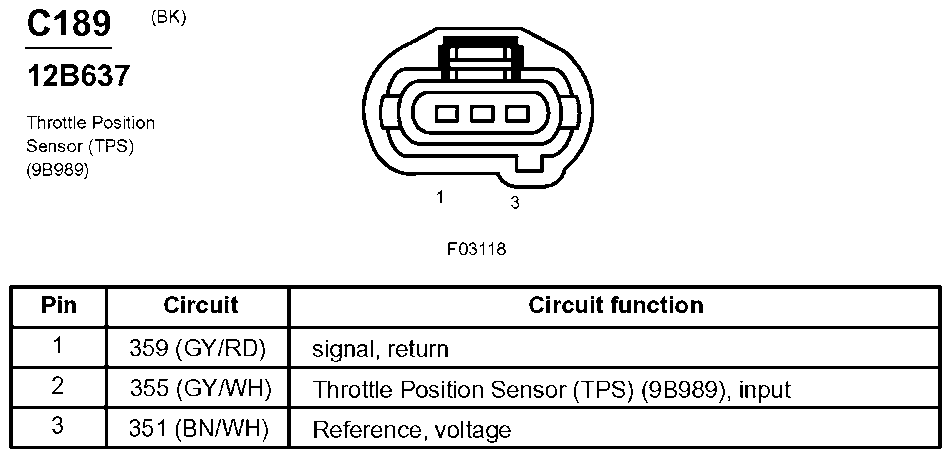

Fig 49: Throttle Position Sensor (TPS) Connector End View (C189)

G07833491

Courtesy of FORD MOTOR CO.

Fig 50: Inlet Manifold Runner Control (IMRC) Module Connector End View (C191)

G07833492

Courtesy of FORD MOTOR CO.

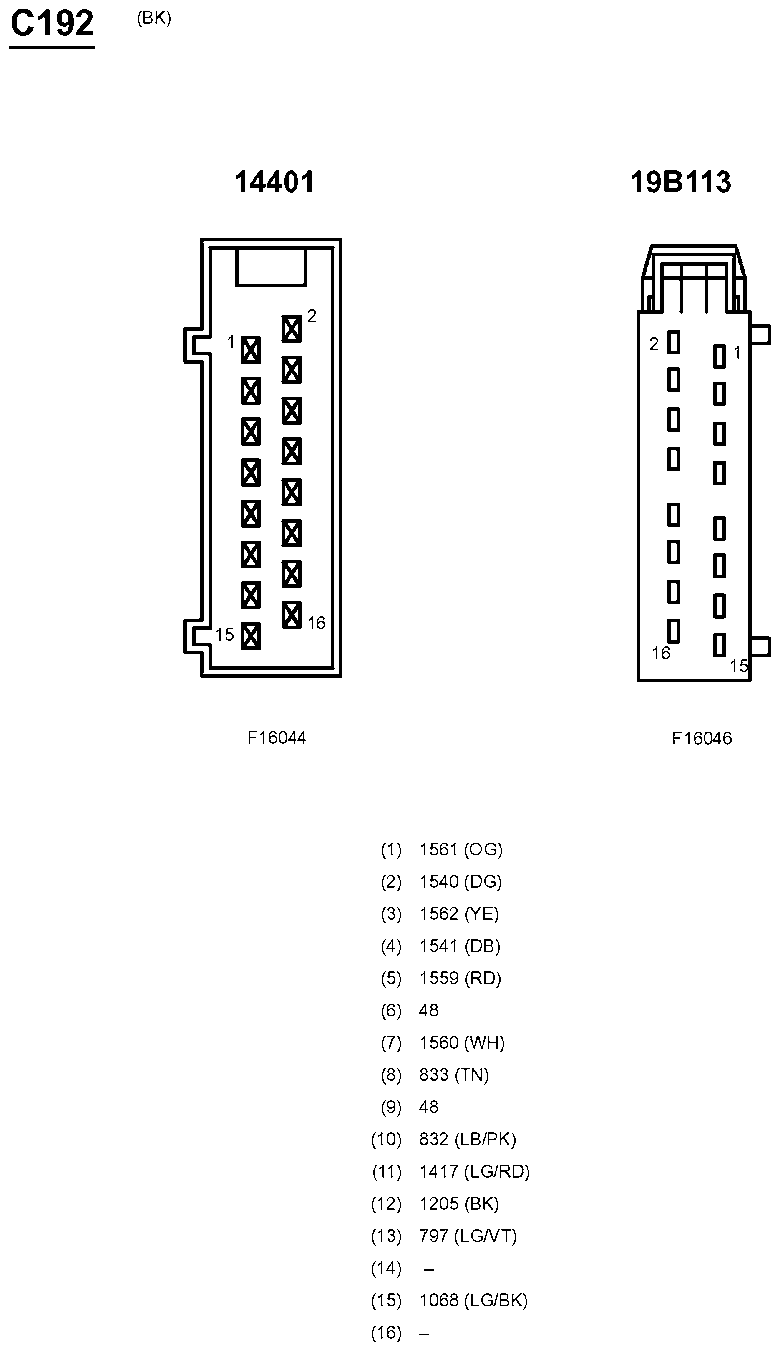

Fig 51: Inline Connector End View (C192)

G07833493

Courtesy of FORD MOTOR CO.

Fig 52: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07833494

Courtesy of FORD MOTOR CO.

Fig 53: Starter Motor Connector End View (C197a)

G07833495

Courtesy of FORD MOTOR CO.

Fig 54: Starter Motor Connector End View (C197b)

G07833496

Courtesy of FORD MOTOR CO.

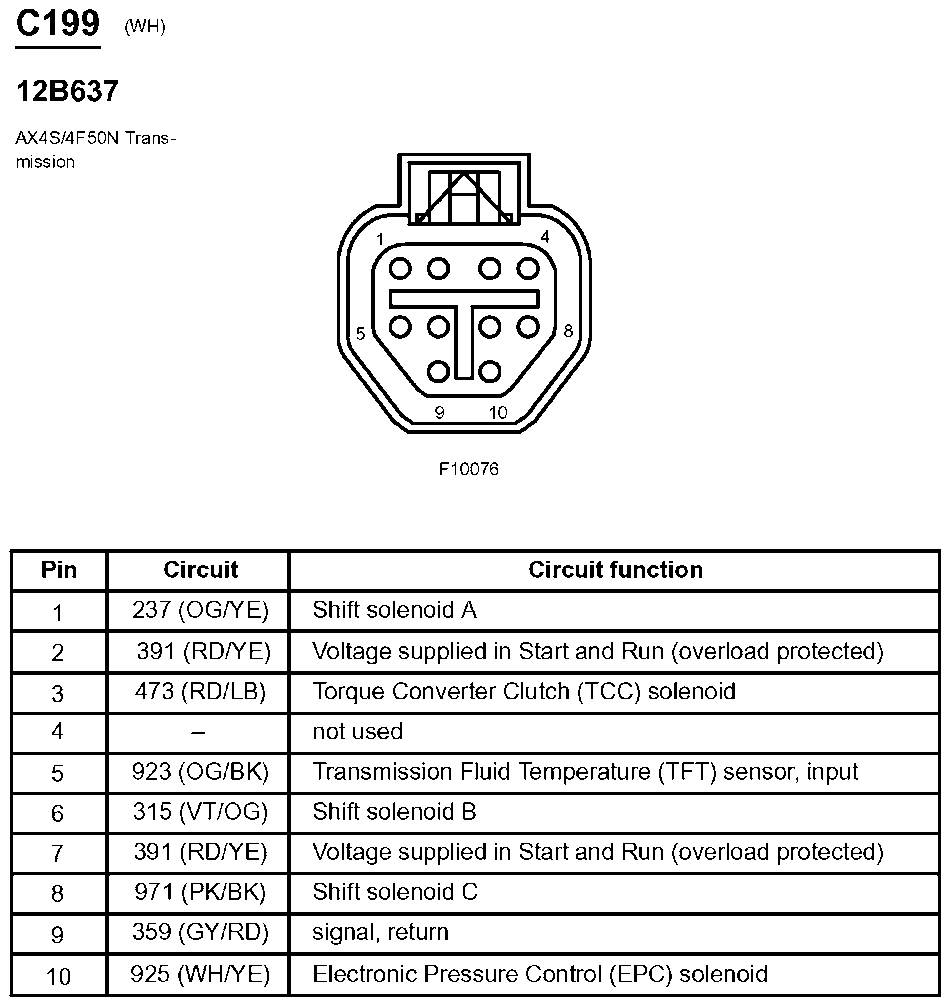

Fig 55: Transmission Hardware Unit Connector End View (C199)

G07833497

Courtesy of FORD MOTOR CO.

Fig 56: Front Electronic Module (FEM) Connector End View (C201a)

G07833498

Courtesy of FORD MOTOR CO.

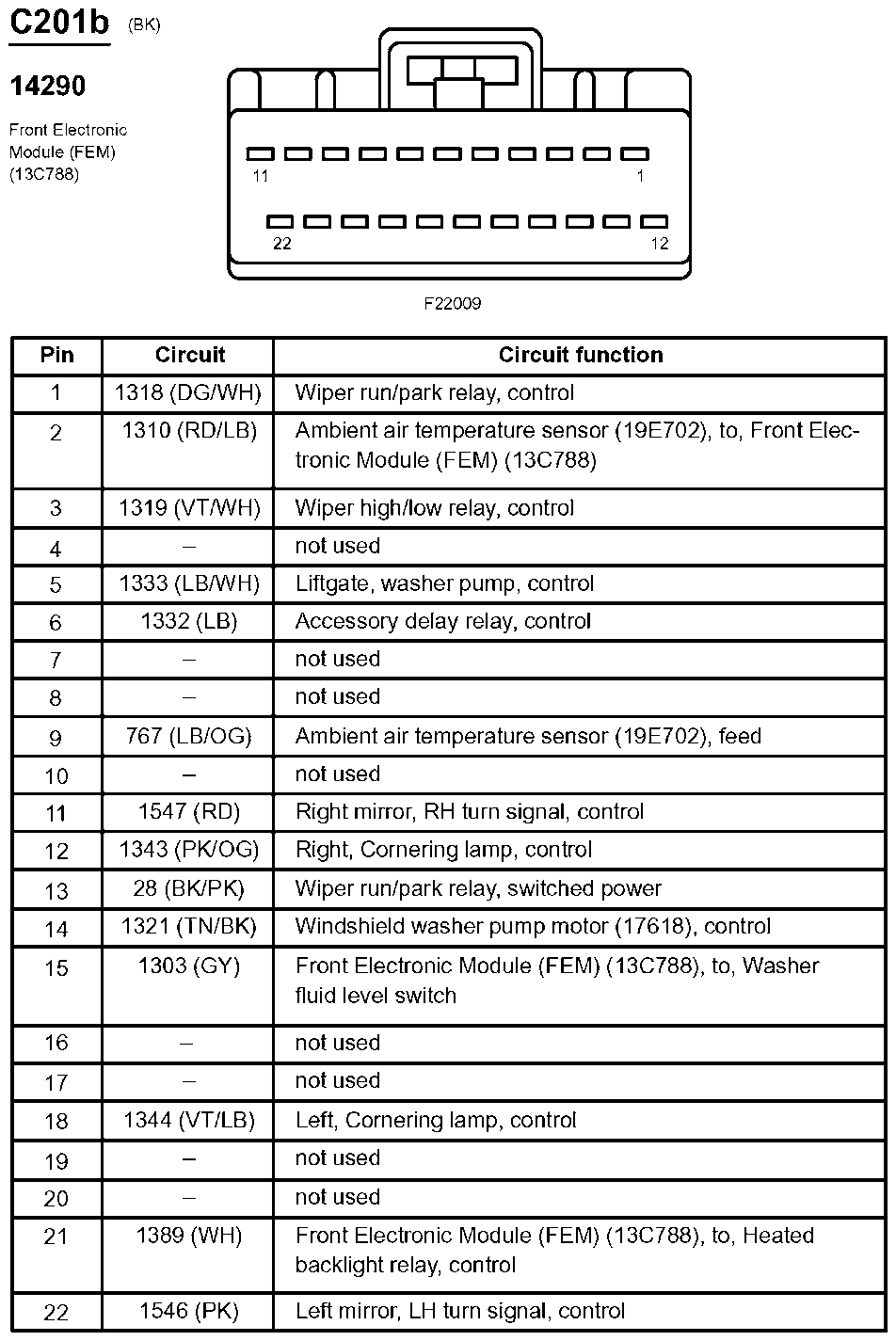

Fig 57: Front Electronic Module (FEM) Connector End View (C201b)

G07833499

Courtesy of FORD MOTOR CO.

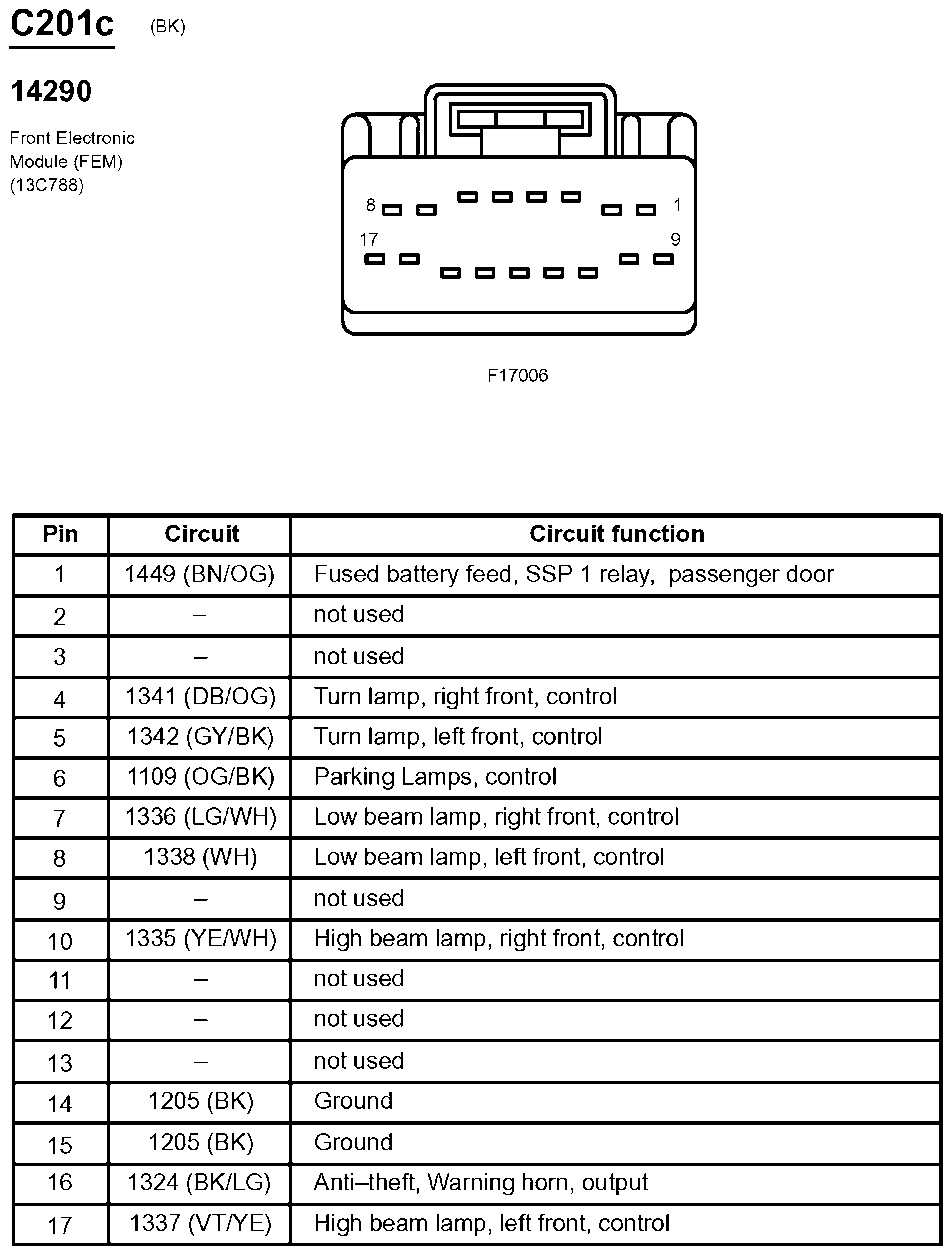

Fig 58: Front Electronic Module (FEM) Connector End View (C201c)

G07833500

Courtesy of FORD MOTOR CO.

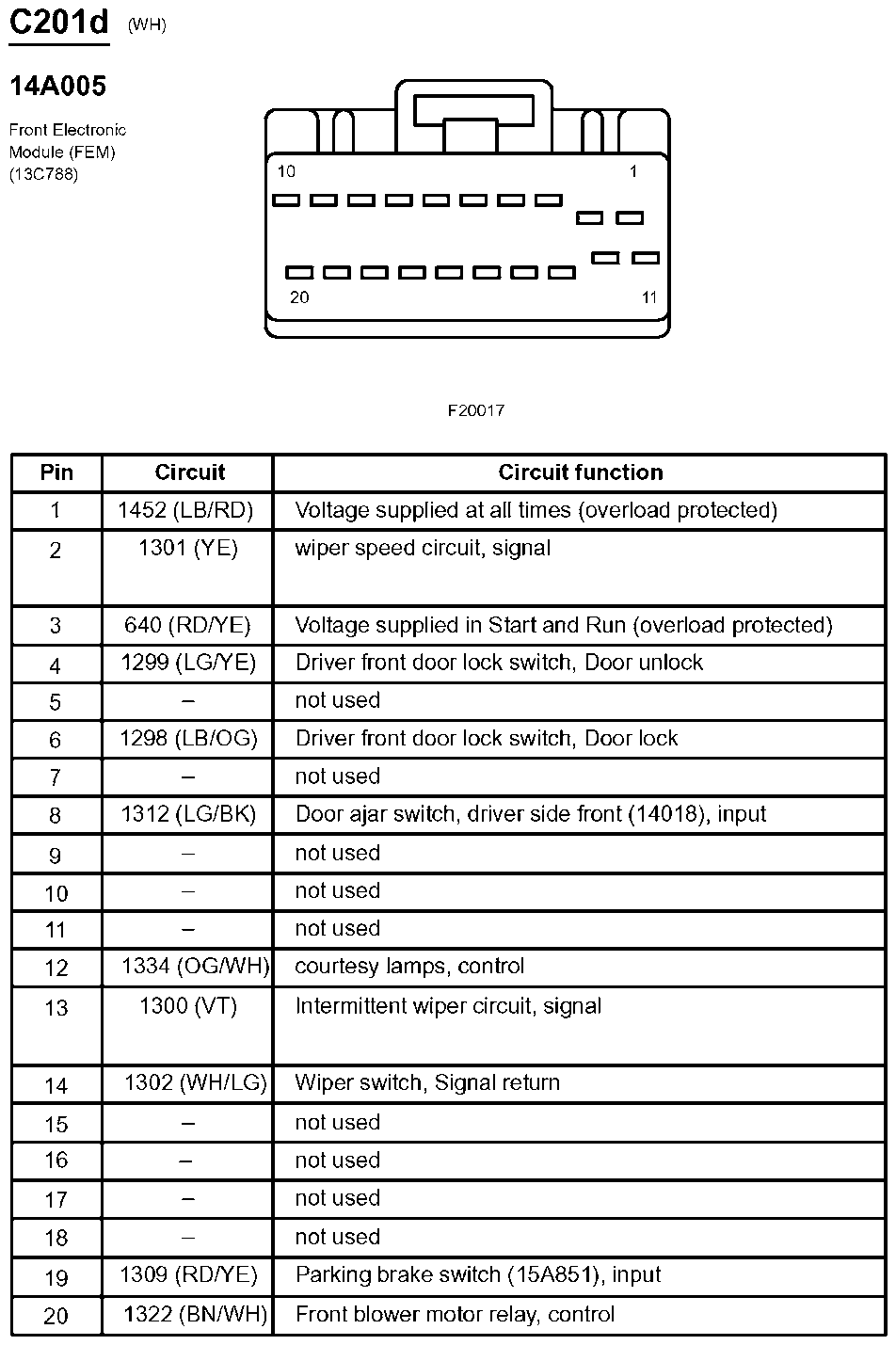

Fig 59: Front Electronic Module (FEM) Connector End View (C201d)

G03776603

Courtesy of FORD MOTOR CO.

Fig 60: Front Electronic Module (FEM) Connector End View (C201e)

G07833501

Courtesy of FORD MOTOR CO.

Fig 61: Front Electronic Module (FEM) Connector End View (C201f)

G07833502

Courtesy of FORD MOTOR CO.

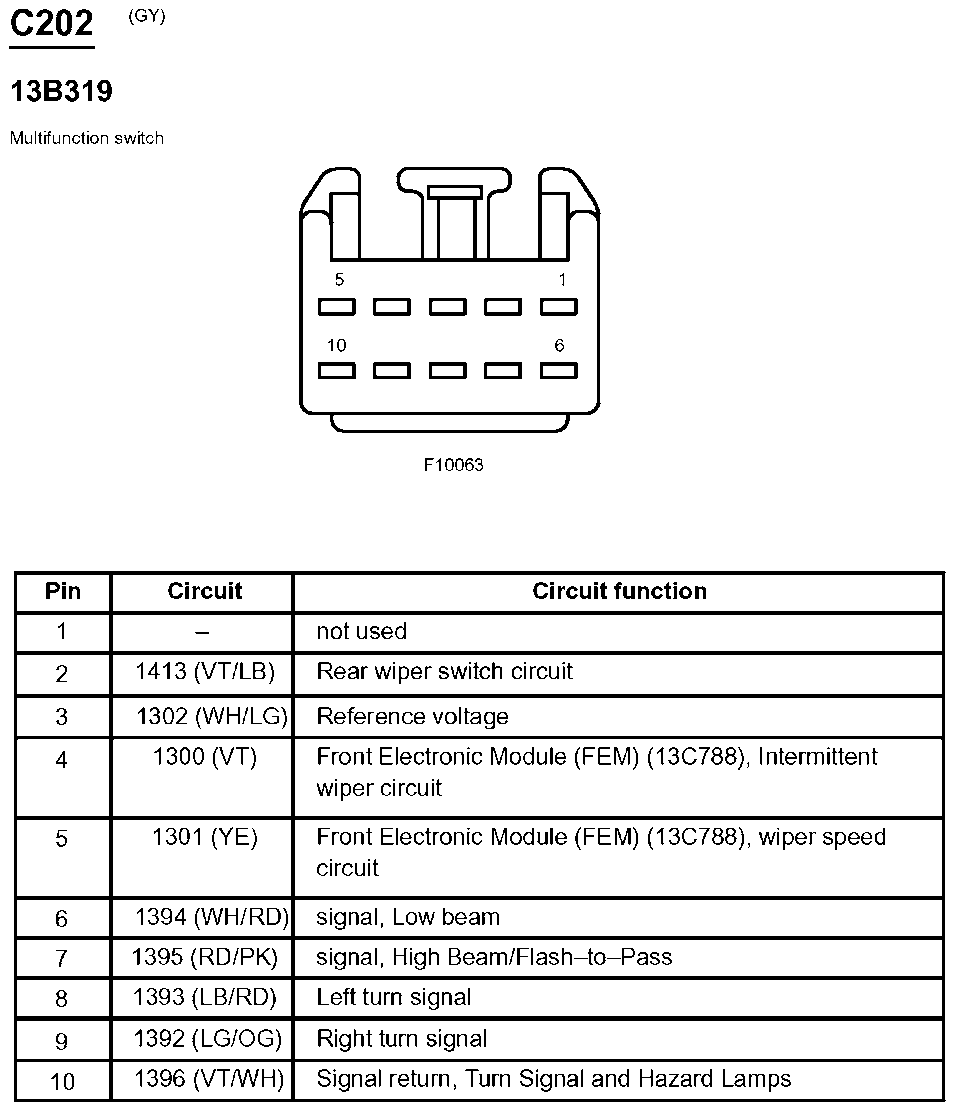

Fig 62: Multifunction Switch Connector End View (C202)

G07833503

Courtesy of FORD MOTOR CO.

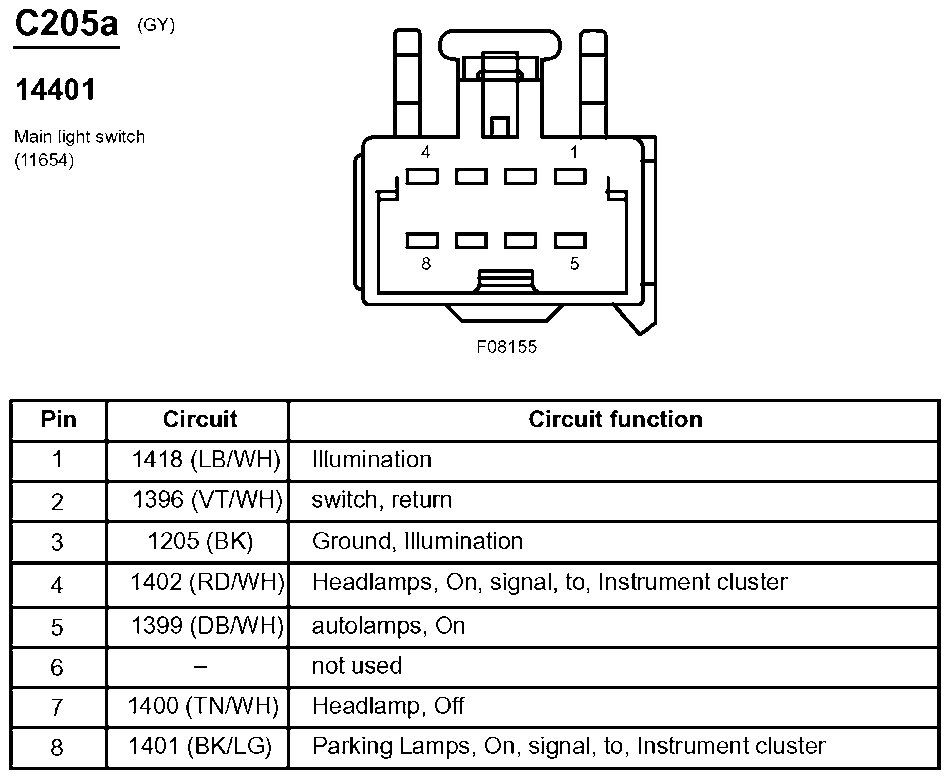

Fig 63: Main Light Switch Connector End View (C205a)

G07833504

Courtesy of FORD MOTOR CO.

Fig 64: Main Light Switch Connector End View (C205b)

G07833505

Courtesy of FORD MOTOR CO.

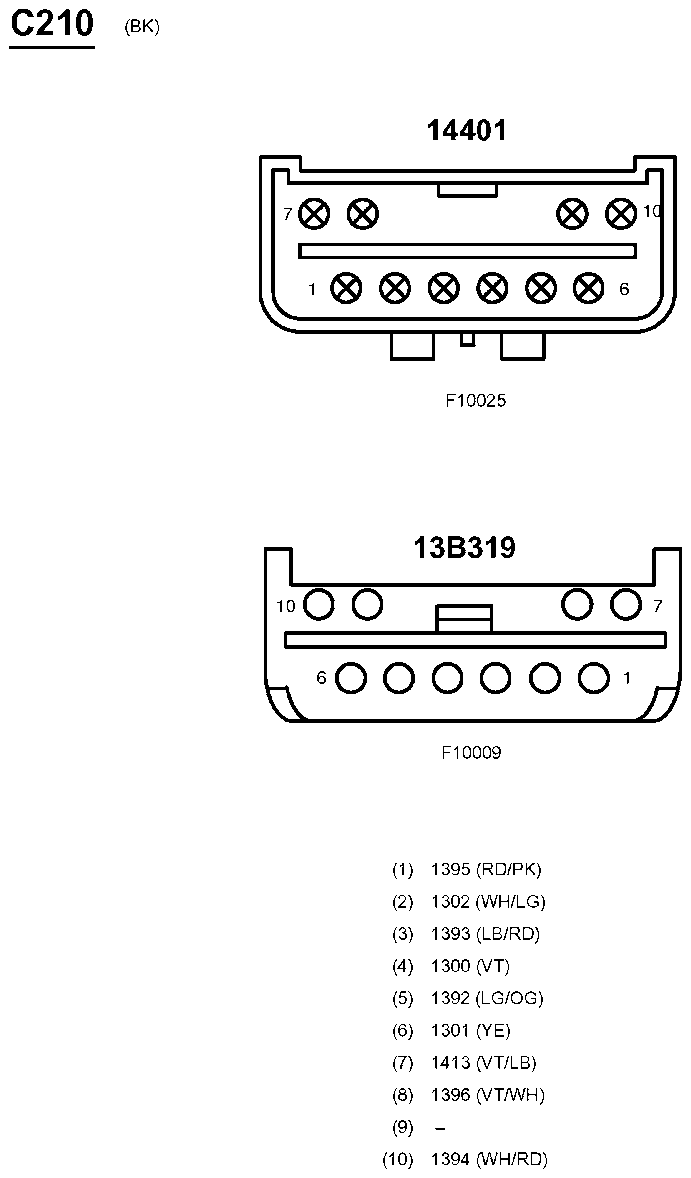

Fig 65: Inline Connector End View (C210)

G07833506

Courtesy of FORD MOTOR CO.

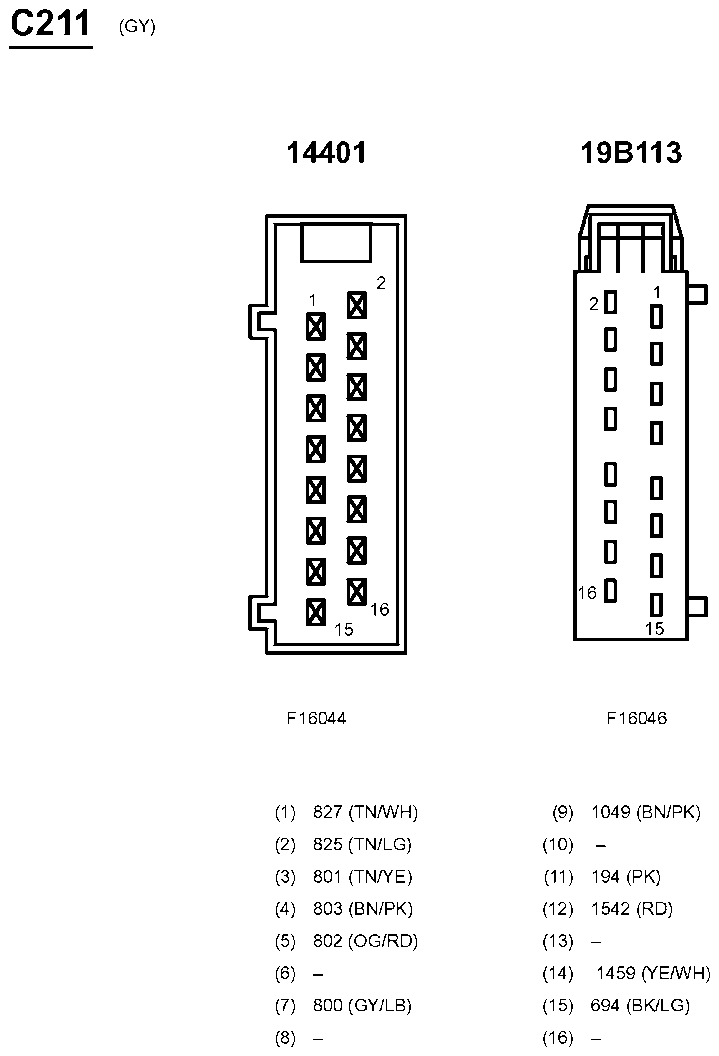

Fig 66: Inline Connector End View (C211)

G07833507

Courtesy of FORD MOTOR CO.

Fig 67: Inline Connector End View (C212)

G07833508

Courtesy of FORD MOTOR CO.

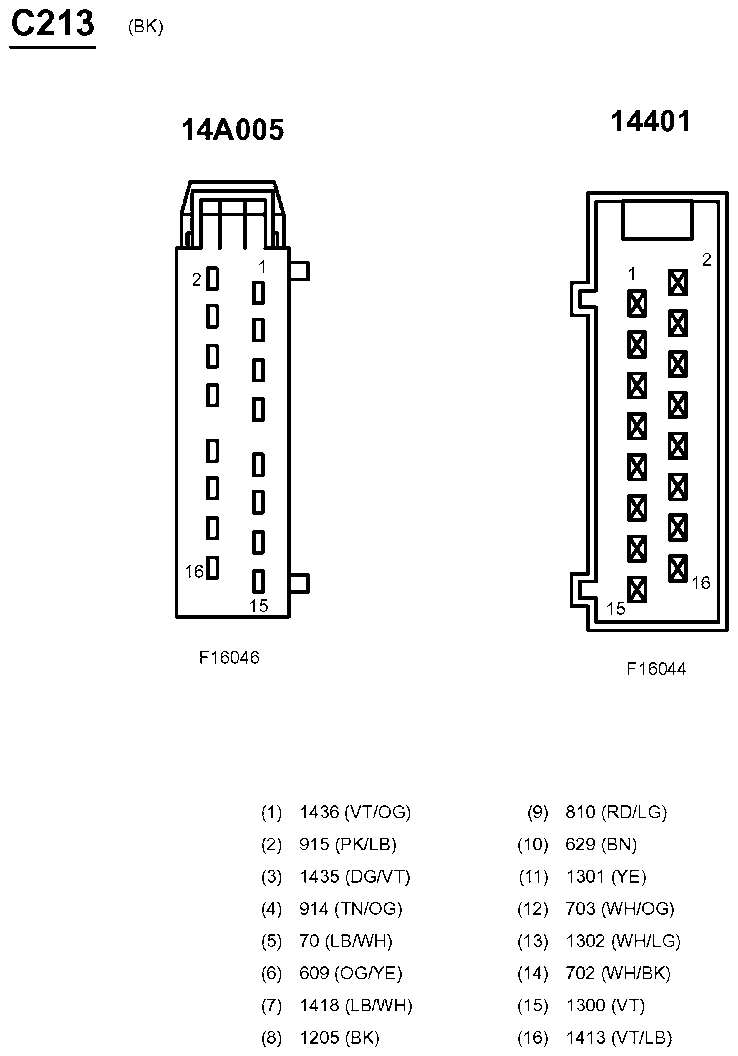

Fig 68: Inline Connector End View (C213)

G07833509

Courtesy of FORD MOTOR CO.

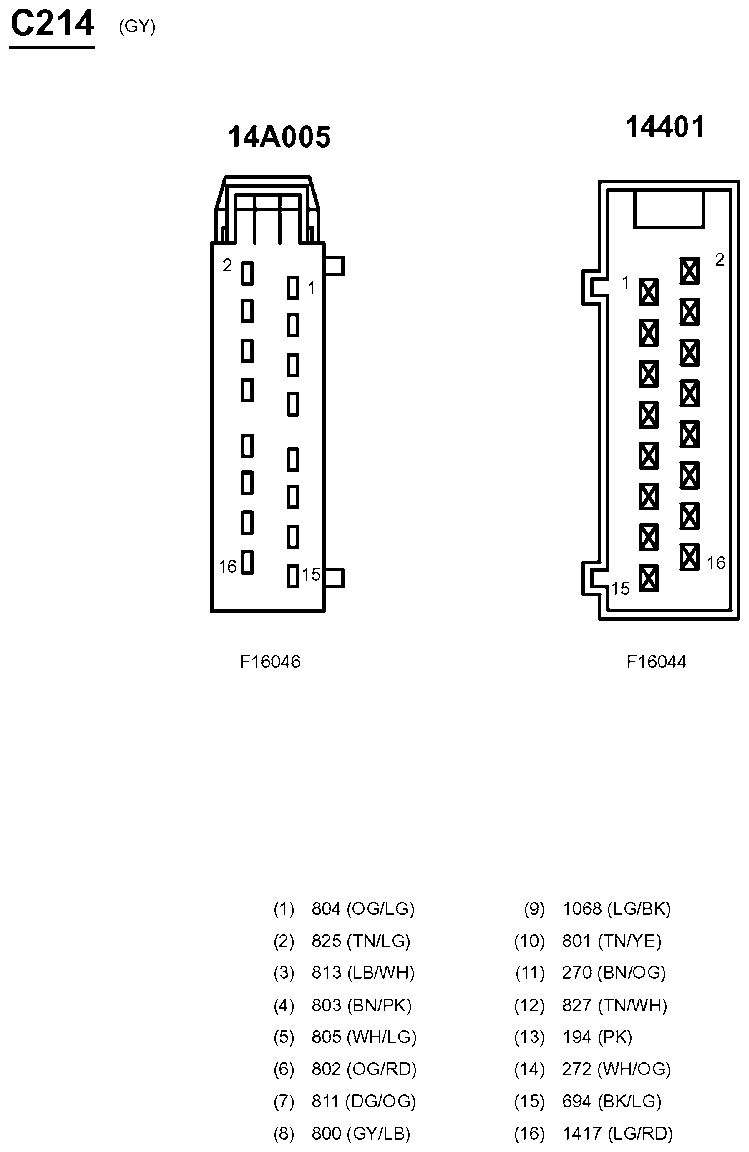

Fig 69: Inline Connector End View (C214)

G07833510

Courtesy of FORD MOTOR CO.

Fig 70: Inline Connector End View (C215)

G07833511

Courtesy of FORD MOTOR CO.

Fig 71: Driver Air Bag Unit Connector End View (C216)

G07833512

Courtesy of FORD MOTOR CO.

Fig 72: Air Bag Sliding Contact Connector End View (C218a)

G07833513

Courtesy of FORD MOTOR CO.

Fig 73: Air Bag Sliding Contact Connector End View (C218b)

G07833514

Courtesy of FORD MOTOR CO.

Fig 74: Inline Connector End View (C219)

G07833515

Courtesy of FORD MOTOR CO.

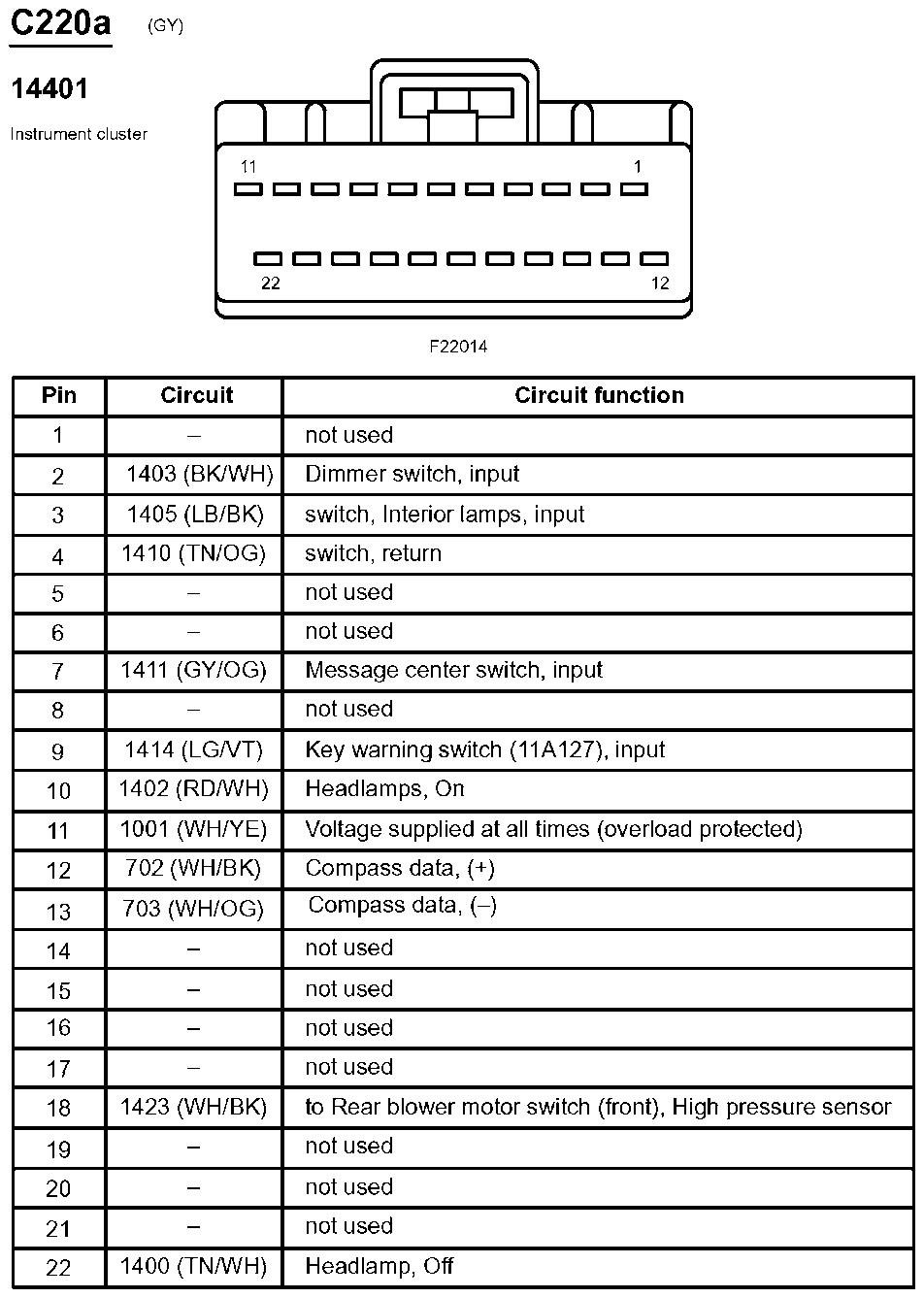

Fig 75: Instrument Cluster Connector End View (C220a)

G07833516

Courtesy of FORD MOTOR CO.

Fig 76: Instrument Cluster Connector End View (C220b)

G07833517

Courtesy of FORD MOTOR CO.

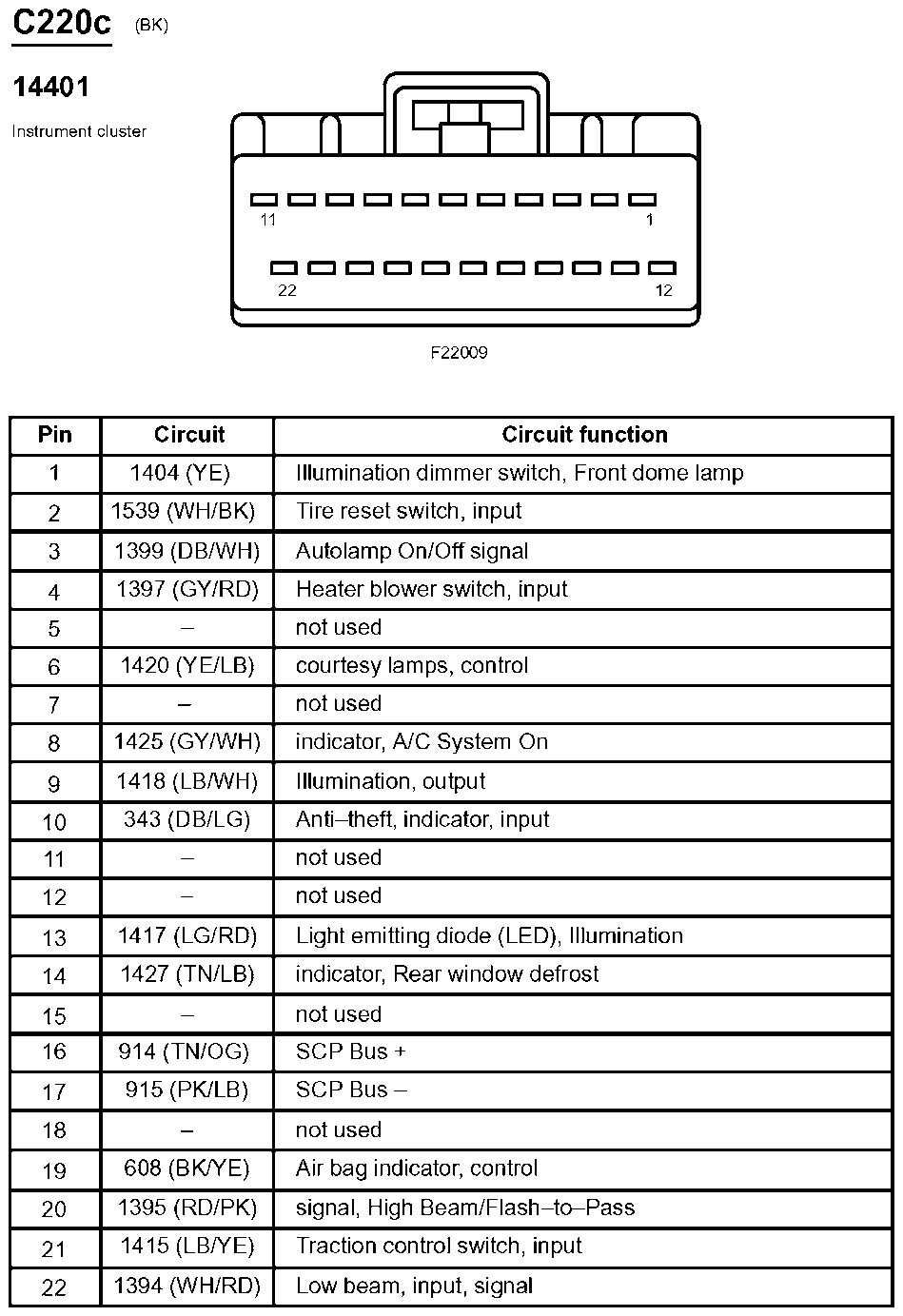

Fig 77: Instrument Cluster Connector End View (C220c)

G07833518

Courtesy of FORD MOTOR CO.

Fig 78: Microphone Connector End View (C221)

G07833519

Courtesy of FORD MOTOR CO.

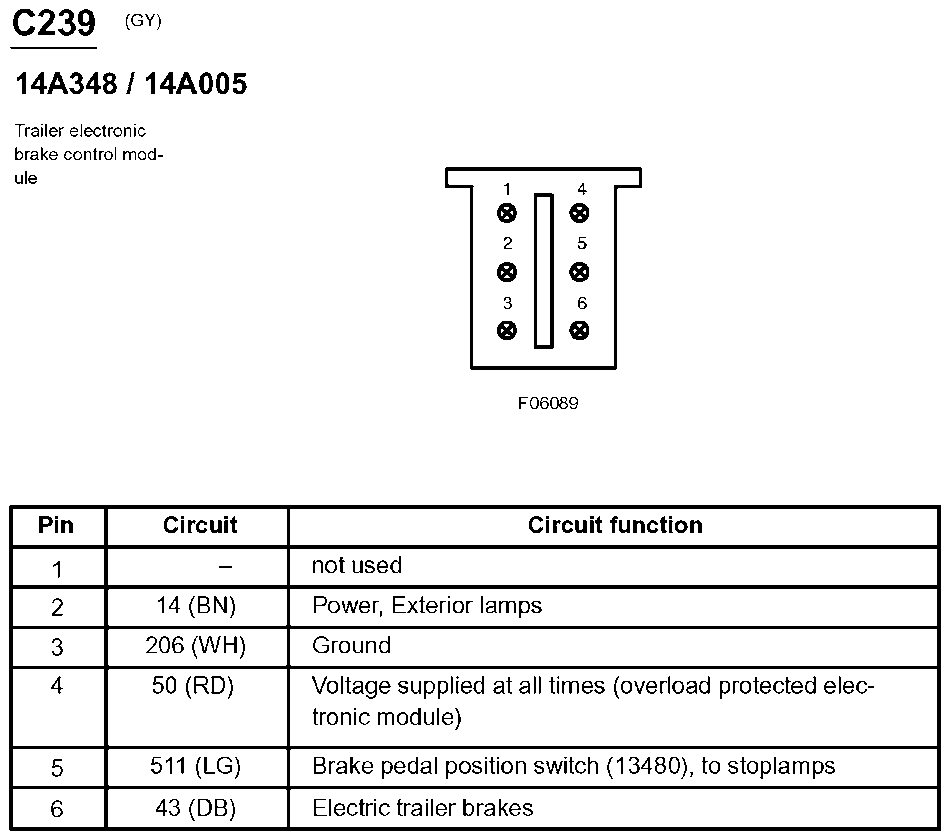

Fig 79: Trailer Electronic Brake Control Module Connector End View (C239)

G07833520

Courtesy of FORD MOTOR CO.

Fig 80: Ignition Switch Connector End View (C250)

G07833521

Courtesy of FORD MOTOR CO.

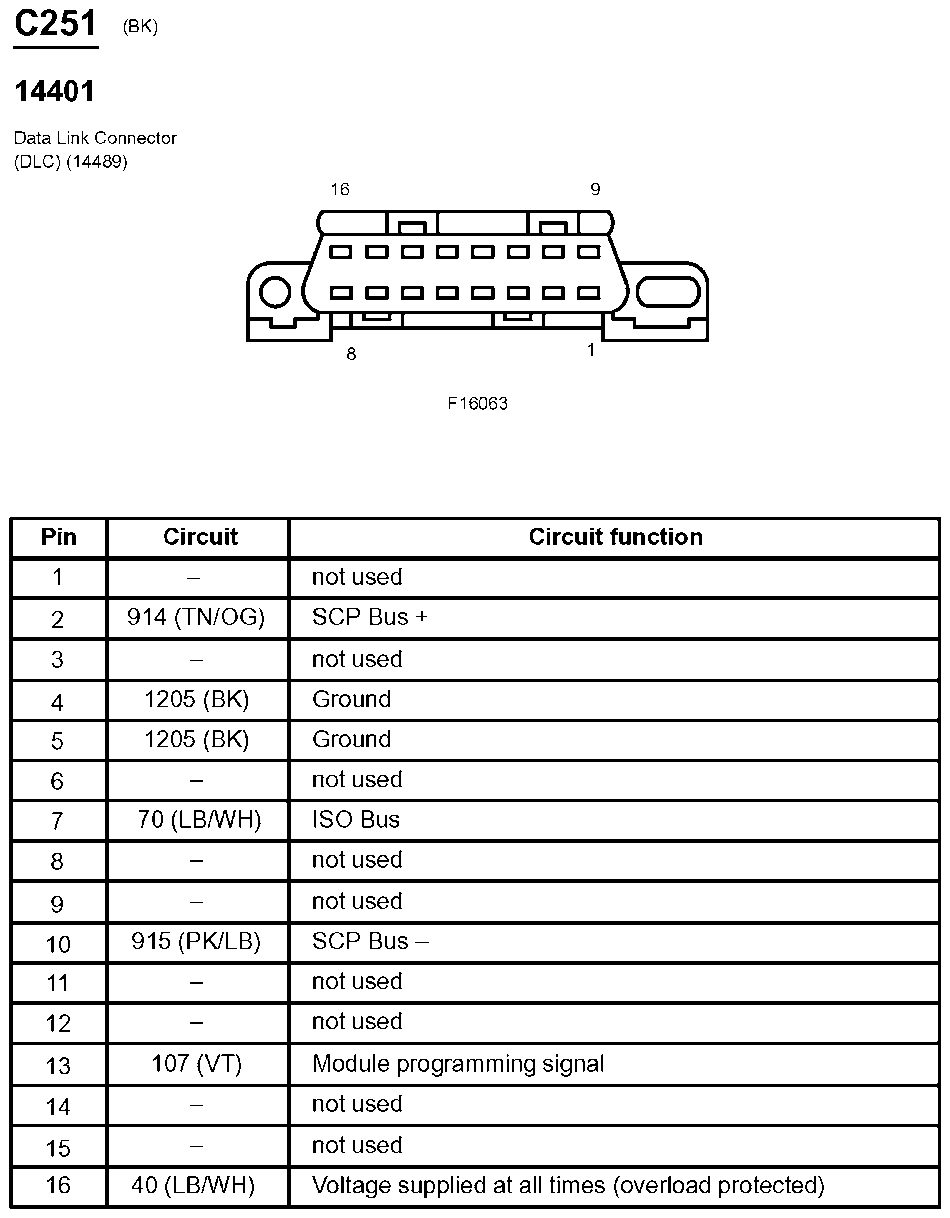

Fig 81: Data Link Connector (DLC) Connector End View (C251)

G07833522

Courtesy of FORD MOTOR CO.

Fig 82: Passive Anti-Theft Transceiver Module Connector End View (C252)

G07833523

Courtesy of FORD MOTOR CO.

Fig 83: Message Center Switch Connector End View (C253)

G07833524

Courtesy of FORD MOTOR CO.

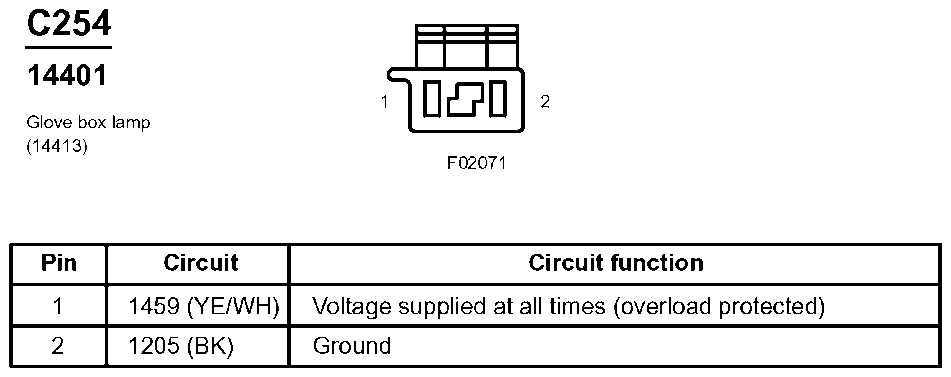

Fig 84: Glove Box Lamp Connector End View (C254)

G07833525

Courtesy of FORD MOTOR CO.

Fig 85: Passenger Air Bag Module Connector End View (C256)

G07833526

Courtesy of FORD MOTOR CO.

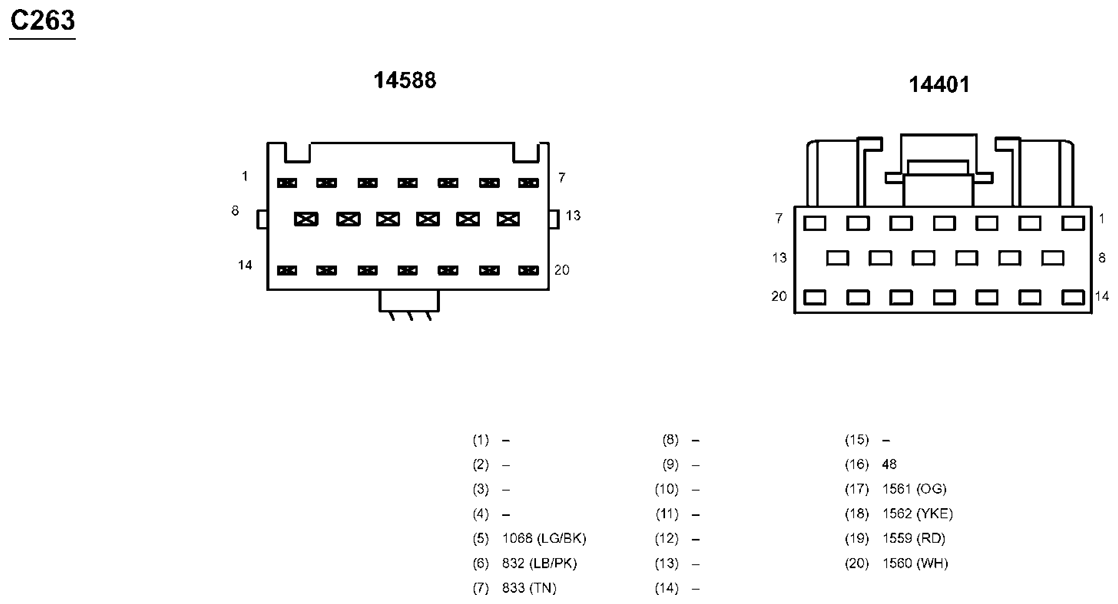

Fig 86: Inline Connector End View (C263)

G07833527

Courtesy of FORD MOTOR CO.

Fig 87: Inline Connector End View (C264)

G07833528

Courtesy of FORD MOTOR CO.

Fig 88: Inline Connector End View (C265)

G07833529

Courtesy of FORD MOTOR CO.

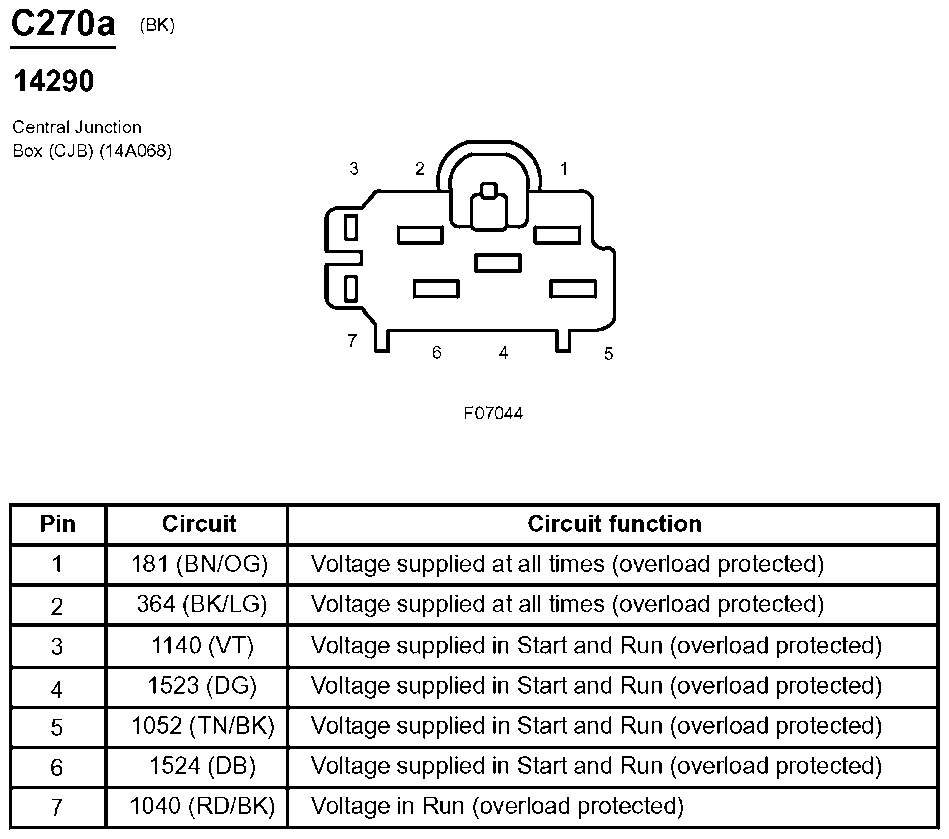

Fig 89: Central Junction Box (CJB) Connector End View (C270a)

G07833530

Courtesy of FORD MOTOR CO.

Fig 90: Central Junction Box (CJB) Connector End View (C270b)

G07833531

Courtesy of FORD MOTOR CO.

Fig 91: Central Junction Box (CJB) Connector End View (C270c)

G07833532

Courtesy of FORD MOTOR CO.

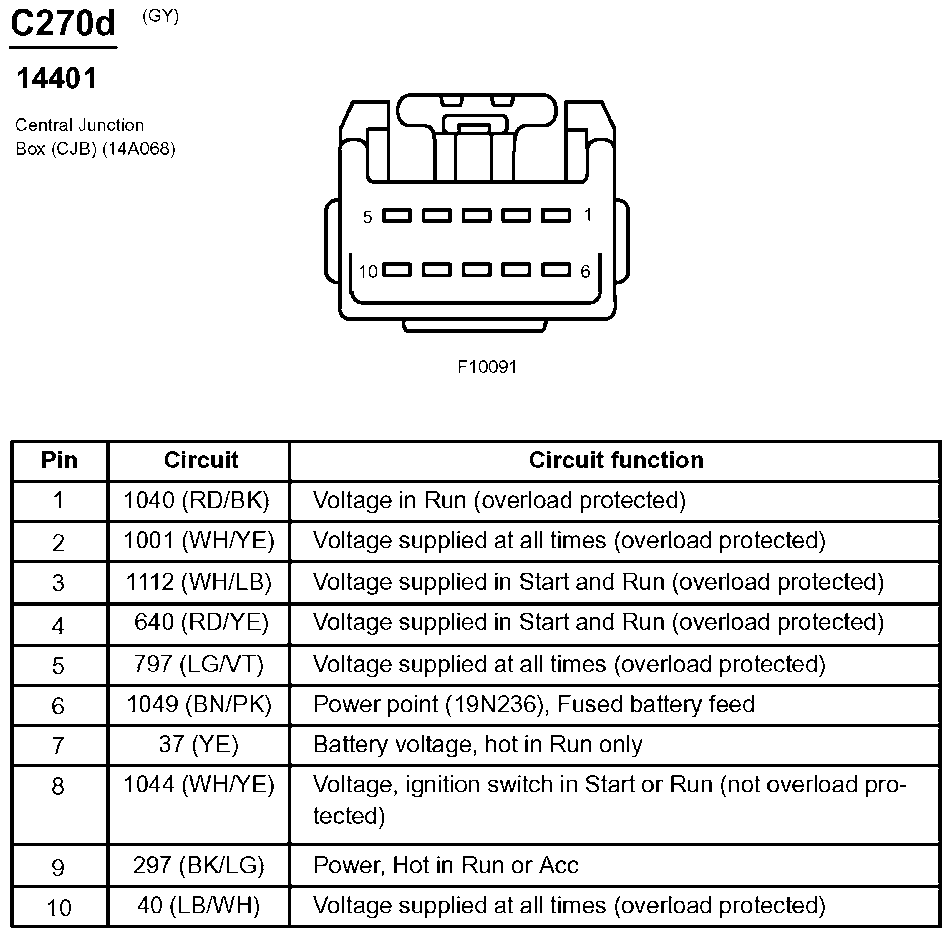

Fig 92: Central Junction Box (CJB) Connector End View (C270d)

G07833533

Courtesy of FORD MOTOR CO.

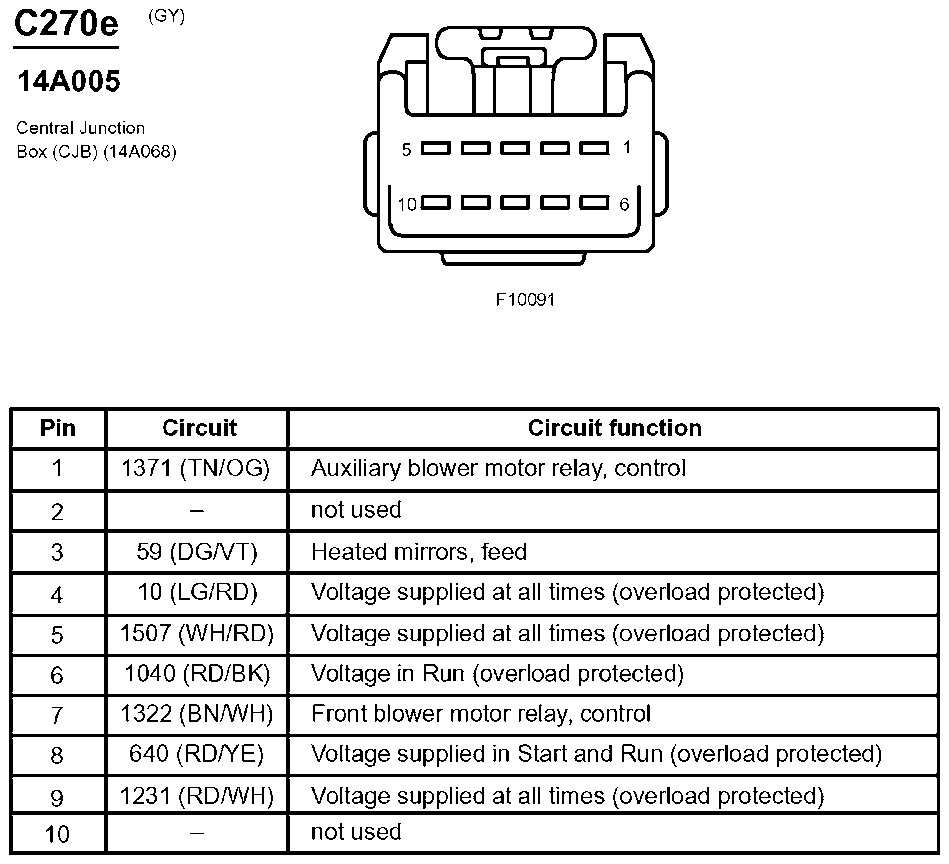

Fig 93: Central Junction Box (CJB) Connector End View (C270e)

G07833534

Courtesy of FORD MOTOR CO.

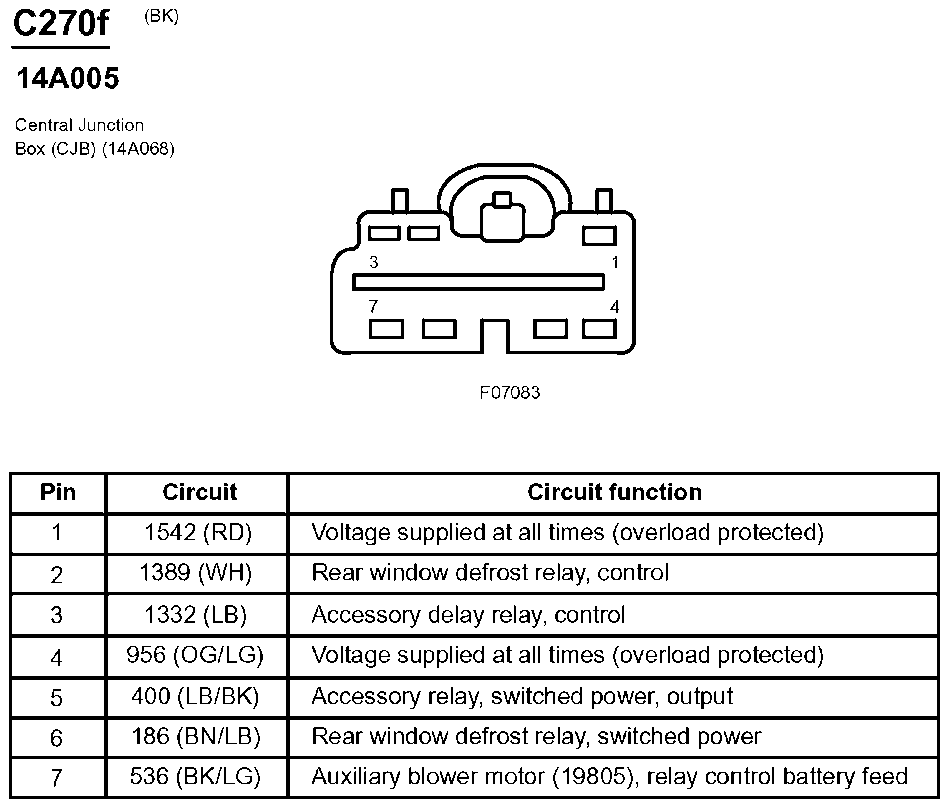

Fig 94: Central Junction Box (CJB) Connector End View (C270f)

G07833535

Courtesy of FORD MOTOR CO.

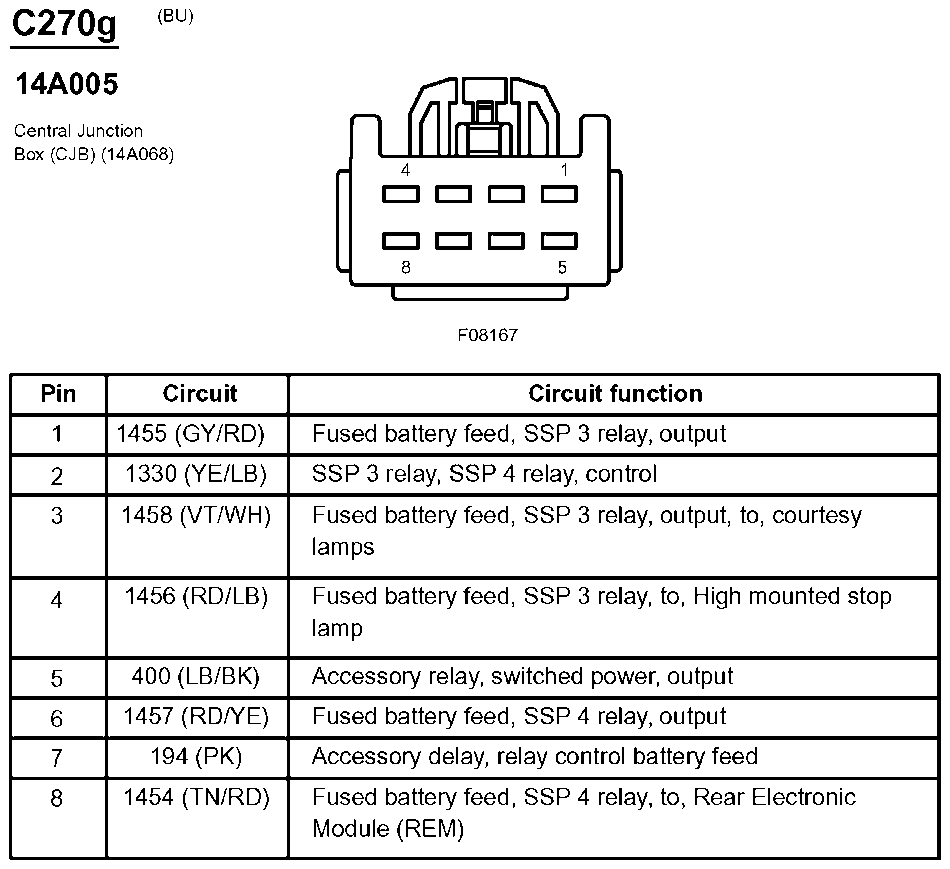

Fig 95: Central Junction Box (CJB) Connector End View (C270g)

G07833536

Courtesy of FORD MOTOR CO.

Fig 96: Front Blower Motor Speed Controller Connector End View (C271)

G07833537

Courtesy of FORD MOTOR CO.

Fig 97: Remote Keyless Entry Module Connector End View (C272)

G07833538

Courtesy of FORD MOTOR CO.

Fig 98: Brake Pedal Position Switch Connector End View (C278)

G07833539

Courtesy of FORD MOTOR CO.

Fig 99: Transmission Control Switch Connector End View (C279)

G07833540

Courtesy of FORD MOTOR CO.

Fig 100: Autolamp Sensor Connector End View (C287)

G07833541

Courtesy of FORD MOTOR CO.

Fig 101: Temperature Blend Door Actuator Connector End View (C289)

G07833542

Courtesy of FORD MOTOR CO.

Fig 102: Radio Connector End View (C290a)

G07833543

Courtesy of FORD MOTOR CO.

Fig 103: Radio Connector End View (C290b)

G07833544

Courtesy of FORD MOTOR CO.

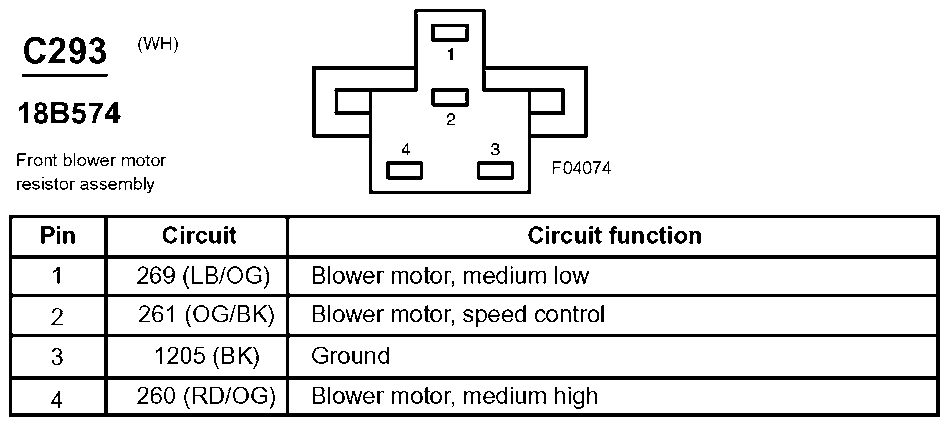

Fig 104: Front Blower Motor Resistor Assembly Connector End View (C293)

G07833545

Courtesy of FORD MOTOR CO.

Fig 105: Function Selector Switch Assembly, Front Connector End View (C294a)

G07833546

Courtesy of FORD MOTOR CO.

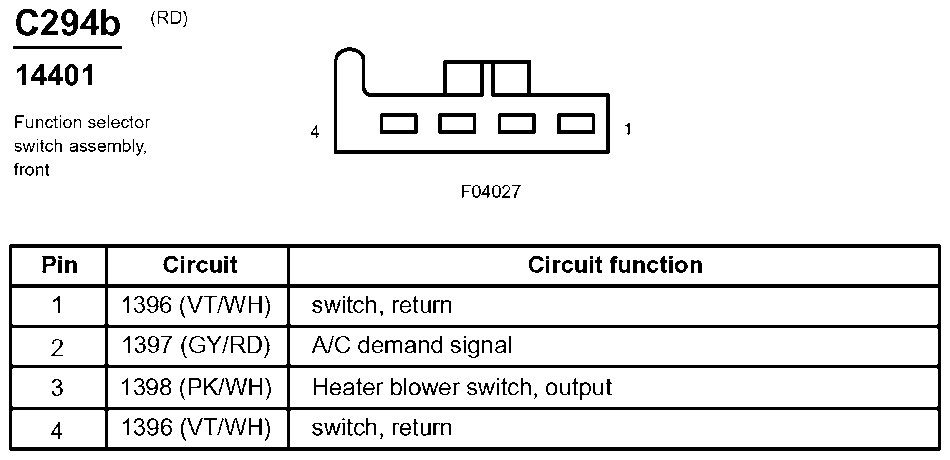

Fig 106: Function Selector Switch Assembly, Front Connector End View (C294b)

G07833547

Courtesy of FORD MOTOR CO.

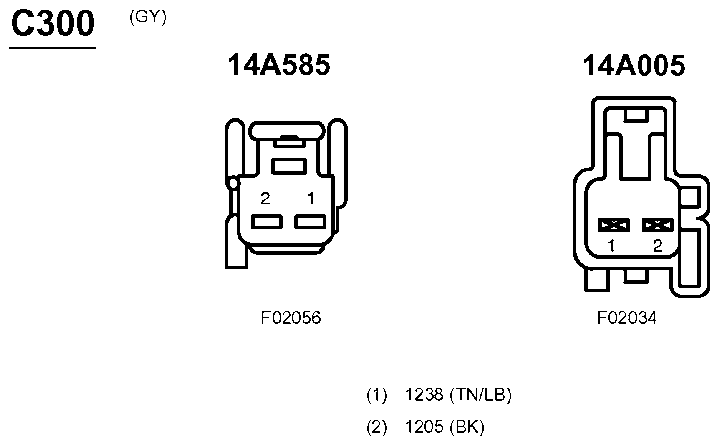

Fig 107: Inline Connector End View (C300)

G07833548

Courtesy of FORD MOTOR CO.

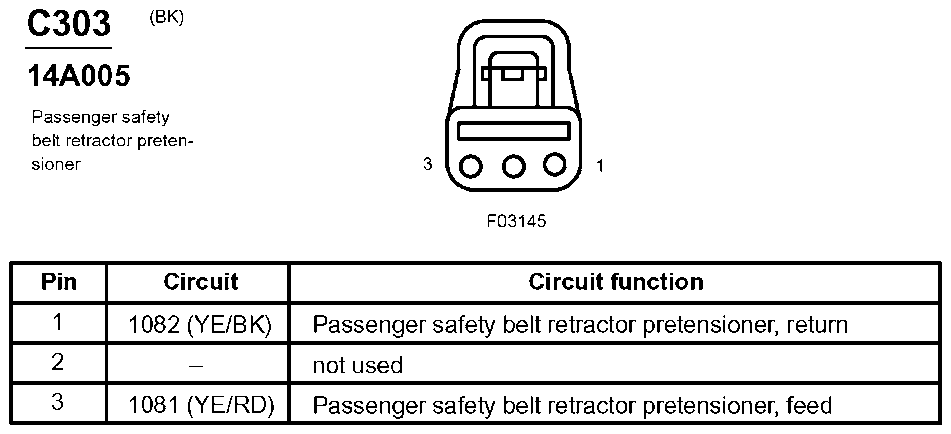

Fig 108: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)

G07833549

Courtesy of FORD MOTOR CO.

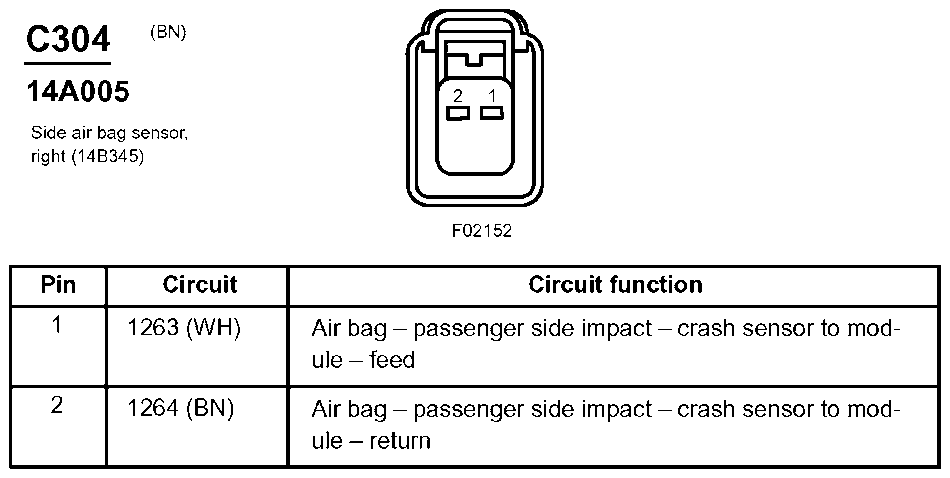

Fig 109: Side Air Bag Sensor, Right Connector End View (C304)

G07833550

Courtesy of FORD MOTOR CO.

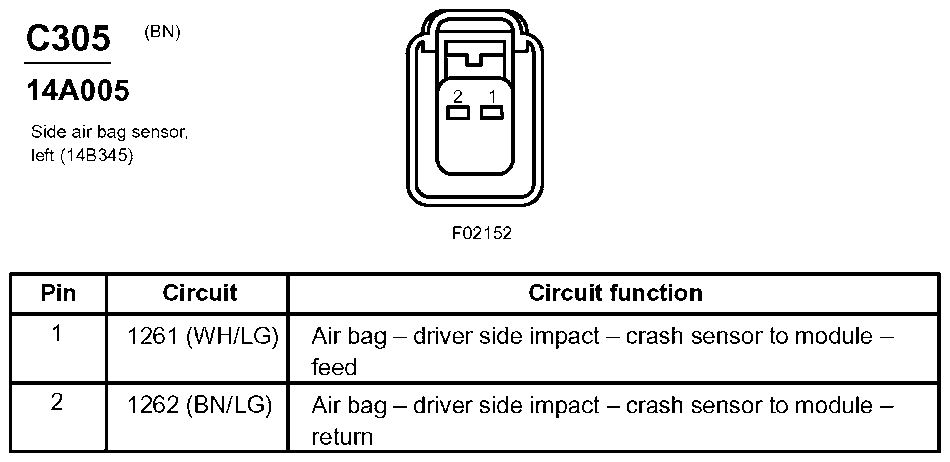

Fig 110: Side Air Bag Sensor, Left Connector End View (C305)

G07833551

Courtesy of FORD MOTOR CO.

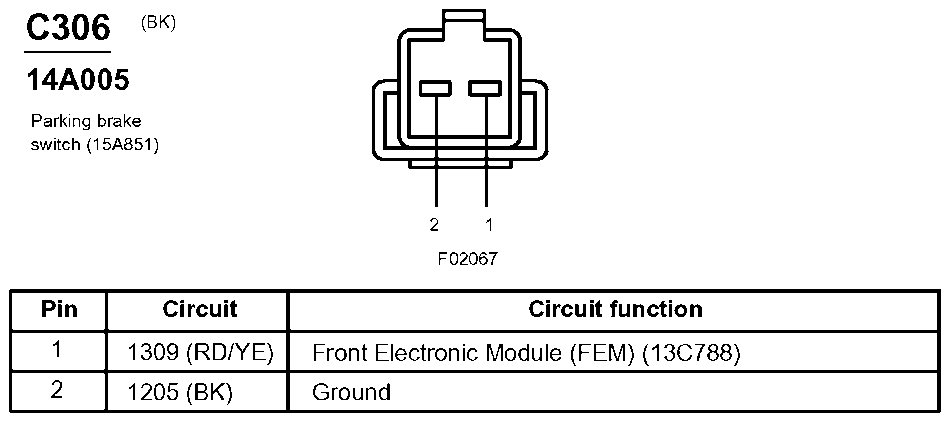

Fig 111: Parking Brake Switch Connector End View (C306)

G07833552

Courtesy of FORD MOTOR CO.

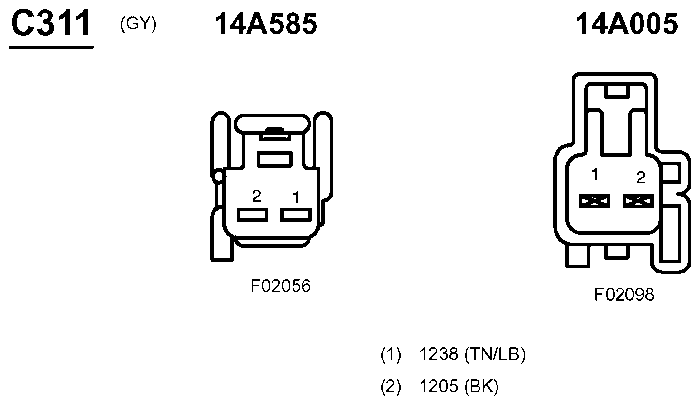

Fig 112: Inline Connector End View (C311)

G07833553

Courtesy of FORD MOTOR CO.

Fig 113: Inline Connector End View (C312)

G07833554

Courtesy of FORD MOTOR CO.

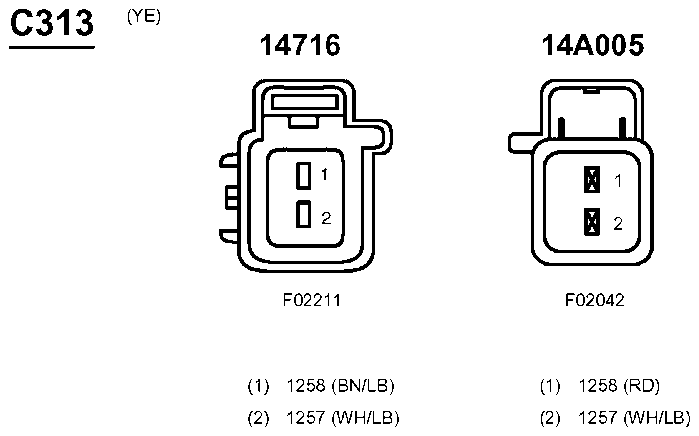

Fig 114: Inline Connector End View (C313)

G07833555

Courtesy of FORD MOTOR CO.

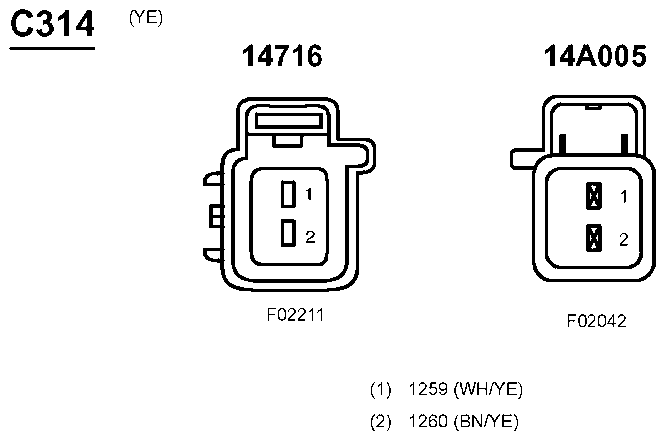

Fig 115: Inline Connector End View (C314)

G07833556

Courtesy of FORD MOTOR CO.

Fig 116: Inline Connector End View (C315)

G07833557

Courtesy of FORD MOTOR CO.

Fig 117: Inline Connector End View (C311)

G07833558

Courtesy of FORD MOTOR CO.

Fig 118: Inline Connector End View (C312)

G07833559

Courtesy of FORD MOTOR CO.

Fig 119: Inline Connector End View (C313)

G07833560

Courtesy of FORD MOTOR CO.

Fig 120: Inline Connector End View (C314)

G07833561

Courtesy of FORD MOTOR CO.

Fig 121: Heated Seat Module, Passenger Side Front Connector End View (C329)

G07833562

Courtesy of FORD MOTOR CO.

Fig 122: Seat Adjust Switch, Passenger Side Front Connector End View (C330)

G07833563

Courtesy of FORD MOTOR CO.

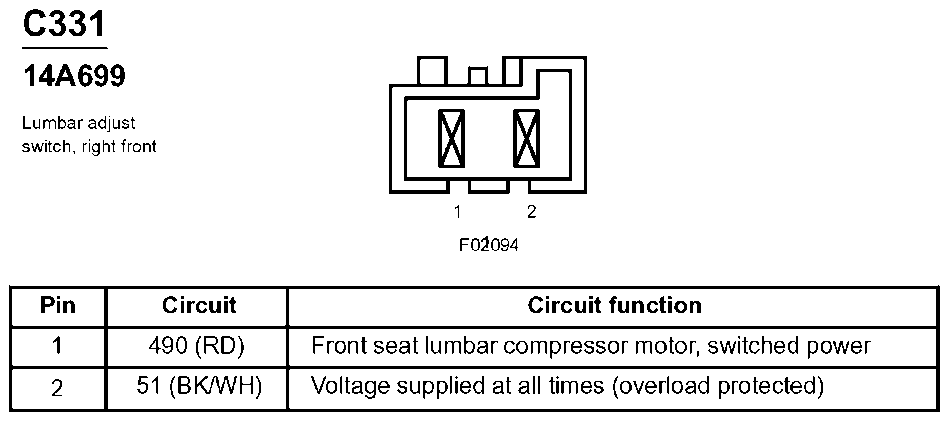

Fig 123: Lumbar Adjust Switch, Right Front Connector End View (C331)

G07833564

Courtesy of FORD MOTOR CO.

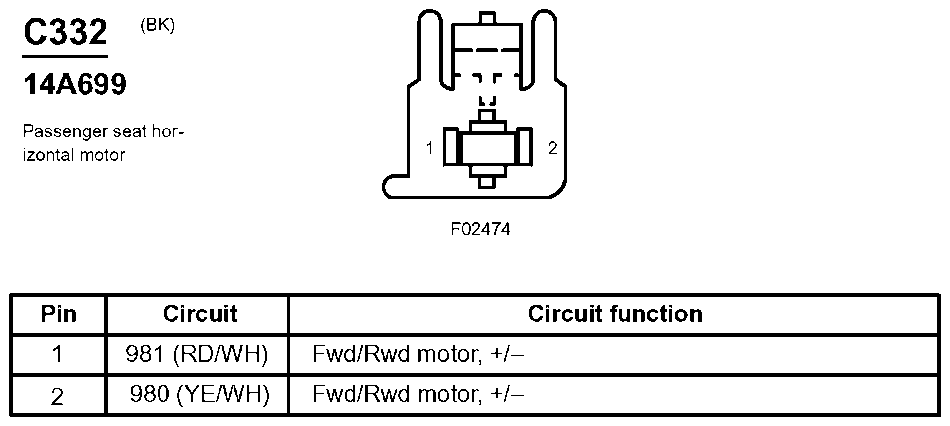

Fig 124: Passenger Seat Horizontal Motor Connector End View (C332)

G07833565

Courtesy of FORD MOTOR CO.

Fig 125: Seat Cushion Heater, Right Front Connector End View (C334)

G07833566

Courtesy of FORD MOTOR CO.

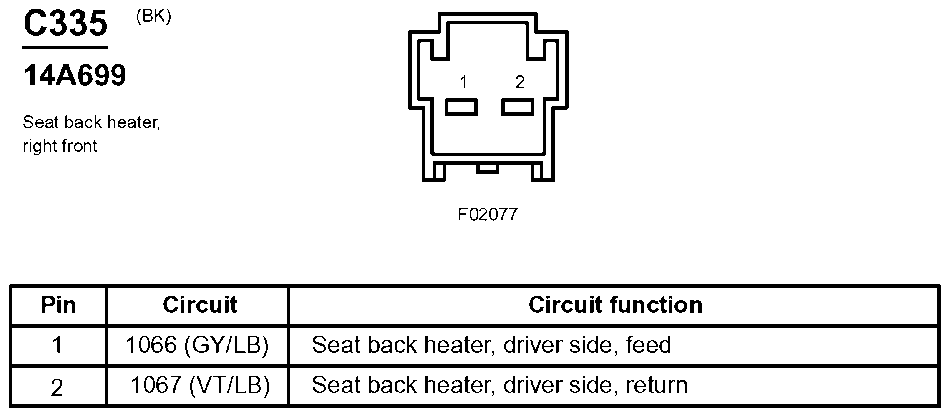

Fig 126: Seat Back Heater, Right Front Connector End View (C335)

G07833567

Courtesy of FORD MOTOR CO.

Fig 127: Passenger Seat Lumbar Compressor Motor Connector End View (C336)

G07833568

Courtesy of FORD MOTOR CO.

Fig 128: Side Air Bag Module, Right Connector End View (C337)

G07833569

Courtesy of FORD MOTOR CO.

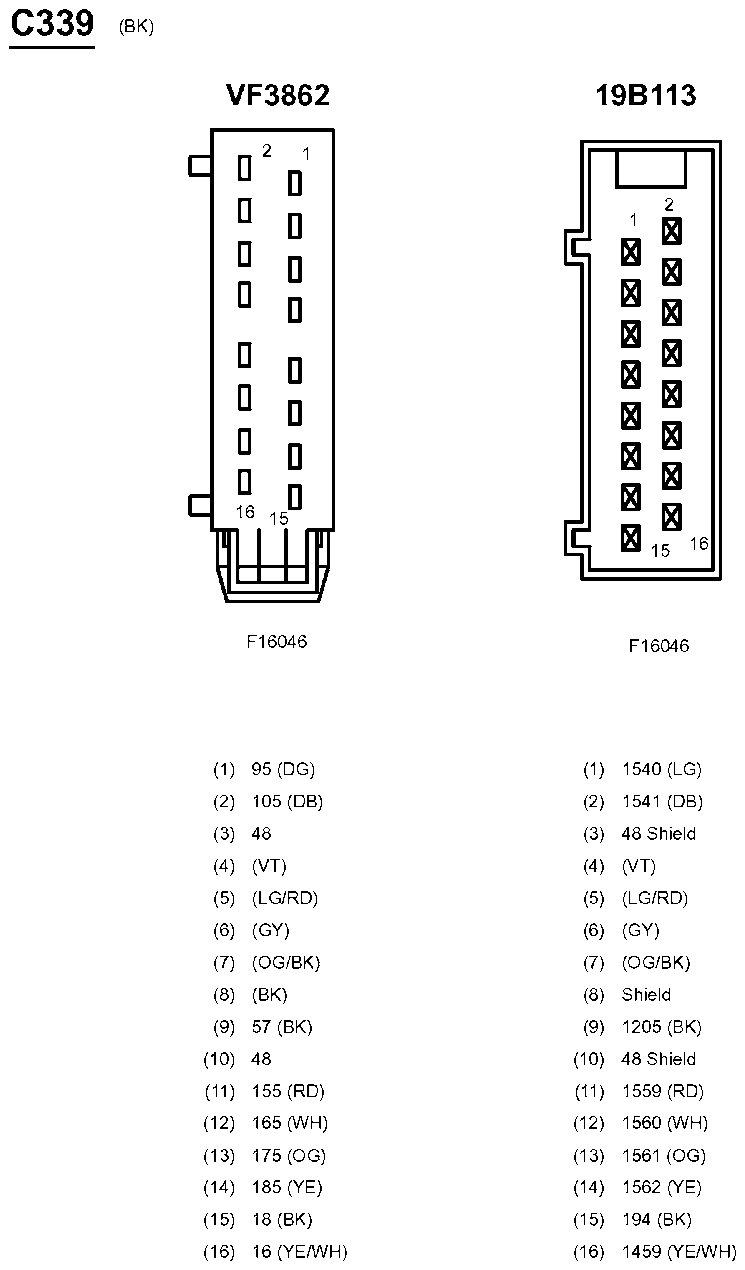

Fig 129: Inline Connector End View (C339)

G07833570

Courtesy of FORD MOTOR CO.

Fig 130: Inline Connector End View (C340)

G07833571

Courtesy of FORD MOTOR CO.

Fig 131: Driver Seat Module Connector End View (C341a)

G03776627

Courtesy of FORD MOTOR CO.

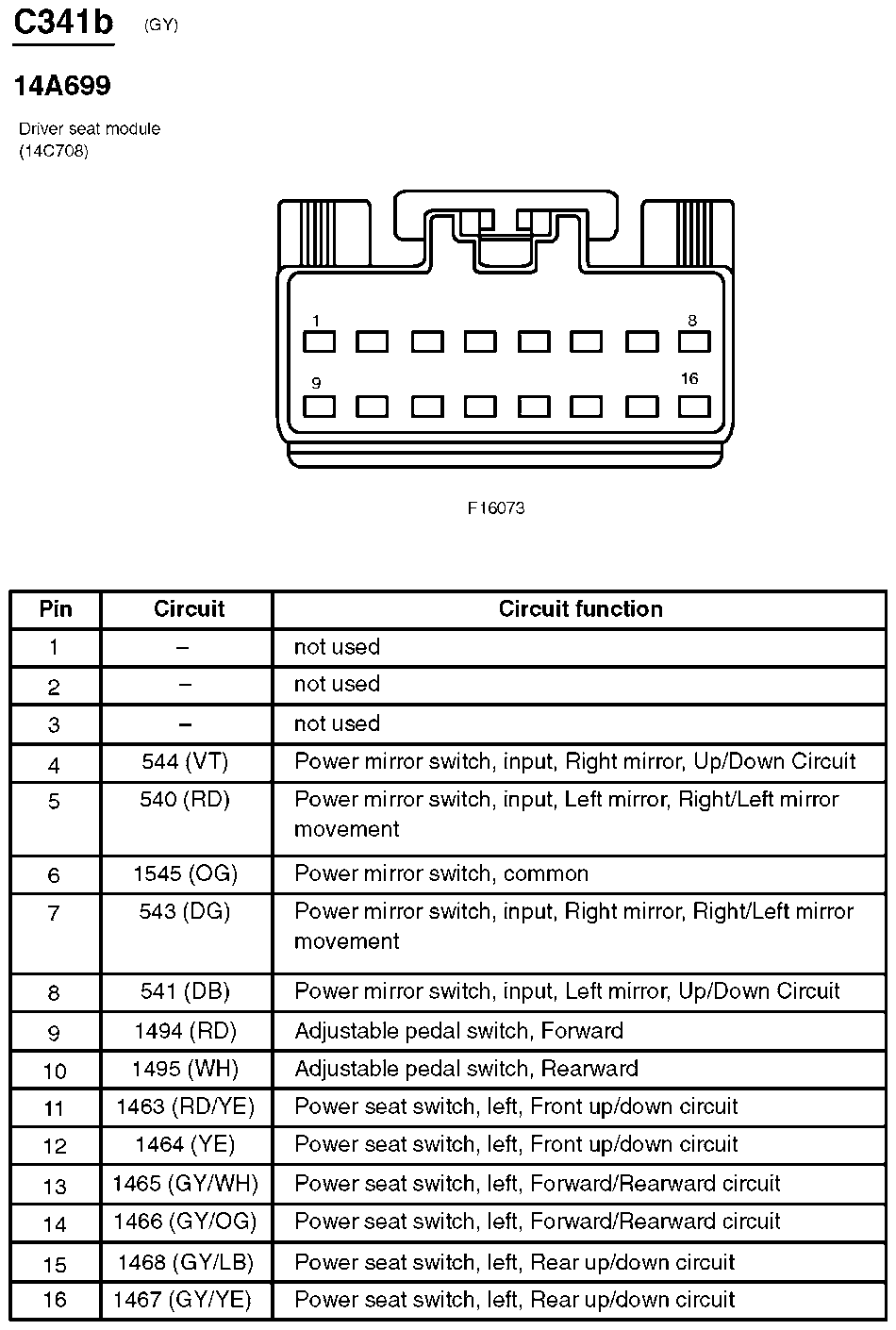

Fig 132: Driver Seat Module Connector End View (C341b)

G07833572

Courtesy of FORD MOTOR CO.

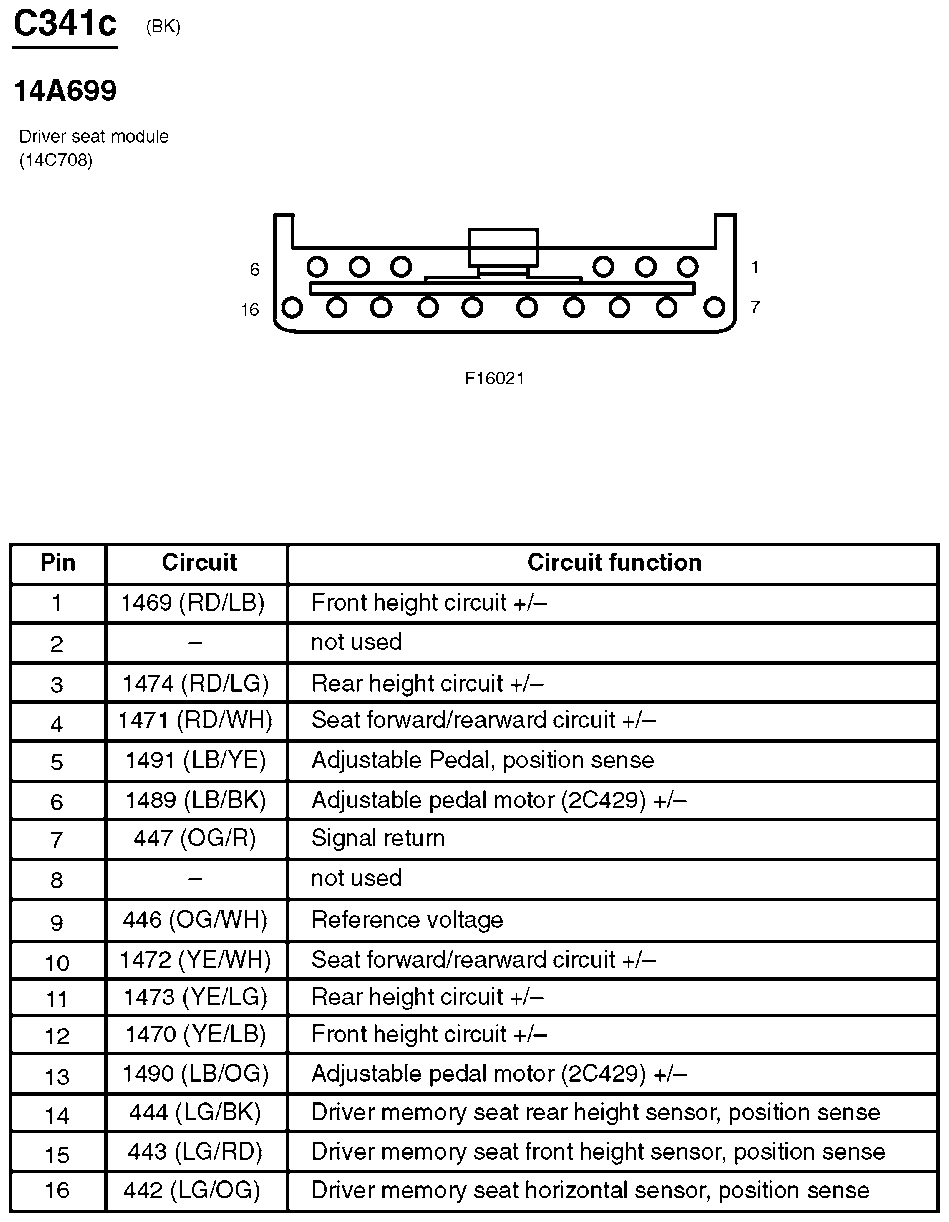

Fig 133: Driver Seat Module Connector End View (C341c)

G07833573

Courtesy of FORD MOTOR CO.

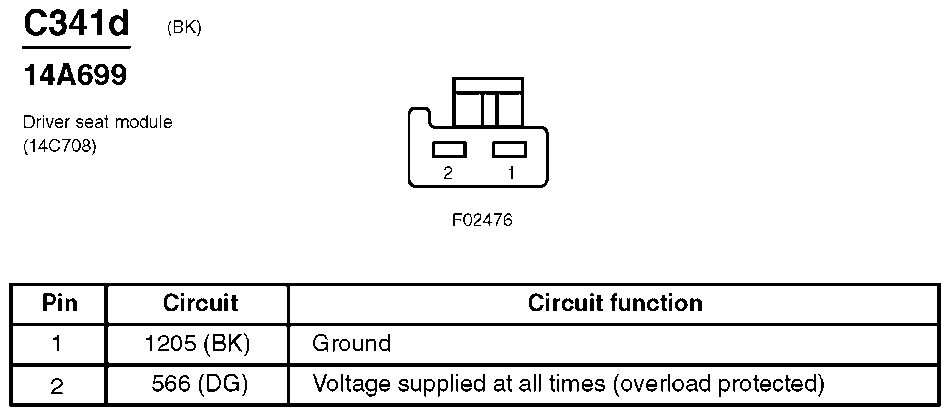

Fig 134: Driver Seat Module Connector End View (C341d)

G07833574

Courtesy of FORD MOTOR CO.

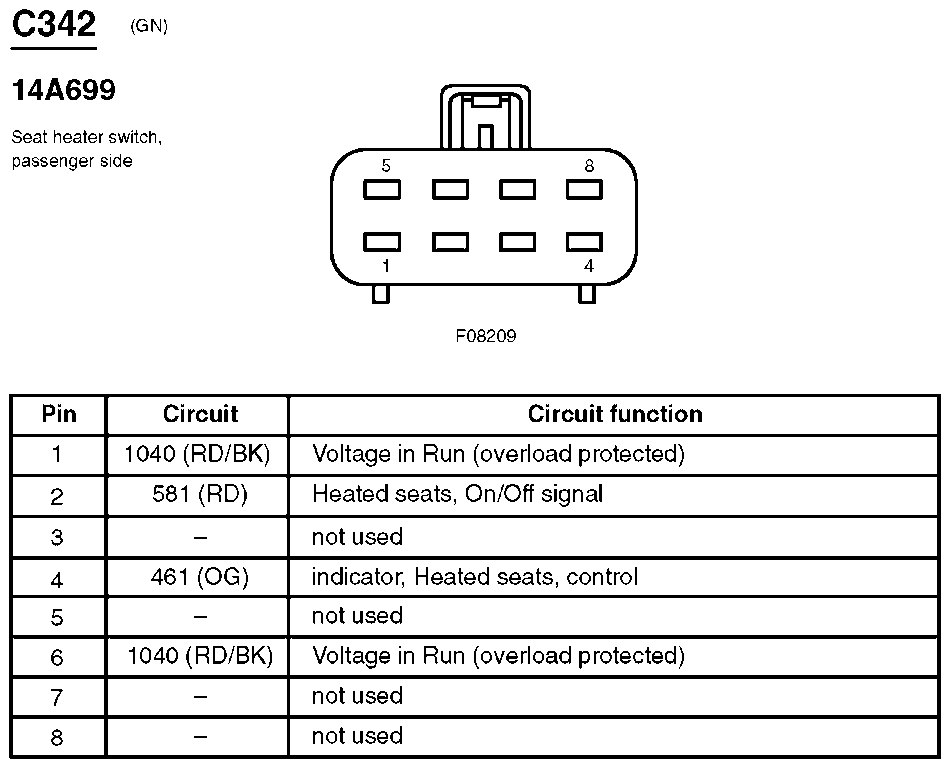

Fig 135: Seat Heater Switch, Passenger Side Connector End View (C342)

G07833575

Courtesy of FORD MOTOR CO.

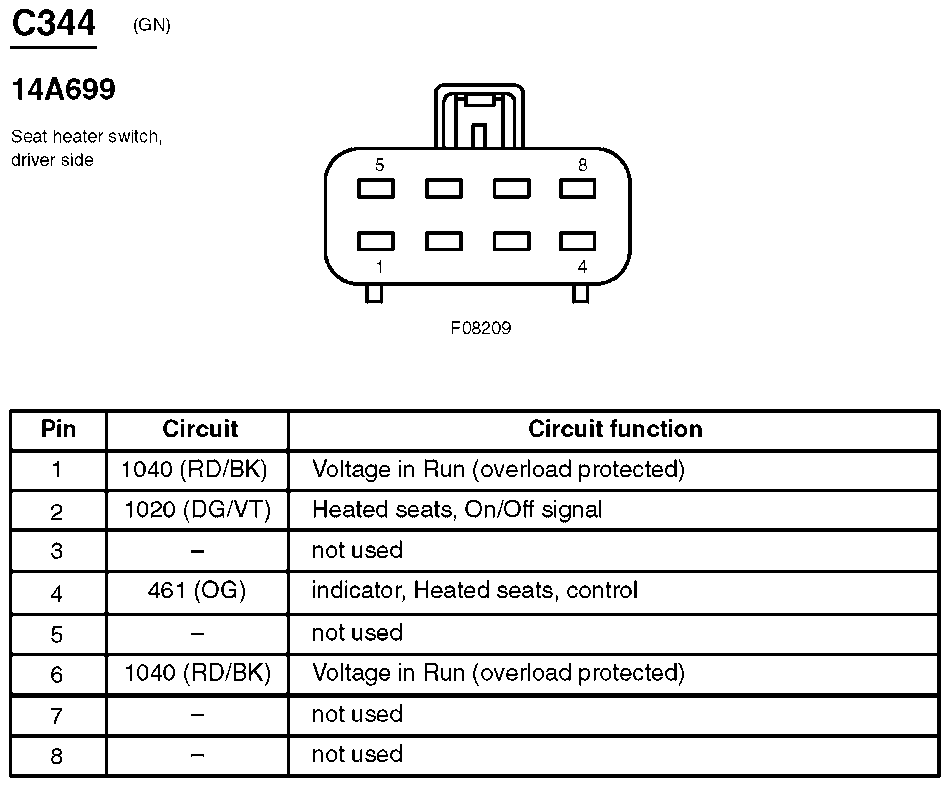

Fig 136: Seat Heater Switch, Driver Side Connector End View (C344)

G07833576

Courtesy of FORD MOTOR CO.

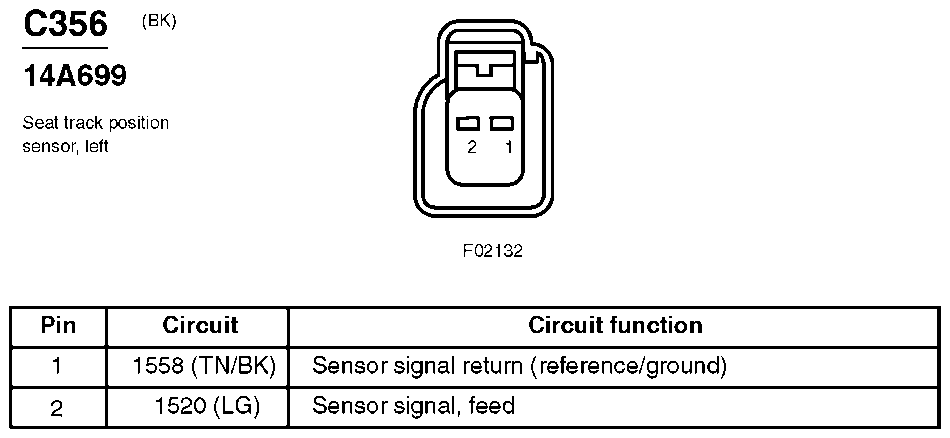

Fig 137: Seat Track Position Sensor, Left Connector End View (C356)

G07833577

Courtesy of FORD MOTOR CO.

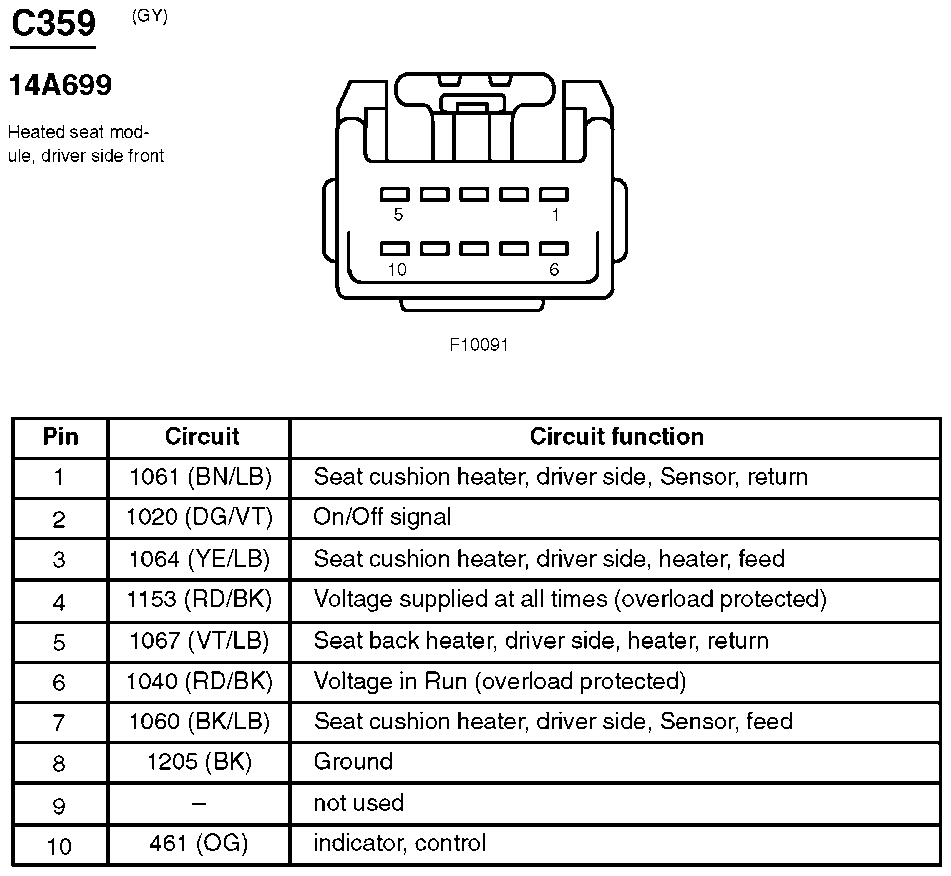

Fig 138: Heated Seat Module, Driver Side Front Connector End View (C359)

G07833578

Courtesy of FORD MOTOR CO.

Fig 139: Seat Adjust Switch, Driver Side Front Connector End View (C360)

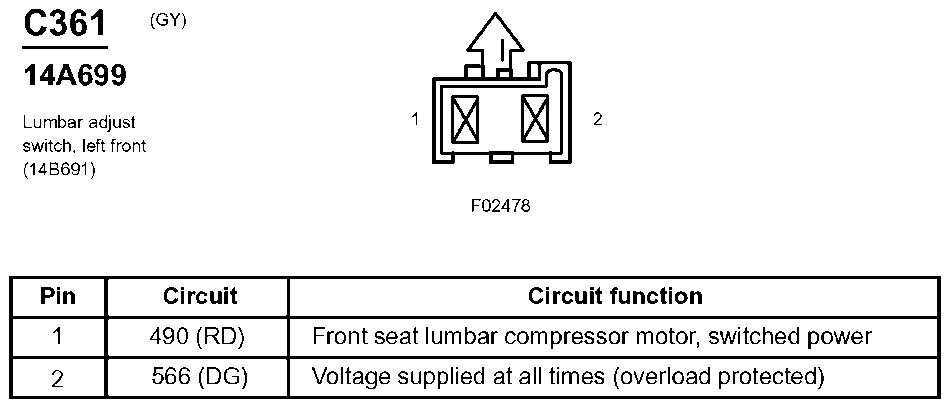

G07833579

Courtesy of FORD MOTOR CO.

Fig 140: Lumbar Adjust Switch, Left Front Connector End View (C361)

G07833580

Courtesy of FORD MOTOR CO.

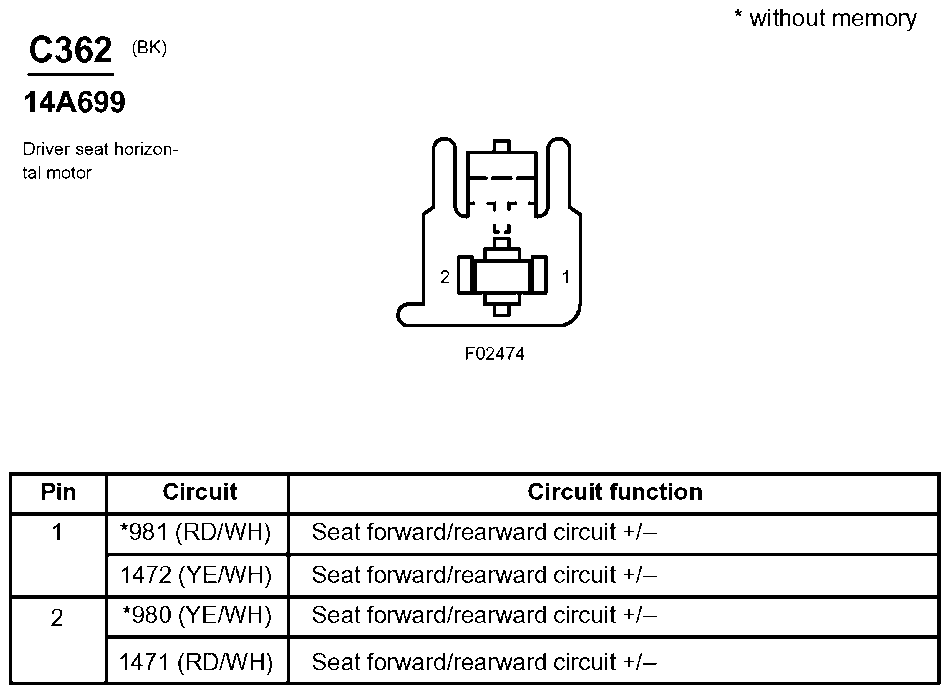

Fig 141: Driver Seat Horizontal Motor Connector End View (C362)

G07833581

Courtesy of FORD MOTOR CO.

Fig 142: Driver Seat Rear Height Motor Connector End View (C363)

G07833582

Courtesy of FORD MOTOR CO.

Fig 143: Seat Cushion Heater, Left Front Connector End View (C364)

G07833583

Courtesy of FORD MOTOR CO.

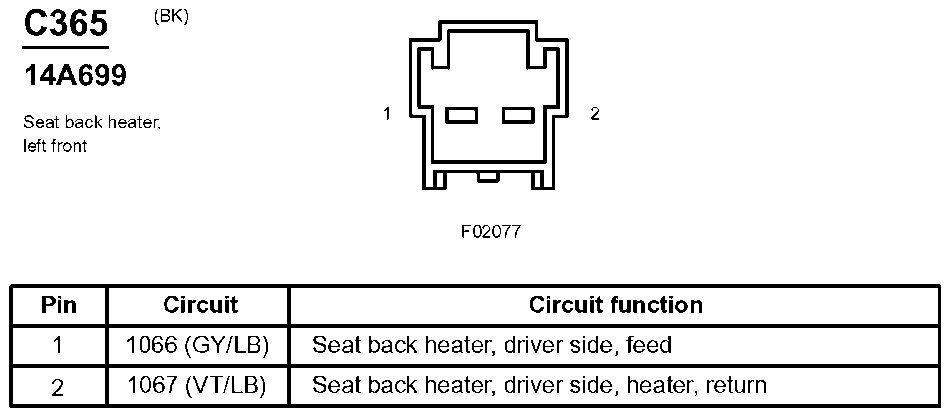

Fig 144: Seat Back Heater, Left Front Connector End View (C365)

G07833584

Courtesy of FORD MOTOR CO.

Fig 145: Driver Seat Lumbar Compressor Motor Connector End View (C366)

G07833585

Courtesy of FORD MOTOR CO.

Fig 146: Side Air Bag Module, Left Connector End View (C367)

G07833586

Courtesy of FORD MOTOR CO.

Fig 147: Sliding Door Entry Lamp, Left Connector End View (C371)

G07833587

Courtesy of FORD MOTOR CO.

Fig 148: Driver Memory Seat Horizontal Sensor Connector End View (C372)

G07833588

Courtesy of FORD MOTOR CO.

Fig 149: Driver Memory Seat Rear Height Sensor Connector End View (C373)

G07833589

Courtesy of FORD MOTOR CO.

Fig 150: In-Line Fuse Connector End View (C375)

G07833590

Courtesy of FORD MOTOR CO.

Fig 151: Driver Seat Front Height Motor Connector End View (C382)

G07833591

Courtesy of FORD MOTOR CO.

Fig 152: Driver Memory Seat Front Height Sensor Connector End View (C383)

G07833592

Courtesy of FORD MOTOR CO.

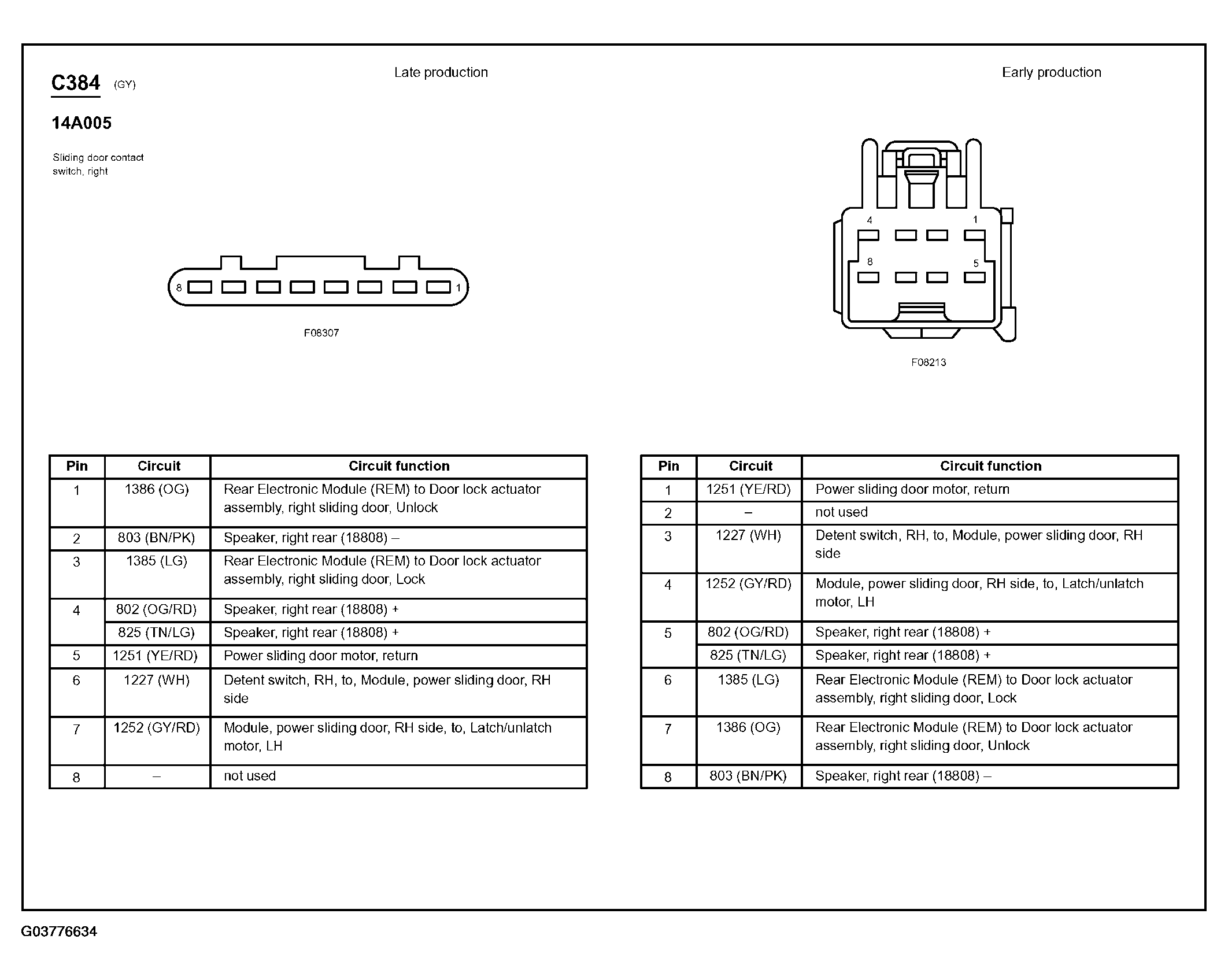

Fig 153: Sliding Door Contact Switch, Right Connector End View (C384)

G03776634

Courtesy of FORD MOTOR CO.

Fig 154: Docking Station Connector End View (C390)

G07833593

Courtesy of FORD MOTOR CO.

Fig 155: Sliding Door Entry Lamp, Right Connector End View (C391)

G07833594

Courtesy of FORD MOTOR CO.

Fig 156: Inertia Fuel Shutoff (IFS) Switch Connector End View (C392)

G07833595

Courtesy of FORD MOTOR CO.

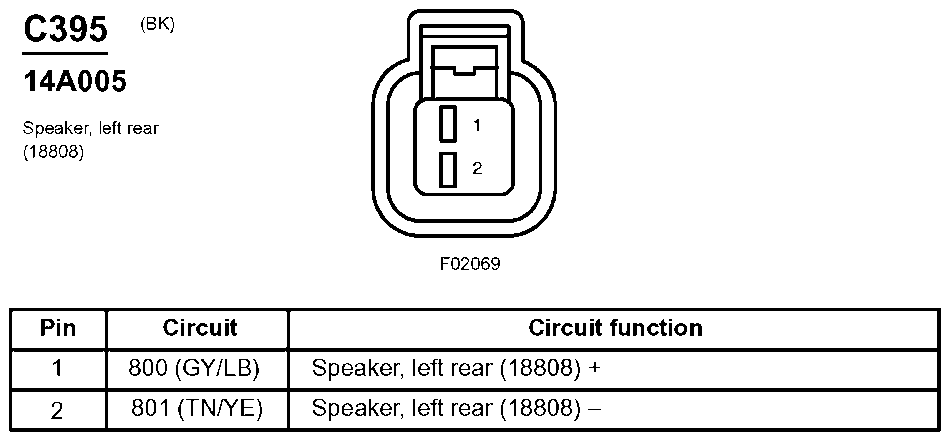

Fig 157: Speaker, Left Rear Connector End View (C395)

G07833596

Courtesy of FORD MOTOR CO.

Fig 158: Sliding Door Ajar Switch, Left Connector End View (C397)

G07833597

Courtesy of FORD MOTOR CO.

Fig 159: Sliding Door Ajar Switch, Right Connector End View (C398)

G03776636

Courtesy of FORD MOTOR CO.

Fig 160: Sliding Door Contact Switch, Left Connector End View (C399)

G03776637

Courtesy of FORD MOTOR CO.

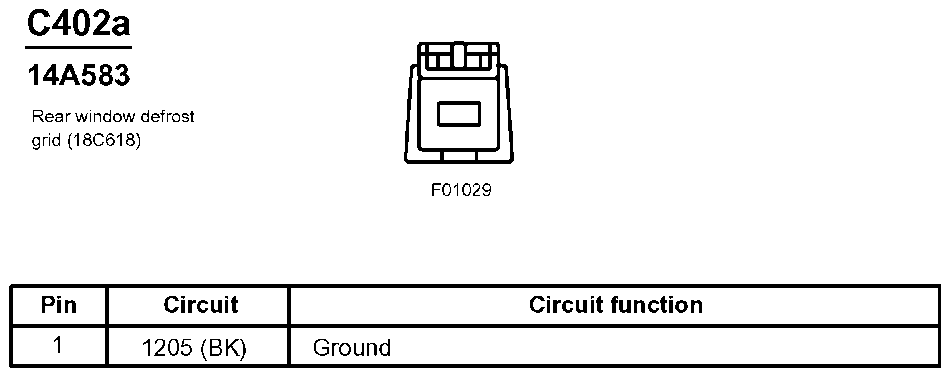

Fig 161: Rear Window Defrost Grid Connector End View (C402a)

G07833598

Courtesy of FORD MOTOR CO.

Fig 162: Rear Window Defrost Grid Connector End View (C402b)

G07833599

Courtesy of FORD MOTOR CO.

Fig 163: Inline Connector End View (C405)

G07833600

Courtesy of FORD MOTOR CO.

Fig 164: Inline Connector End View (C406)

G07833601

Courtesy of FORD MOTOR CO.

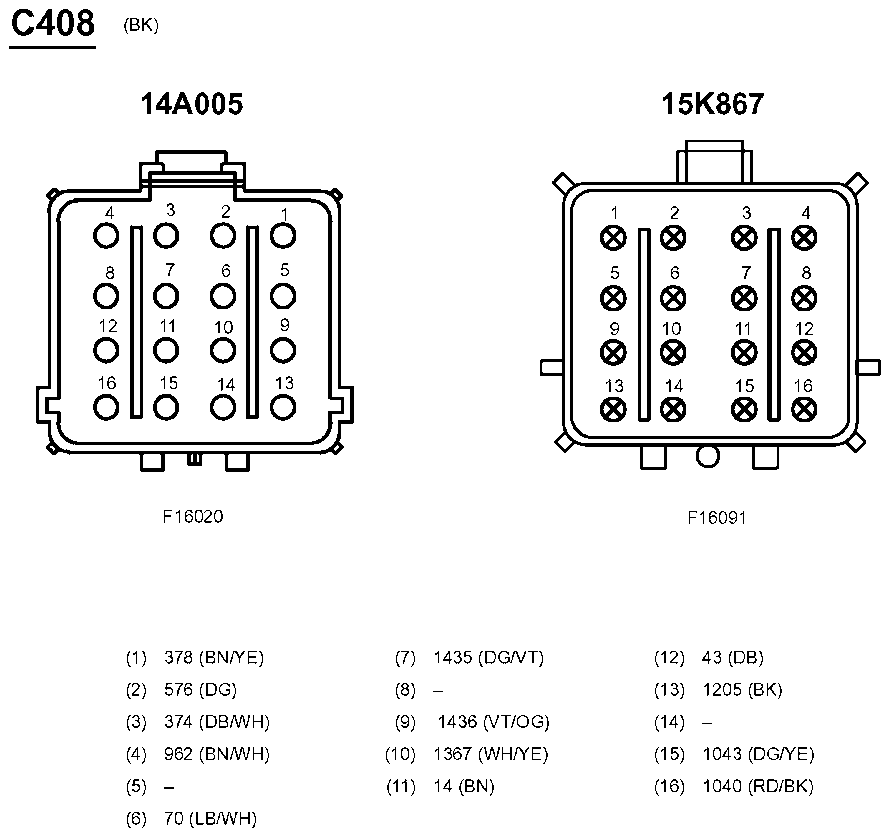

Fig 165: Inline Connector End View (C408)

G07833602

Courtesy of FORD MOTOR CO.

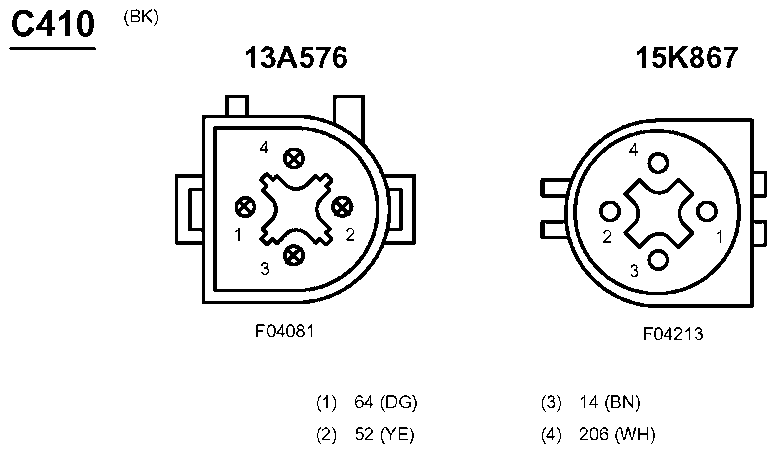

Fig 166: Inline Connector End View (C410)

G07833603

Courtesy of FORD MOTOR CO.

Fig 167: Inline Connector End View (C411)

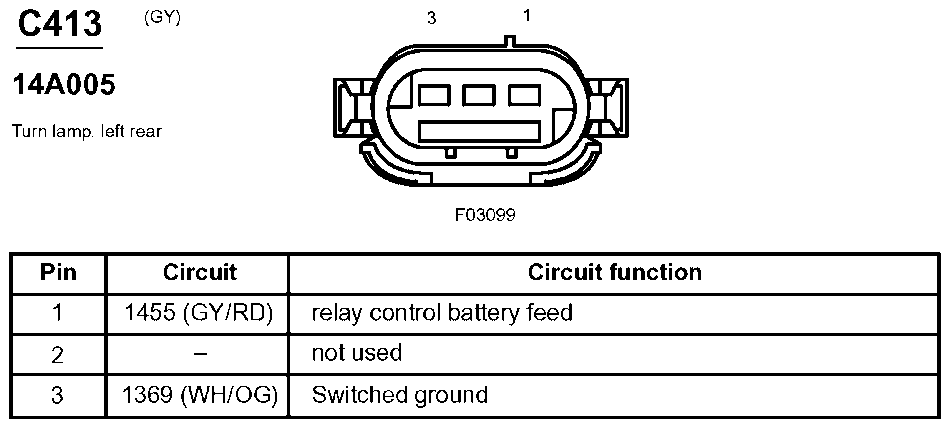

G07833604

Courtesy of FORD MOTOR CO.

Fig 168: Turn Lamp, Left Rear Connector End View (C413)

G07833605

Courtesy of FORD MOTOR CO.

Fig 169: Turn Lamp, Right Rear Connector End View (C416)

G07833606

Courtesy of FORD MOTOR CO.

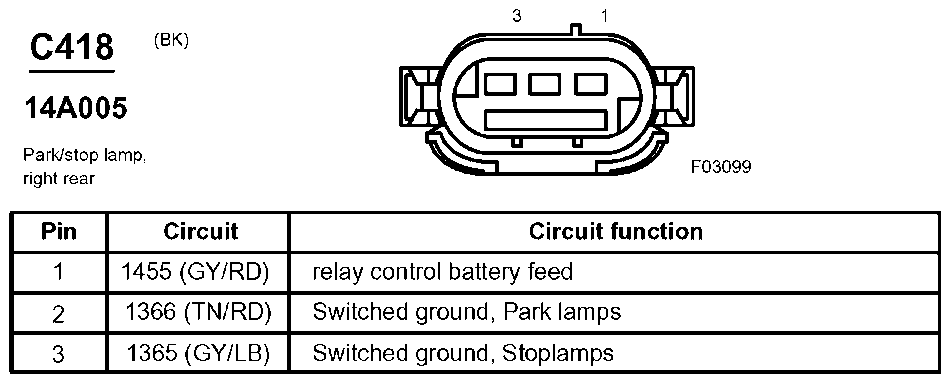

Fig 170: Park/Stop Lamp, Right Rear Connector End View (C418)

G07833607

Courtesy of FORD MOTOR CO.

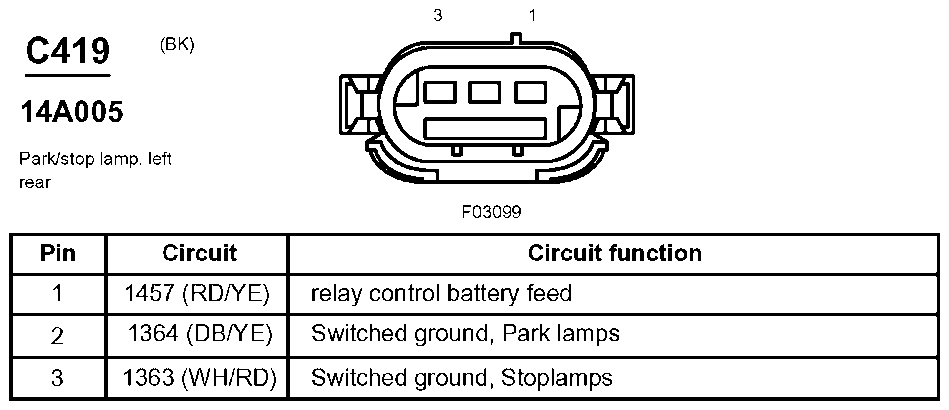

Fig 171: Park/Stop Lamp, Left Rear Connector End View (C419)

G07833608

Courtesy of FORD MOTOR CO.

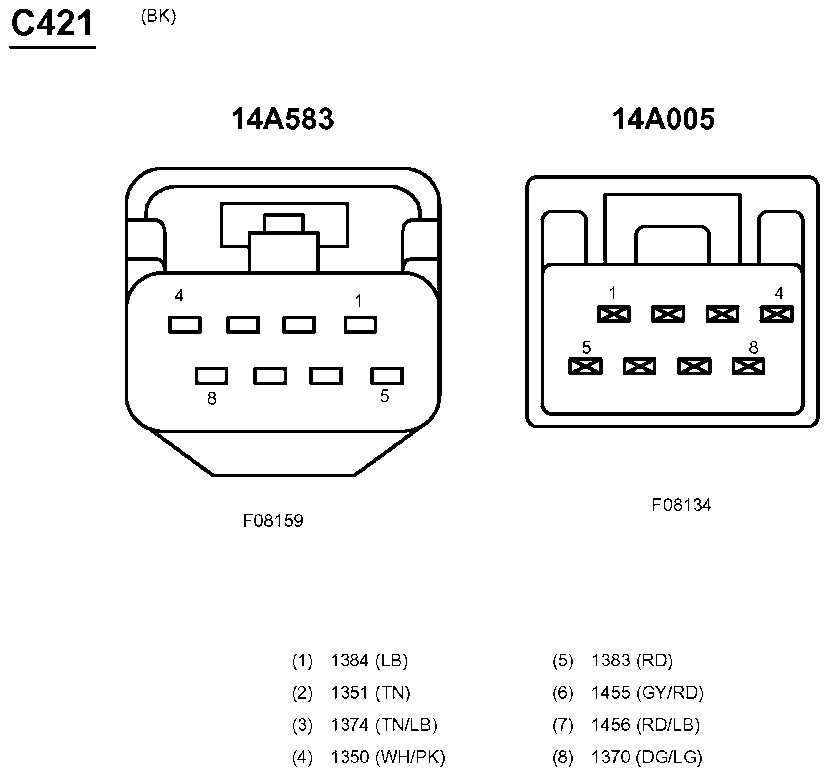

Fig 172: Inline Connector End View (C421)

G07833609

Courtesy of FORD MOTOR CO.

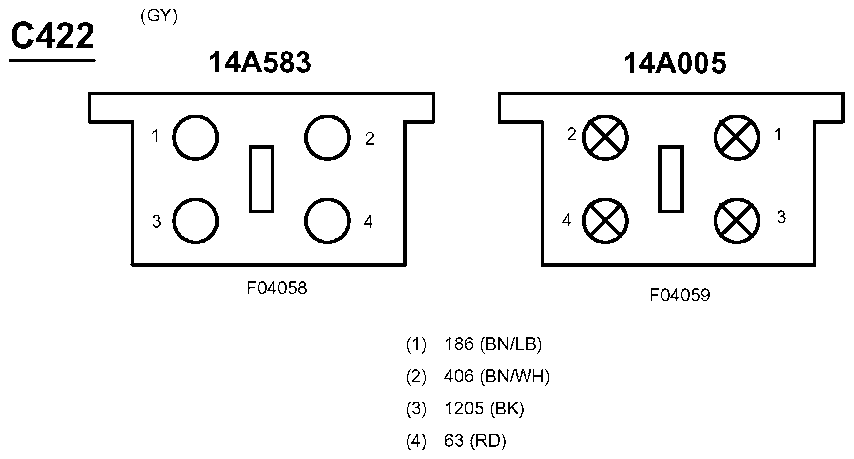

Fig 173: Inline Connector End View (C422)

G07833610

Courtesy of FORD MOTOR CO.

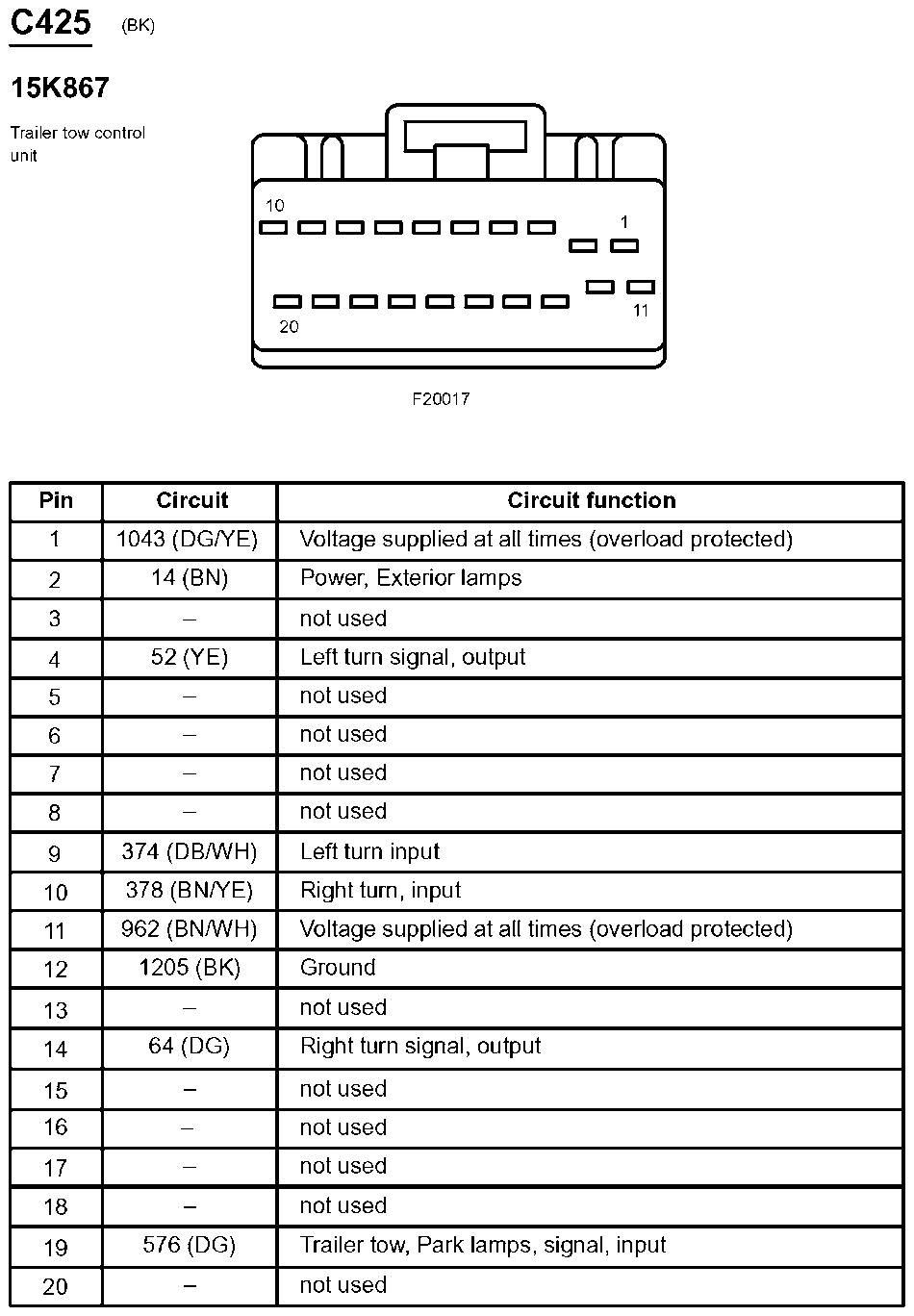

Fig 174: Trailer Tow Control Unit Connector End View (C425)

G07833611

Courtesy of FORD MOTOR CO.

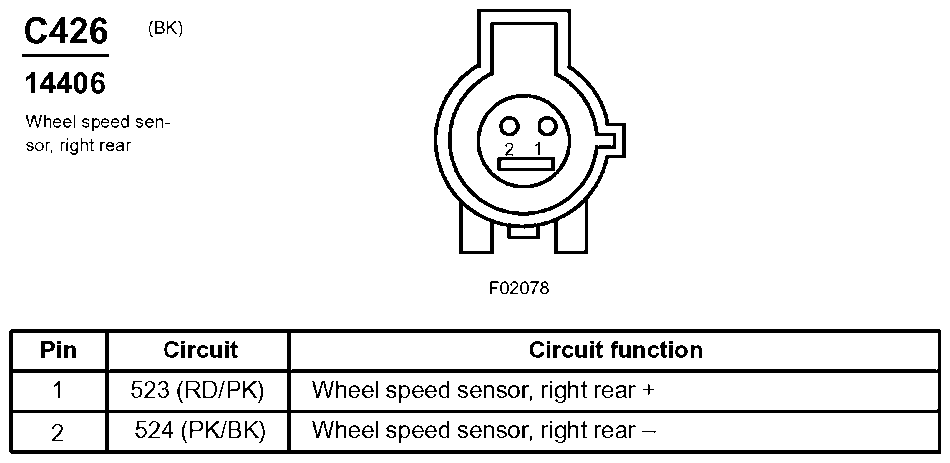

Fig 175: Wheel Speed Sensor, Right Rear Connector End View (C426)

G07833612

Courtesy of FORD MOTOR CO.

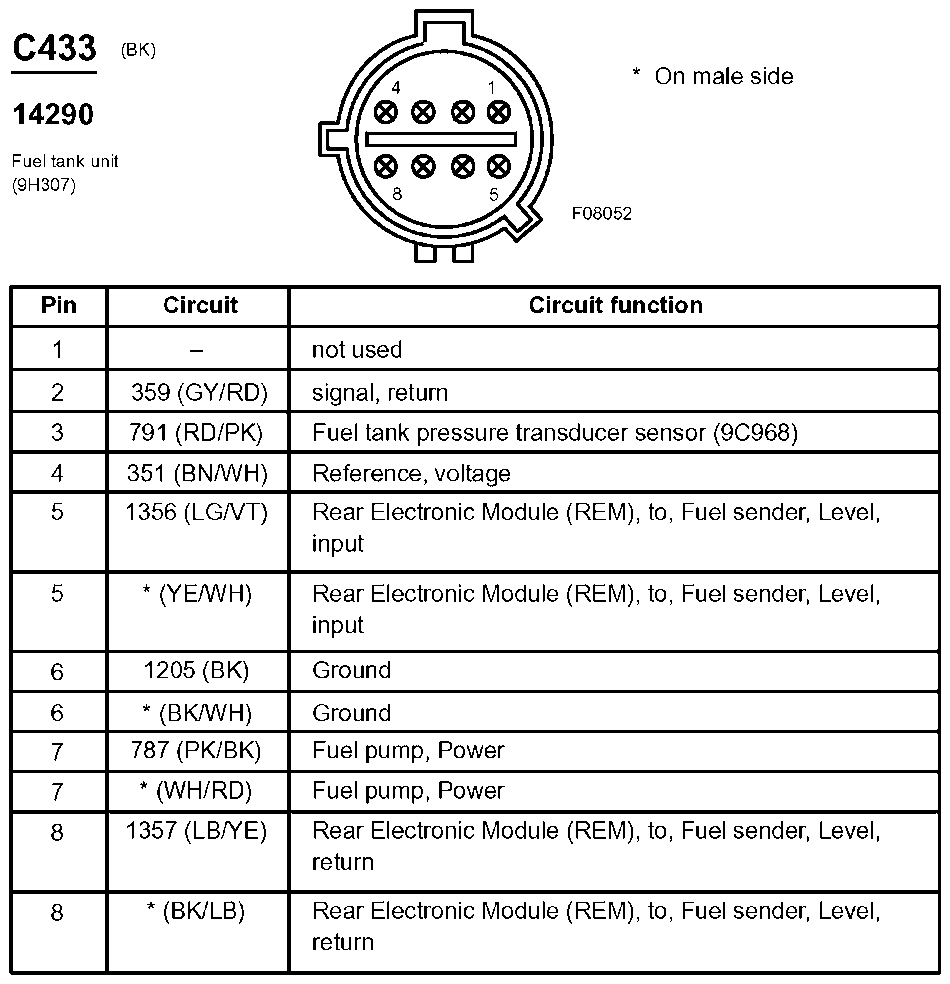

Fig 176: Fuel Tank Unit Connector End View (C433)

G07833613

Courtesy of FORD MOTOR CO.

Fig 177: Fuel Tank Pressure Transducer Sensor Connector End View (C435)

G07833614

Courtesy of FORD MOTOR CO.

Fig 178: Trailer Tow Connector End View (C439)

G07833615

Courtesy of FORD MOTOR CO.

Fig 179: Wheel Speed Sensor, Left Rear Connector End View (C440)

G07833616

Courtesy of FORD MOTOR CO.

Fig 180: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)

G07833617

Courtesy of FORD MOTOR CO.

Fig 181: Reversing Lamp, Left Connector End View (C451)

G07833618

Courtesy of FORD MOTOR CO.

Fig 182: Liftgate Lock Actuator Connector End View (C457)

G07833619

Courtesy of FORD MOTOR CO.

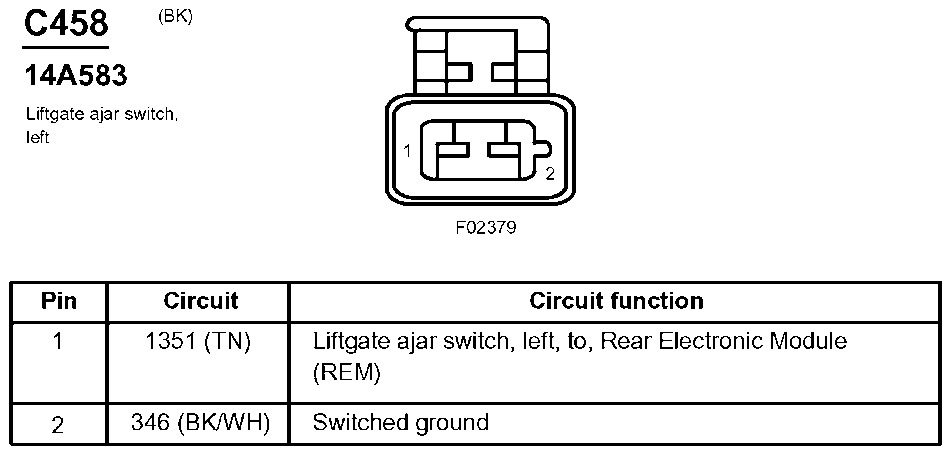

Fig 183: Liftgate Ajar Switch, Left Connector End View (C458)

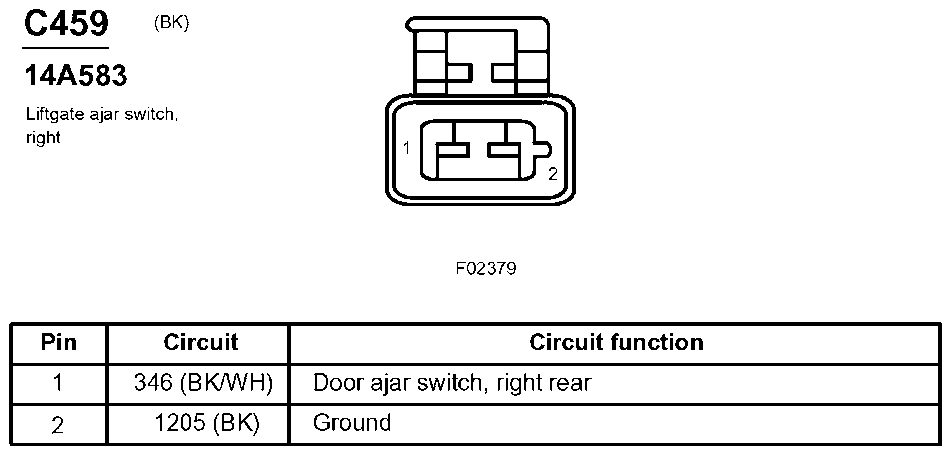

G07833620

Courtesy of FORD MOTOR CO.

Fig 184: Liftgate Ajar Switch, Right Connector End View (C459)

G07833621

Courtesy of FORD MOTOR CO.

Fig 185: Reversing Lamp, Right Connector End View (C461)

G07833622

Courtesy of FORD MOTOR CO.

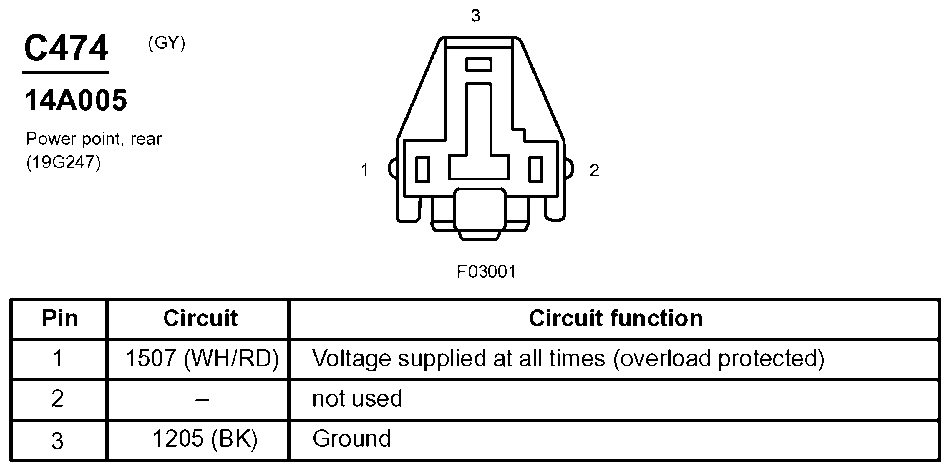

Fig 186: Power Point, Rear Connector End View (C474)

G07833623

Courtesy of FORD MOTOR CO.

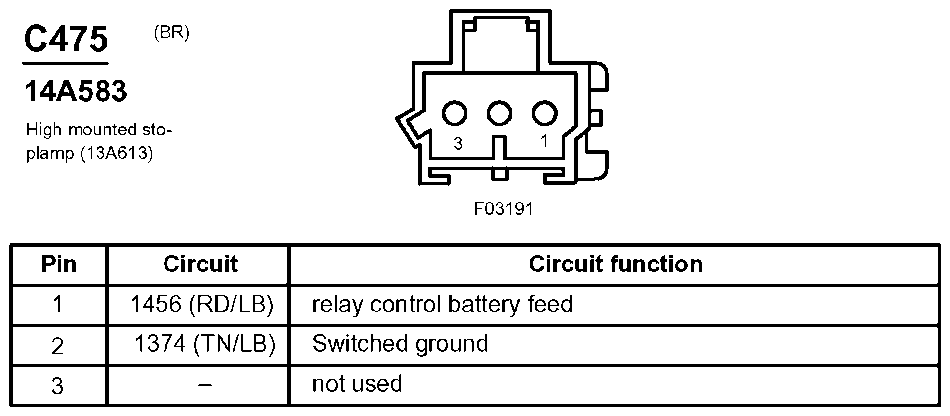

Fig 187: High Mounted Stoplamp Connector End View (C475)

G07833624

Courtesy of FORD MOTOR CO.

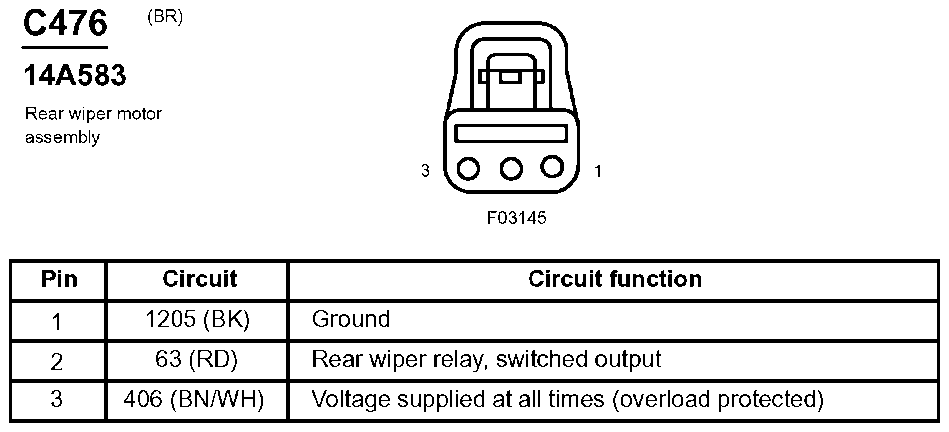

Fig 188: Rear Wiper Motor Assembly Connector End View (C476)

G07833625

Courtesy of FORD MOTOR CO.

Fig 189: License Lamps Connector End View (C490)

G07833626

Courtesy of FORD MOTOR CO.

Fig 190: Key Pad Switch Assembly Connector End View (C500)

G07833627

Courtesy of FORD MOTOR CO.

Fig 191: Lock Cylinder Switch, Left Connector End View (C502)

G07833628

Courtesy of FORD MOTOR CO.

Fig 192: Door Entry Lamp, Left Front Connector End View (C506)

G07833629

Courtesy of FORD MOTOR CO.

Fig 193: Master Window/Door Lock/Unlock Switch Connector End View (C508a)

G07833630

Courtesy of FORD MOTOR CO.

Fig 194: Master Window/Door Lock/Unlock Switch Connector End View (C508b)

G07833631

Courtesy of FORD MOTOR CO.

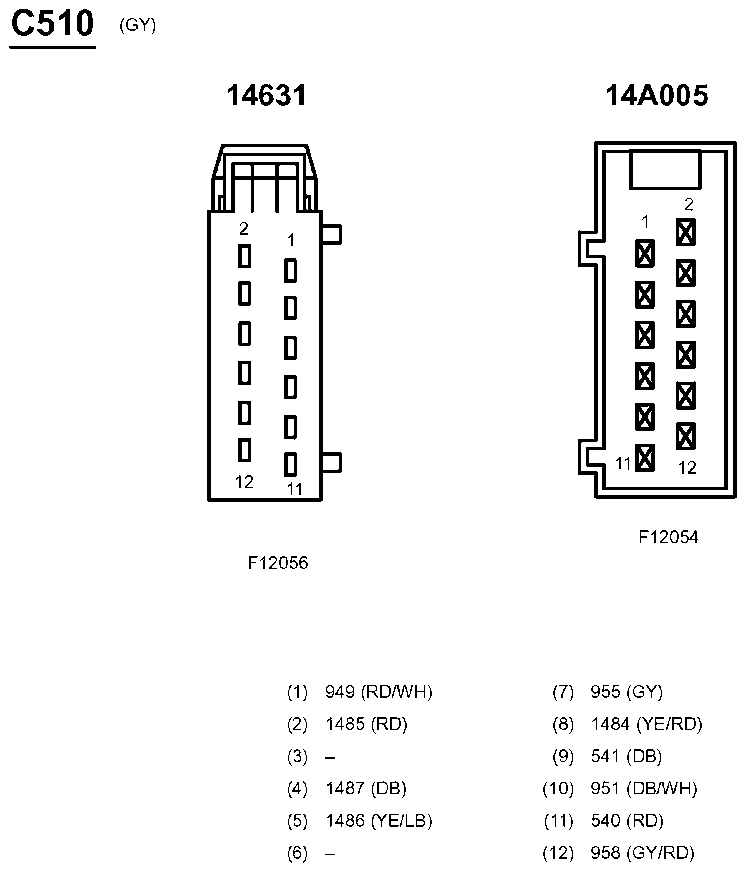

Fig 195: Inline Connector End View (C510)

G07833632

Courtesy of FORD MOTOR CO.

Fig 196: Inline Connector End View (C511)

G07833633

Courtesy of FORD MOTOR CO.

Fig 197: Exterior Rear View Mirror, Left Connector End View (C516)

G07833634

Courtesy of FORD MOTOR CO.

Fig 198: Exterior Rear View Mirror, Left Connector End View (C517)

G07833635

Courtesy of FORD MOTOR CO.

Fig 199: Power Window Motor, Left Front Connector End View (C518)

G07833636

Courtesy of FORD MOTOR CO.

Fig 200: Exterior Rear View Mirror, Left Connector End View (C522)

G07833637

Courtesy of FORD MOTOR CO.

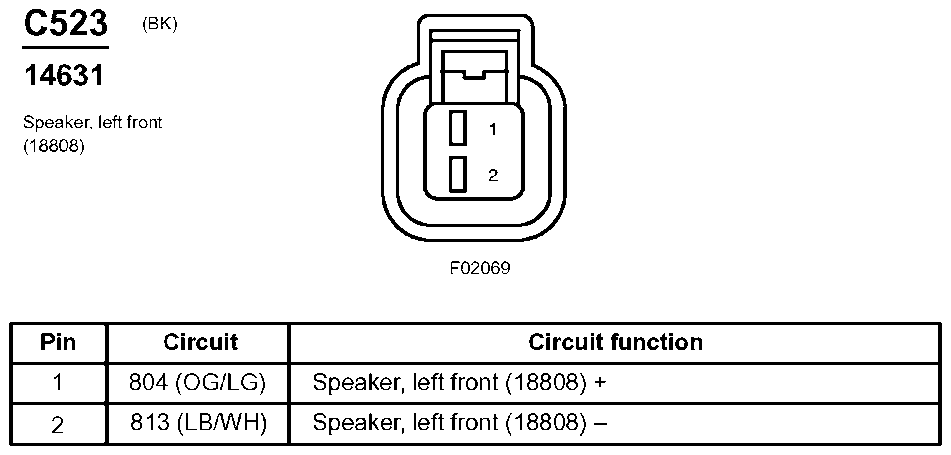

Fig 201: Speaker, Left Front Connector End View (C523)

G07833638

Courtesy of FORD MOTOR CO.

Fig 202: Door Lock Actuator, Left Front Connector End View (C525)

G07833639

Courtesy of FORD MOTOR CO.

Fig 203: Door Ajar Switch, Left Front Connector End View (C526)

G07833640

Courtesy of FORD MOTOR CO.

Fig 204: Exterior Rear View Mirror Switch Connector End View (C527)

G07833641

Courtesy of FORD MOTOR CO.

Fig 205: Inline Connector End View (C561)

G07833642

Courtesy of FORD MOTOR CO.

Fig 206: Inline Connector End View (C562)

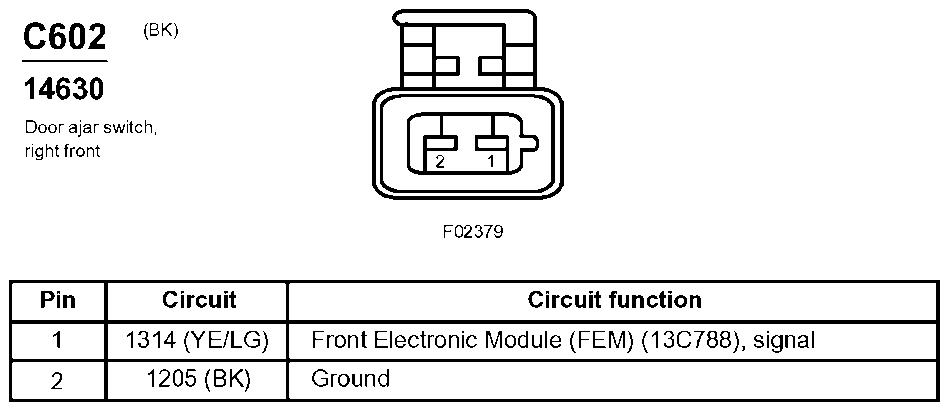

G07833643

Courtesy of FORD MOTOR CO.

Fig 207: Door Ajar Switch, Right Front Connector End View (C602)

G07833644

Courtesy of FORD MOTOR CO.

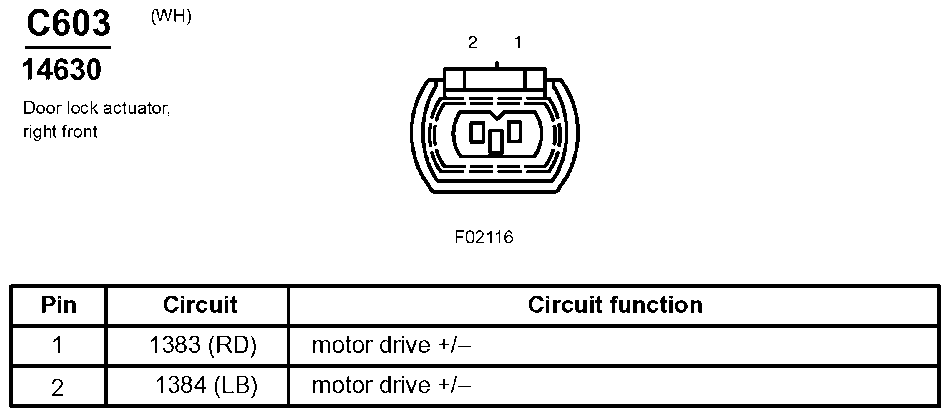

Fig 208: Door Lock Actuator, Right Front Connector End View (C603)

G07833645

Courtesy of FORD MOTOR CO.

Fig 209: Door Lock Switch, Passenger Side Connector End View (C605)

G07833646

Courtesy of FORD MOTOR CO.

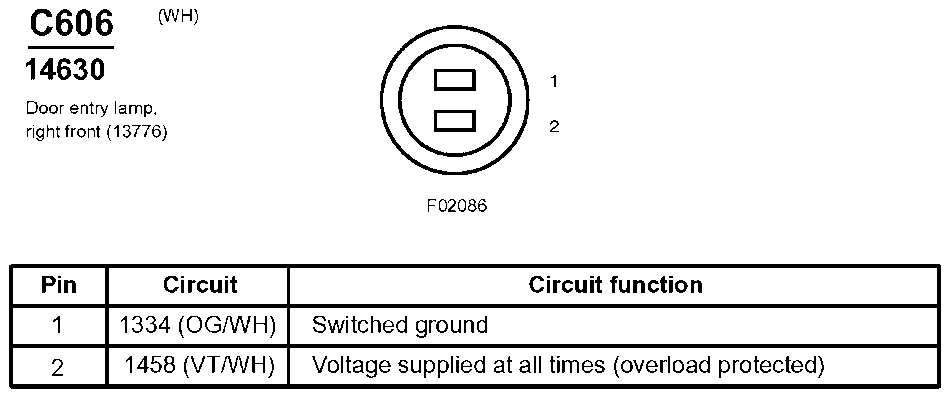

Fig 210: Door Entry Lamp, Right Front Connector End View (C606)

G07833647

Courtesy of FORD MOTOR CO.

Fig 211: Inline Connector End View (C610)

G07833648

Courtesy of FORD MOTOR CO.

Fig 212: Inline Connector End View (C611)

G07833649

Courtesy of FORD MOTOR CO.

Fig 213: Speaker, Right Front Connector End View (C612)

G07833650

Courtesy of FORD MOTOR CO.

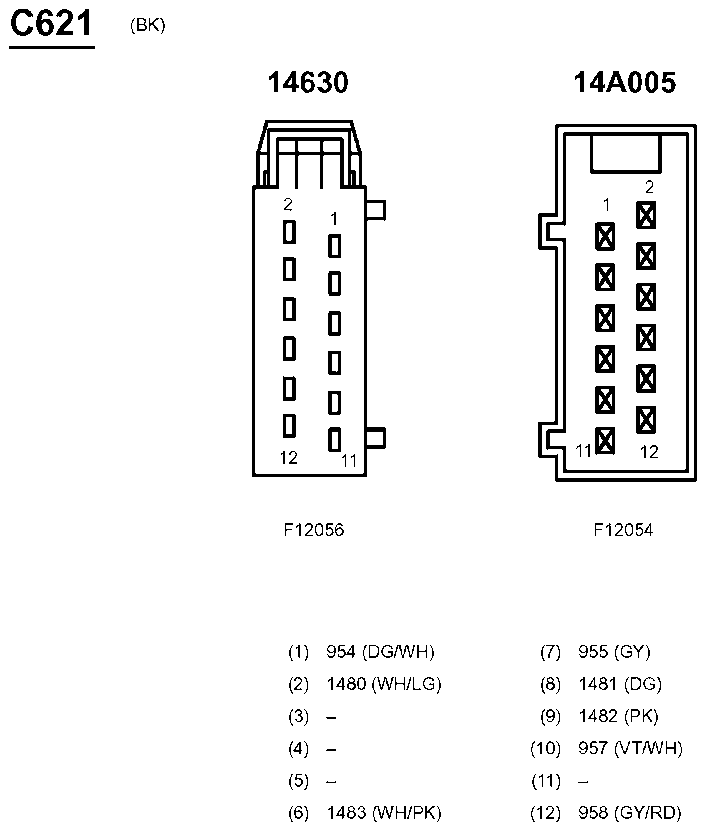

Fig 214: Inline Connector End View (C621)

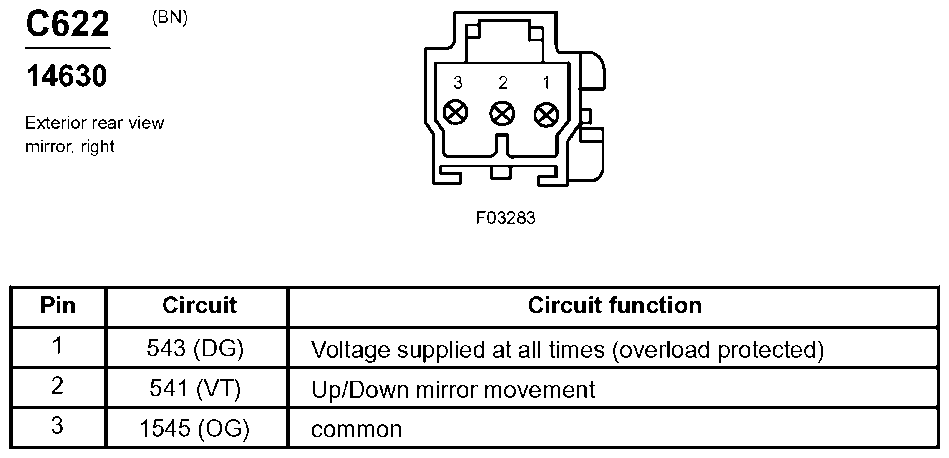

G07833651

Courtesy of FORD MOTOR CO.

Fig 215: Exterior Rear View Mirror, Right Connector End View (C622)

G07833652

Courtesy of FORD MOTOR CO.

Fig 216: Power Window Motor, Right Front Connector End View (C623)

G07833653

Courtesy of FORD MOTOR CO.

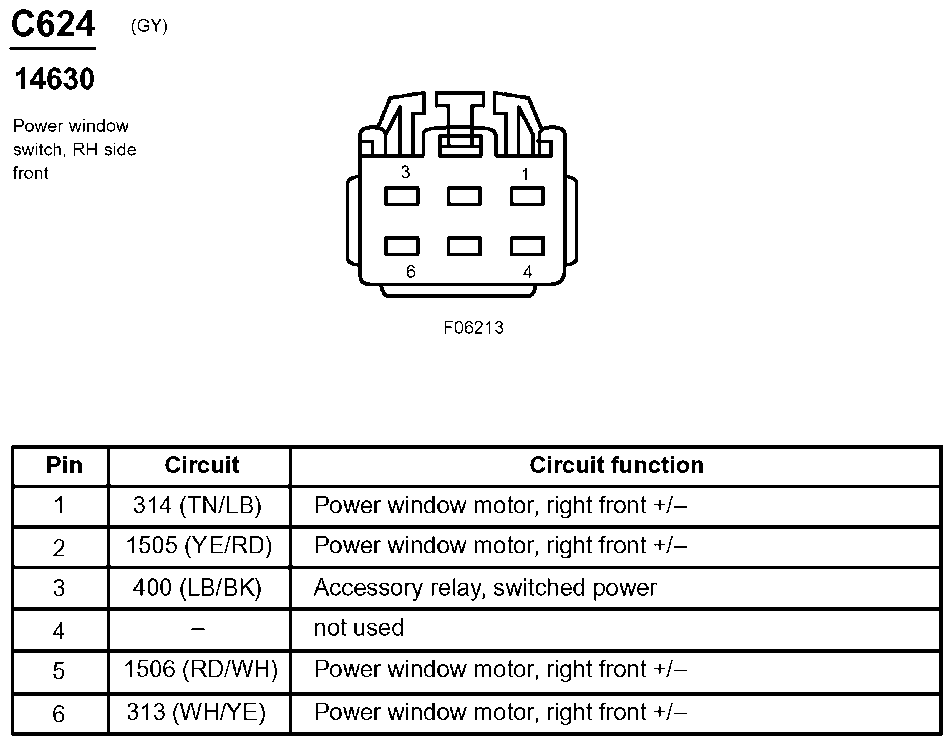

Fig 217: Power Window Switch, RH Side Front Connector End View (C624)

G07833654

Courtesy of FORD MOTOR CO.

Fig 218: Exterior Rear View Mirror, Right Connector End View (C625)

G07833655

Courtesy of FORD MOTOR CO.

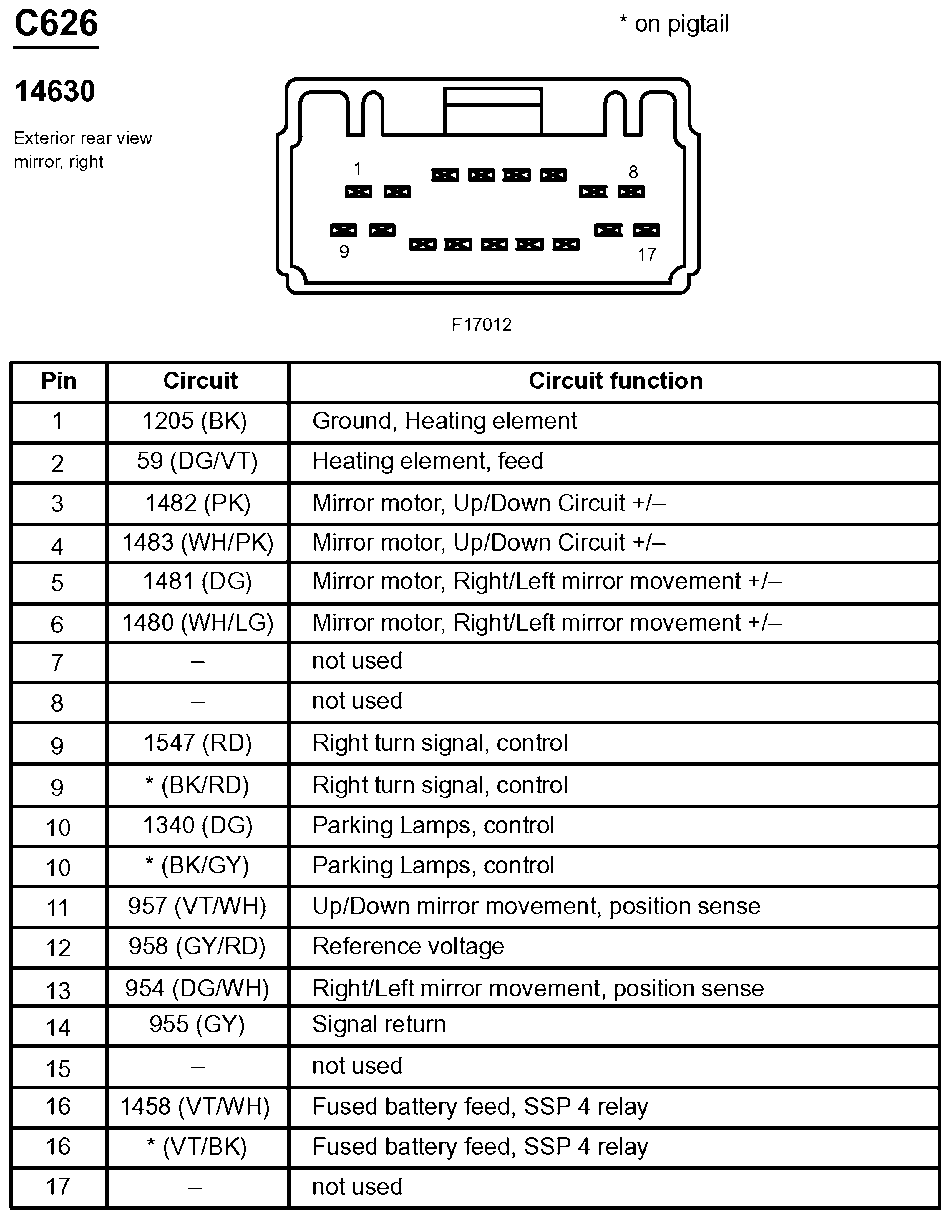

Fig 219: Exterior Rear View Mirror, Right Connector End View (C626)

G07833656

Courtesy of FORD MOTOR CO.

Fig 220: Speaker, Left Rear Connector End View (C702)

G07833657

Courtesy of FORD MOTOR CO.

Fig 221: Sliding Door Contact Switch, Left Connector End View (C706)

G03776655

Courtesy of FORD MOTOR CO.

Fig 222: Sliding Door Contact Switch, Left Connector End View (C707)

G03776656

Courtesy of FORD MOTOR CO.

Fig 223: Door Lock Actuator Assembly, Left Sliding Door Connector End View (C708)

G07833658

Courtesy of FORD MOTOR CO.

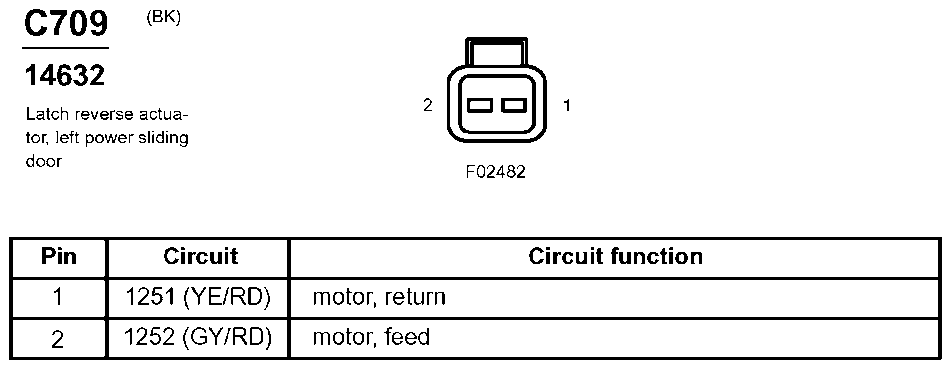

Fig 224: Latch Reverse Actuator, Left Power Sliding Door Connector End View (C709)

G07833659

Courtesy of FORD MOTOR CO.

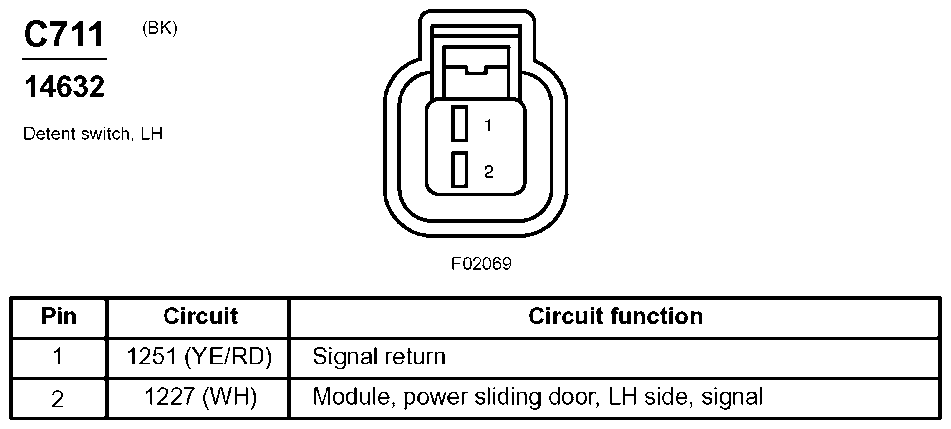

Fig 225: Detent Switch, LH Connector End View (C711)

G07833660

Courtesy of FORD MOTOR CO.

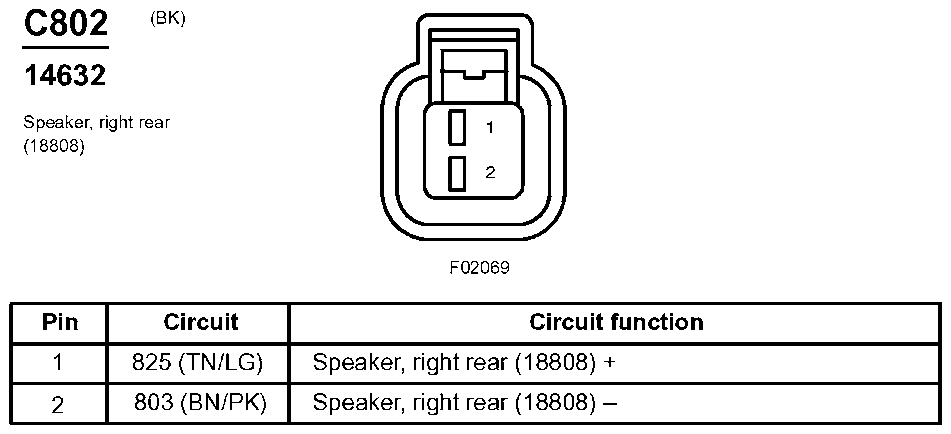

Fig 226: Speaker, Right Rear Connector End View (C802)

G07833661

Courtesy of FORD MOTOR CO.

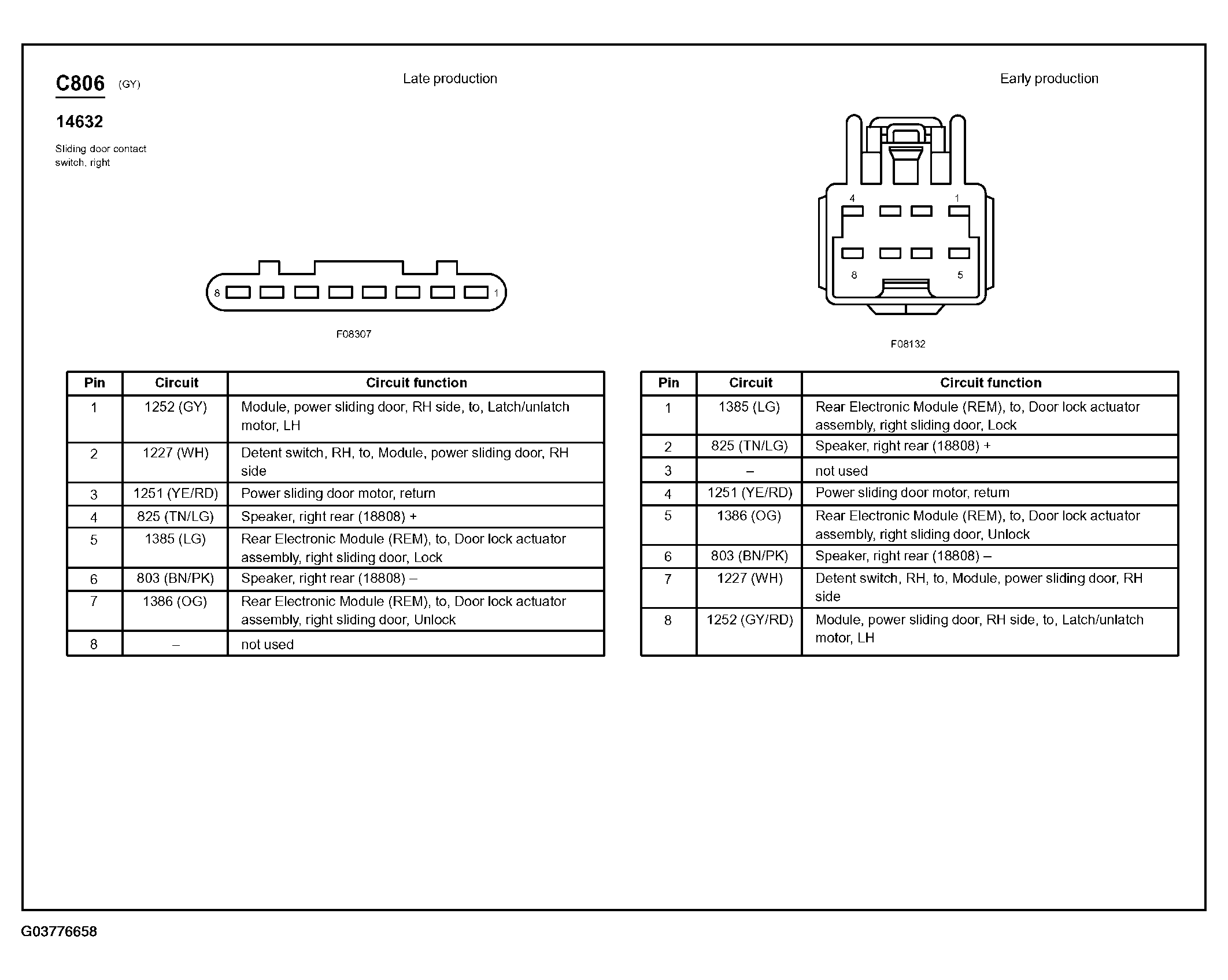

Fig 227: Sliding Door Contact Switch, Right Connector End View (C806)

G03776658

Courtesy of FORD MOTOR CO.

Fig 228: Sliding Door Contact Switch, Right Connector End View (C807)

G03776659

Courtesy of FORD MOTOR CO.

Fig 229: Door Lock Actuator Assembly, Right Sliding Door Connector End View (C808)

G07833662

Courtesy of FORD MOTOR CO.

Fig 230: Latch Reverse Actuator, Right Power Sliding Door Connector End View (C809)

G07833663

Courtesy of FORD MOTOR CO.

Fig 231: Detent Switch, RH Connector End View (C811)

G07833664

Courtesy of FORD MOTOR CO.

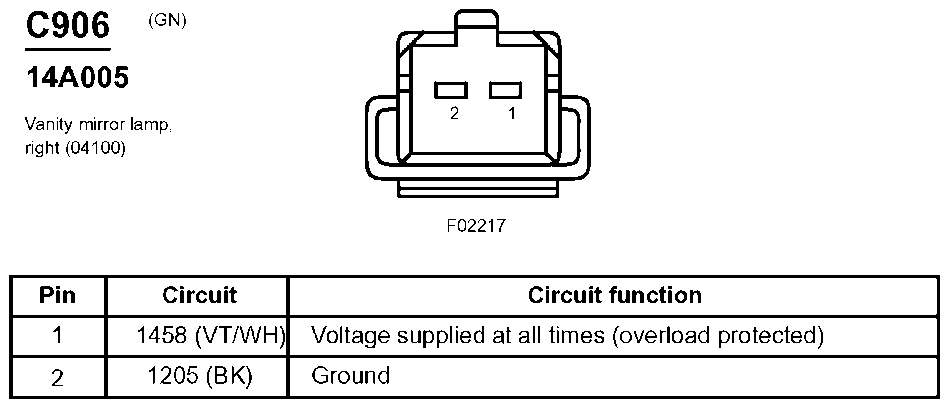

Fig 232: Vanity Mirror Lamp, Right Connector End View (C906)

G07833665

Courtesy of FORD MOTOR CO.

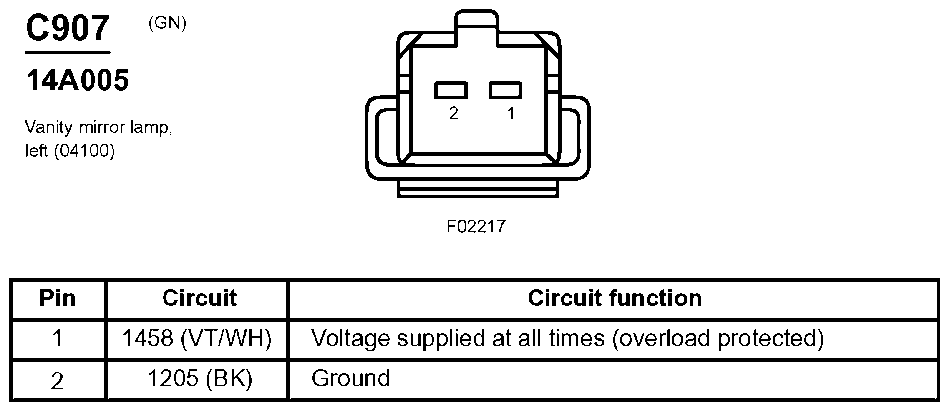

Fig 233: Vanity Mirror Lamp, Left Connector End View (C907)

G07833666

Courtesy of FORD MOTOR CO.

Fig 234: Electronic Compass Connector End View (C909)

G07833667

Courtesy of FORD MOTOR CO.

Fig 235: Electrochromatic Inside Mirror Unit Connector End View (C911)

G07833668

Courtesy of FORD MOTOR CO.

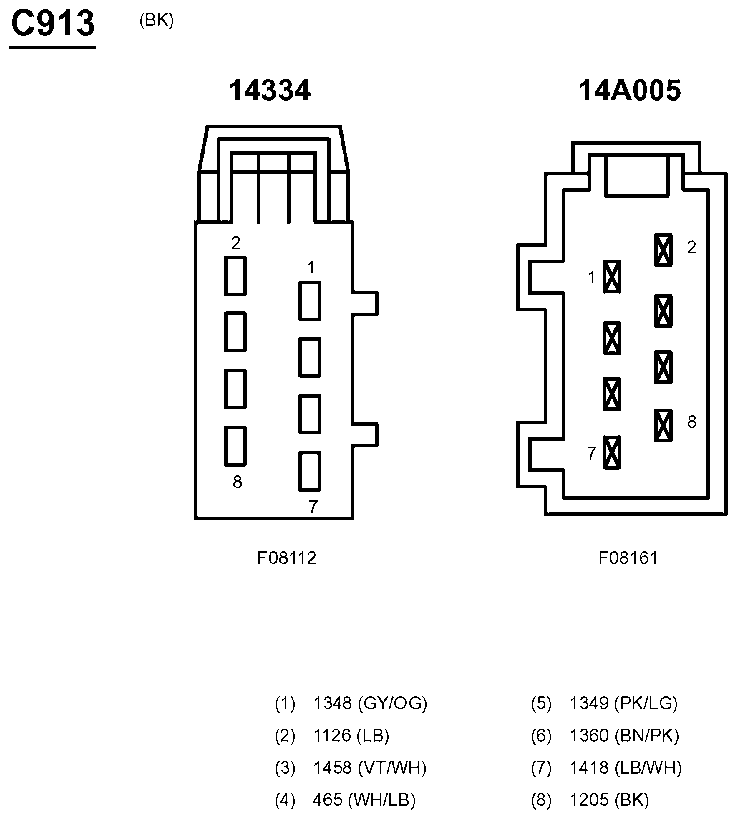

Fig 236: Inline Connector End View (C913)

G07833669

Courtesy of FORD MOTOR CO.

Fig 237: Interior Lamp, Front Connector End View (C918)

G07833670

Courtesy of FORD MOTOR CO.

Fig 238: Inline Connector End View (C919)

G07833671

Courtesy of FORD MOTOR CO.

Fig 239: Inline Connector End View (C922)

G07833672

Courtesy of FORD MOTOR CO.

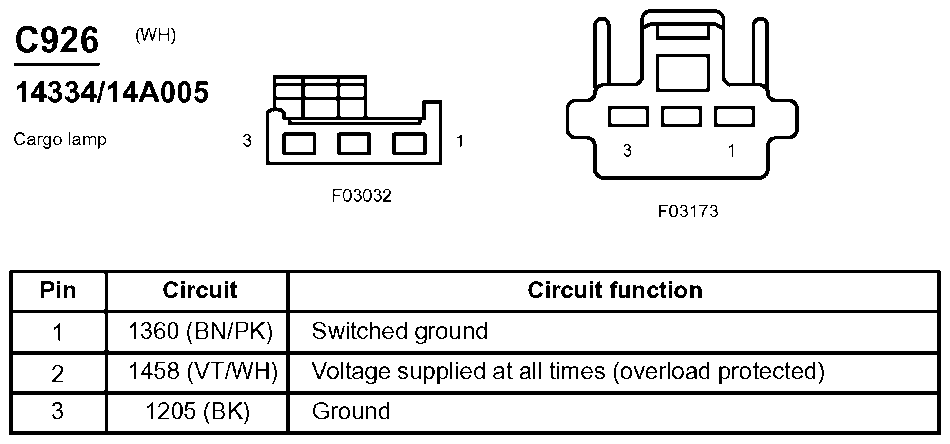

Fig 240: Cargo Lamp Connector End View (C926)

G07833673

Courtesy of FORD MOTOR CO.

Fig 241: Overhead Console Connector End View (C930)

G07833674

Courtesy of FORD MOTOR CO.

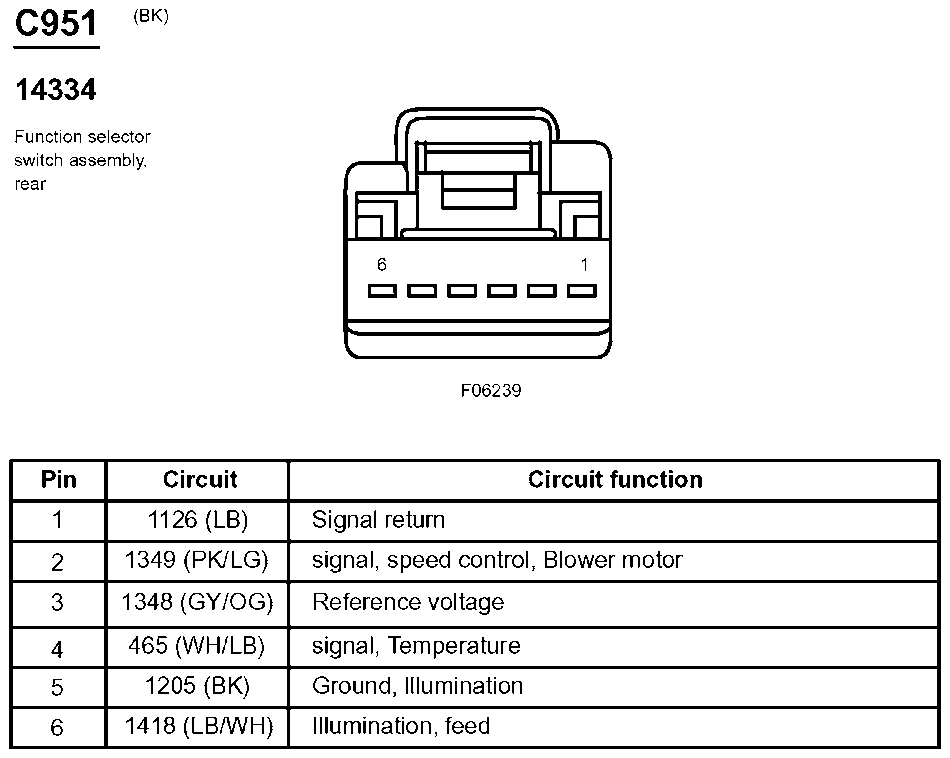

Fig 242: Function Selector Switch Assembly, Rear Connector End View (C951)

G07833675

Courtesy of FORD MOTOR CO.

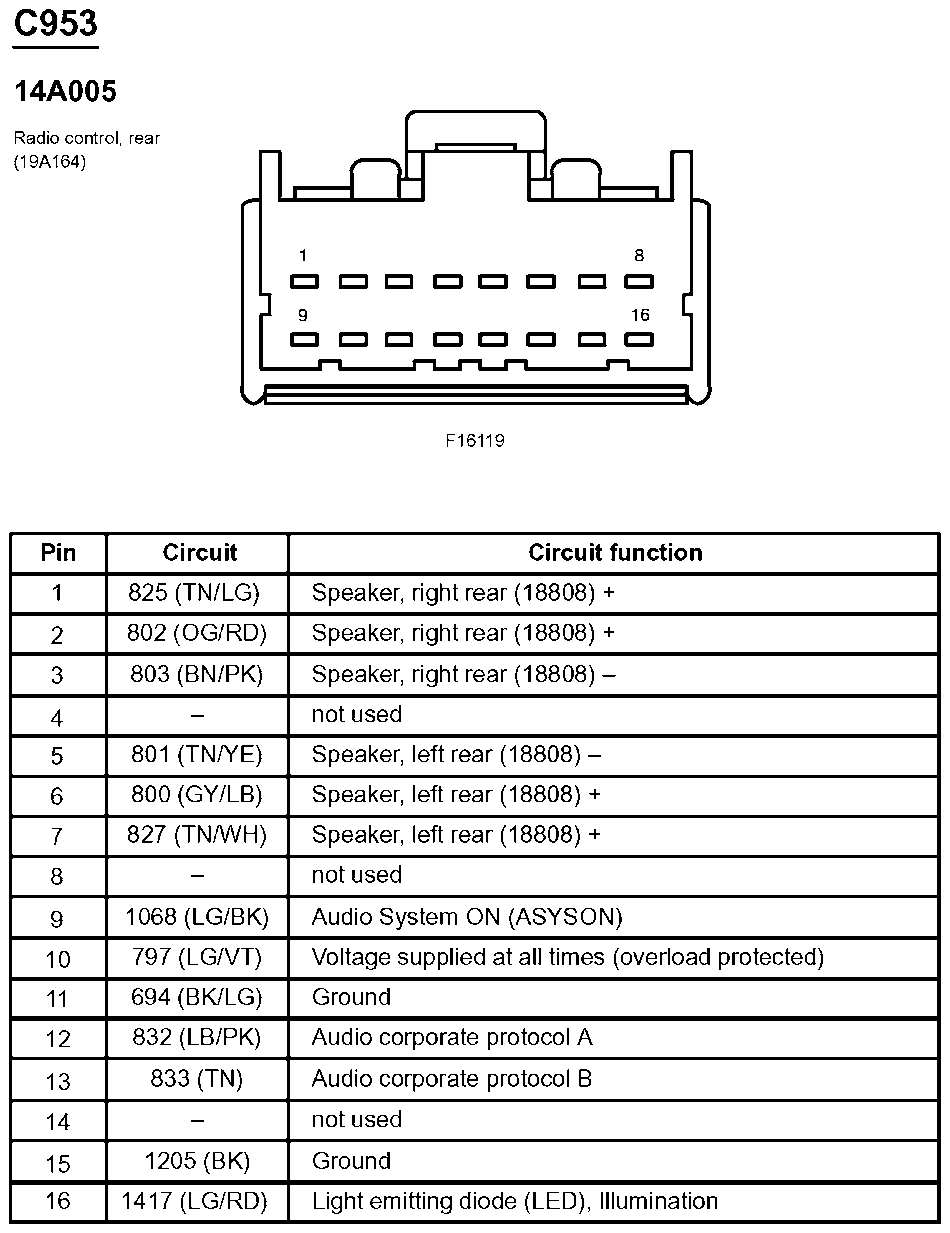

Fig 243: Radio Control, Rear Connector End View (C953)

G07833676

Courtesy of FORD MOTOR CO.

Fig 244: Power Sliding Door Switch, Left Connector End View (C958)

G07833677

Courtesy of FORD MOTOR CO.

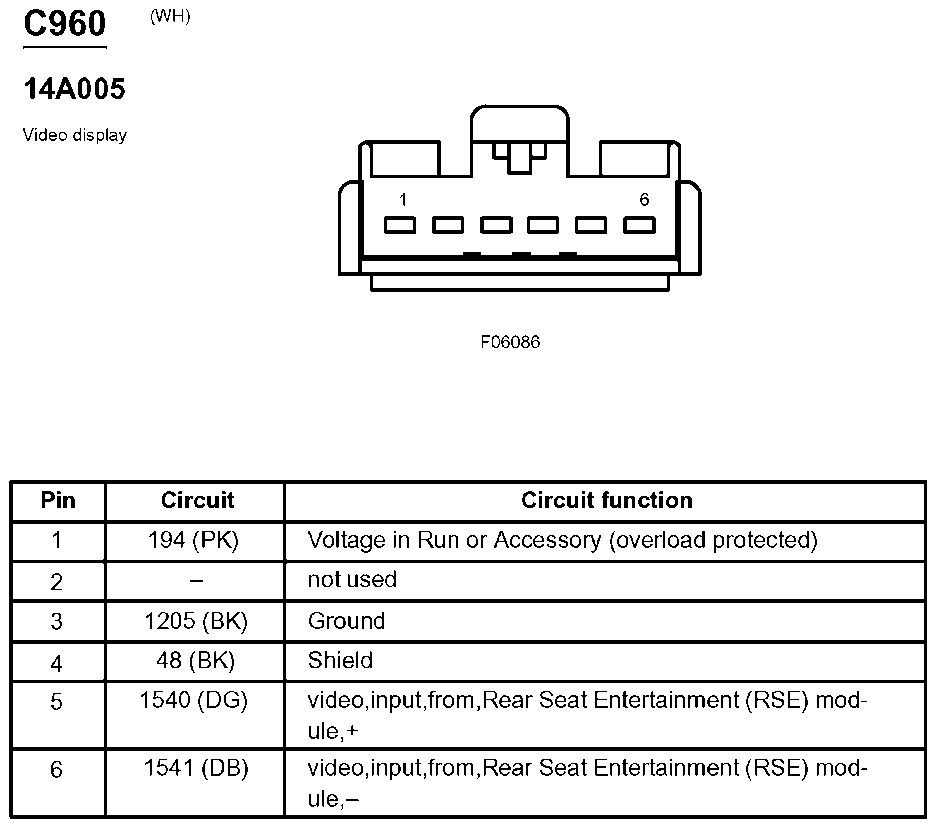

Fig 245: Video Display Connector End View (C960)

G07833678

Courtesy of FORD MOTOR CO.

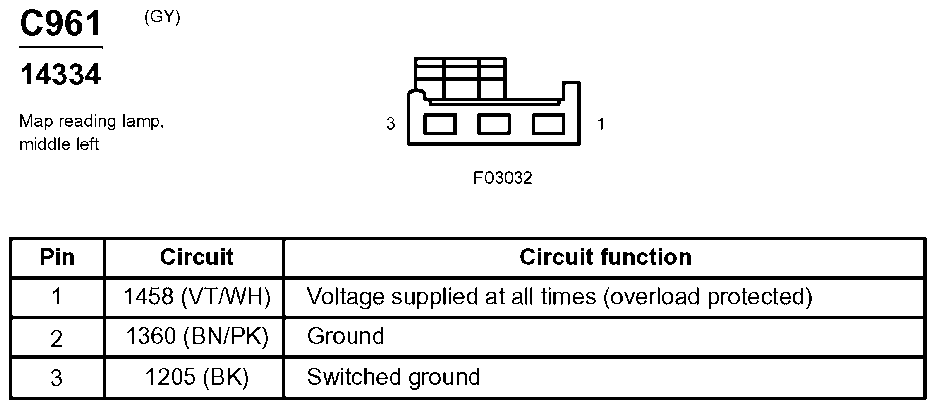

Fig 246: Map Reading Lamp, Middle Left Connector End View (C961)

G07833679

Courtesy of FORD MOTOR CO.

Fig 247: Map Reading Lamp, Middle Right Connector End View (C962)

G07833680

Courtesy of FORD MOTOR CO.

Fig 248: Map Reading Lamp, Rear Left Connector End View (C963)

G07833681

Courtesy of FORD MOTOR CO.

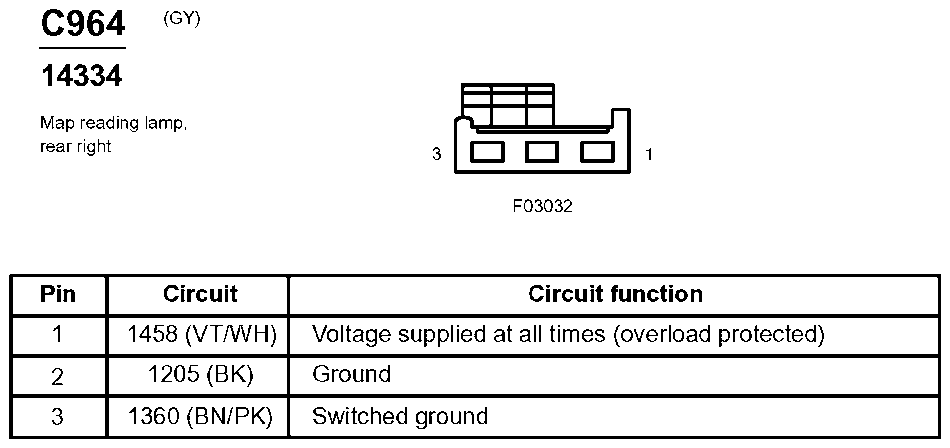

Fig 249: Map Reading Lamp, Rear Right Connector End View (C964)

G07833682

Courtesy of FORD MOTOR CO.

Fig 250: Power Sliding Door Switch, Left Connector End View (C969)

G07833683

Courtesy of FORD MOTOR CO.

Fig 251: Cargo Lamp, Auxiliary Connector End View (C993)

G07833684

Courtesy of FORD MOTOR CO.

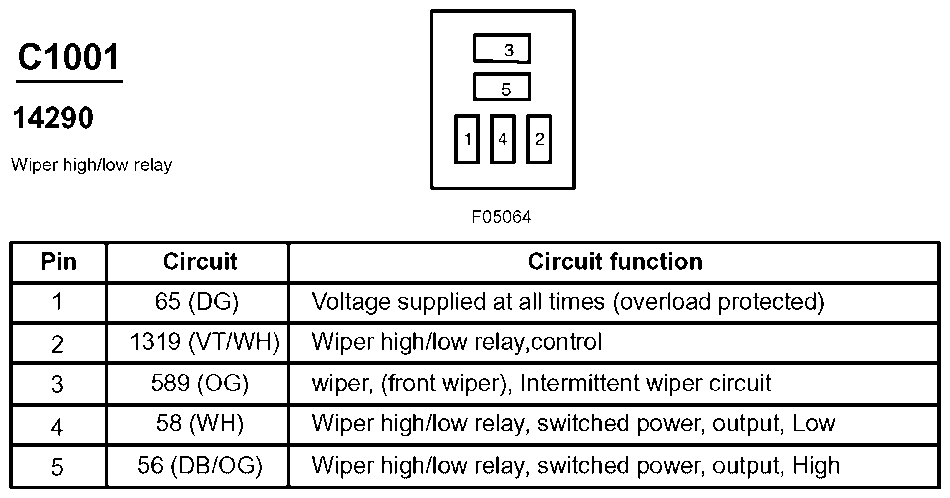

Fig 252: Wiper High/Low Relay Connector End View (C1001)

G07833685

Courtesy of FORD MOTOR CO.

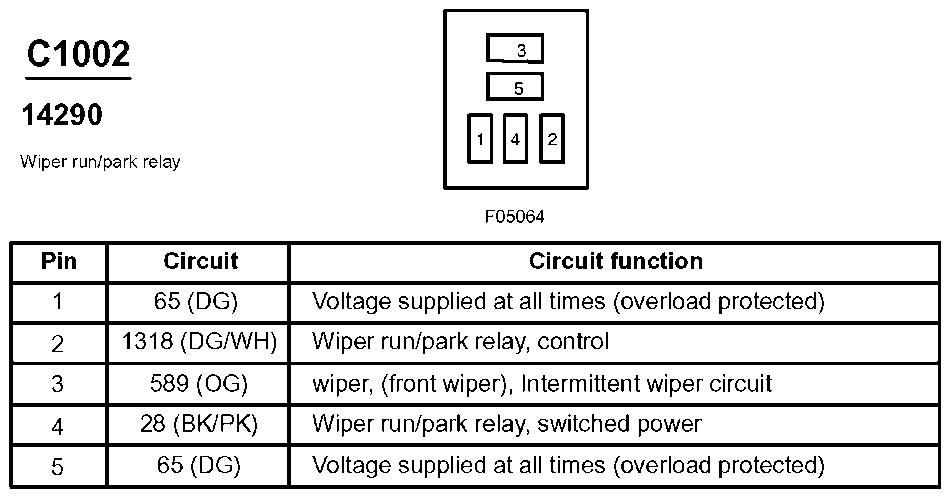

Fig 253: Wiper Run/Park Relay Connector End View (C1002)

G07833686

Courtesy of FORD MOTOR CO.

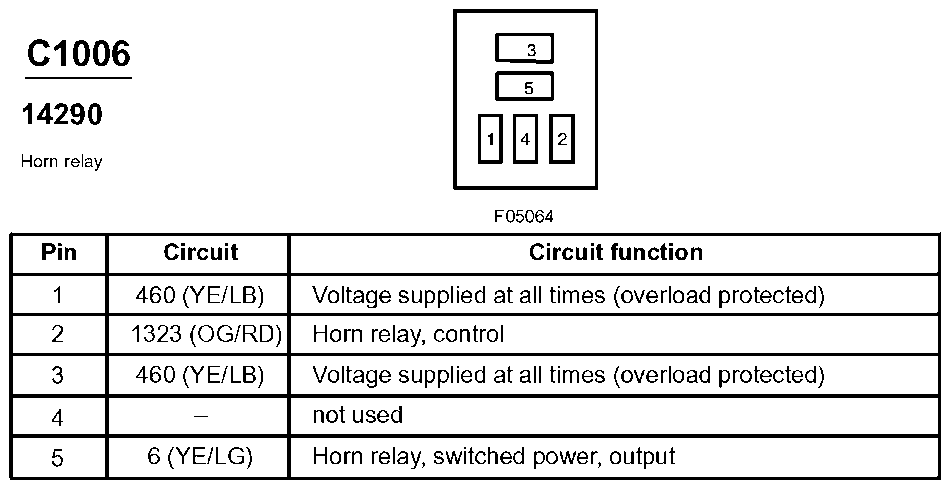

Fig 254: Horn Relay Connector End View (C1006)

G07833687

Courtesy of FORD MOTOR CO.

Fig 255: A/C Clutch Relay Connector End View (C1008)

G07833688

Courtesy of FORD MOTOR CO.

Fig 256: PCM Power Relay Connector End View (C1016)

G07833689

Courtesy of FORD MOTOR CO.

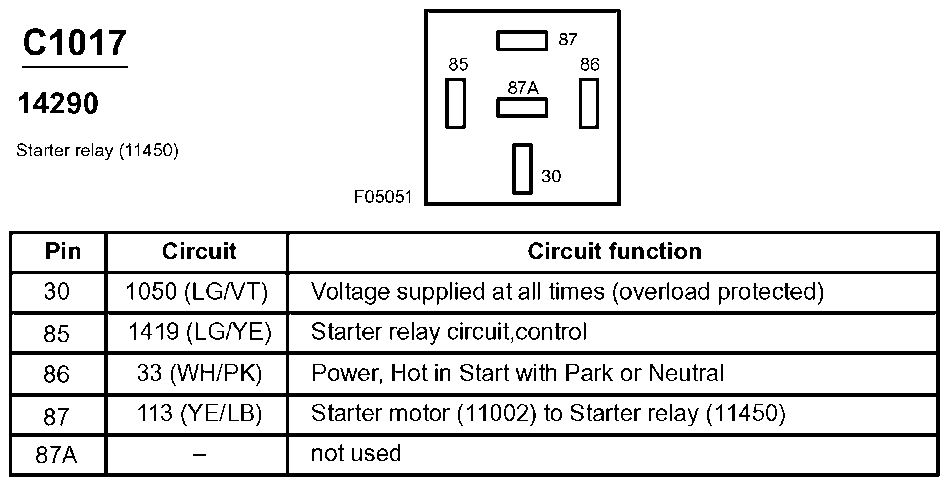

Fig 257: Starter Relay Connector End View (C1017)

G07833690

Courtesy of FORD MOTOR CO.

Fig 258: PCM Power Diode Connector End View (C1018)

G07833691

Courtesy of FORD MOTOR CO.

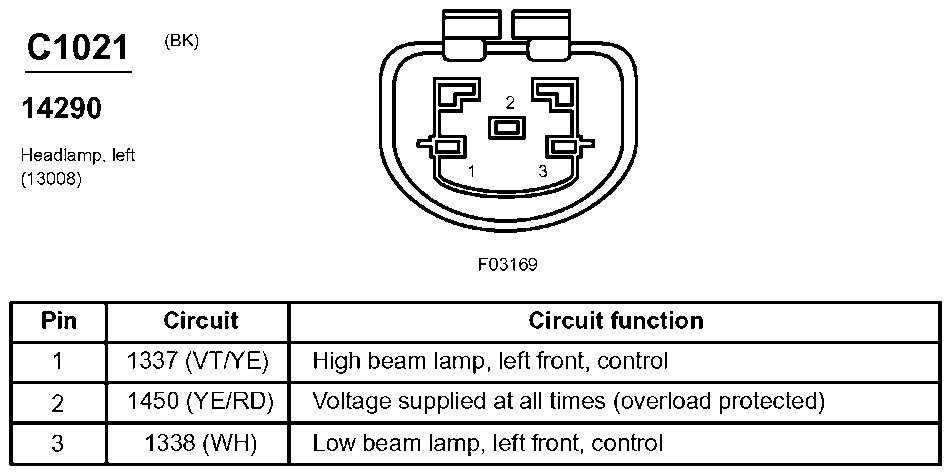

Fig 259: Headlamp, Left Connector End View (C1021)

G07833692

Courtesy of FORD MOTOR CO.

Fig 260: Brake Pressure Switch Connector End View (C1025)

G07833693

Courtesy of FORD MOTOR CO.

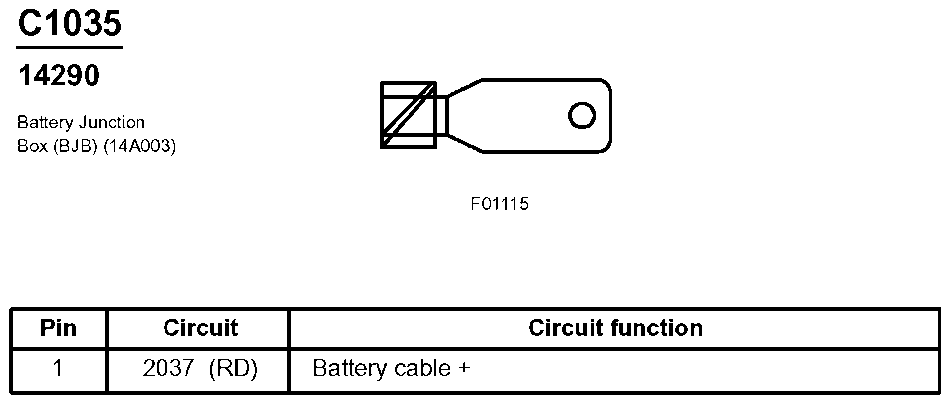

Fig 261: Battery Junction Box (BJB) Connector End View (C1035)

G07833694

Courtesy of FORD MOTOR CO.

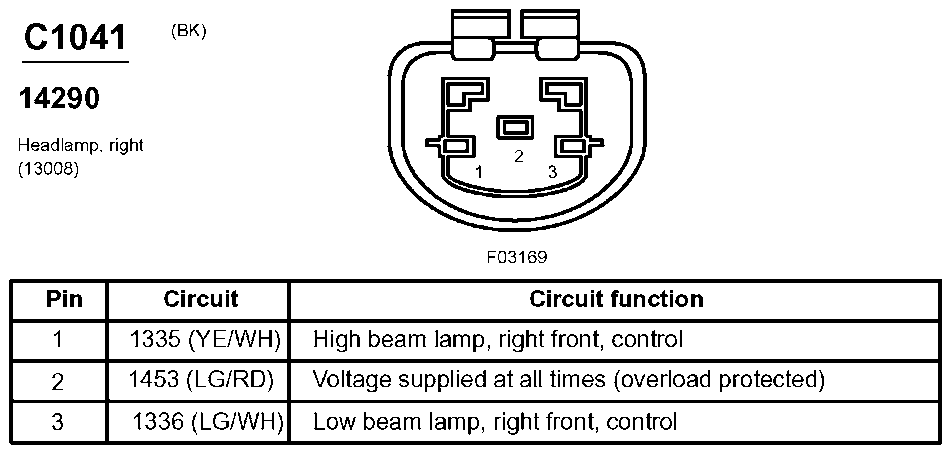

Fig 262: Headlamp, Right Connector End View (C1041)

G07833695

Courtesy of FORD MOTOR CO.

Fig 263: Park/Turn Lamp, Right Front Connector End View (C1043)

G07833696

Courtesy of FORD MOTOR CO.

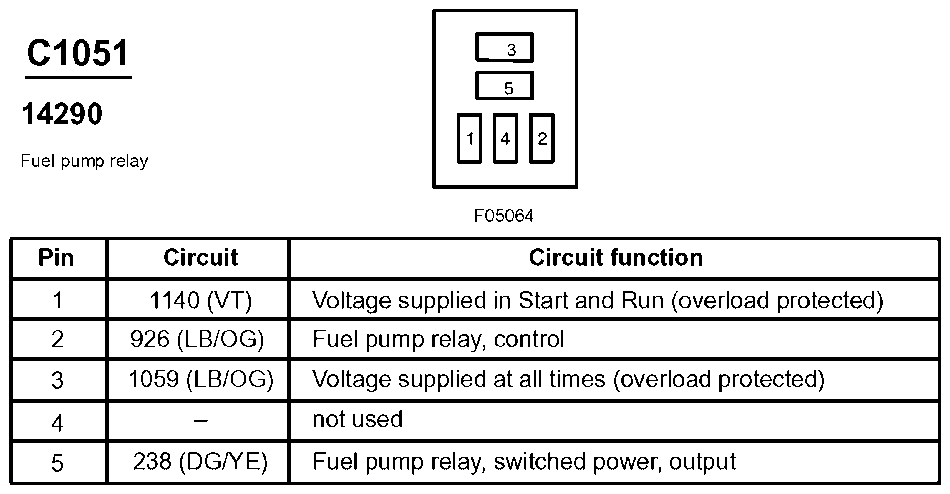

Fig 264: Fuel Pump Relay Connector End View (C1051)

G07833697

Courtesy of FORD MOTOR CO.

Fig 265: High Speed Fan Control Relay Connector End View (C1056)

G07833698

Courtesy of FORD MOTOR CO.

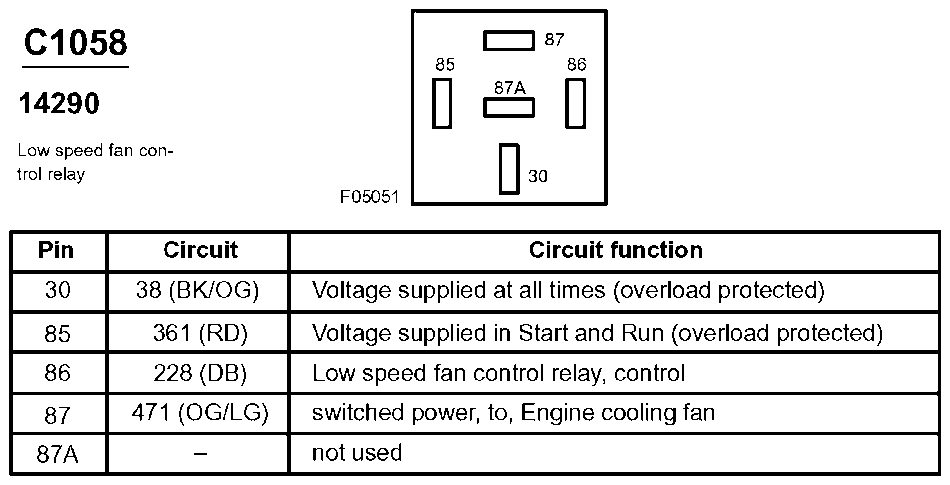

Fig 266: Low Speed Fan Control Relay Connector End View (C1058)

G07833699

Courtesy of FORD MOTOR CO.

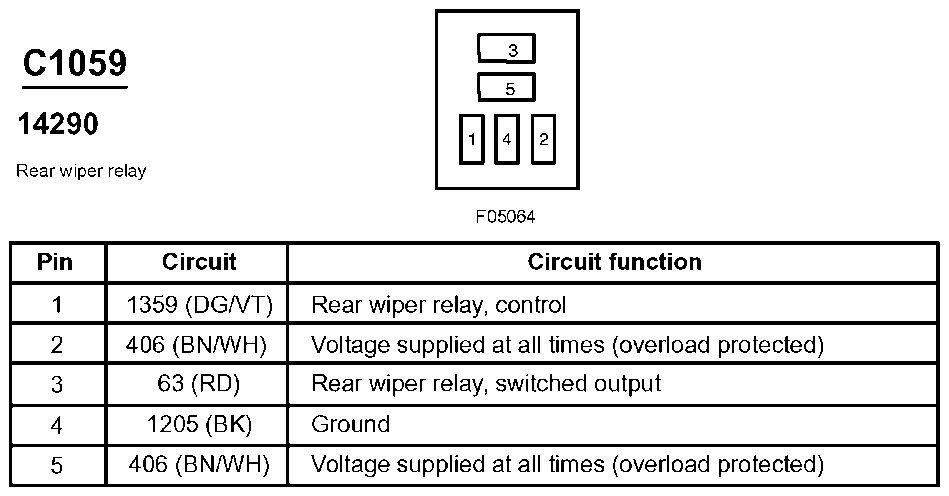

Fig 267: Rear Wiper Relay Connector End View (C1059)

G07833700

Courtesy of FORD MOTOR CO.

Fig 268: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

G07833701

Courtesy of FORD MOTOR CO.

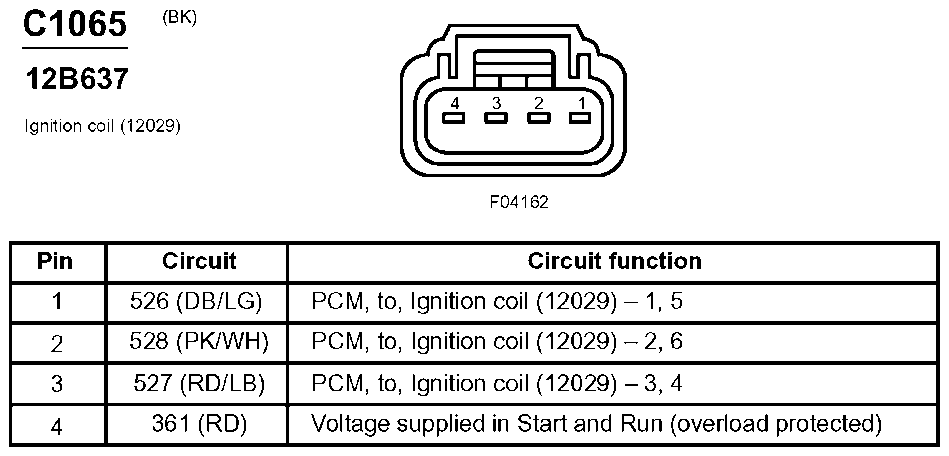

Fig 269: Ignition Coil Connector End View (C1065)

G07833702

Courtesy of FORD MOTOR CO.

Fig 270: Idle Air Control Valve (IAC) Connector End View (C1066)

G07833703

Courtesy of FORD MOTOR CO.

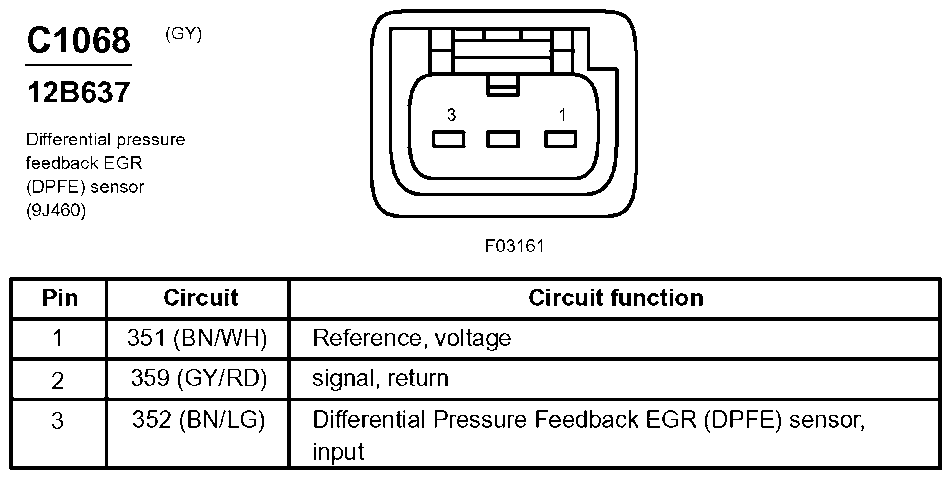

Fig 271: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)

G07833704

Courtesy of FORD MOTOR CO.

Fig 272: Engine Cooling Fan Motor 1 Connector End View (C1074)

G07833705

Courtesy of FORD MOTOR CO.

Fig 273: Engine Cooling Fan Motor 2 Connector End View (C1077)

G07833706

Courtesy of FORD MOTOR CO.

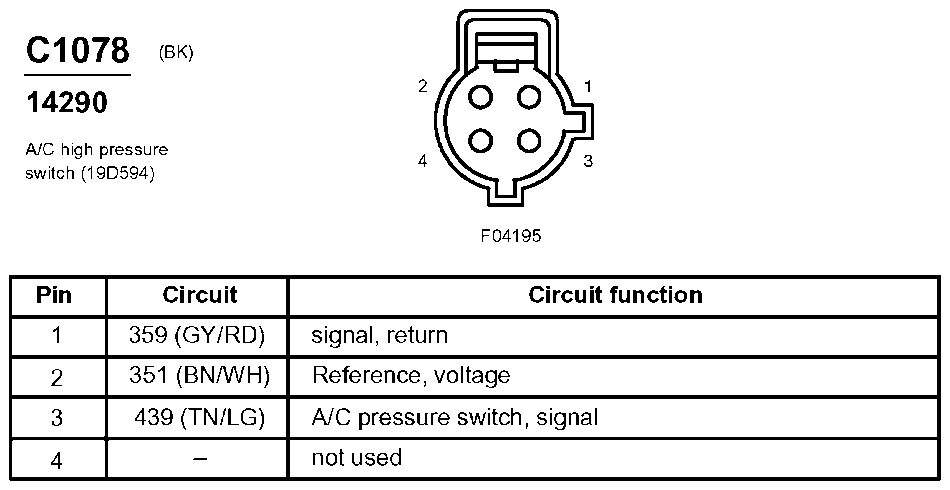

Fig 274: A/C High Pressure Switch Connector End View (C1078)

G07833707

Courtesy of FORD MOTOR CO.

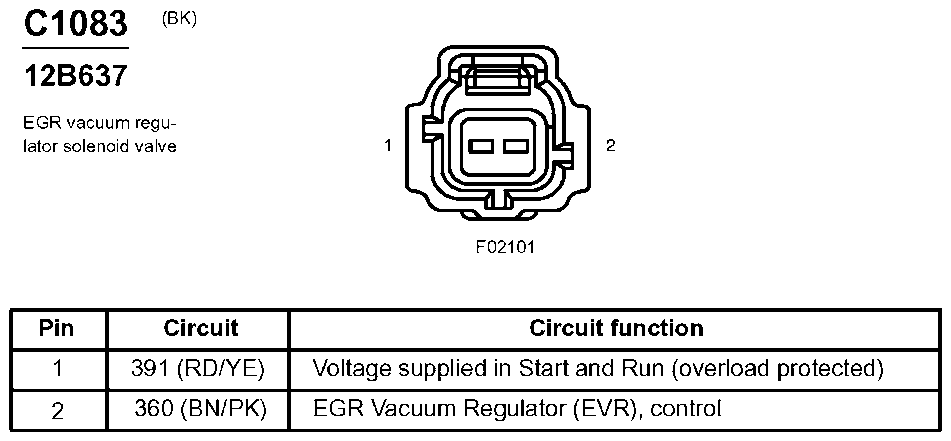

Fig 275: EGR Vacuum Regulator Solenoid Valve Connector End View (C1083)

G07833708

Courtesy of FORD MOTOR CO.

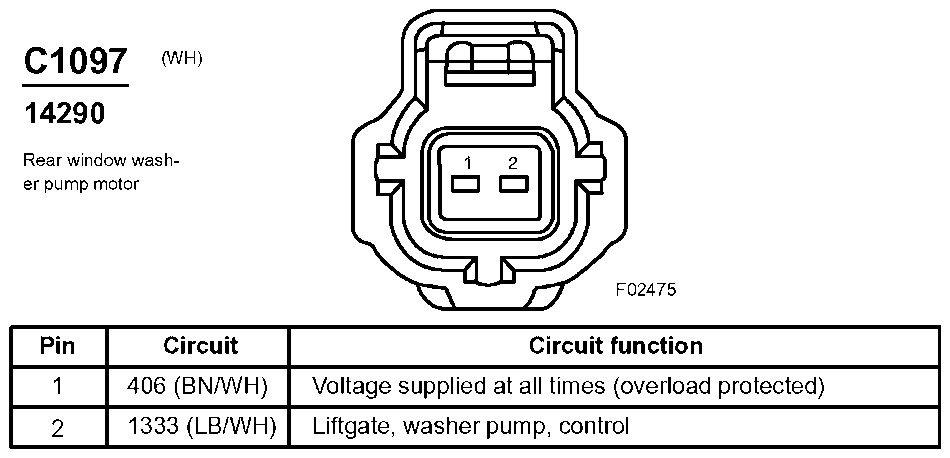

Fig 276: Rear Window Washer Pump Motor Connector End View (C1097)

G07833709

Courtesy of FORD MOTOR CO.

Fig 277: Battery Connector End View (C1100a)

G07833710

Courtesy of FORD MOTOR CO.

Fig 278: Battery Connector End View (C1100b)

G07833711

Courtesy of FORD MOTOR CO.

Fig 279: Parking Lamp, Left Front Connector End View (C1113)

G07833712

Courtesy of FORD MOTOR CO.

Fig 280: Parking Lamp, Right Front Connector End View (C1114)

G07833713

Courtesy of FORD MOTOR CO.

Fig 281: Park/Turn Lamp, Left Front Connector End View (C1115)

G07833714

Courtesy of FORD MOTOR CO.

Fig 282: Steering Position Sensor Connector End View (C1128)

G07833715

Courtesy of FORD MOTOR CO.

Fig 283: Dropping Resistor Connector End View (C1214)

G07833716

Courtesy of FORD MOTOR CO.

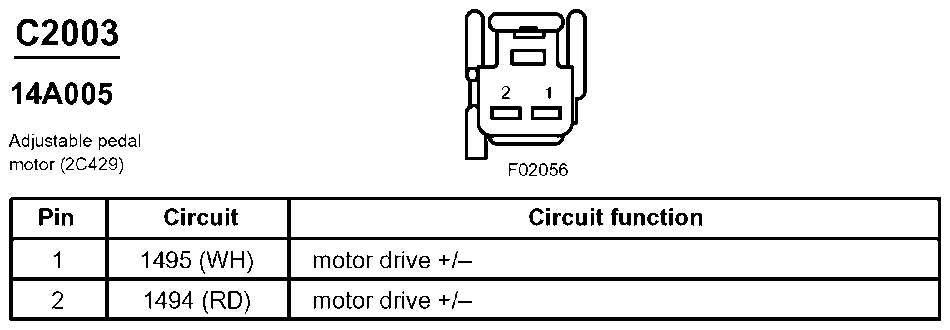

Fig 284: Adjustable Pedal Motor Connector End View (C2003)

G07833717

Courtesy of FORD MOTOR CO.

Fig 285: Front Blower Motor Connector End View (C2004)

G07833718

Courtesy of FORD MOTOR CO.

Fig 286: Brake Shift Interlock Connector End View (C2008)

G07833719

Courtesy of FORD MOTOR CO.

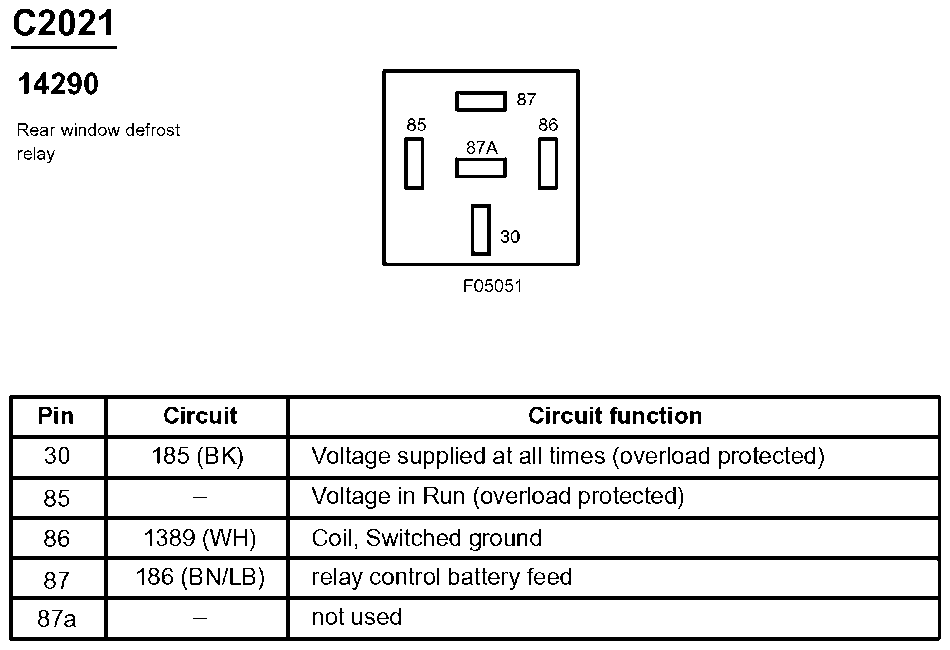

Fig 287: Rear Window Defrost Relay Connector End View (C2021)

G07833720

Courtesy of FORD MOTOR CO.

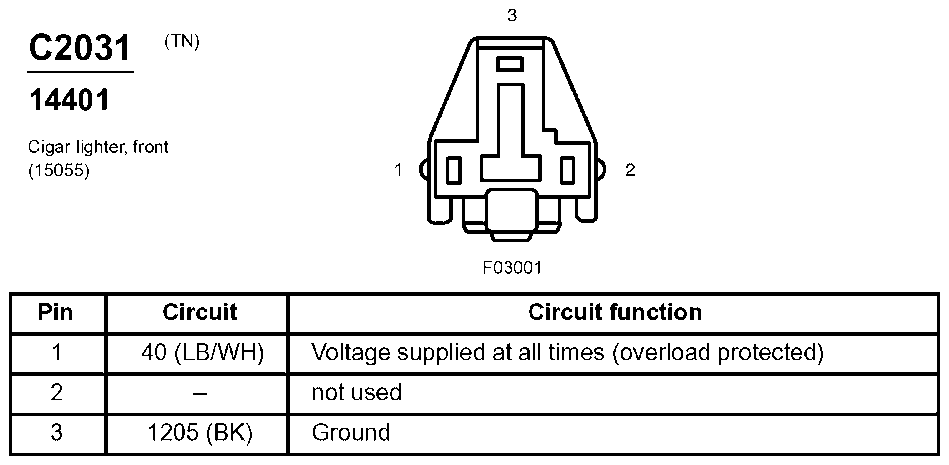

Fig 288: Cigar Lighter, Front Connector End View (C2031)

G07833721

Courtesy of FORD MOTOR CO.

Fig 289: Power Point, Instrument Panel Connector End View (C2033)

G07833722

Courtesy of FORD MOTOR CO.

Fig 290: Restraints Control Module Connector End View (C2041a)

G07833723

Courtesy of FORD MOTOR CO.

Fig 291: Restraints Control Module Connector End View (C2041b)

G07833724

Courtesy of FORD MOTOR CO.

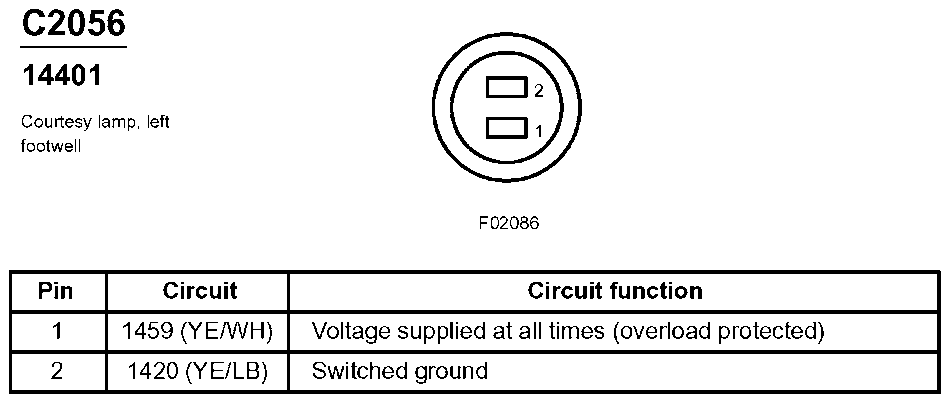

Fig 292: Courtesy Lamp, Left Footwell Connector End View (C2056)

G07833725

Courtesy of FORD MOTOR CO.

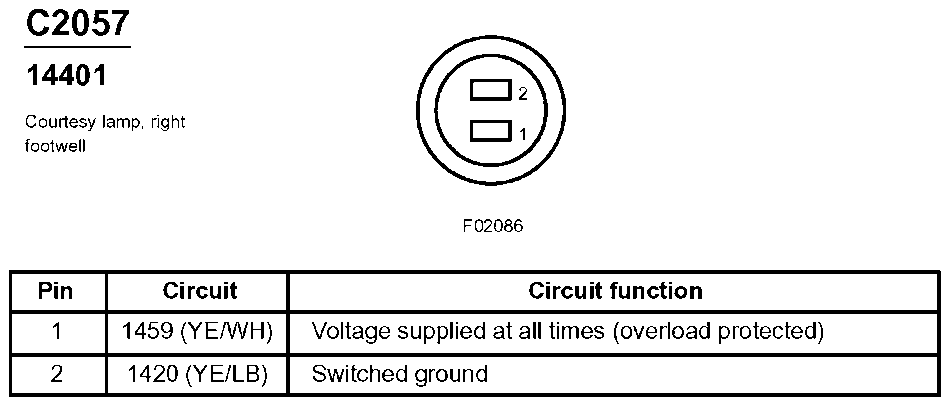

Fig 293: Courtesy Lamp, Right Footwell Connector End View (C2057)

G07833726

Courtesy of FORD MOTOR CO.

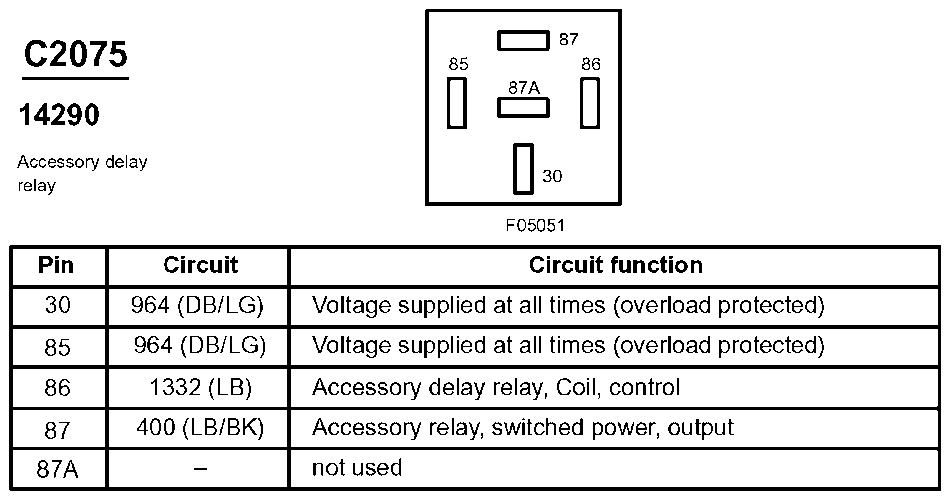

Fig 294: Accessory Delay Relay Connector End View (C2075)

G07833727

Courtesy of FORD MOTOR CO.

Fig 295: Adjustable Pedal Switch Connector End View (C2089)

G07833728

Courtesy of FORD MOTOR CO.

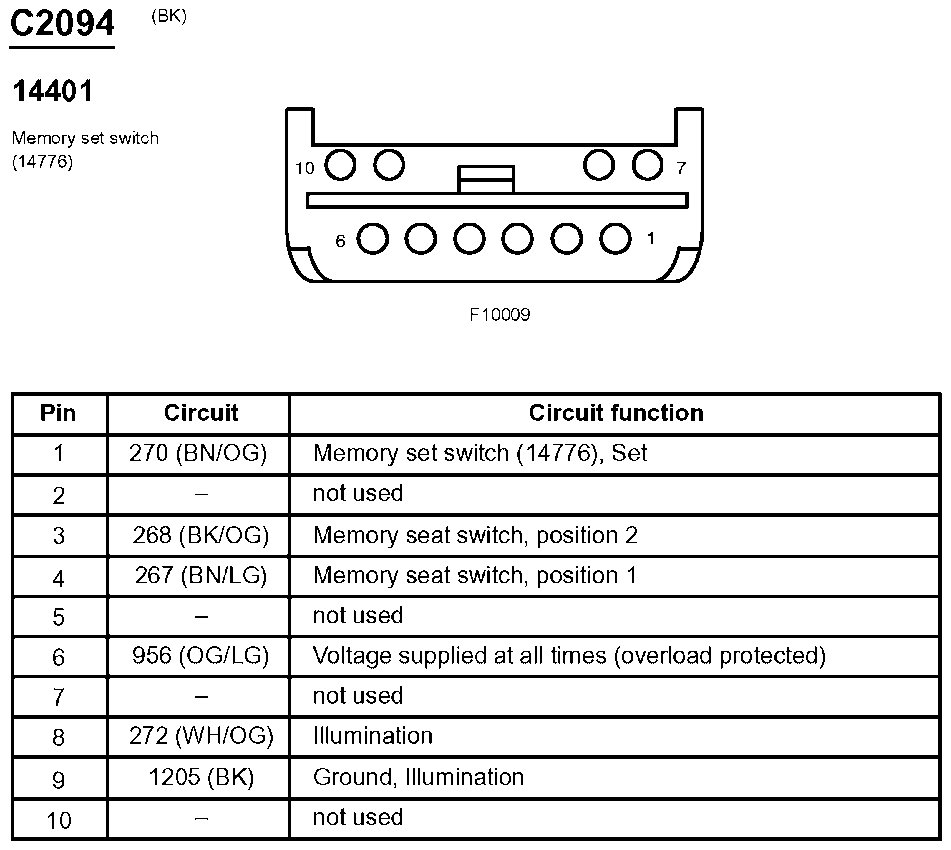

Fig 296: Memory Set Switch Connector End View (C2094)

G07833729

Courtesy of FORD MOTOR CO.

Fig 297: Traction Assist/Parking Aid Disable Switch Connector End View (C2114)

G07833730

Courtesy of FORD MOTOR CO.

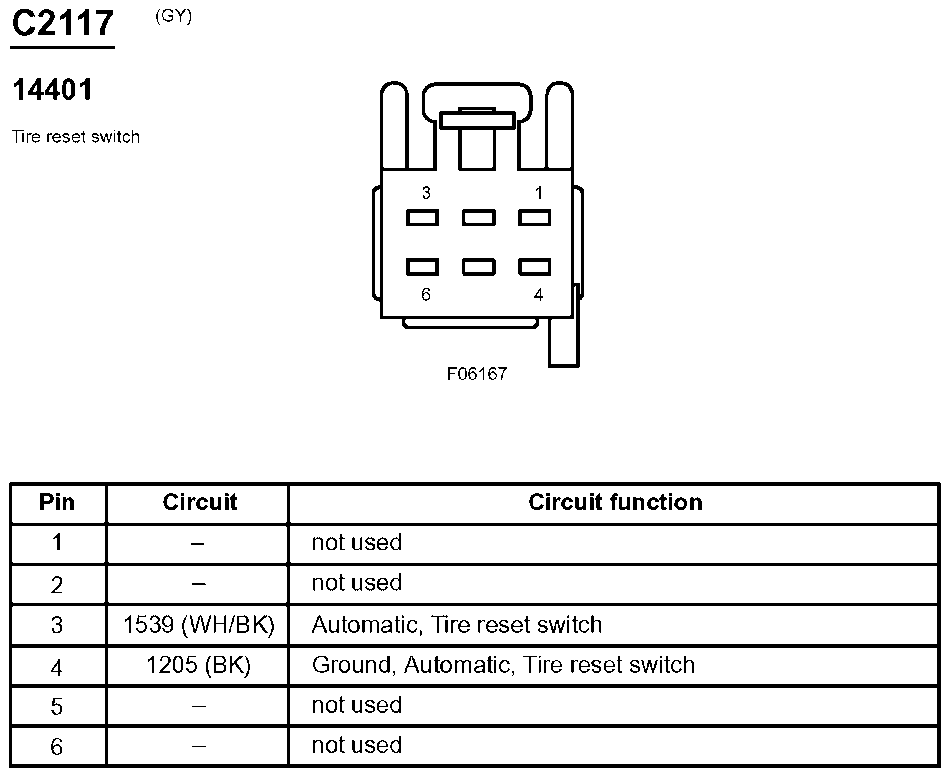

Fig 298: Tire Reset Switch Connector End View (C2117)

G07833731

Courtesy of FORD MOTOR CO.

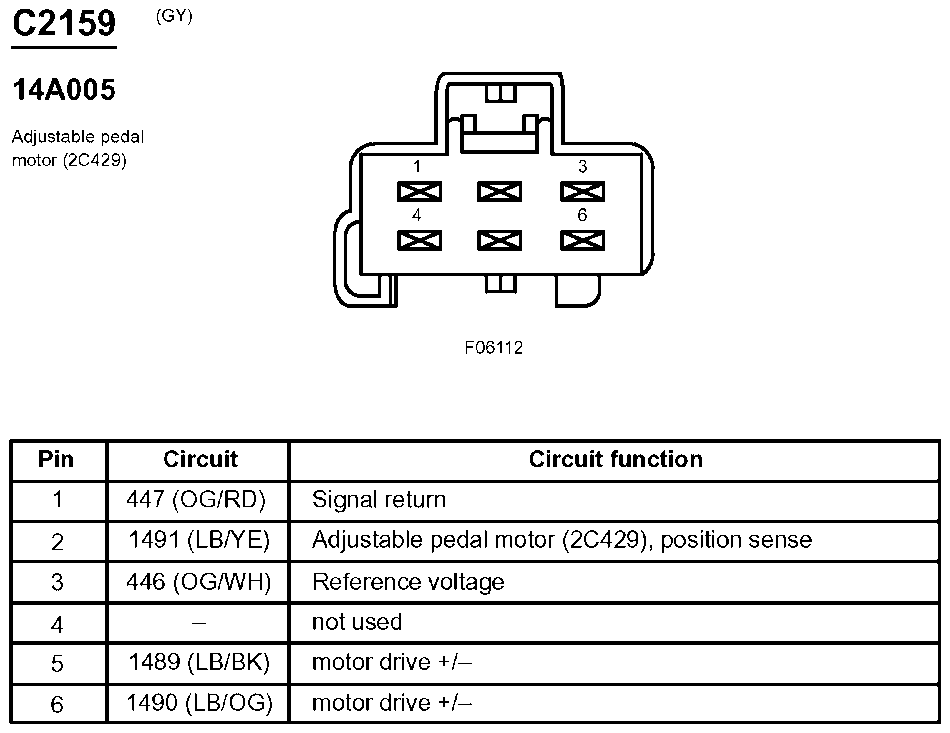

Fig 299: Adjustable Pedal Motor Connector End View (C2159)

G07833732

Courtesy of FORD MOTOR CO.

Fig 300: SSP 3 Relay Connector End View (C2214)

G07833733

Courtesy of FORD MOTOR CO.

Fig 301: SSP 4 Relay Connector End View (C2215)

G07833734

Courtesy of FORD MOTOR CO.

Fig 302: Front Blower Motor Relay Connector End View (C2216)

G07833735

Courtesy of FORD MOTOR CO.

Fig 303: Auxiliary Blower Motor Relay Connector End View (C2217)

G07833736

Courtesy of FORD MOTOR CO.

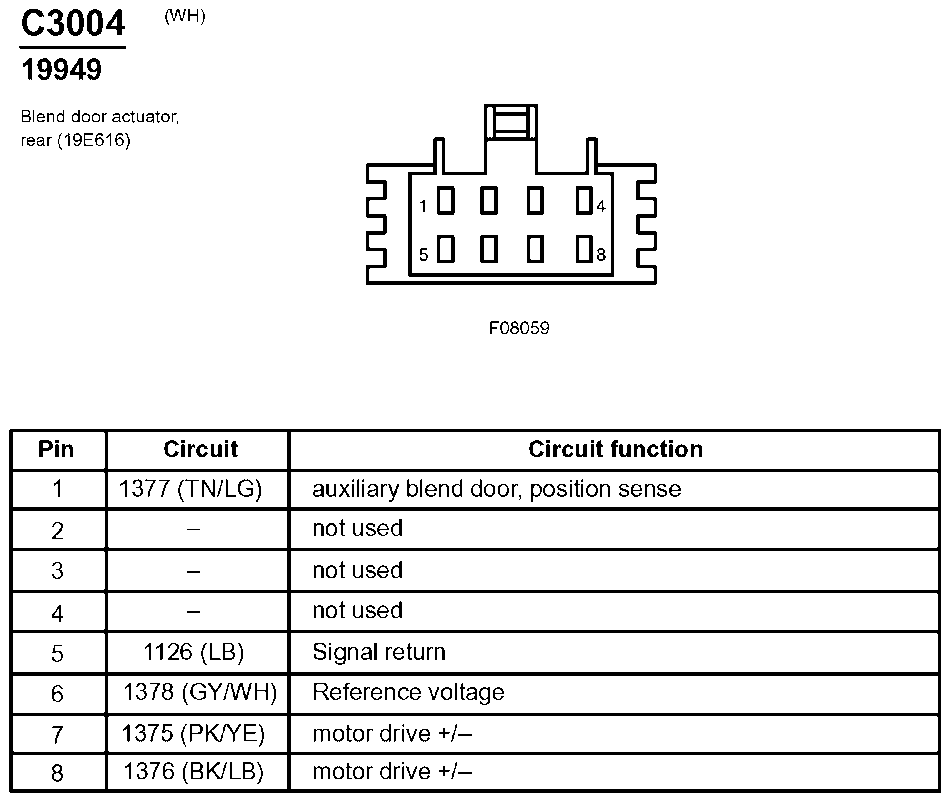

Fig 304: Blend Door Actuator, Rear Connector End View (C3004)

G07833737

Courtesy of FORD MOTOR CO.

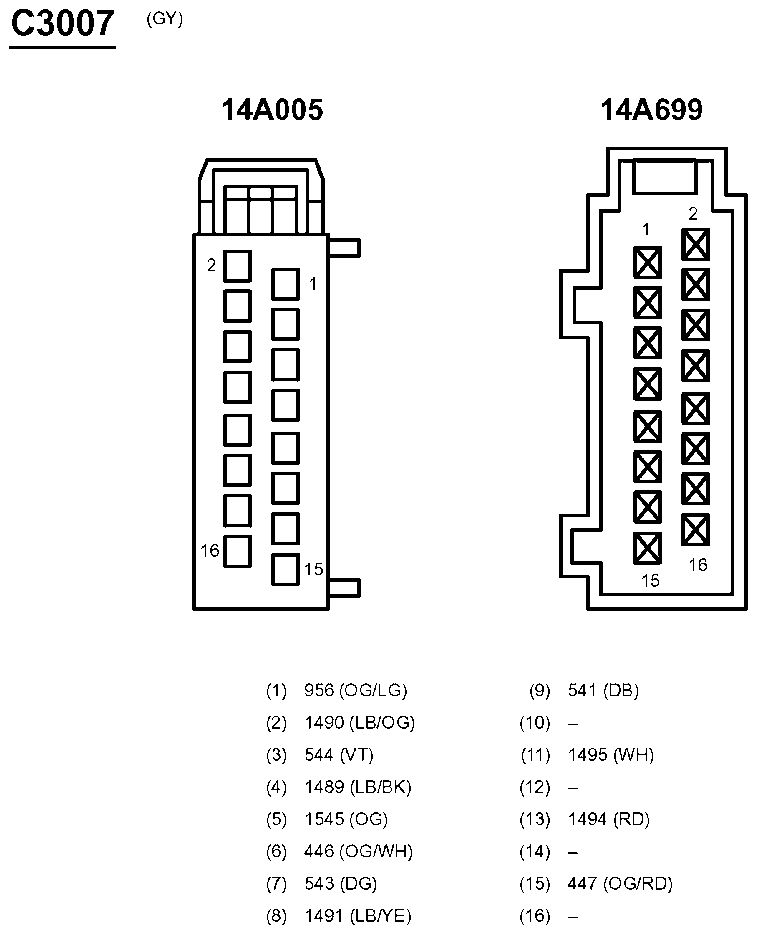

Fig 305: Inline Connector End View (C3007)

G07833738

Courtesy of FORD MOTOR CO.

Fig 306: Auxiliary Blower Motor Connector End View (C3021)

G07833739

Courtesy of FORD MOTOR CO.

Fig 307: Auxiliary Blower Motor Resistor Assembly Connector End View (C3022)

G07833740

Courtesy of FORD MOTOR CO.

Fig 308: Resistor A Connector End View (C3024)

G07833741

Courtesy of FORD MOTOR CO.

Fig 309: Seat Pressure Sensor Connector End View (C3042)

G07833742

Courtesy of FORD MOTOR CO.

Fig 310: Occupant Classification Sensor Module Connector End View (C3043)

G07833743

Courtesy of FORD MOTOR CO.

Fig 311: Mode Door Actuator, Rear Connector End View (C3044)

G07833744

Courtesy of FORD MOTOR CO.

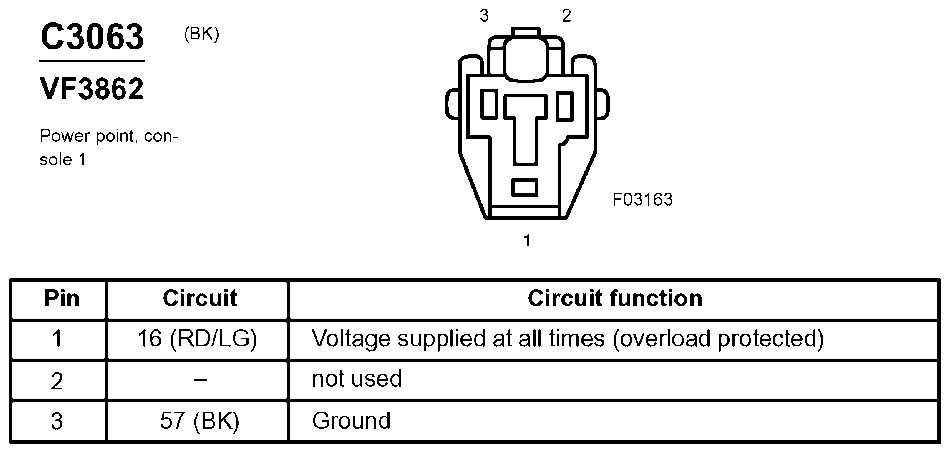

Fig 312: Power Point, Console 1 Connector End View (C3063)

G07833745

Courtesy of FORD MOTOR CO.

Fig 313: Power Point, Console 2 Connector End View (C3064)

G07833746

Courtesy of FORD MOTOR CO.

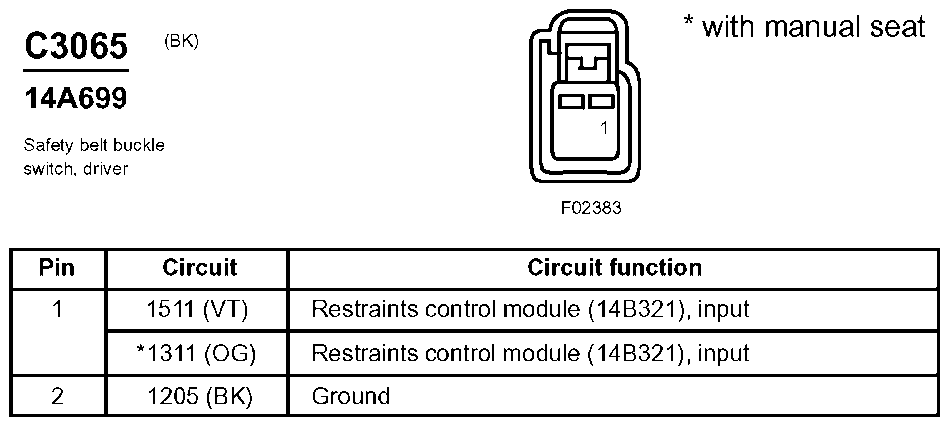

Fig 314: Safety Belt Buckle Switch, Driver Connector End View (C3065)

G07833747

Courtesy of FORD MOTOR CO.

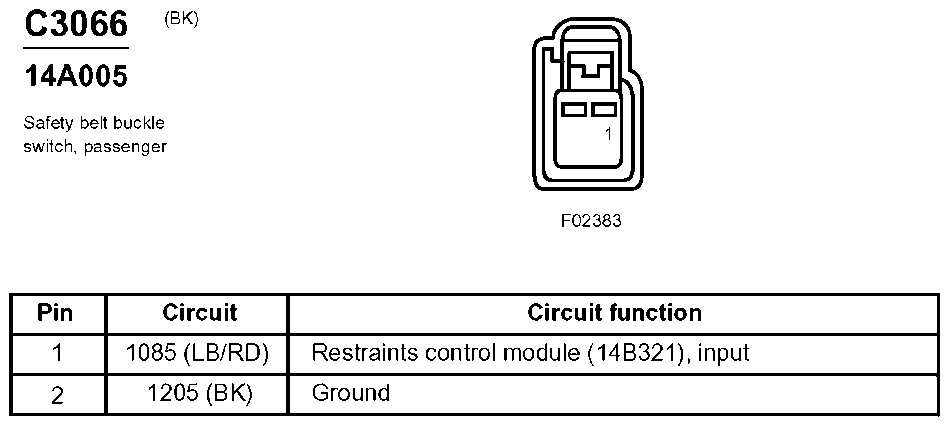

Fig 315: Safety Belt Buckle Switch, Passenger Connector End View (C3066)

G07833748

Courtesy of FORD MOTOR CO.

Fig 316: Fuel Door Interlock Switch Connector End View (C3067)

G07833749

Courtesy of FORD MOTOR CO.

Fig 317: Resistor B Connector End View (C3068)

G07833750

Courtesy of FORD MOTOR CO.

Fig 318: Anti-Theft Horn Connector End View (C3069)

G07833751

Courtesy of FORD MOTOR CO.

Fig 319: Rear Electronic Module (REM) Connector End View (C3070a)

G07833752

Courtesy of FORD MOTOR CO.

Fig 320: Rear Electronic Module (REM) Connector End View (C3070b)

G03776681

Courtesy of FORD MOTOR CO.

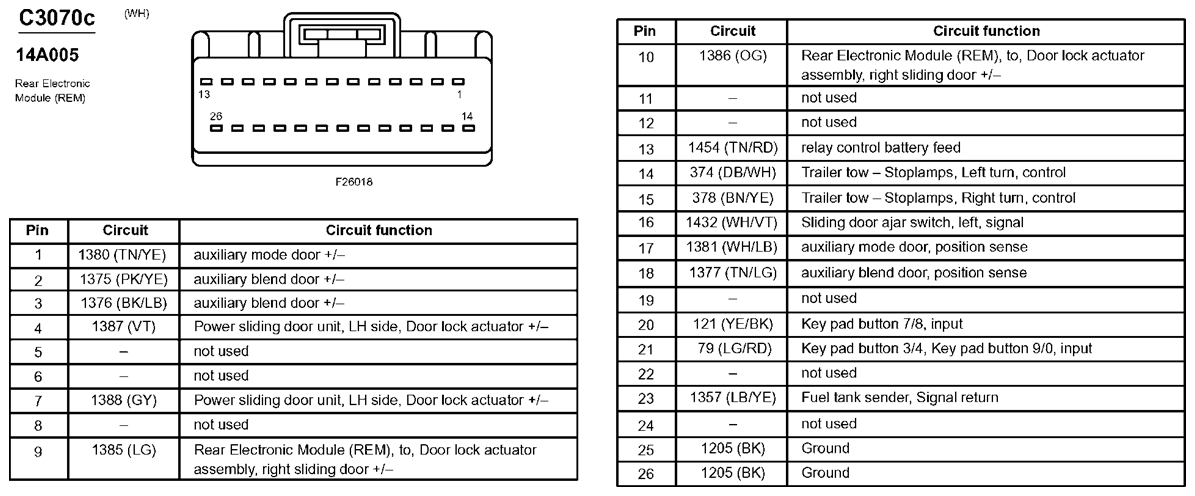

Fig 321: Rear Electronic Module (REM) Connector End View (C3070c)

G03776682

Courtesy of FORD MOTOR CO.

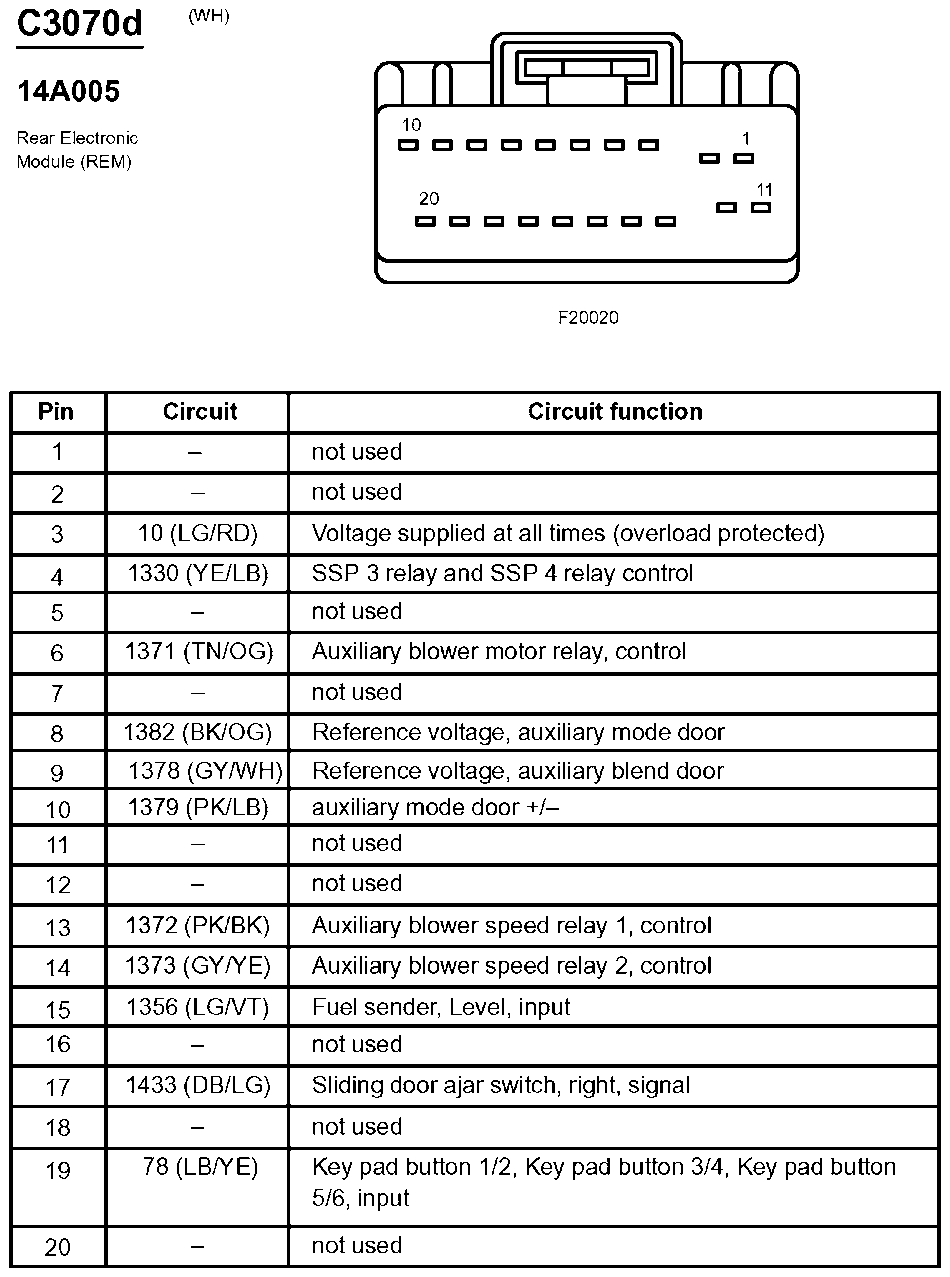

Fig 322: Rear Electronic Module (REM) Connector End View (C3070d)

G07833753

Courtesy of FORD MOTOR CO.

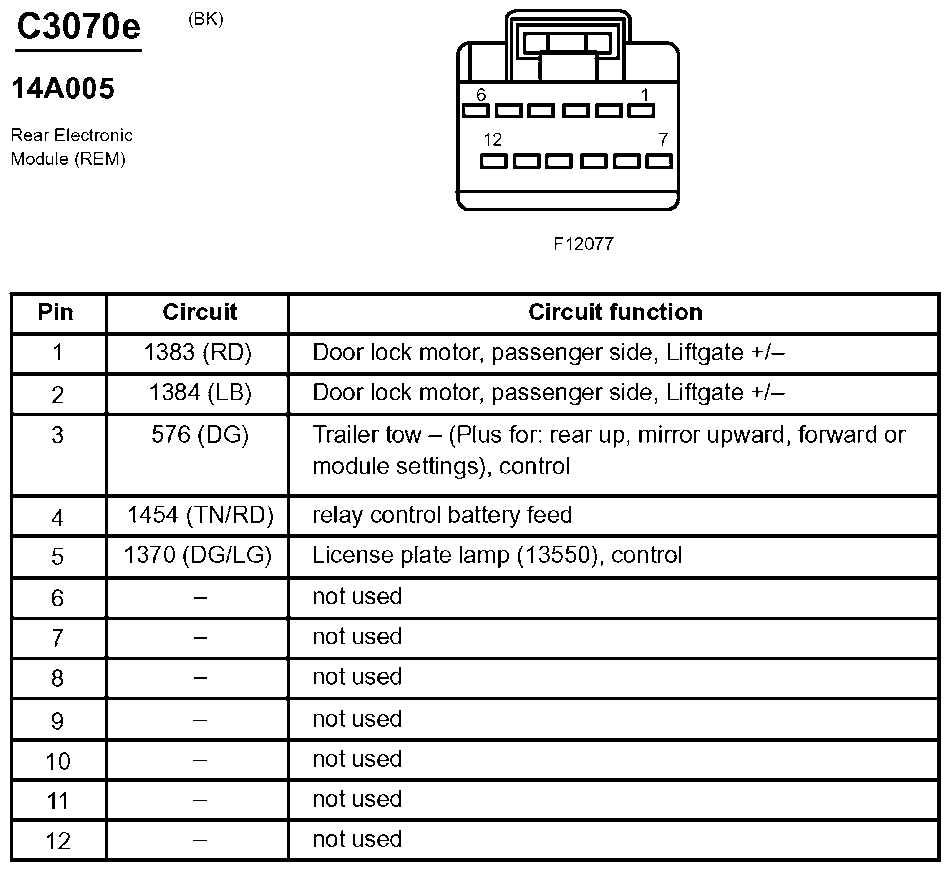

Fig 323: Rear Electronic Module (REM) Connector End View (C3070e)

G07833754

Courtesy of FORD MOTOR CO.

Fig 324: Module, Power Sliding Door, RH Side Connector End View (C3071a)

G07833755

Courtesy of FORD MOTOR CO.

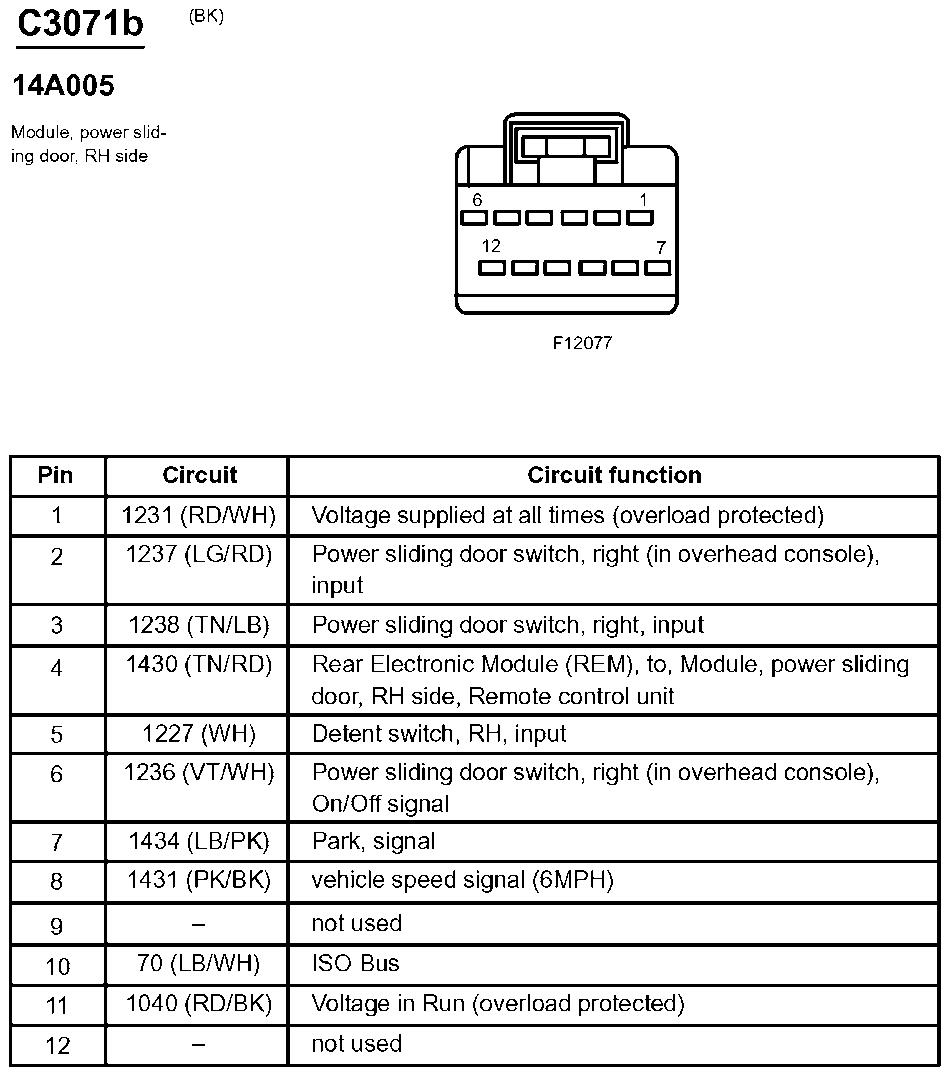

Fig 325: Module, Power Sliding Door, RH Side Connector End View (C3071b)

G07833756

Courtesy of FORD MOTOR CO.

Fig 326: Module, Power Sliding Door, RH Side Connector End View (C3071c)

G07833757

Courtesy of FORD MOTOR CO.

Fig 327: Module, Power Sliding Door, RH Side Connector End View (C3071d)

G07833758

Courtesy of FORD MOTOR CO.

Fig 328: Module, Power Sliding Door, RH Side Connector End View (C3071e)

G07833759

Courtesy of FORD MOTOR CO.

Fig 329: Module, Power Sliding Door, LH Side Connector End View (C3072a)

G07833760

Courtesy of FORD MOTOR CO.

Fig 330: Module, Power Sliding Door, LH Side Connector End View (C3072b)

G07833761

Courtesy of FORD MOTOR CO.

Fig 331: Module, Power Sliding Door, LH Side Connector End View (C3072c)

G07833762

Courtesy of FORD MOTOR CO.

Fig 332: Module, Power Sliding Door, LH Side Connector End View (C3072d)

G07833763

Courtesy of FORD MOTOR CO.

Fig 333: Module, Power Sliding Door, LH Side Connector End View (C3072e)

G07833764

Courtesy of FORD MOTOR CO.

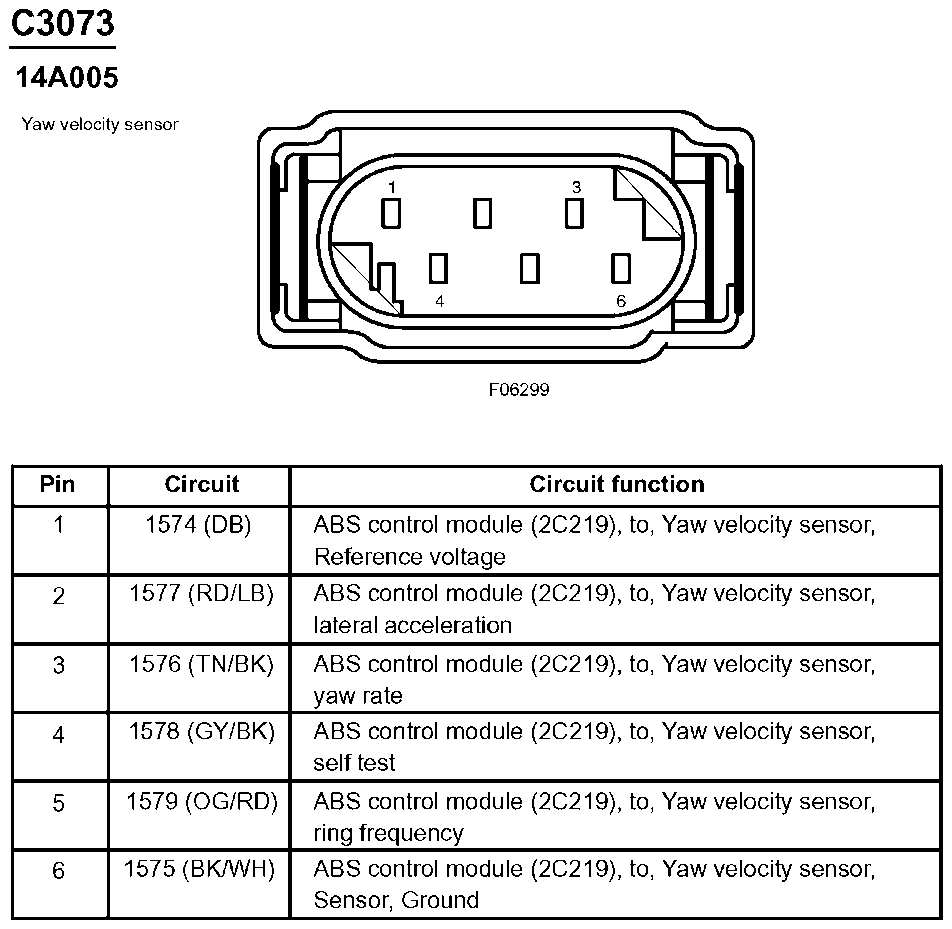

Fig 334: Yaw Velocity Sensor Connector End View (C3073)

G07833765

Courtesy of FORD MOTOR CO.

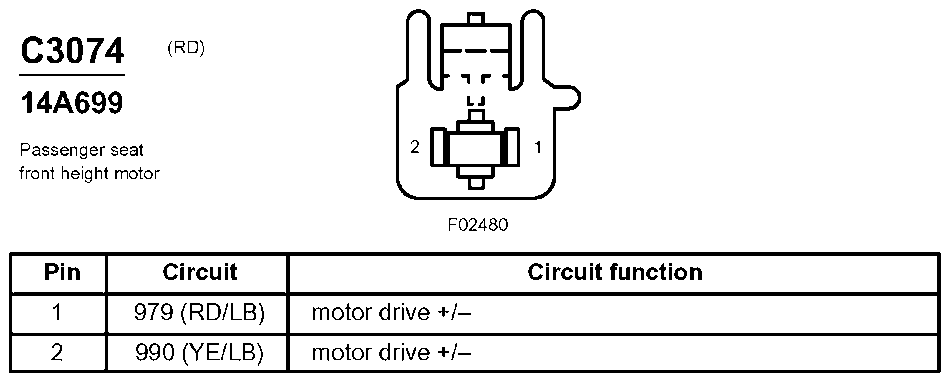

Fig 335: Passenger Seat Front Height Motor Connector End View (C3074)

G07833766

Courtesy of FORD MOTOR CO.

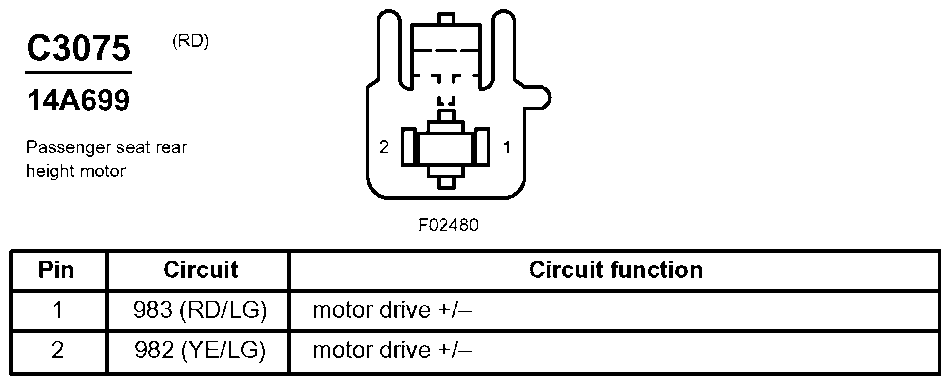

Fig 336: Passenger Seat Rear Height Motor Connector End View (C3075)

G07833767

Courtesy of FORD MOTOR CO.

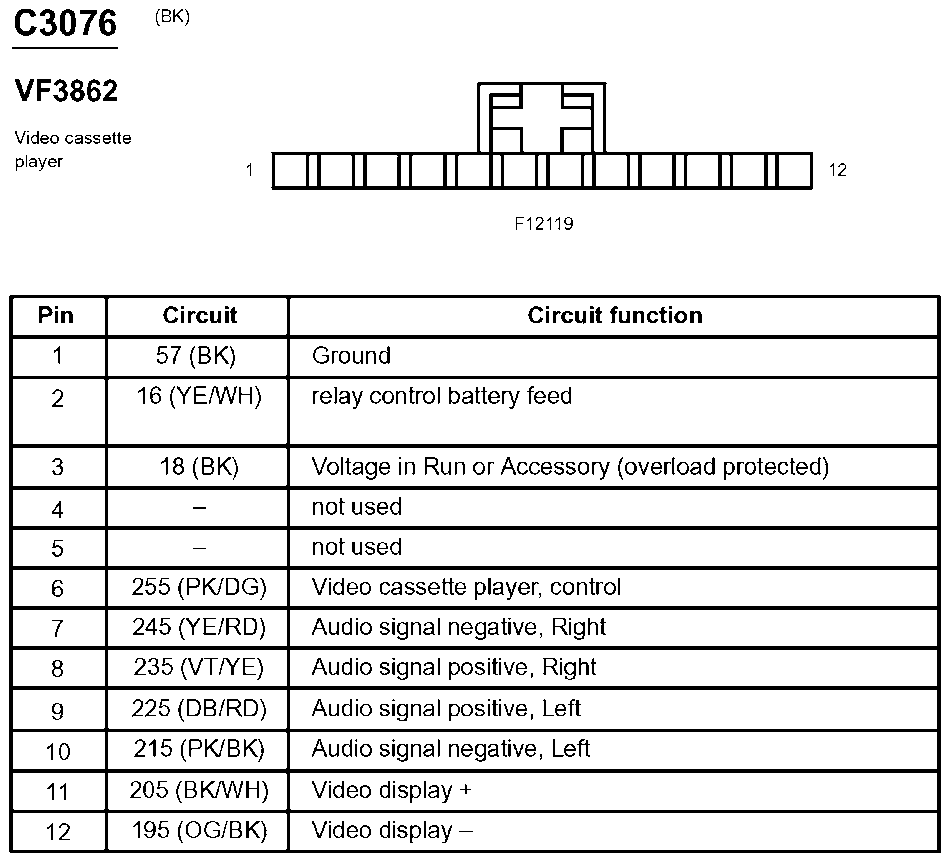

Fig 337: Video Cassette Player Connector End View (C3076)

G07833768

Courtesy of FORD MOTOR CO.

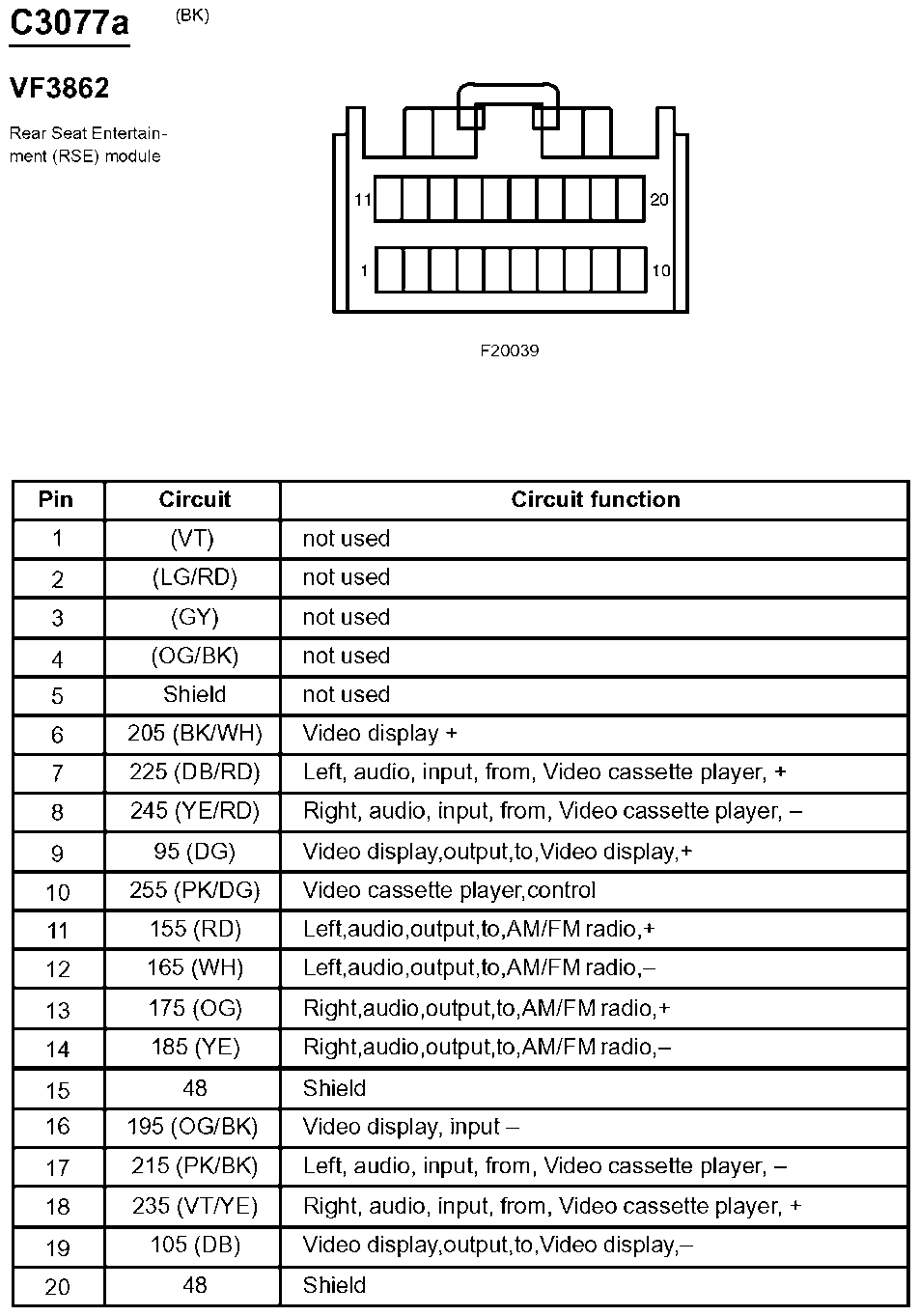

Fig 338: Rear Seat Entertainment (RSE) Module Connector End View (C3077a)

G07833769

Courtesy of FORD MOTOR CO.

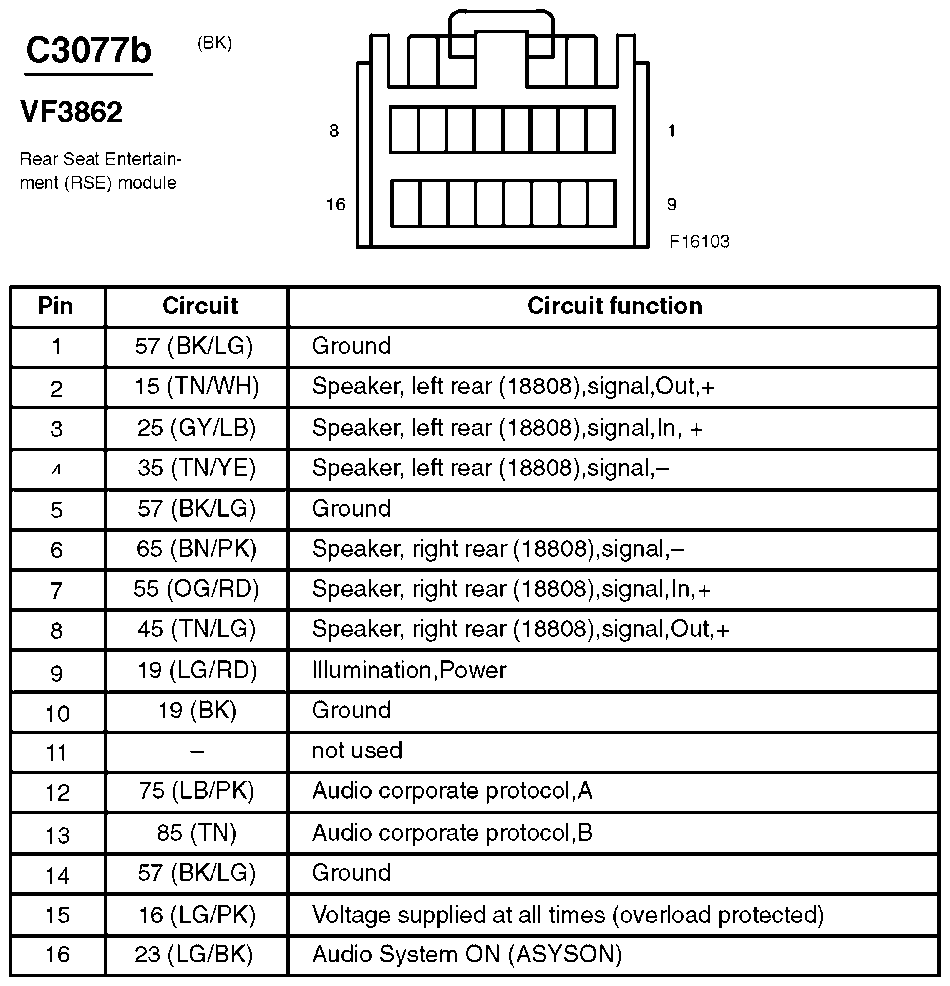

Fig 339: Rear Seat Entertainment (RSE) Module Connector End View (C3077b)

G07833770

Courtesy of FORD MOTOR CO.

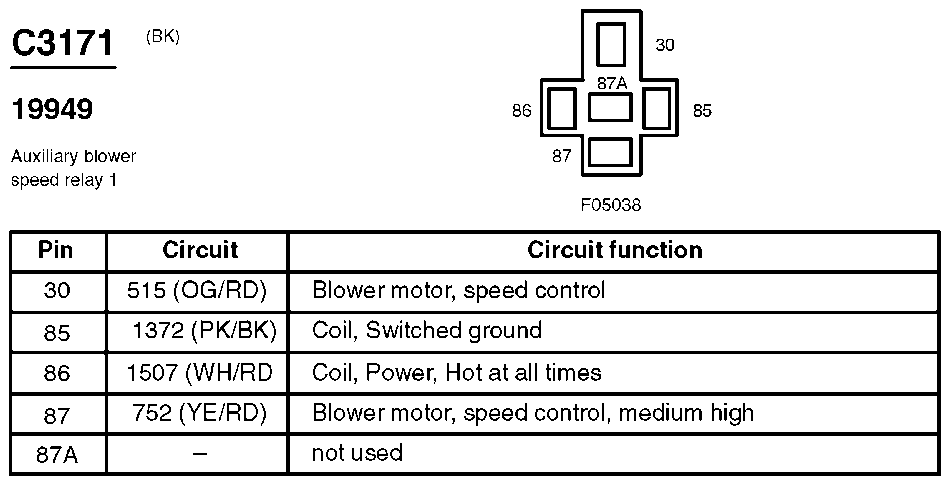

Fig 340: Auxiliary Blower Speed Relay 1 Connector End View (C3171)

G07833771

Courtesy of FORD MOTOR CO.

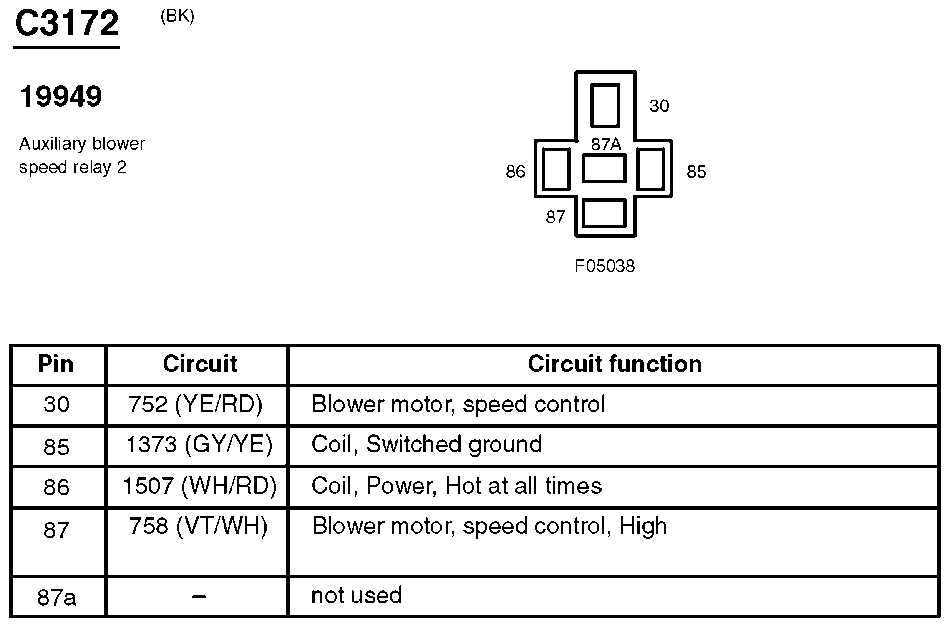

Fig 341: Auxiliary Blower Speed Relay 2 Connector End View (C3172)

G07833772

Courtesy of FORD MOTOR CO.

Fig 342: Sliding Door Contact Switch, Right Connector End View (C3235)

G07833773

Courtesy of FORD MOTOR CO.

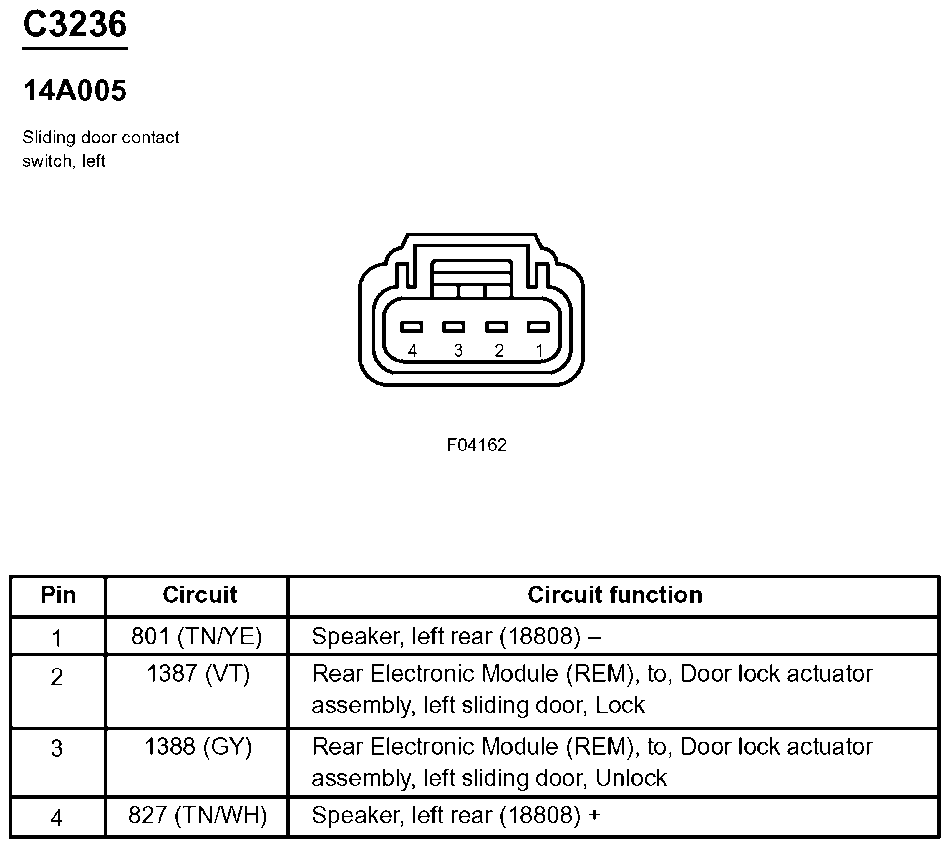

Fig 343: Sliding Door Contact Switch, Left Connector End View (C3236)

G07833774

Courtesy of FORD MOTOR CO.

Fig 344: Parking Aid Sensor, Outer Left Connector End View (C4009)

G07833775

Courtesy of FORD MOTOR CO.

Fig 345: Parking Aid Sensor, Inner Left Connector End View (C4010)

G07833776

Courtesy of FORD MOTOR CO.

Fig 346: Parking Aid Sensor, Outer Right Connector End View (C4011)

G07833777

Courtesy of FORD MOTOR CO.

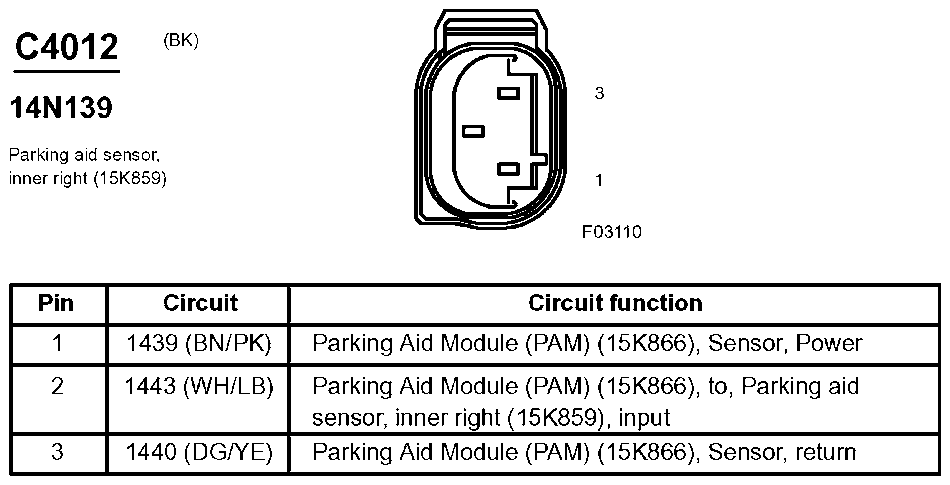

Fig 347: Parking Aid Sensor, Inner Right Connector End View (C4012)

G07833778

Courtesy of FORD MOTOR CO.

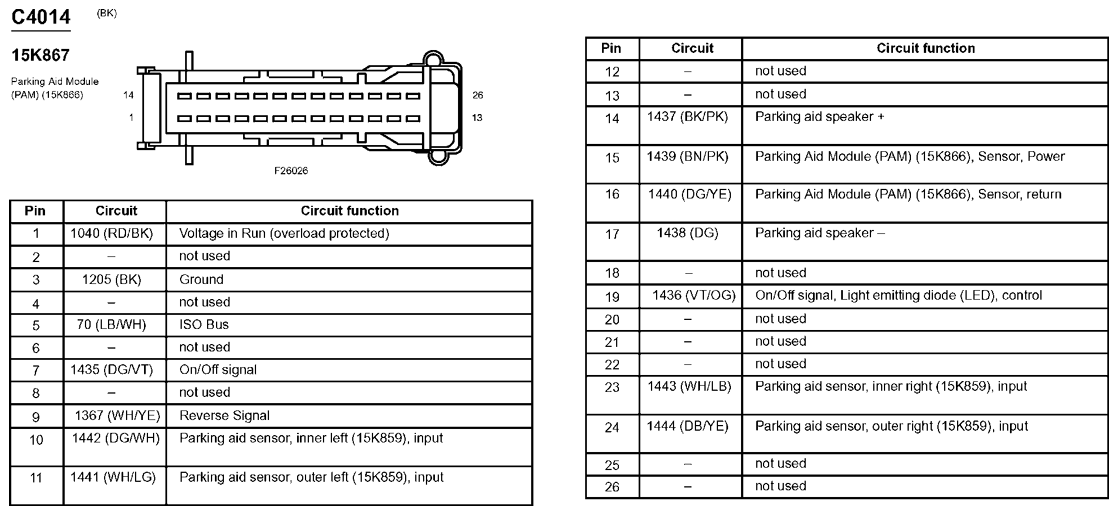

Fig 348: Parking Aid Module (PAM) Connector End View (C4014)

G07833779

Courtesy of FORD MOTOR CO.

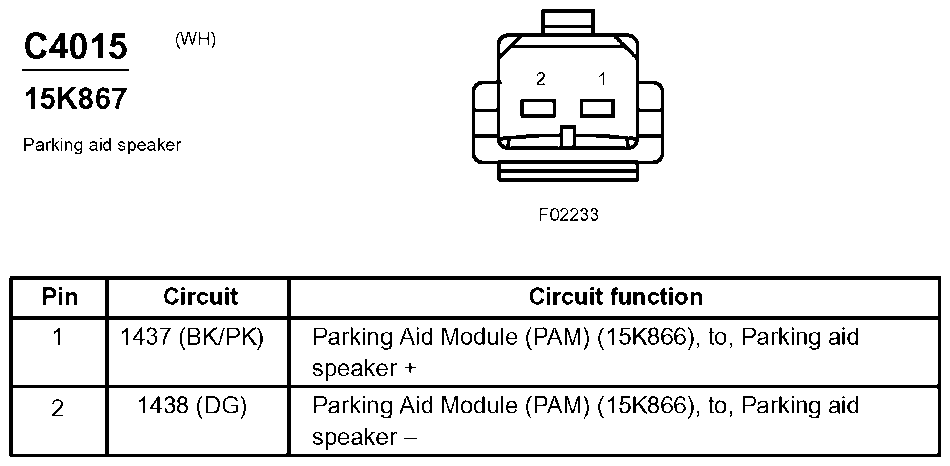

Fig 349: Parking Aid Speaker Connector End View (C4015)

G07833780

Courtesy of FORD MOTOR CO.

Fig 350: Quarter Window Motor, LH Side Rear Connector End View (C4048)

G07833781

Courtesy of FORD MOTOR CO.

Fig 351: Quarter Window Motor, RH Side Rear Connector End View (C4090)

G07833782

Courtesy of FORD MOTOR CO.

Fig 352: Lock Cylinder Switch, Liftgate Connector End View (C4091)

G07833783

Courtesy of FORD MOTOR CO.
