Disassembly And Assembly Of Subassemblies: Piston: Disassembly

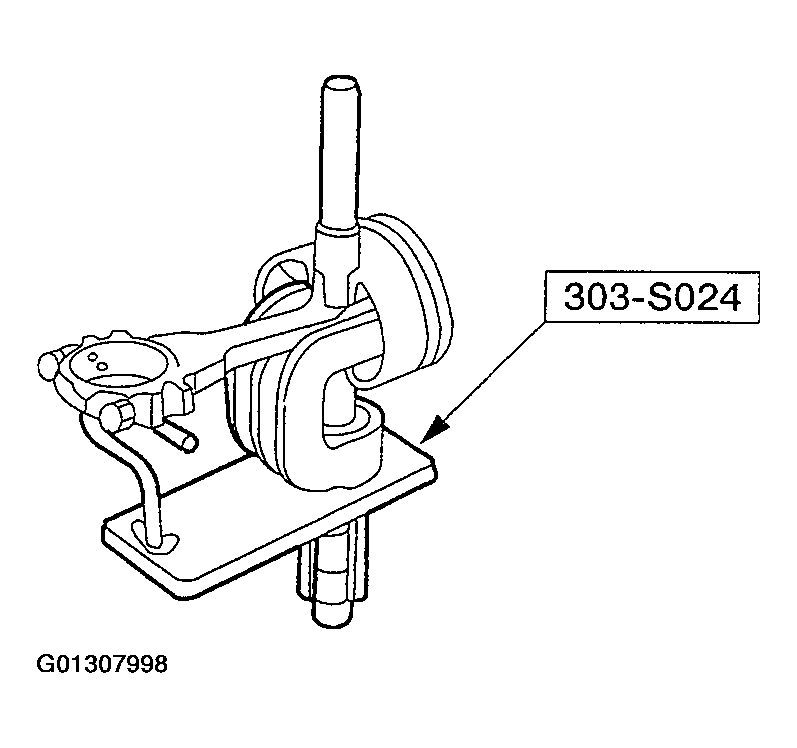

  1. Using the special tool, press the piston pin out from the connecting rod and piston assembly.
    Fig 1: Removing Piston Pin
    G01307998Courtesy of FORD MOTOR CO.

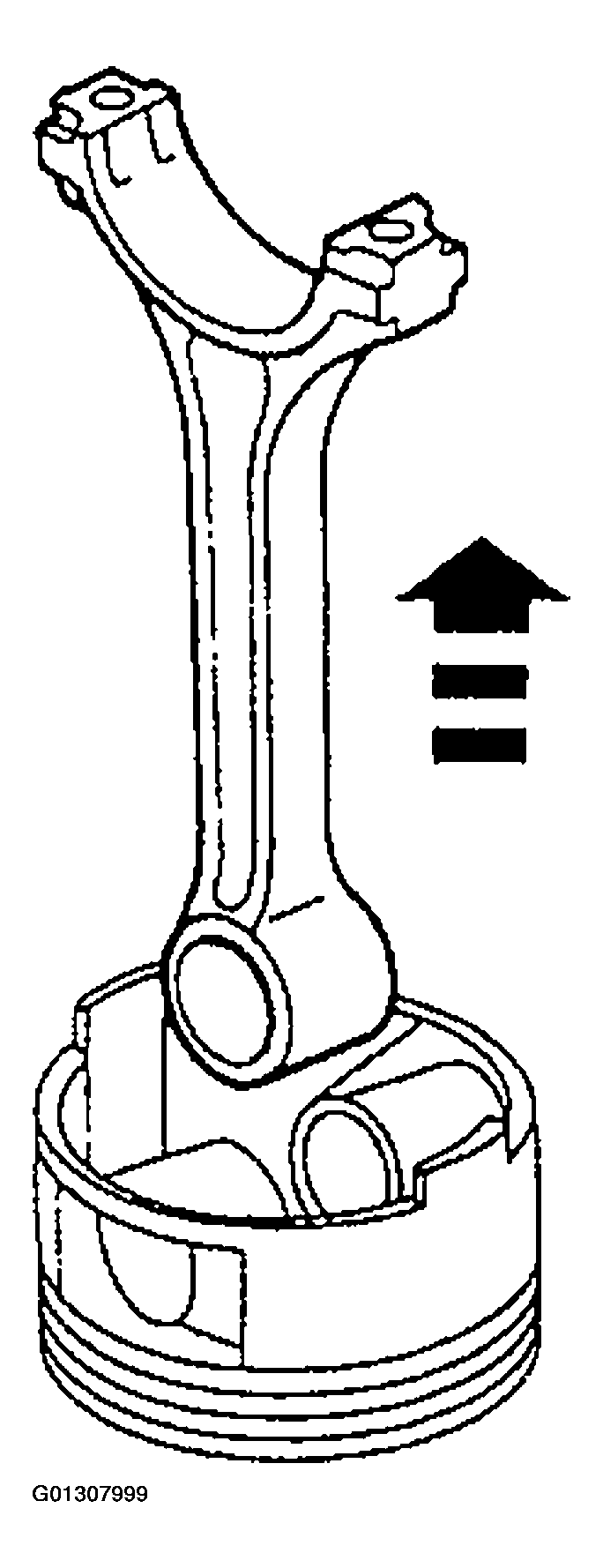

  2. Remove the connecting rod from the piston.
    Fig 2: Removing Connecting Rod From Piston
    G01307999Courtesy of FORD MOTOR CO.
  3. Clean and inspect the connecting rod and piston. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
