Crankshaft Pulley: Installation

  1. Apply a bead of sealant to the keyway in the crankshaft damper and use the special tool to install the crankshaft pulley.

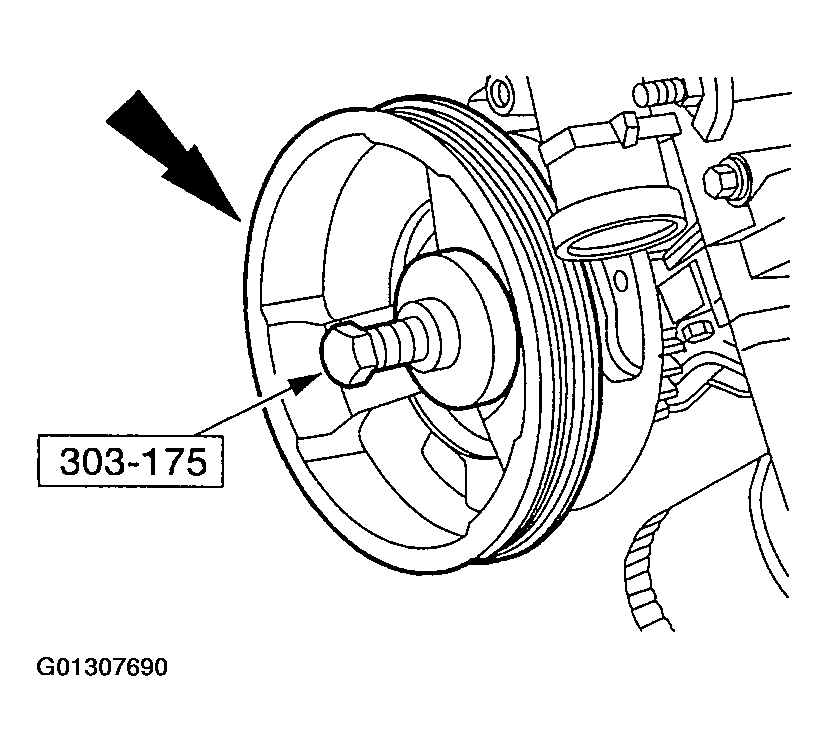

    Fig 1: Installing Crankshaft Pulley
    G01307690Courtesy of FORD MOTOR CO.
  2. Raise the subframe into position and install the bolts.

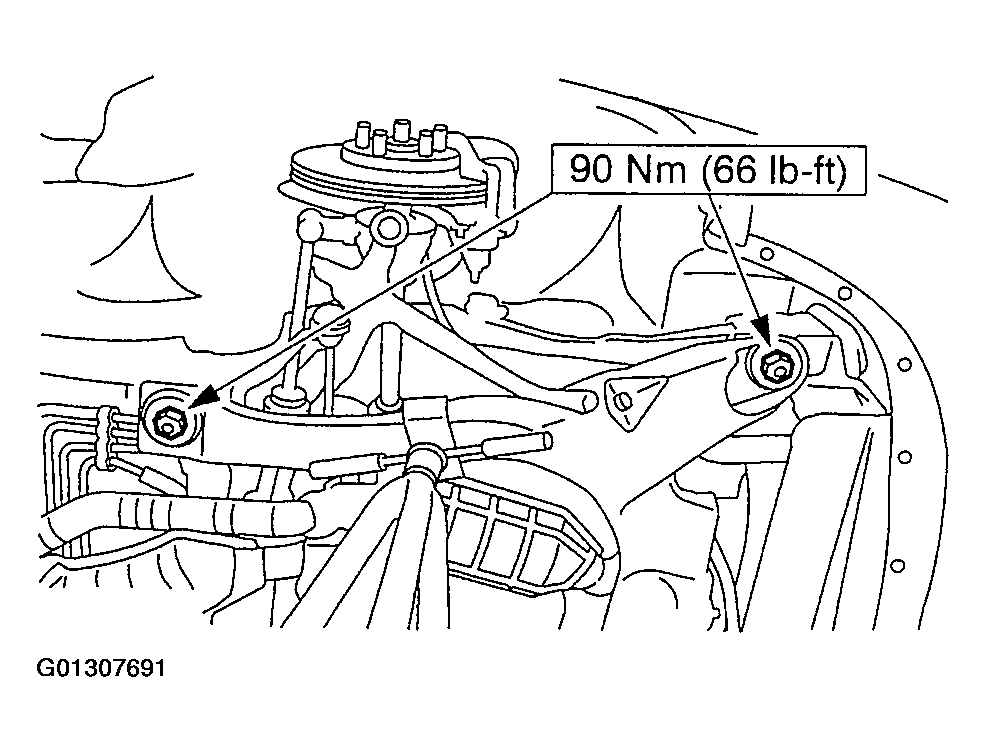

    Fig 2: Identifying Tightening Torque Of Subframe Bolt
    G01307691Courtesy of FORD MOTOR CO.
  3. Remove the safety stand.

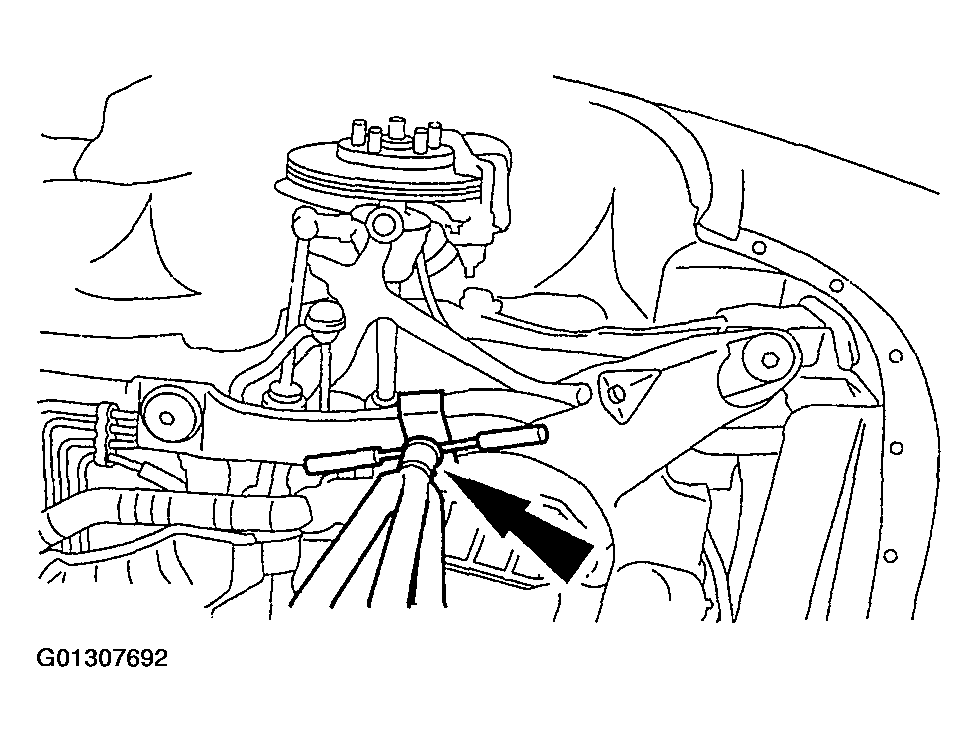

    Fig 3: Removing Safety Stand
    G01307692Courtesy of FORD MOTOR CO.
  4. Connect the anti-lock brake wheel speed sensor connector.

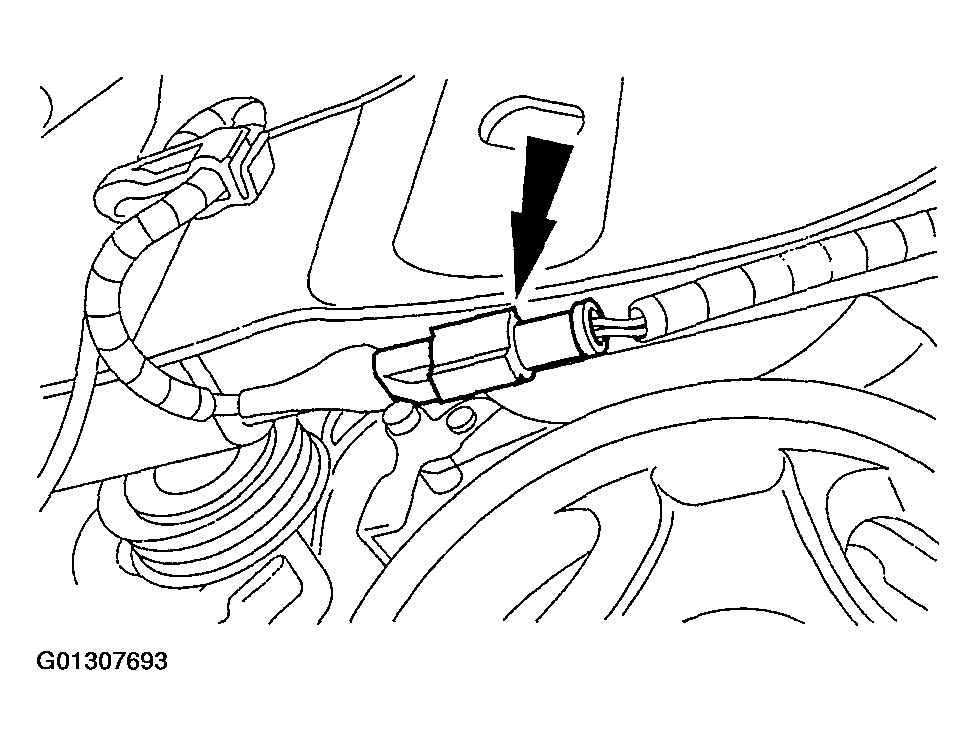

    Fig 4: Locating Anti-Lock Brake Wheel Speed Sensor Connector
    G01307693Courtesy of FORD MOTOR CO.
  5. Install the crankshaft pulley bolt.

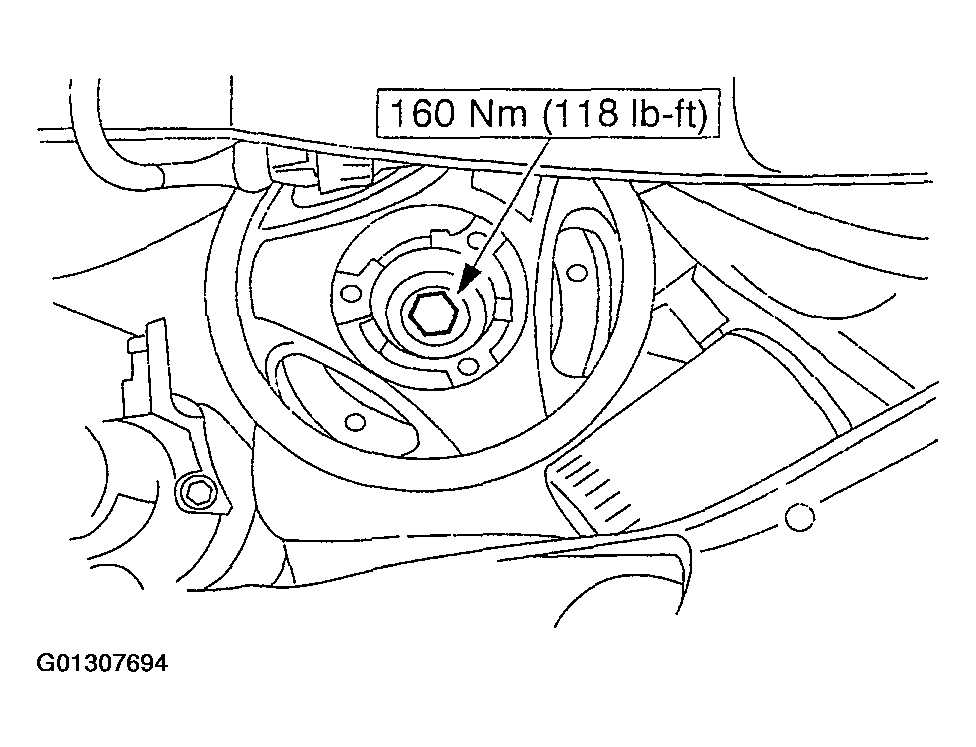

    Fig 5: Identifying Tightening Torque Of Crankshaft Pulley Bolt
    G01307694Courtesy of FORD MOTOR CO.
  6. Install the splash shield.
    • Install the pin-type retainers.

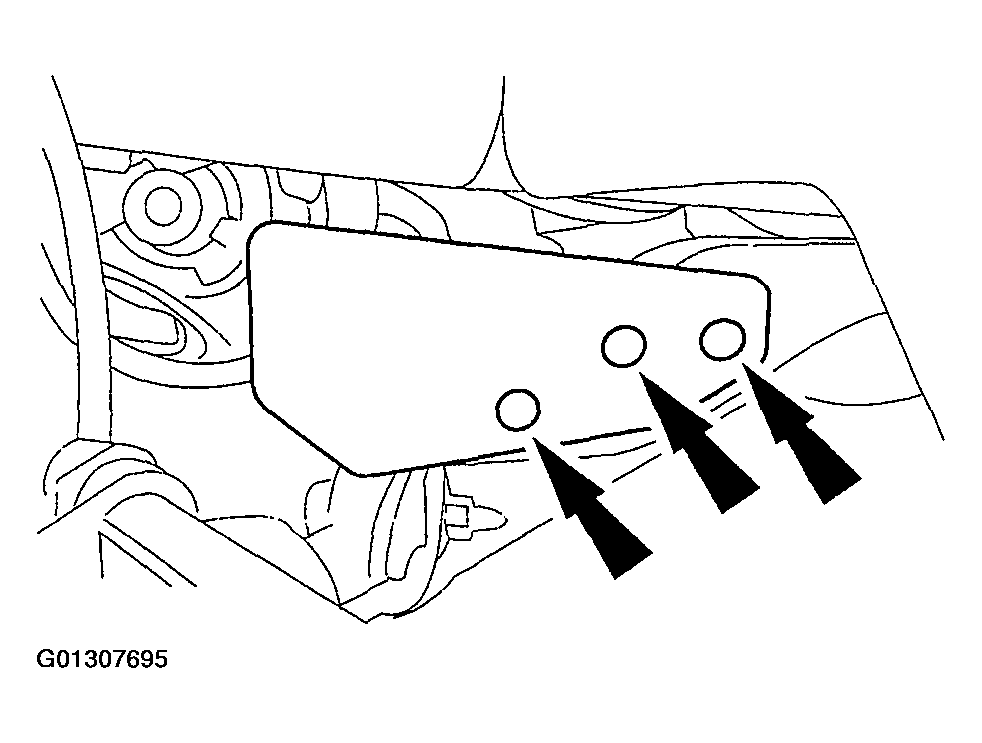

      Fig 6: Identifying Splash Shield
      G01307695Courtesy of FORD MOTOR CO.
  7. Install the RH front wheel.
  8. Lower the vehicle.
  9. Install the accessory drive belt. For additional information, refer to ACCESSORY DRIVE .
