Rocker Arm: Installation

  1. Install the rocker arms.
    • Position the rocker arms.
    • Hand-start the bolts.
    • Tighten the bolts in two stages.
      • Stage 1: Tighten to 5 Nm (44 lb-in).
      • Stage 2: Tighten to 32 Nm (24 lb-ft).

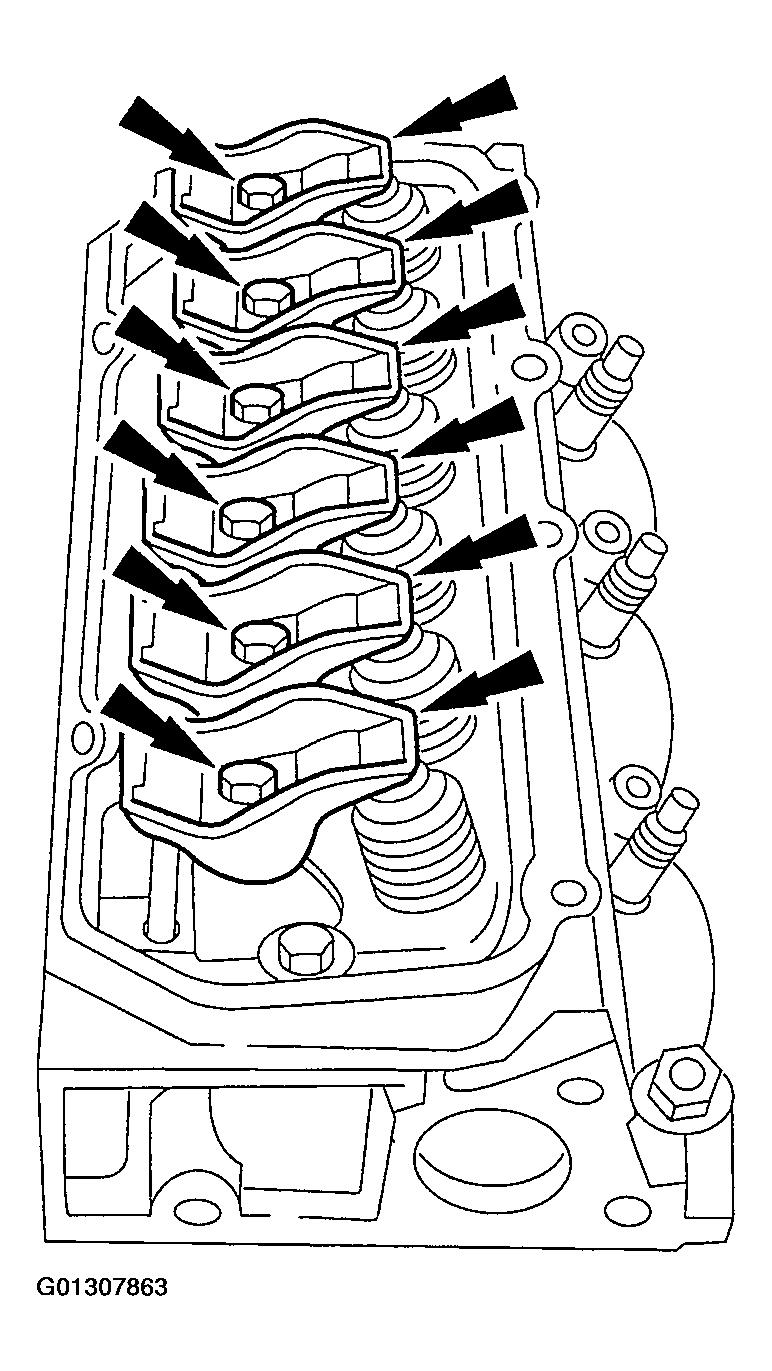

        Fig 1: Identifying Rocker Arms & Bolt
        G01307863Courtesy of FORD MOTOR CO.
  2. Install the valve cover. For additional information, refer to VALVE COVER-RH  and VALVE COVER-LH .
