Timing Chain: Installation

Install the timing chain tensioner.
1. Position the timing chain tensioner.
2. Install the bolts.

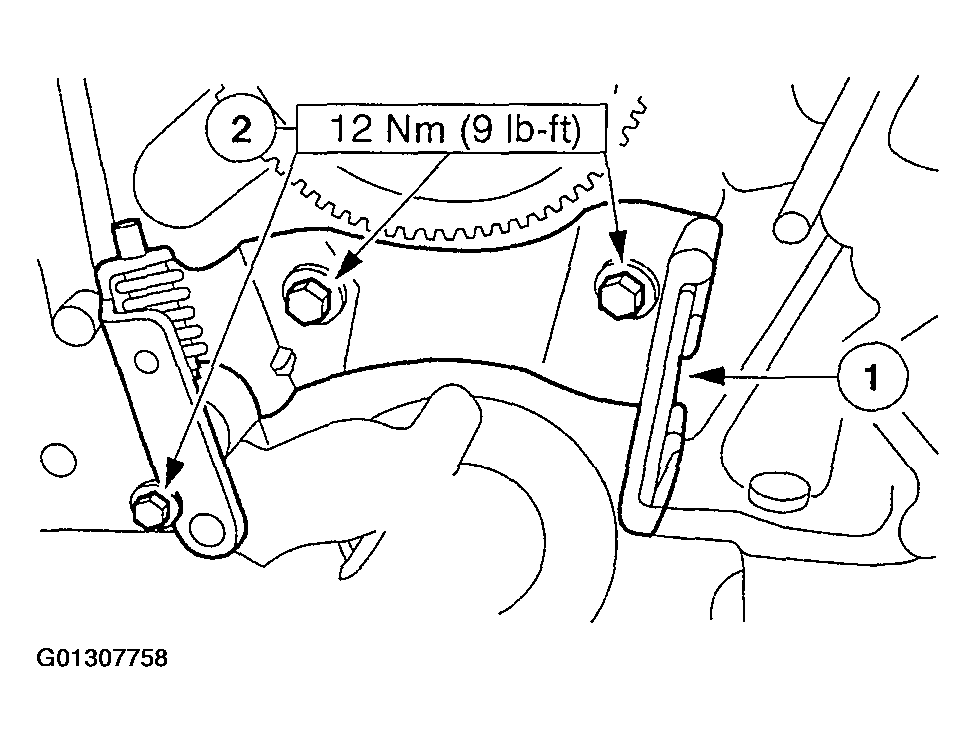

  Fig 1: Timing Chain Tensioner Bolt Tightening Torque
  Courtesy of FORD MOTOR CO.
Rotate the crankshaft so the number one piston (6108) is at top dead center (TDC) and the key is at the 12 o'clock position.

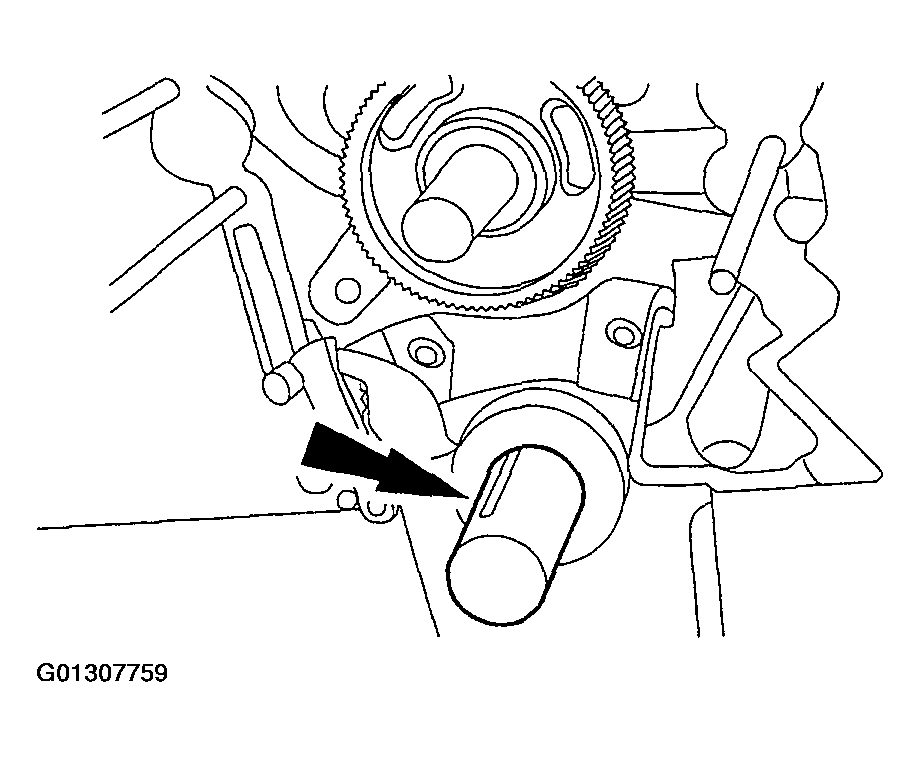

Fig 2: Positioning Crankshaft
Courtesy of FORD MOTOR CO.
If necessary, retract the tensioner pad retracting mechanism.
1. Compress the tensioner pad retracting mechanism.
2. Insert a retaining pin.

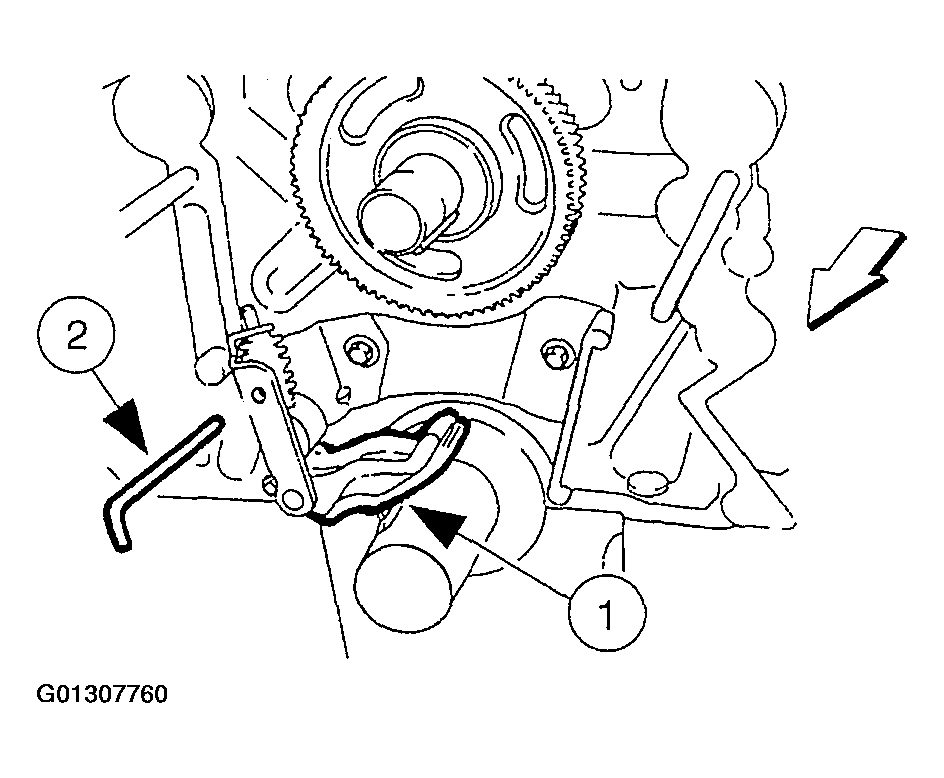

  Fig 3: Identifying Tensioner Retaining Pin
  Courtesy of FORD MOTOR CO.
Turn the camshaft sprocket so that the timing mark is on the bottom of the balance shaft (6250).

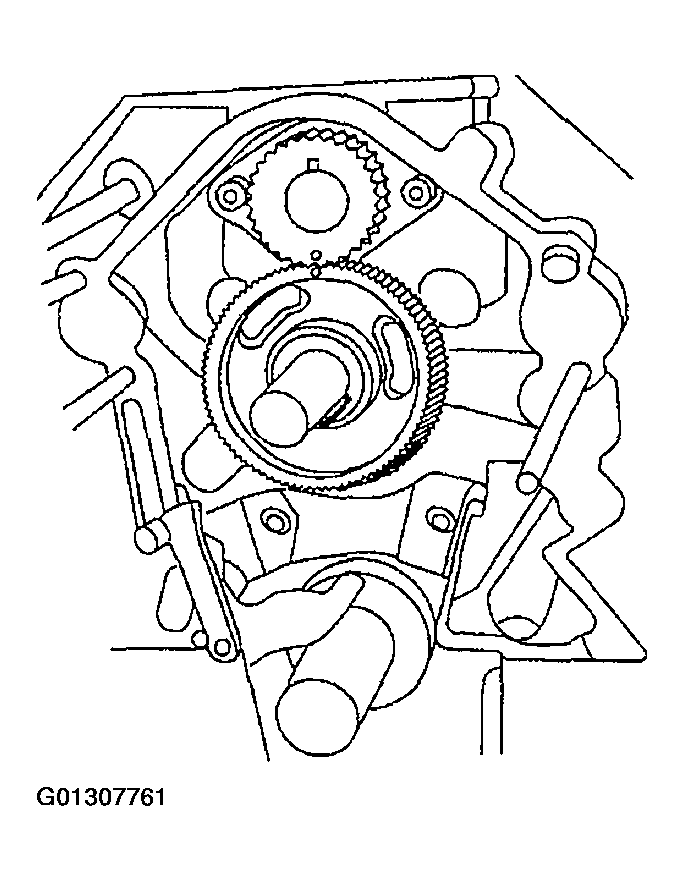

Fig 4: Aligning Camshaft Sprocket Timing Mark
Courtesy of FORD MOTOR CO.
Install the timing chain, the camshaft sprocket and the crankshaft sprocket.

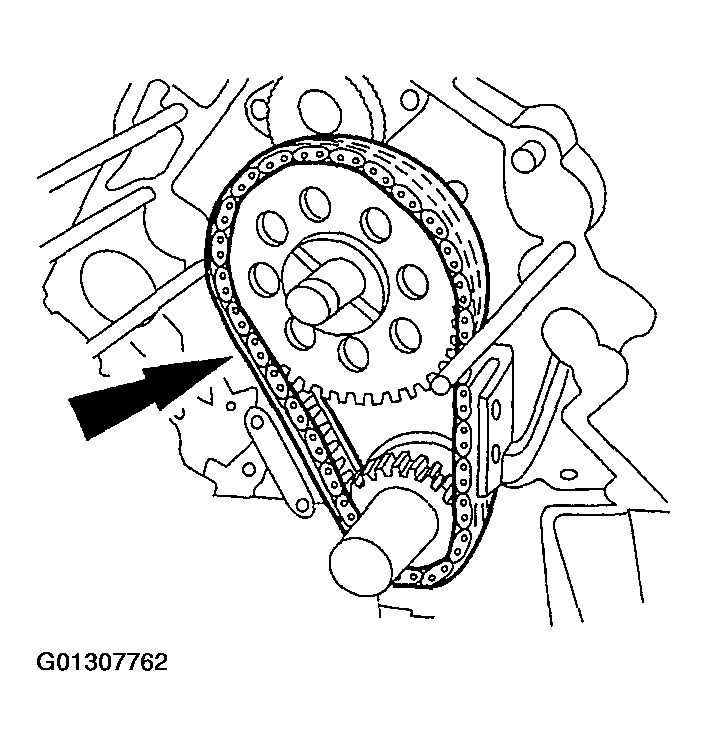

Fig 5: Installing Timing Chain, Camshaft Sprocket & Crankshaft Sprocket
Courtesy of FORD MOTOR CO.
Make sure that the timing marks and the keyways are aligned.

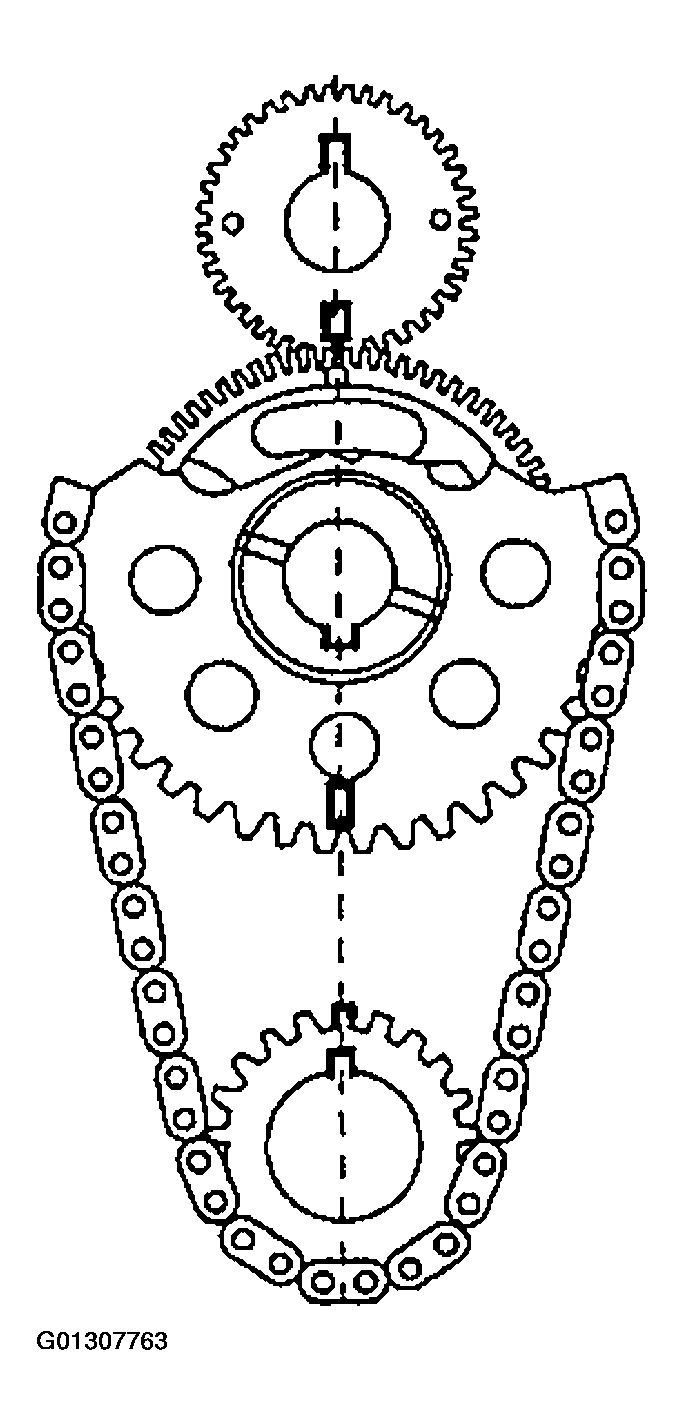

Fig 6: Aligning Crankshaft (6303) Timing Marks & Keyways
Courtesy of FORD MOTOR CO.
Install the camshaft position sensor drive gear.

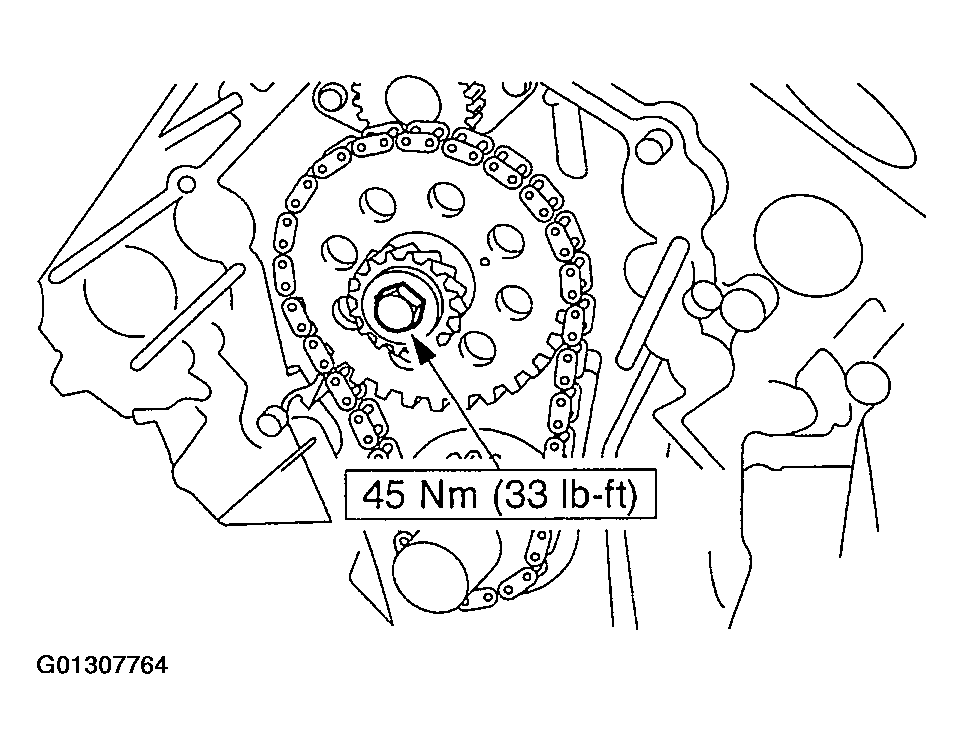

Fig 7: Camshaft Position Sensor Drive Gear Bolt Tightening Torque
Courtesy of FORD MOTOR CO.
Remove the retaining pin.

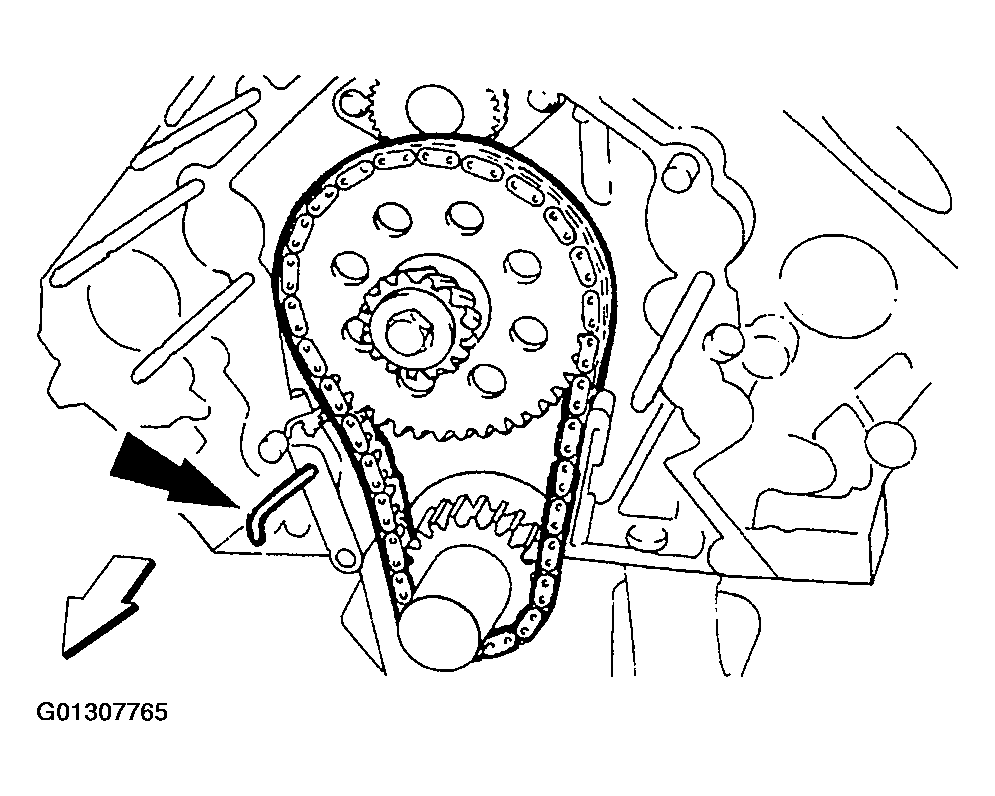

Fig 8: Removing Retaining Pin
Courtesy of FORD MOTOR CO.
Install the engine front cover. For additional information, refer to ENGINE FRONT COVER .
