Quick Release Coupling: Connect

  1. Inspect the quick-release coupling and line for damage.
  2. Remove any dirt or obstructions.
  3. Push the quick-release coupling onto the line until a click is heard.
  4. Pull on the coupling to make sure it is correctly connected.

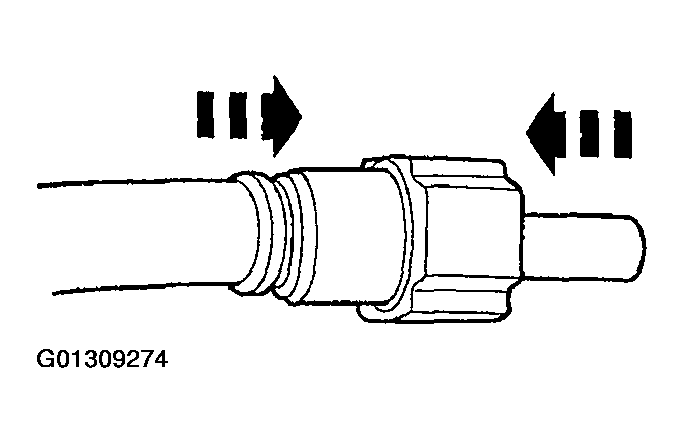

    Fig 1: Pulling Coupling To Ensure It Is Connected Correctly
    G01309274Courtesy of FORD MOTOR CO.
