General Specifications

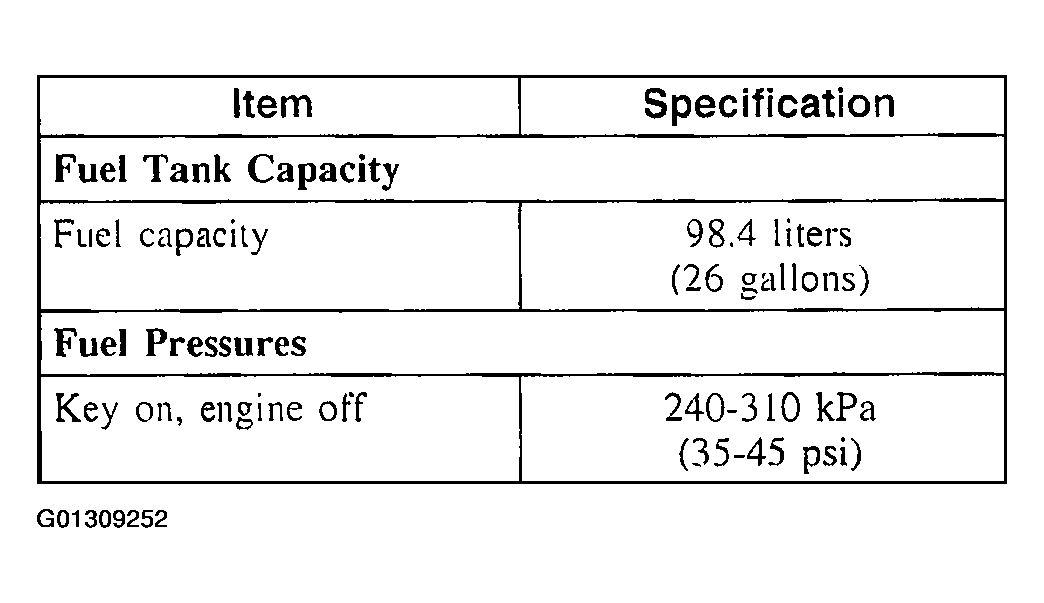

Fig 1: Fuel System - General Information (1 Of 2)
G01309252Courtesy of FORD MOTOR CO.

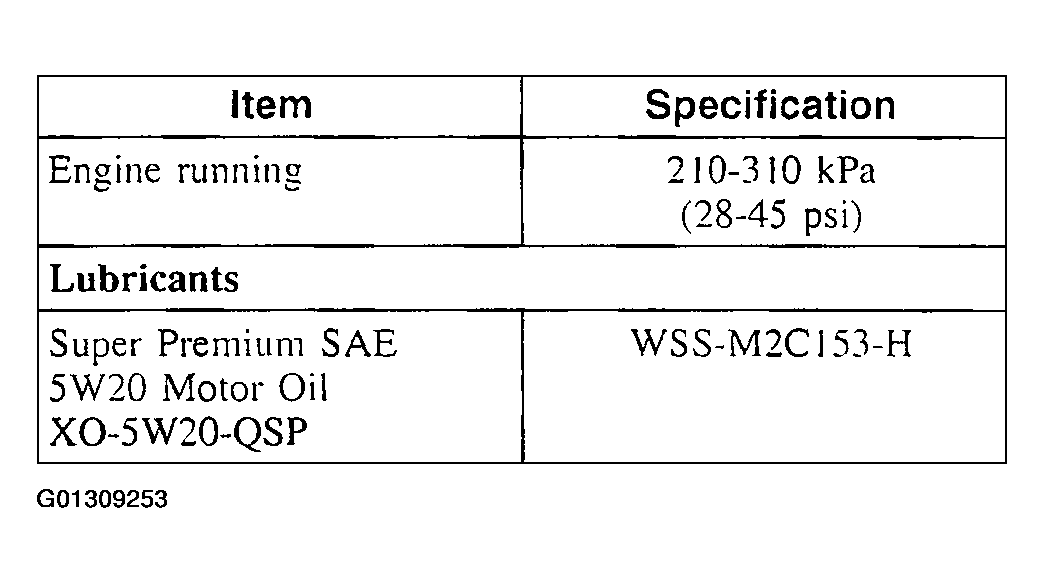

Fig 2: Fuel System - General Information (2 Of 2)
G01309253Courtesy of FORD MOTOR CO.
