Pump - CII: Installation

To install, reverse the removal procedure.
1. Using the special tool, install a new seal on the power steering hose (3A719).

  Fig 1: Installing Seal On Power Steering Hose
  Courtesy of FORD MOTOR CO.

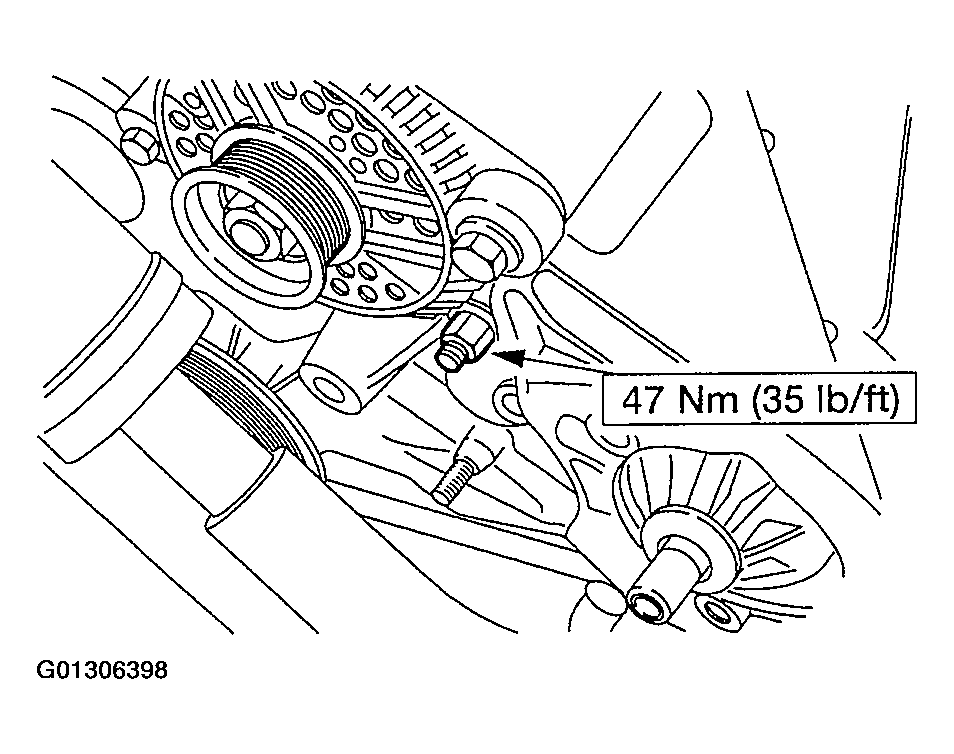

  Fig 2: Installing 2 Nuts And 1 Bolt (Torque Specifications)
  Courtesy of FORD MOTOR CO.

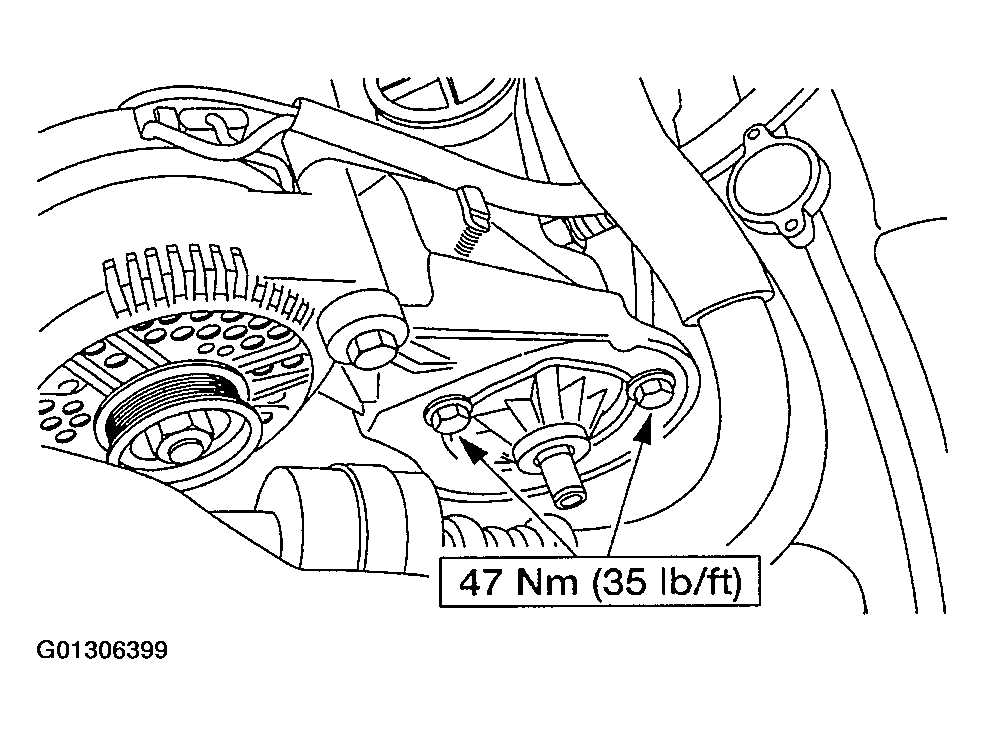

  Fig 3: Installing 3 Bolts (Torque Specifications)
  Courtesy of FORD MOTOR CO.

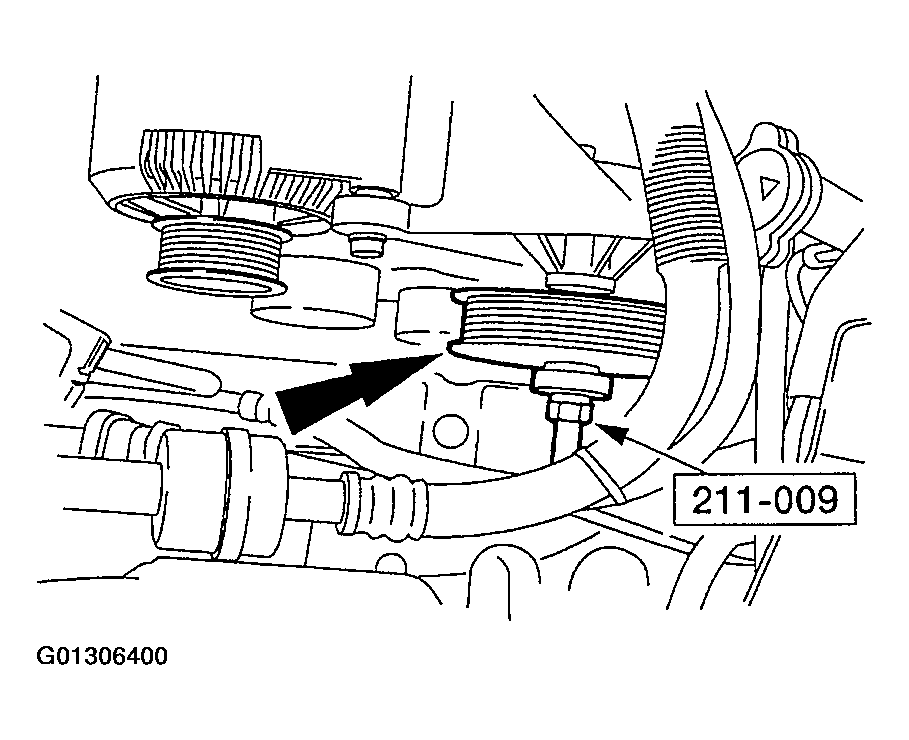

  Fig 4: Installing Pulley
  Courtesy of FORD MOTOR CO.

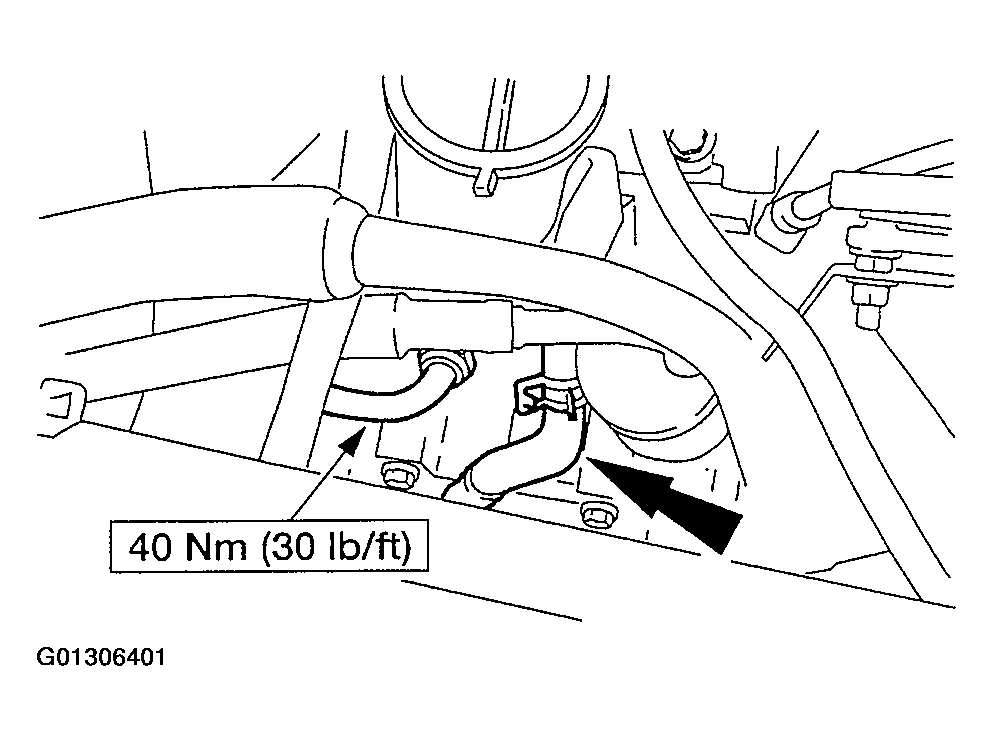

  Fig 5: Installing Power Steering Hoses (Torque Specifications)
  Courtesy of FORD MOTOR CO.
Fill the power steering system and inspect for leaks. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
