Removal And Installation: Pump-CII: Removal

Remove the drive belt. For additional information, refer to ACCESSORY DRIVE .
Disconnect the power steering reservoir pump hose (3E525).

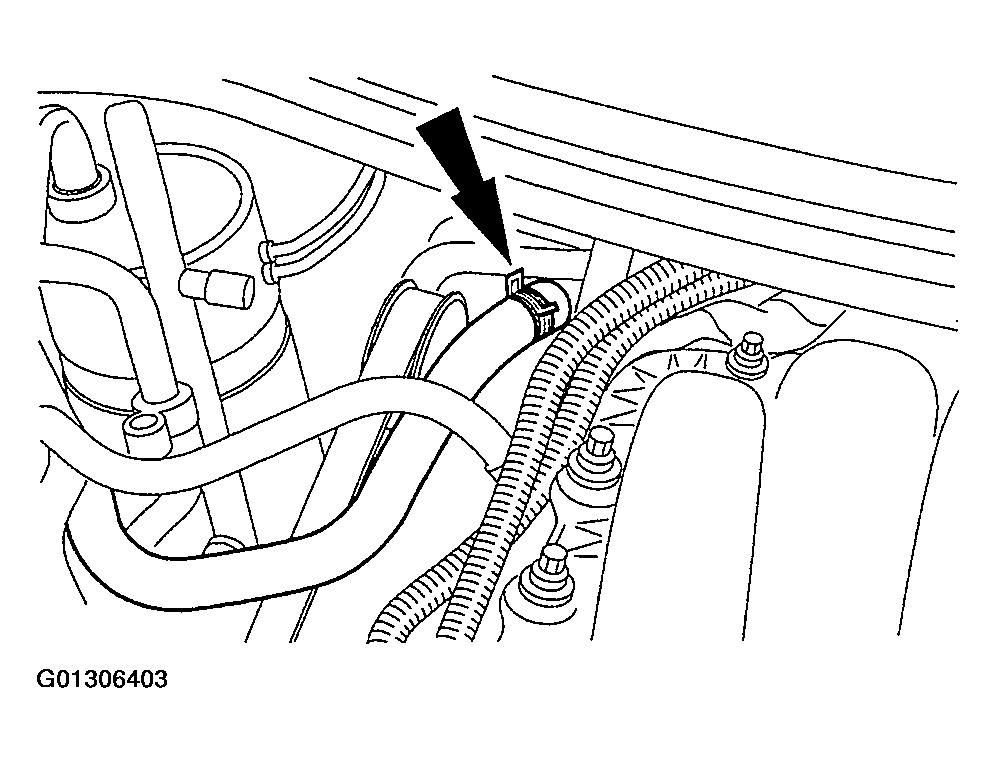

Fig 1: Disconnecting Power Steering Reservoir Pump Hose
Courtesy of FORD MOTOR CO.
Disconnect the power steering hose (3A719). Remove and discard the seal.

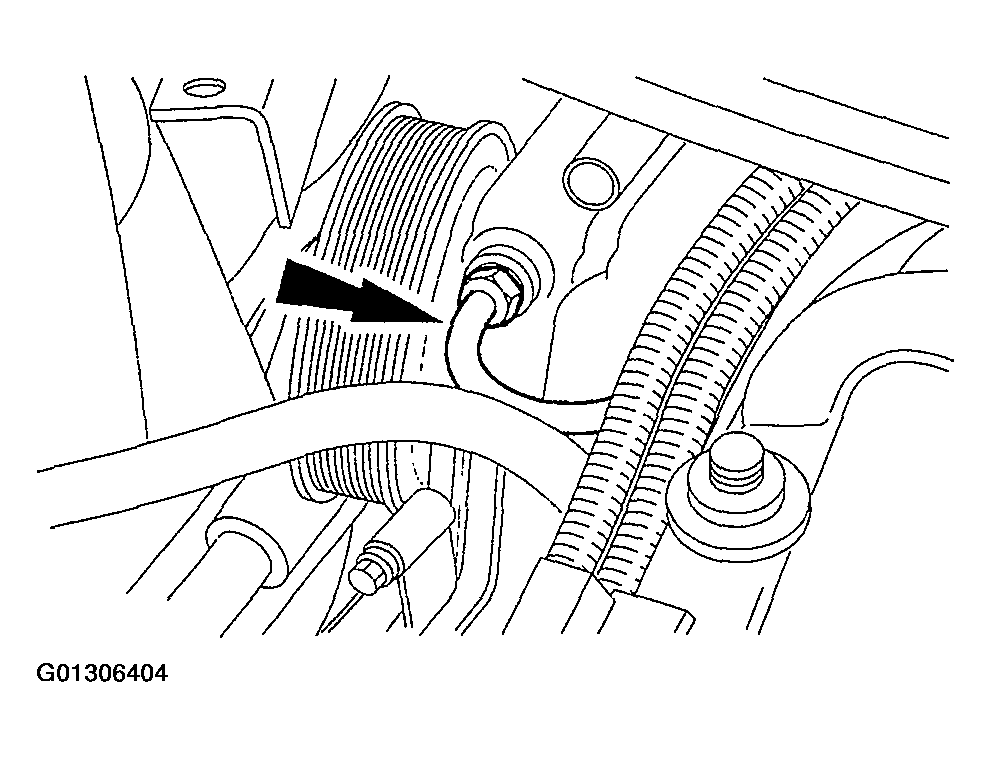

Fig 2: Disconnecting Power Steering Hose
Courtesy of FORD MOTOR CO.
Remove the four bolts, two brackets and power steering pump (3A674).

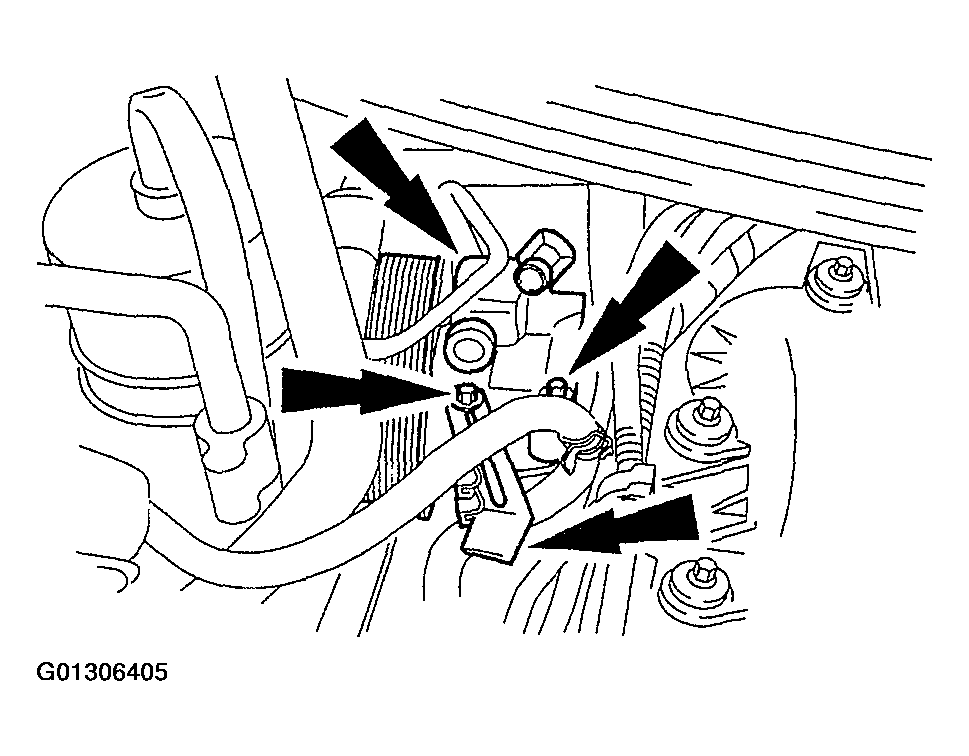

Fig 3: Removing Four Bolts
Courtesy of FORD MOTOR CO.
Remove the power steering pump pulley. For additional information, refer to PULLEY - CIII PUMP .
