Automatic Transmission Servicing: Identification: Transaxle

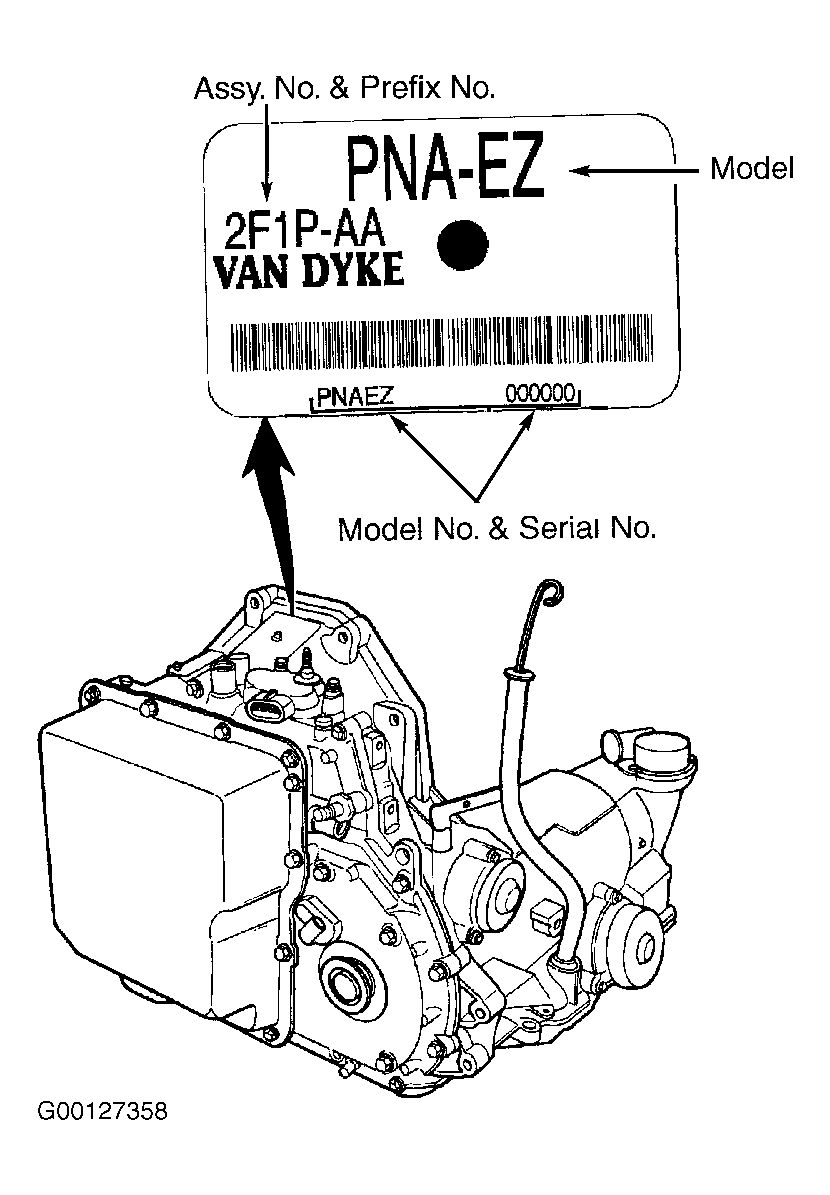

Fig 1: Identifying Transaxle (AX4S)
G00127358Courtesy of FORD MOTOR CO.

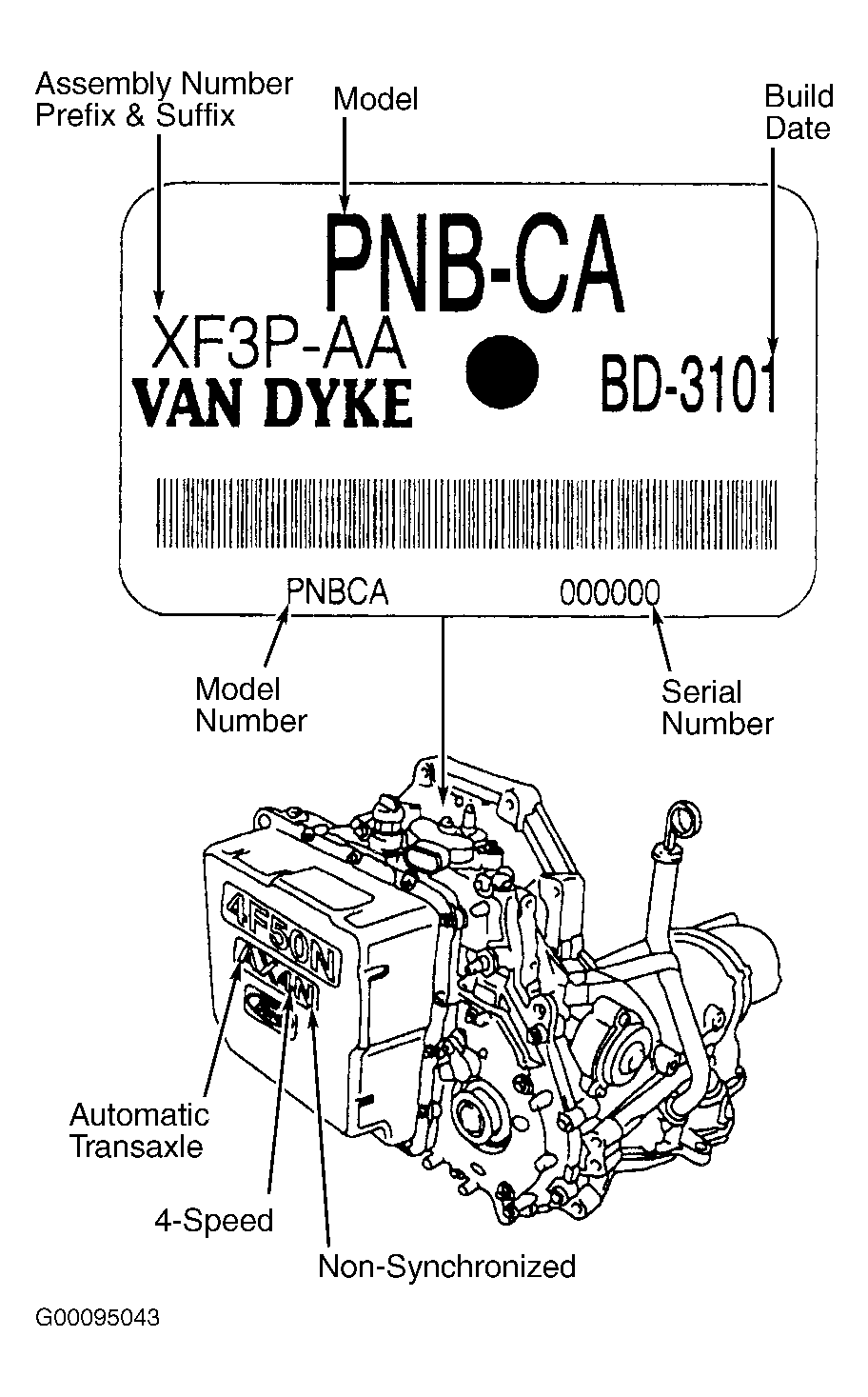

Fig 2: Identifying Transaxle (4F50N)
G00095043Courtesy of FORD MOTOR CO.
