Main Control Components

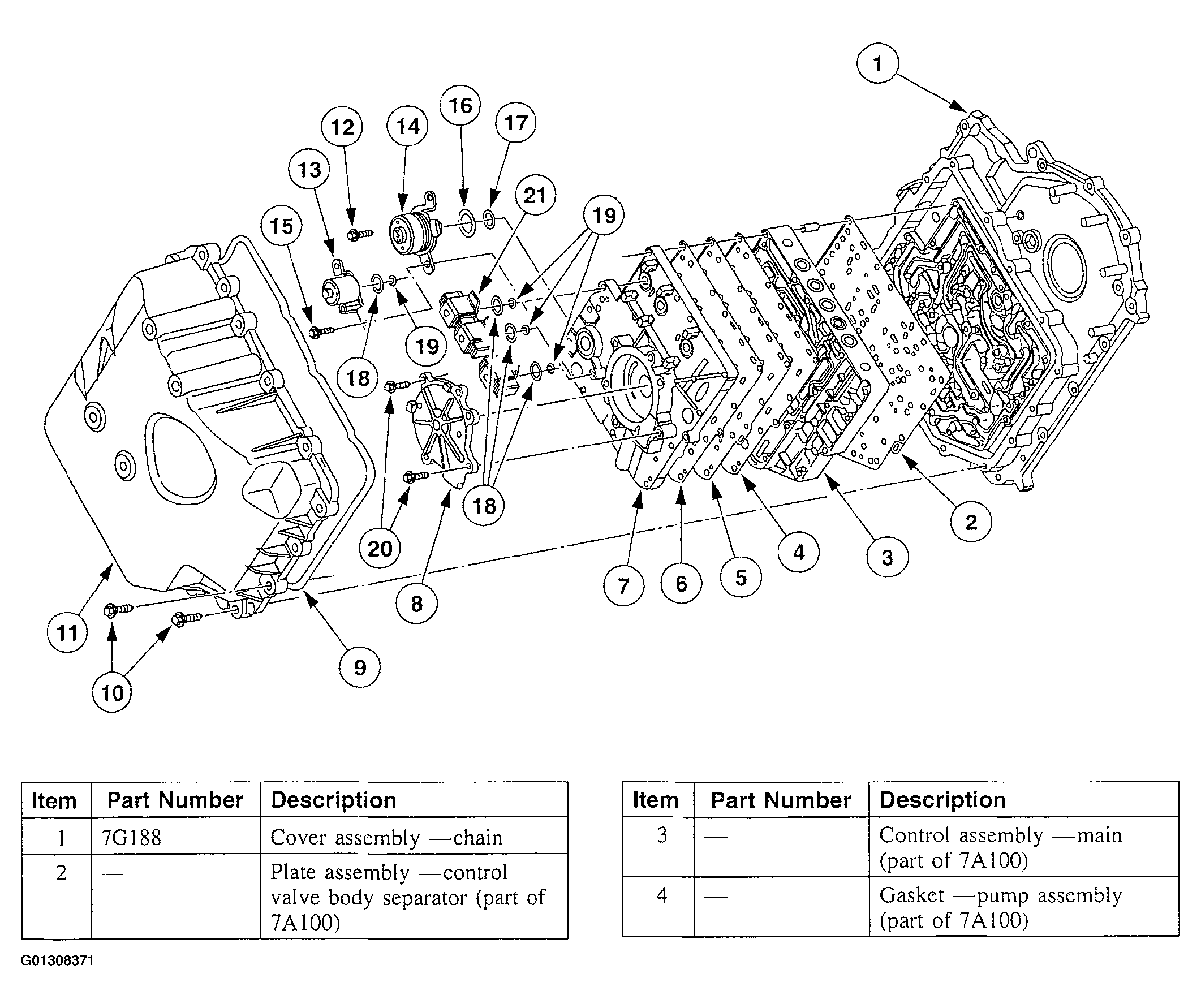

Fig 1: Locating Transaxle Main Control Components (1 Of 2)
G01308371Courtesy of FORD MOTOR CO.

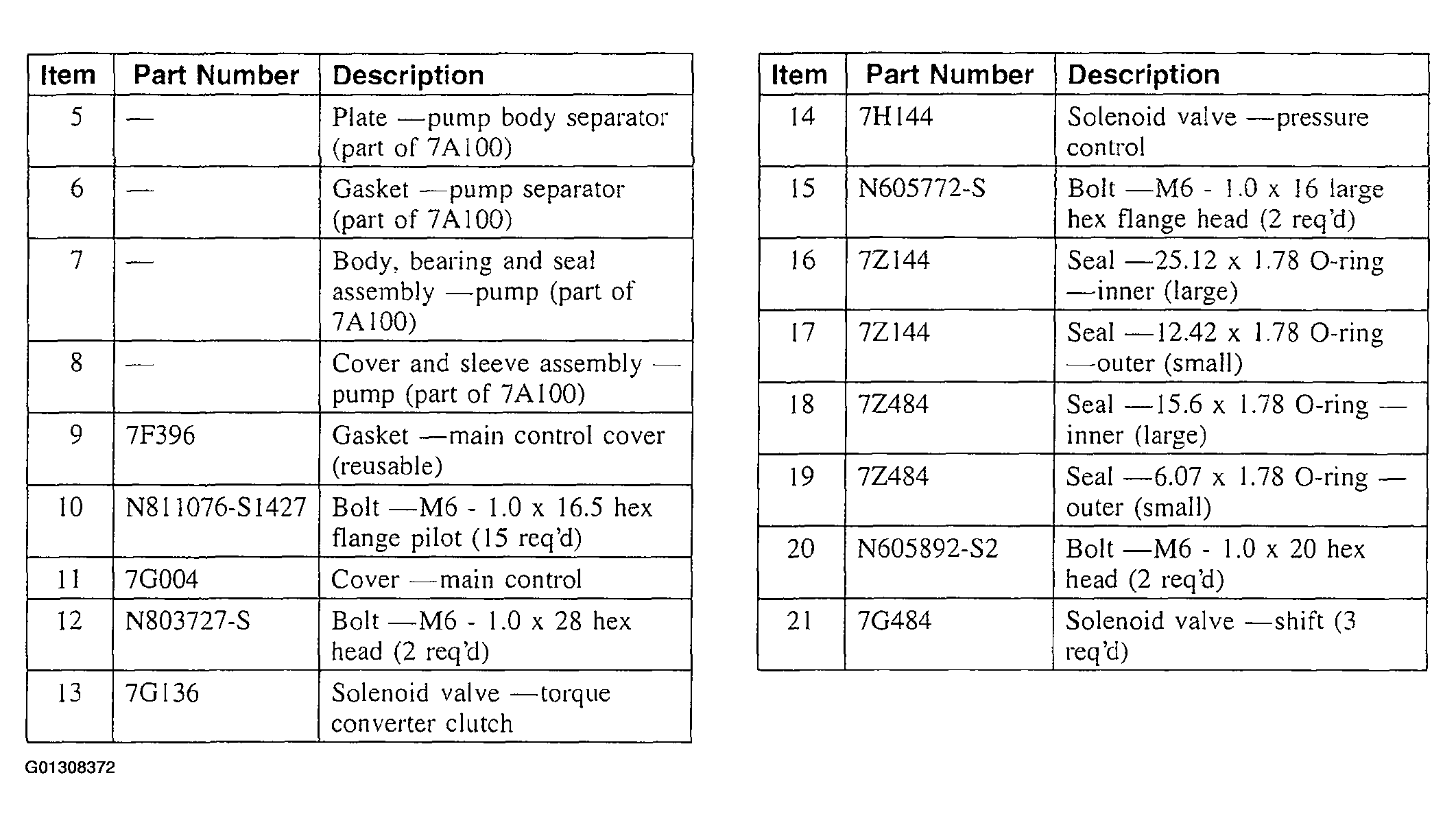

Fig 2: Locating Transaxle Main Control Components (2 Of 2)
G01308372Courtesy of FORD MOTOR CO.
