Driven Sprocket Support: Assembly

  1. If removed, install a new driven sprocket bearing. Using the special tools and an arbor press install a new driven sprocket bearing.

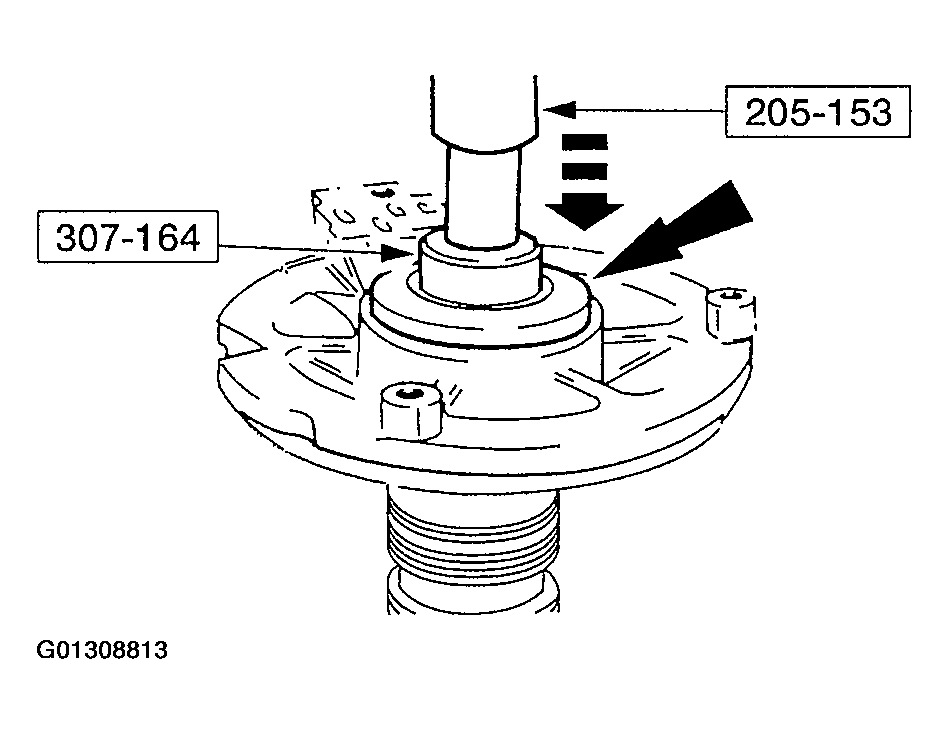

    Fig 1: Installing Driven Sprocket Bearing
    G01308813Courtesy of FORD MOTOR CO.
  2. Make sure that the seals are mated correctly during installation.

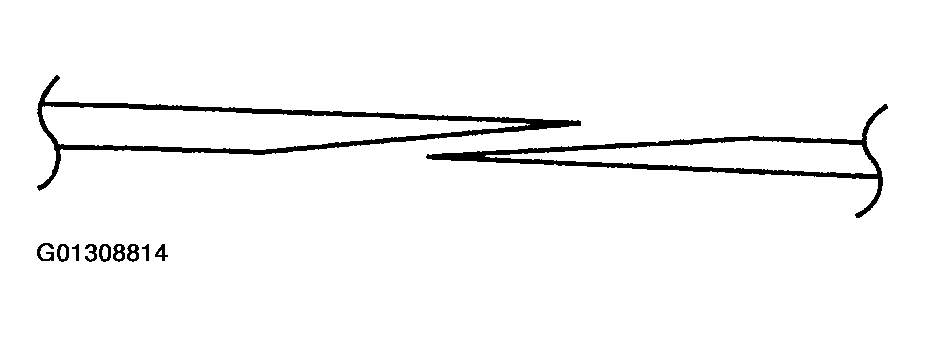

    Fig 2: Identifying Correct Installation Of Seal
    G01308814Courtesy of FORD MOTOR CO.
    3. CAUTION: The seal rings must be installed correctly. Transmission failure could result.

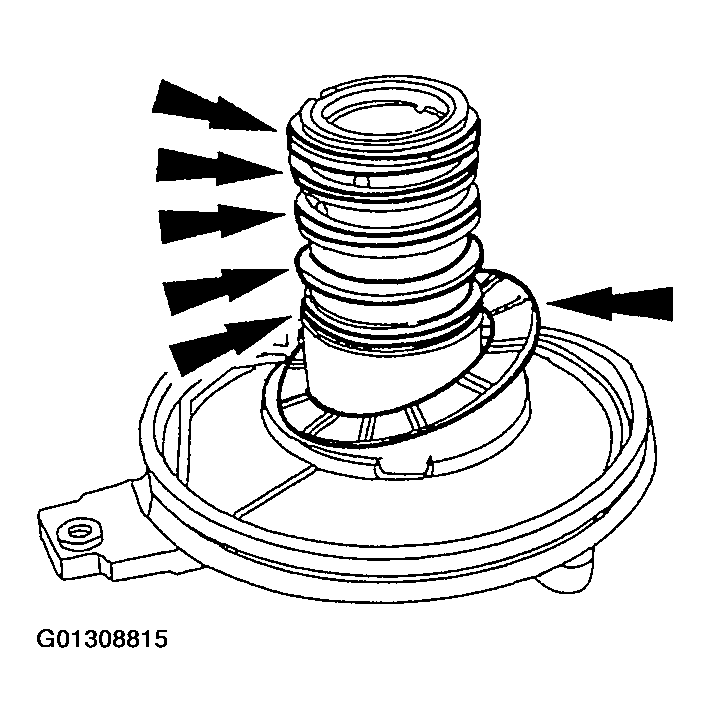

    Fig 3: Installing Teflon® Seals And Thrust Washer
    G01308815Courtesy of FORD MOTOR CO.
  3. Install new Teflon® seals and the No. 5 thrust washer.
