Final Drive: Assembly

NOTE: If excessive wobble or rotational binding or damage is found a new final drive planet and carrier will need to be installed.

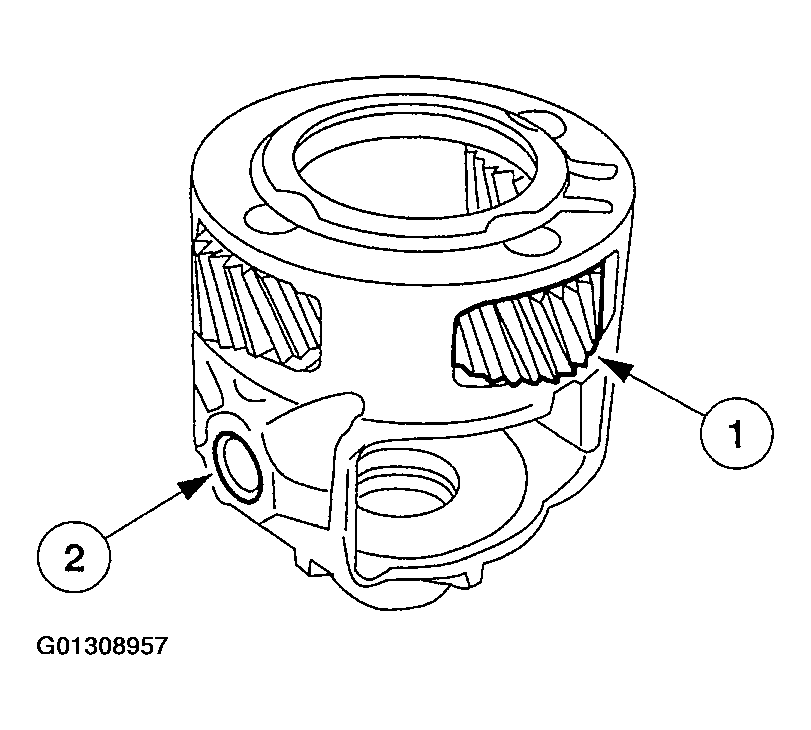

Inspect the differential pinion and side gears for looseness, discoloration, cracks or excessive gear wear.
1. Inspect the final drive planet gears.
2. Inspect the pinion shaft bores.

  Fig 1: Inspecting Differential Pinion And Side Gears
  Courtesy of FORD MOTOR CO.

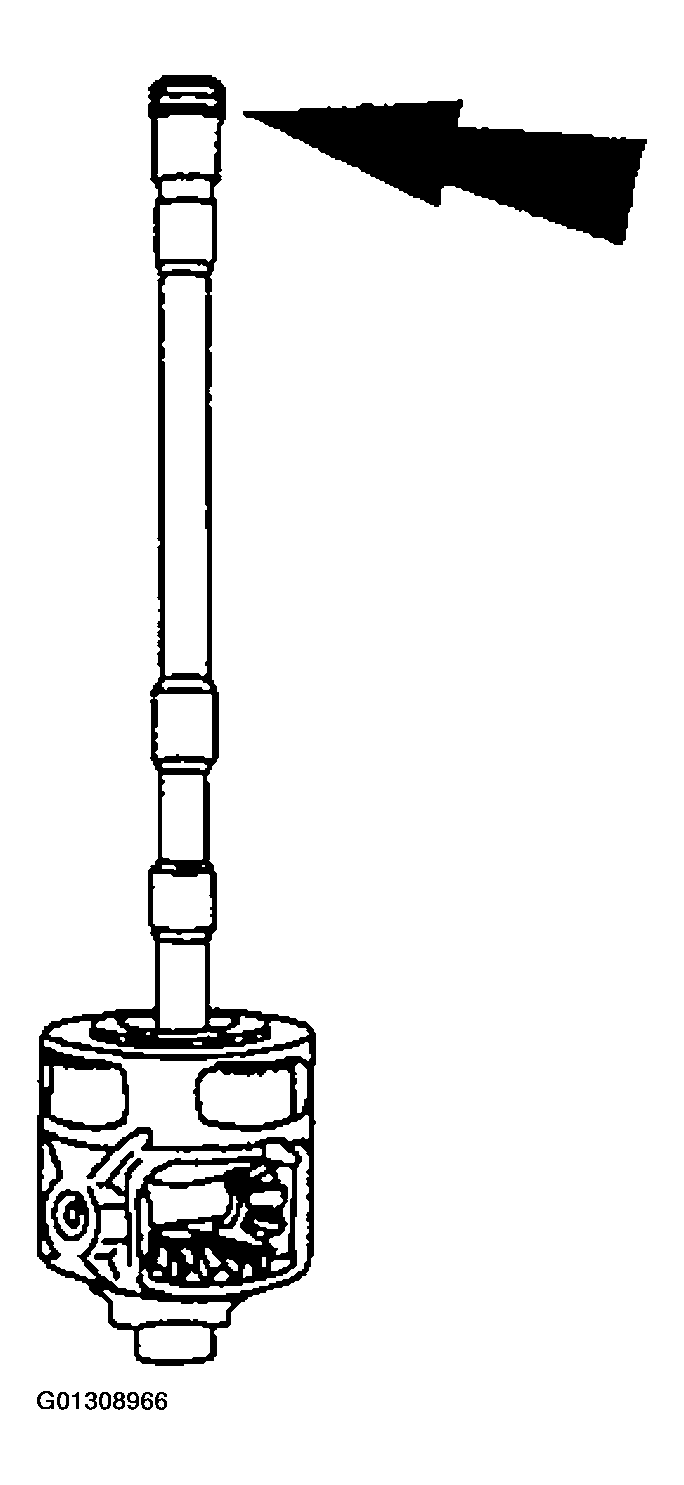

Install the differential side gear and differential side gear thrust washer.
1. Install the differential side gear and differential side gear thrust washer.
2. Install the output shaft.
3. Install the retaining ring.

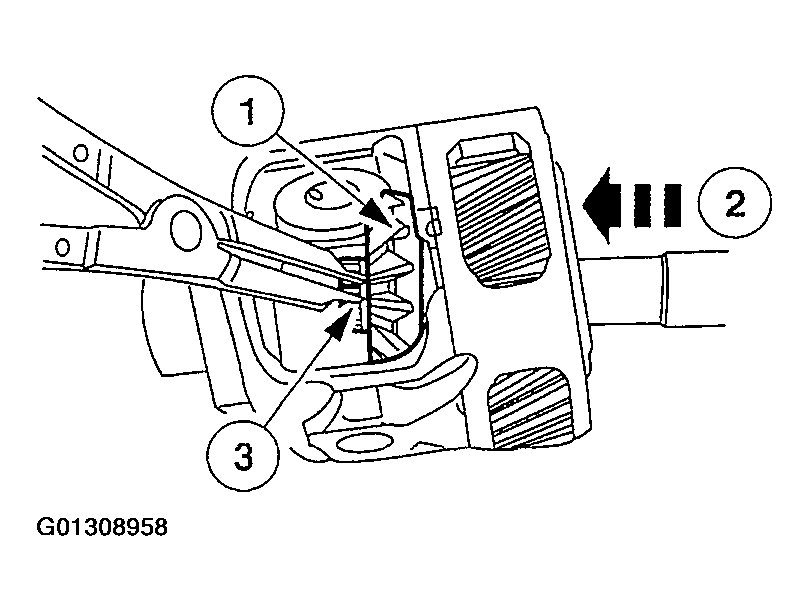

  Fig 2: Installing Differential Side Gear And Differential Side Gear Thrust Washer
  Courtesy of FORD MOTOR CO.

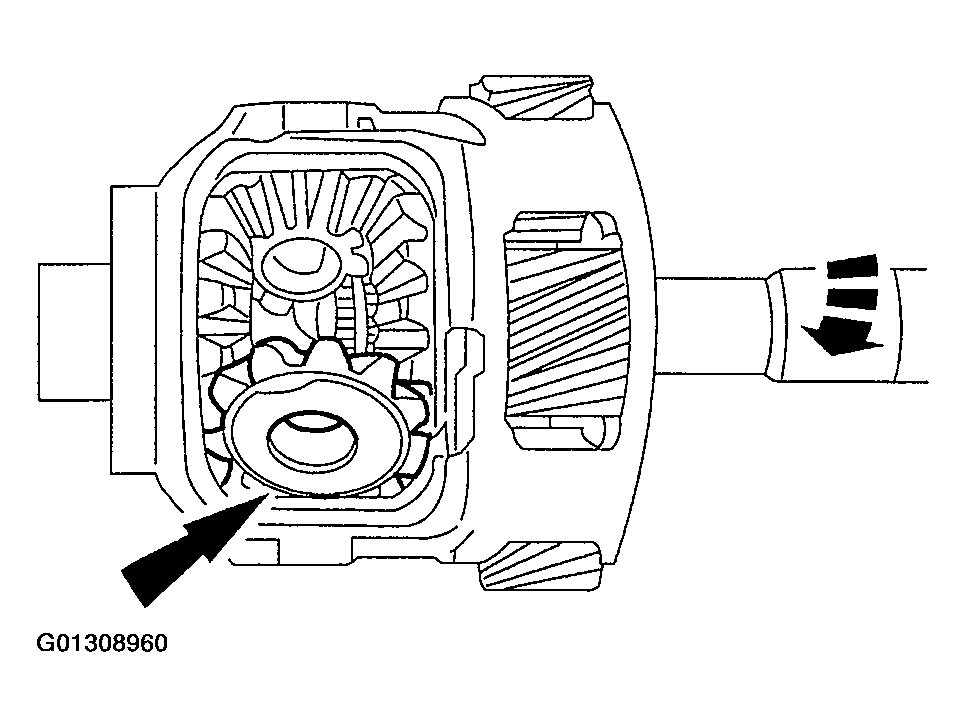

Install the differential side gear and differential side gear thrust washer.

Fig 3: Installing Differential Side Gear And Differential Side Gear Thrust Washer
Courtesy of FORD MOTOR CO.

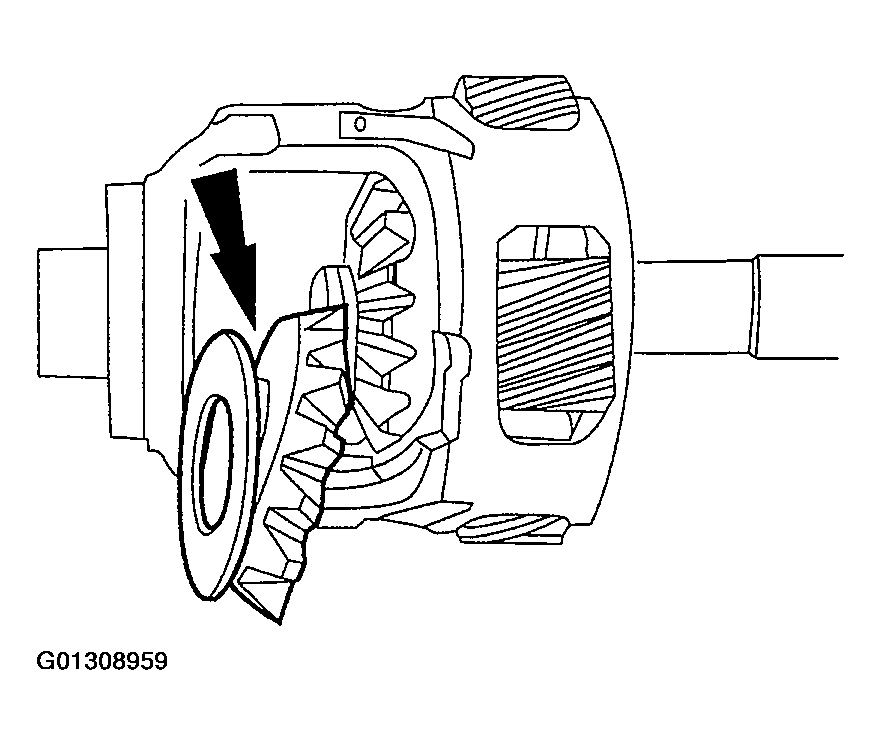

Install the differential pinion gears, and differential pinion thrust washers.

Fig 4: Installing Differential Pinion Gears, And Differential Pinion Thrust Washers
Courtesy of FORD MOTOR CO.
Install the differential pinion shaft.

Fig 5: Installing Differential Pinion Shaft
Courtesy of FORD MOTOR CO.

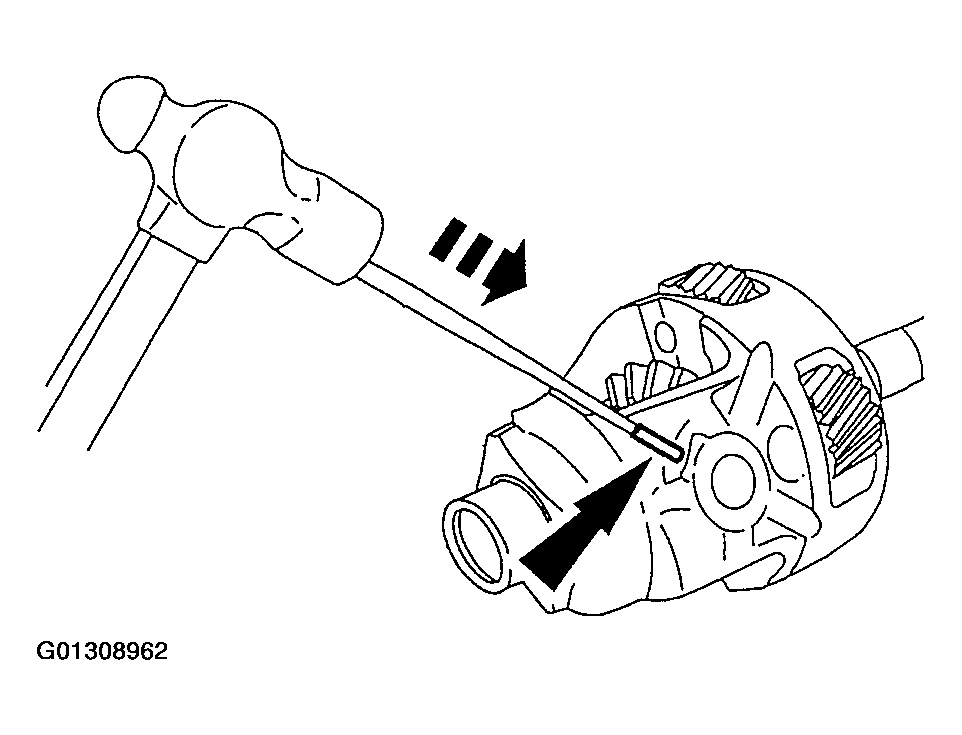

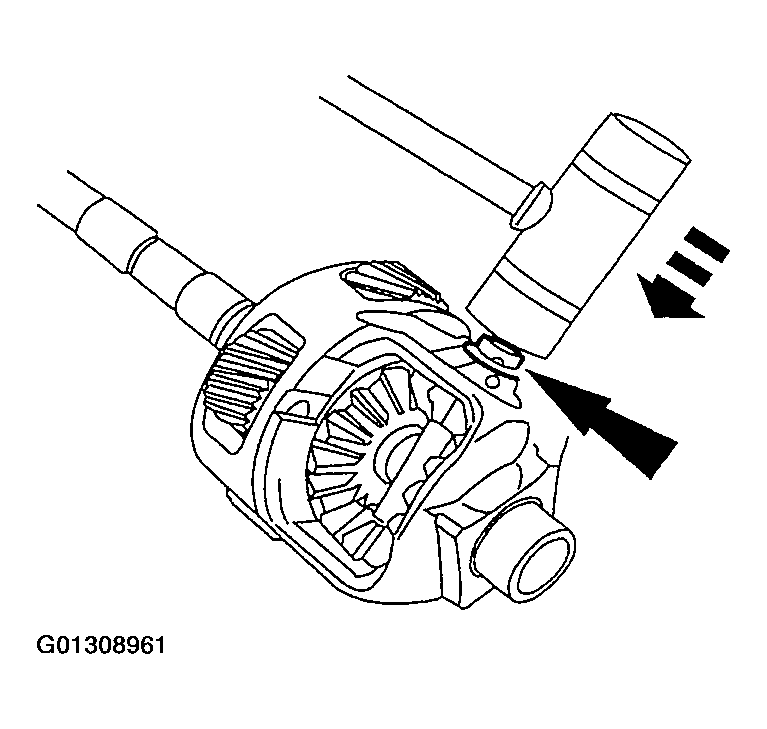

Install the differential pinion shaft roll pin.

Fig 6: Installing Differential Pinion Shaft Roll Pin
Courtesy of FORD MOTOR CO.

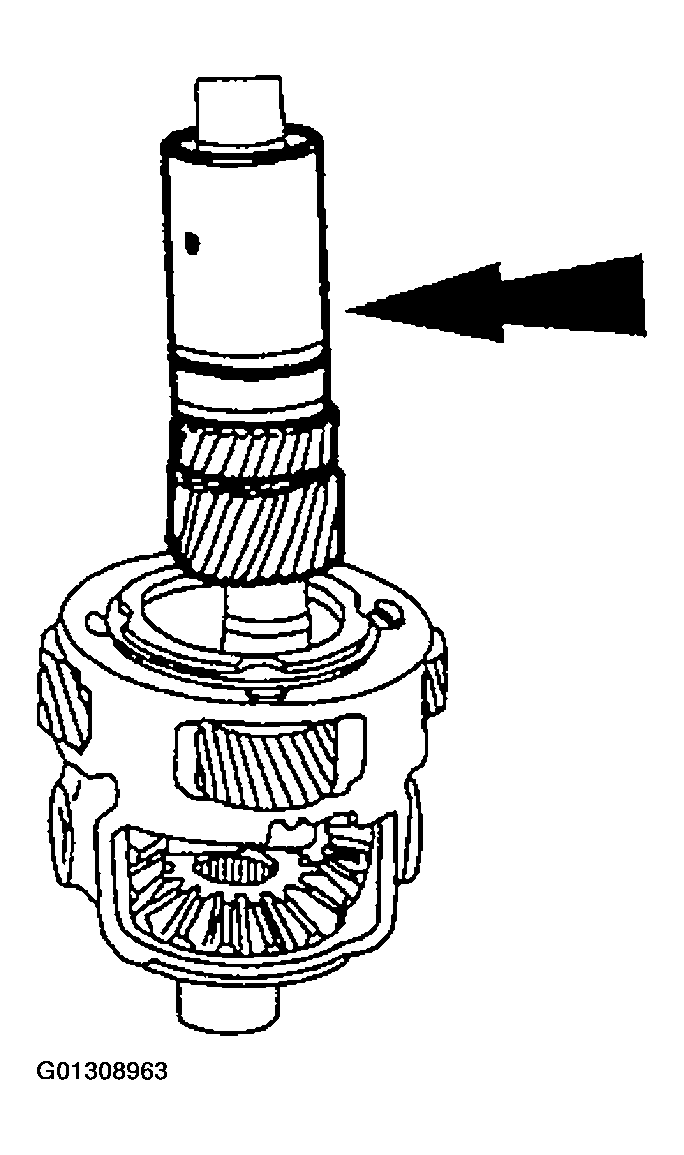

Install the final drive sun gear and deflector assembly.

Fig 7: Installing Final Drive Sun Gear And Deflector Assembly
Courtesy of FORD MOTOR CO.

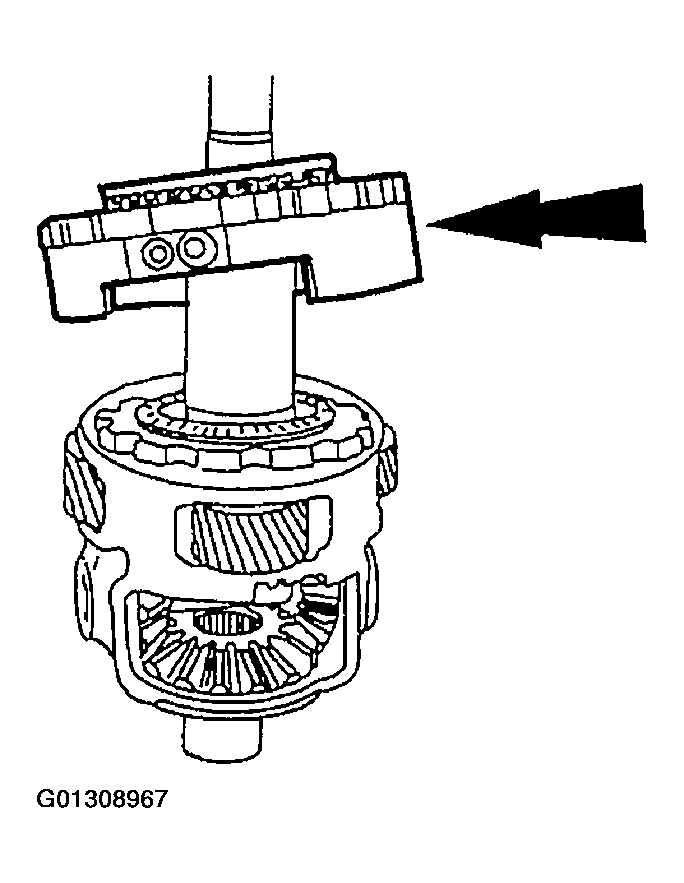

Install the park gear.

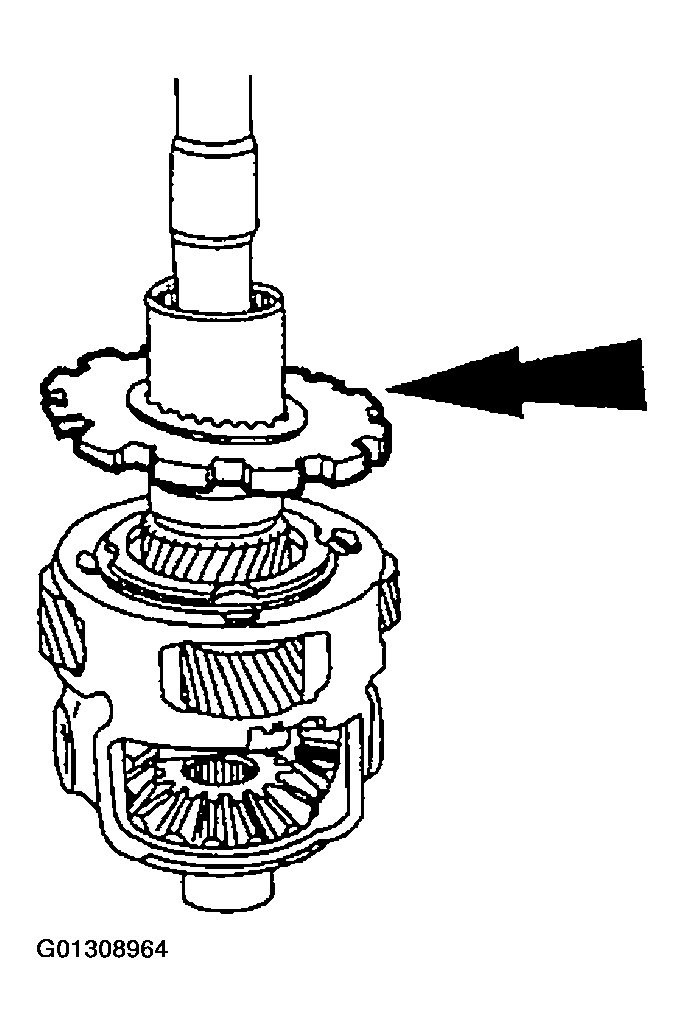

Fig 8: Installing Park Gear
Courtesy of FORD MOTOR CO.

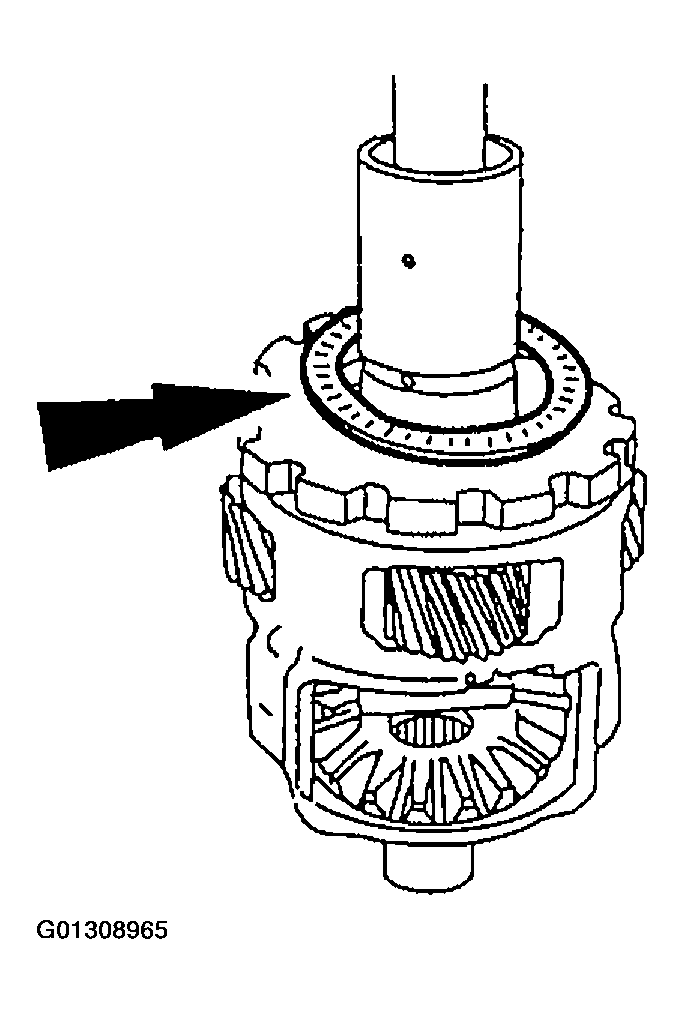

Install the No. 16 final drive gear front thrust bearing.

Fig 9: Installing Final Drive Gear Front Thrust Bearing
Courtesy of FORD MOTOR CO.
Install new retaining circle clips.

Fig 10: Installing Retaining Circle Clips
Courtesy of FORD MOTOR CO.
Install the low intermediate clutch piston and rear planet support.

Fig 11: Installing Low Intermediate Clutch Piston And Rear Planet Support
Courtesy of FORD MOTOR CO.
