Overdrive Servo: Disassembly

  1. Remove the overdrive servo piston return spring.

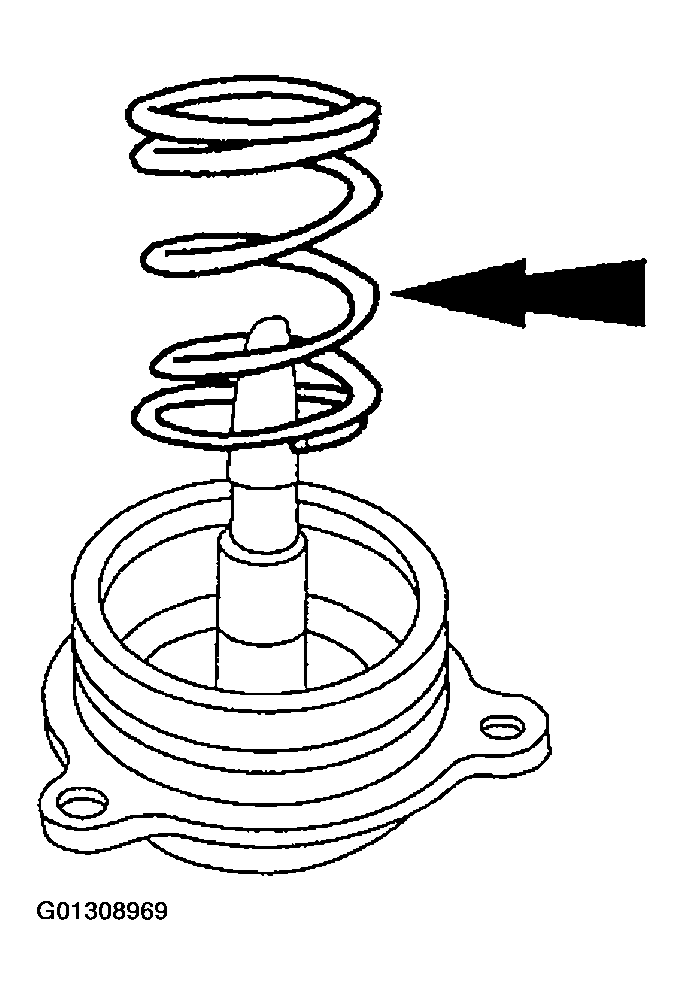

    Fig 1: Removing Overdrive Servo Piston Return Spring
    G01308969Courtesy of FORD MOTOR CO.
  2. Remove the overdrive servo piston and rod assembly.

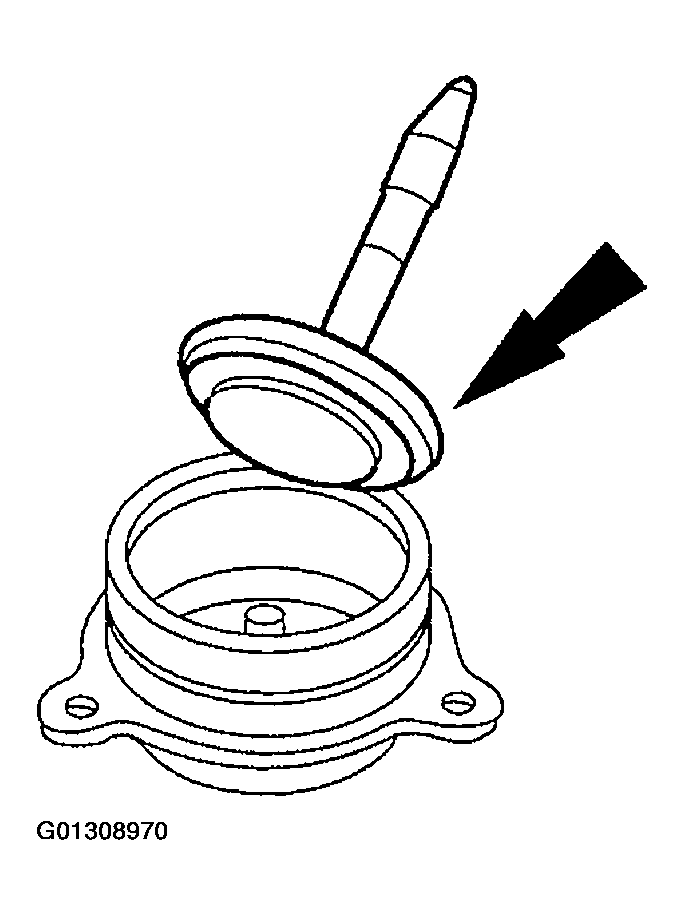

    Fig 2: Removing Overdrive Servo Piston And Rod Assembly
    G01308970Courtesy of FORD MOTOR CO.
  3. Remove the servo piston seal.

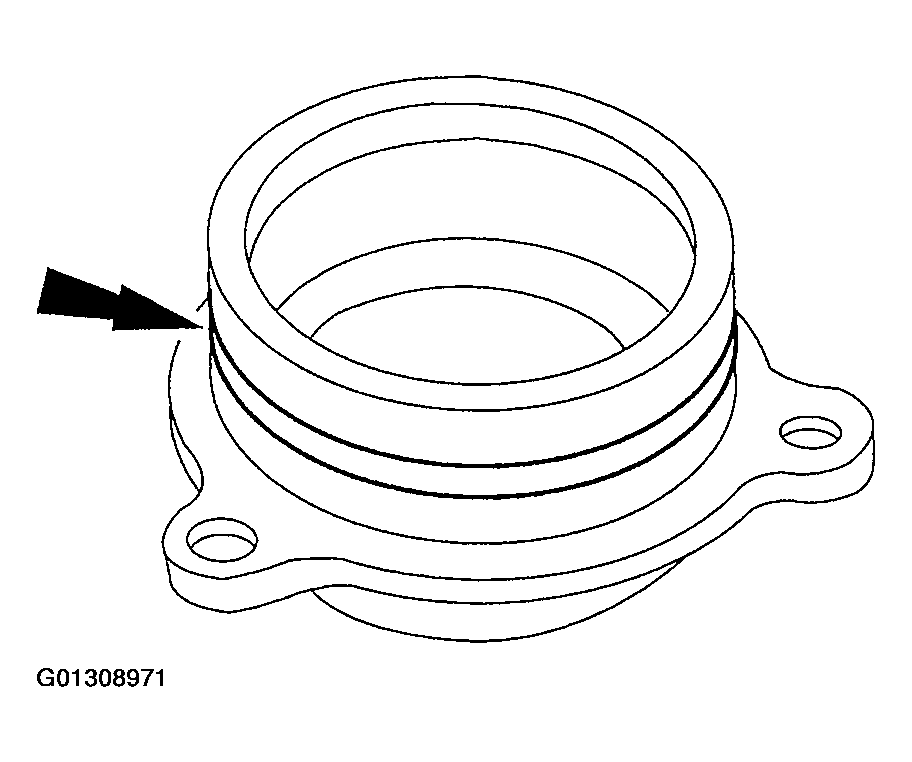

    Fig 3: Removing Servo Piston Seal
    G01308971Courtesy of FORD MOTOR CO.
