Overdrive Servo: Notes

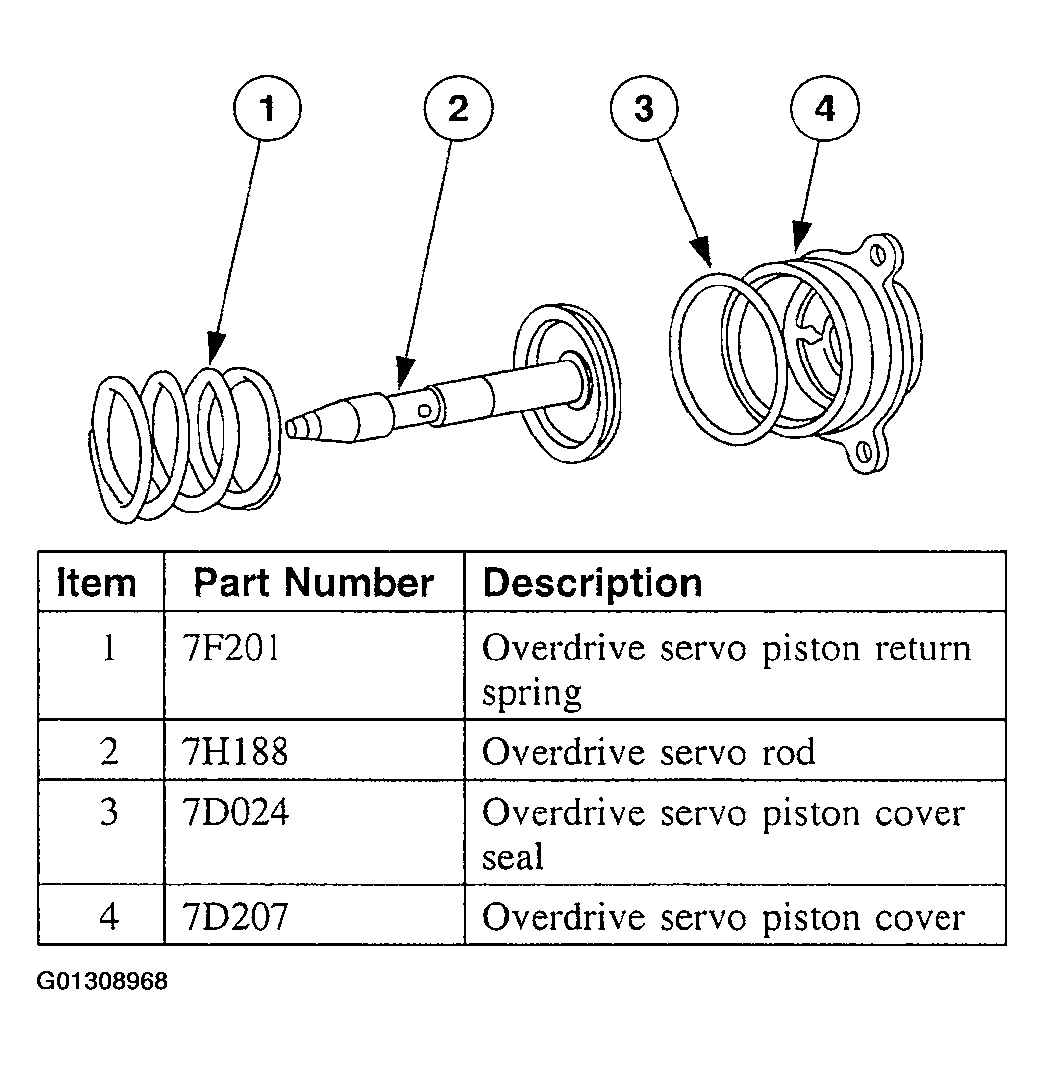

Fig 1: Exploded View Of Overdrive Servo
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
