Planet Assembly: Assembly

Install the retaining ring.
1. Install rear planetary gear assembly.
2. Install the No. 13 needle bearing with black side of bearing facing up.
3. Install the front planetary gear assembly.
4. Install the retaining ring.

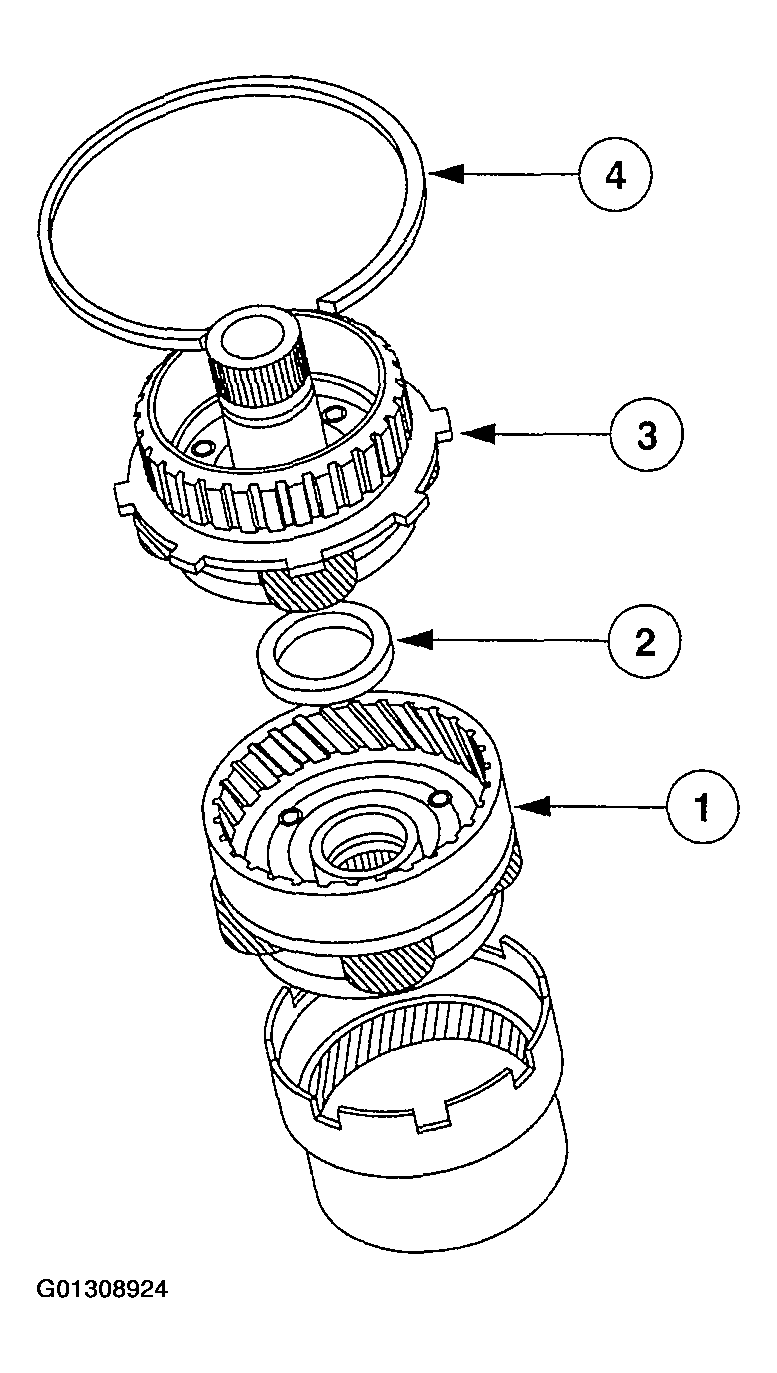

  Fig 1: Installing Retaining Ring
  Courtesy of FORD MOTOR CO.

NOTE: Make sure that the reverse clutch assembly is fully seated.

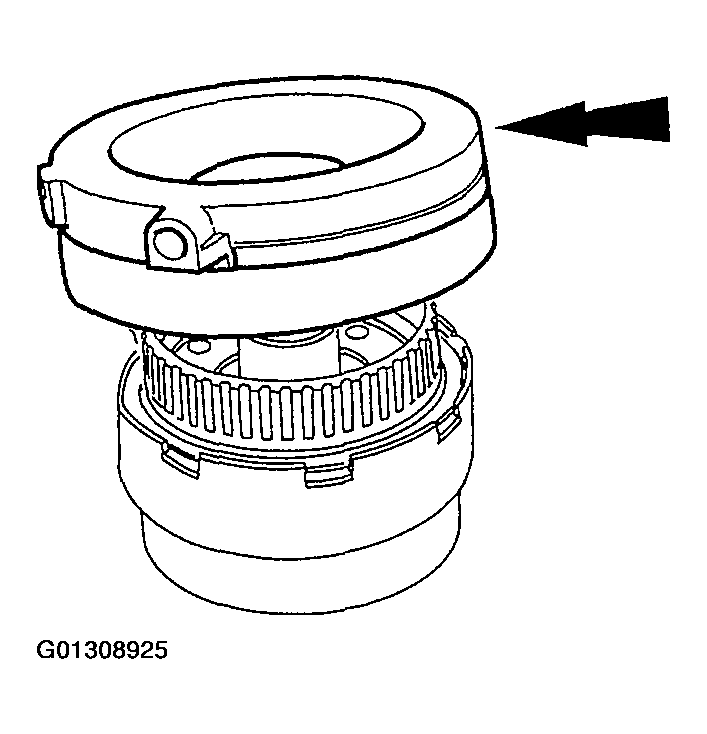

Fig 2: Installing Reverse Clutch Assembly

G01308925

Courtesy of FORD MOTOR CO.

Install the reverse clutch assembly.
