Sun and Shell Assembly - Disassembly: Disassembly

  1. Remove the front sun shell.

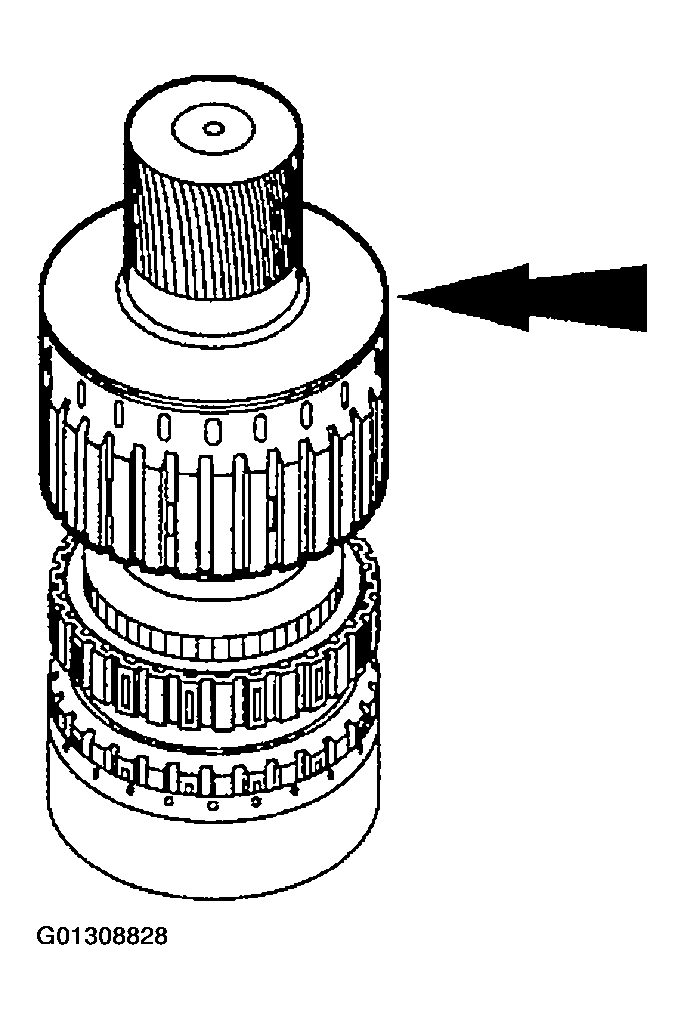

    Fig 1: Removing Front Sun Shell
    G01308828Courtesy of FORD MOTOR CO.
  2. Remove the No. 11 needle bearing.

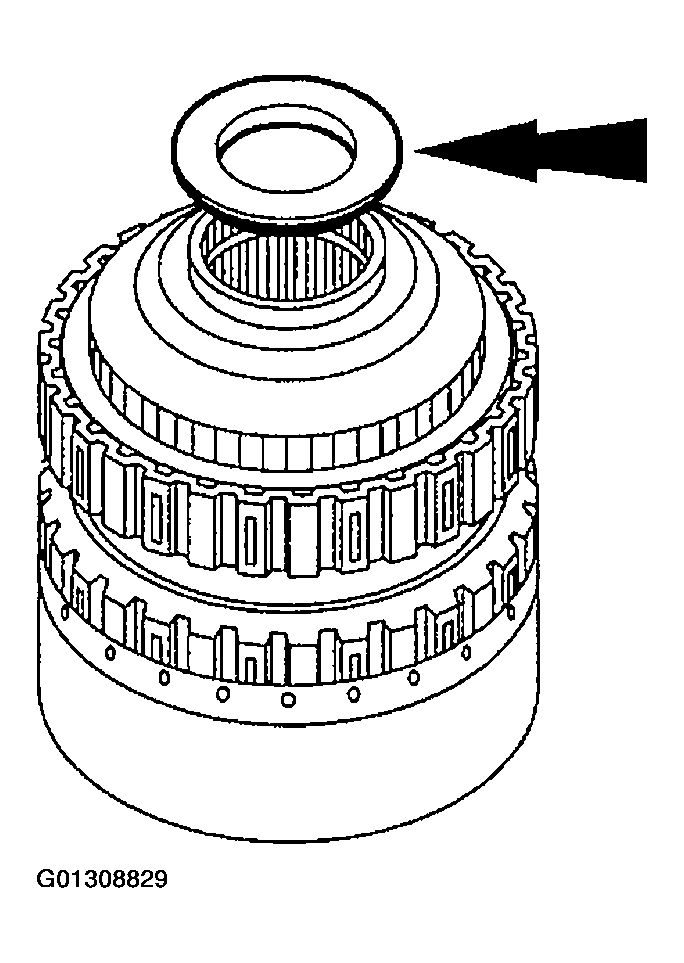

    Fig 2: Removing Needle Bearing
    G01308829Courtesy of FORD MOTOR CO.
  3. Remove the intermediate clutch hub.
  4. Remove the No. 10 thrust bearing.

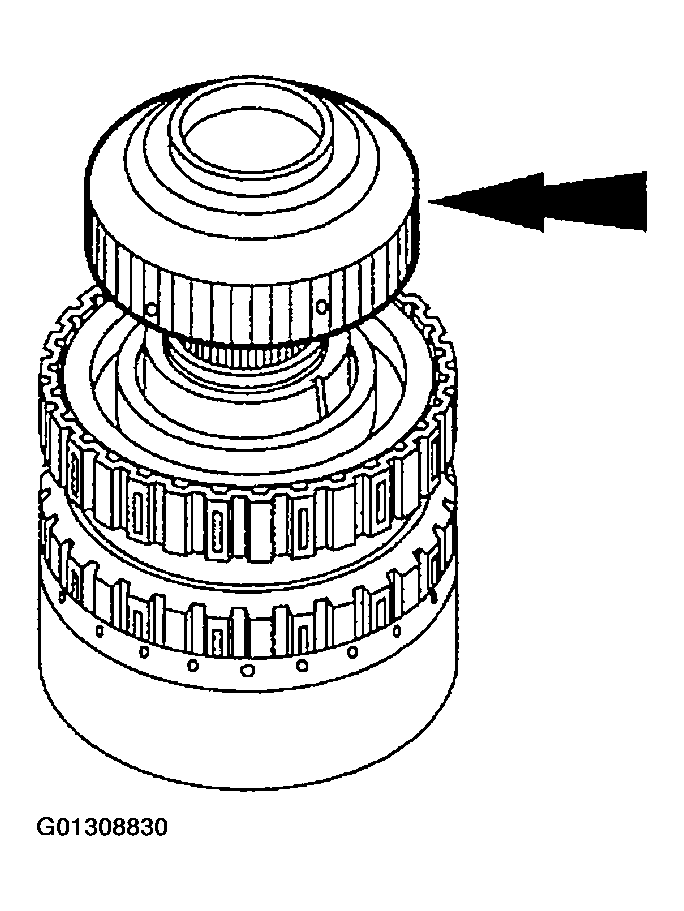

    Fig 3: Removing Intermediate Clutch Hub
    G01308830Courtesy of FORD MOTOR CO.
  5. Remove the overdrive drum.

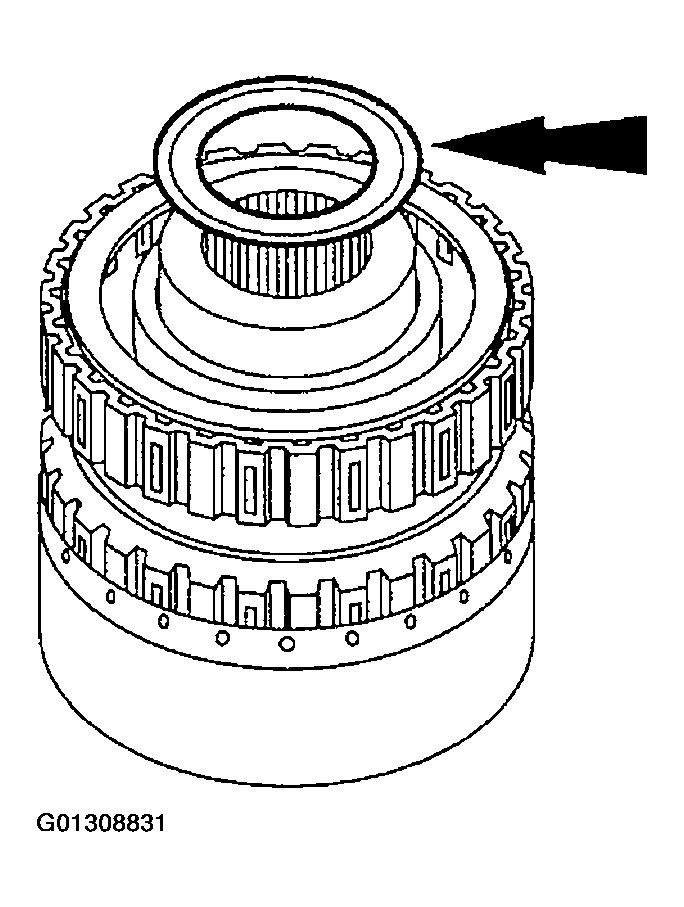

    Fig 4: Removing Thrust Bearing
    G01308831Courtesy of FORD MOTOR CO.
  6. Remove the one-way clutch assembly.
    1. Remove the one-way clutch assembly.
    2. Remove the top cap.
    3. Remove the one-way clutch.
    4. Remove the bottom cap.

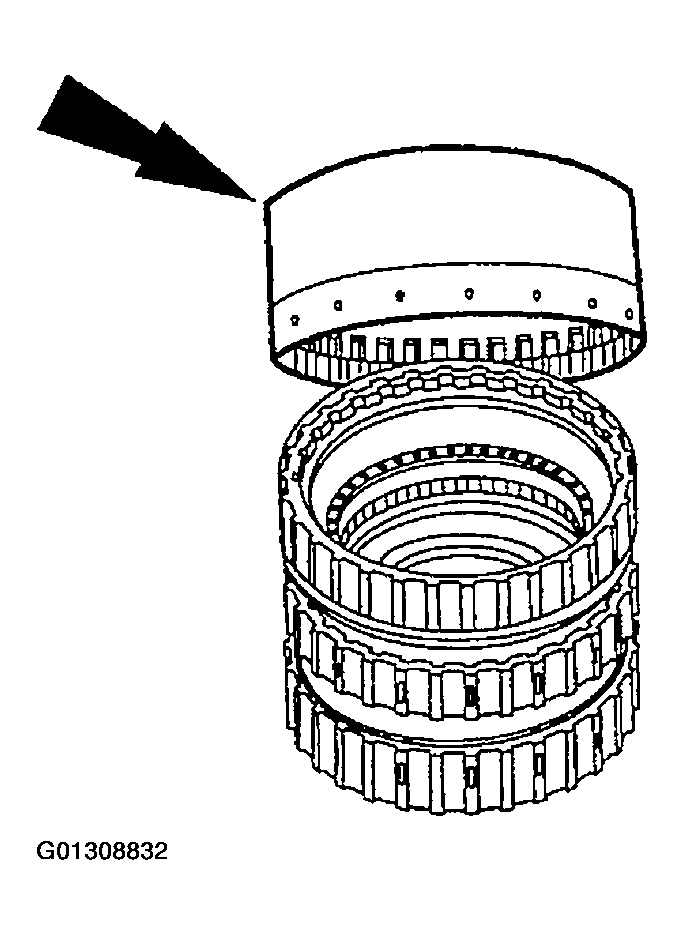

      Fig 5: Removing Overdrive Drum
      G01308832Courtesy of FORD MOTOR CO.

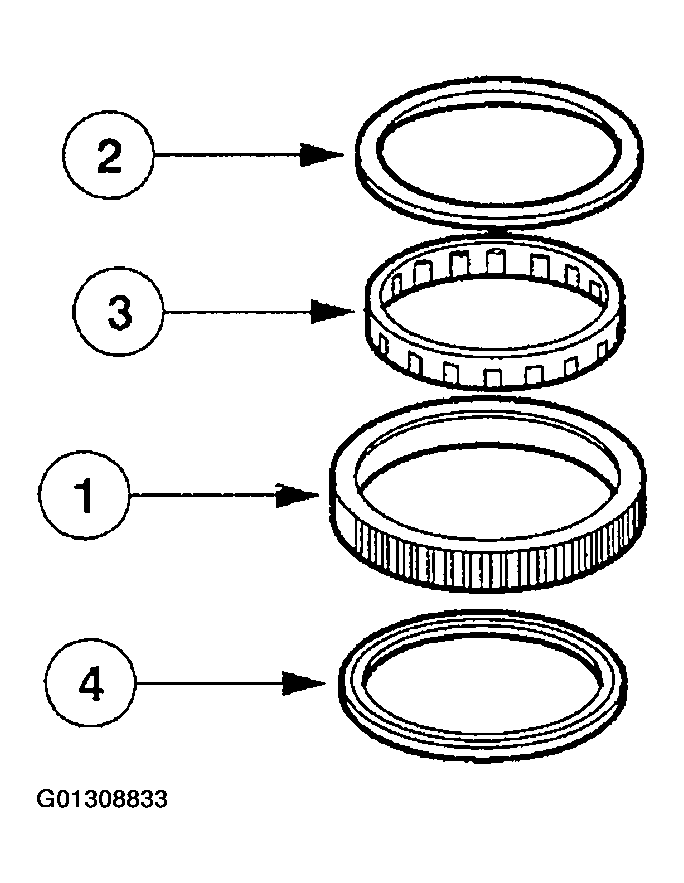

    Fig 6: Removing One-Way Clutch Assembly
    G01308833Courtesy of FORD MOTOR CO.
