Sun and Shell Assembly - Disassembly: Notes

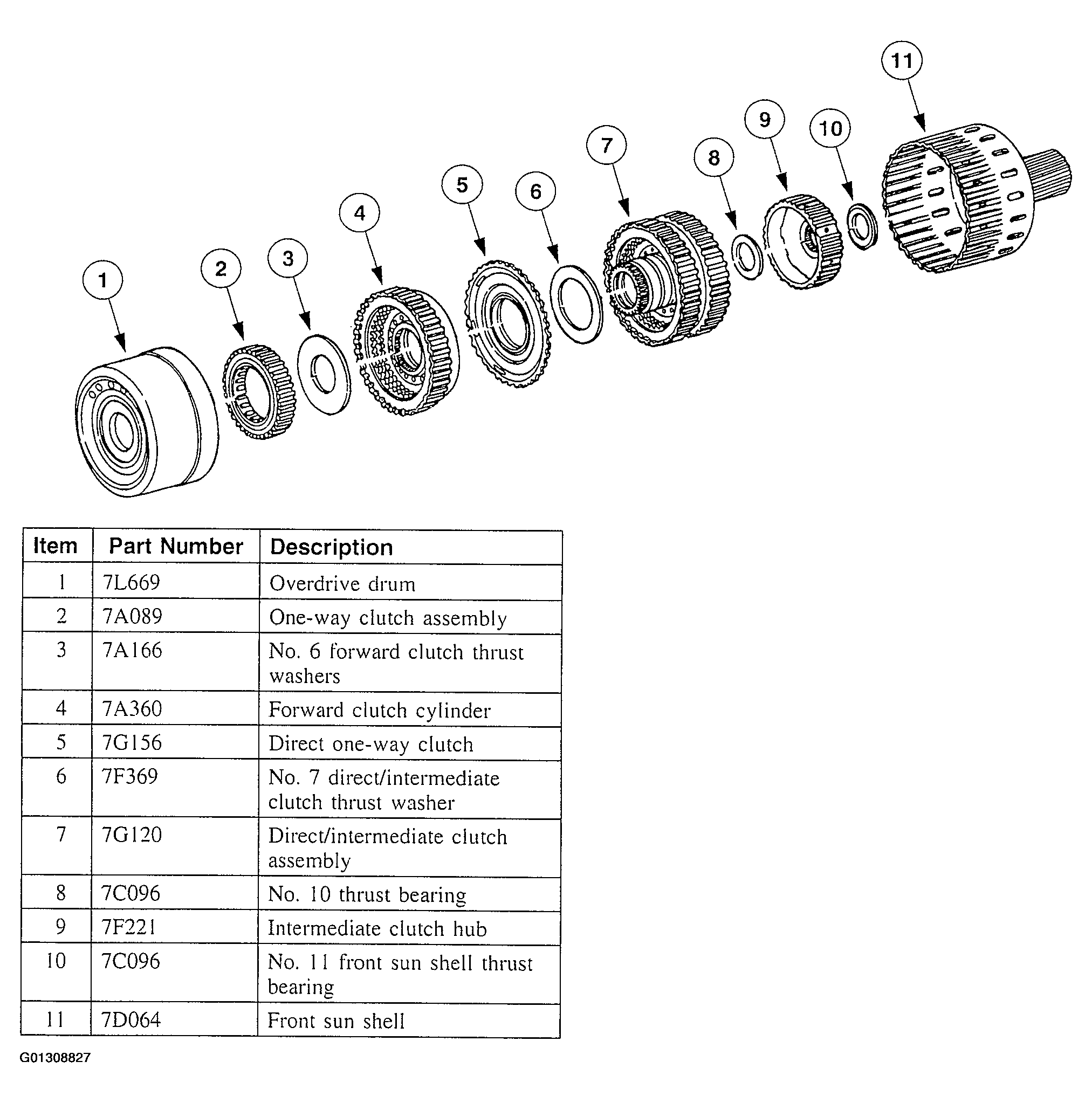

Fig 1: Exploded View Of Sun And Shell Assembly
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
