Removal and Installation

Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
Remove the dual converter Y-pipe. For additional information, refer to EXHAUST SYSTEM .
Remove the heat shield.

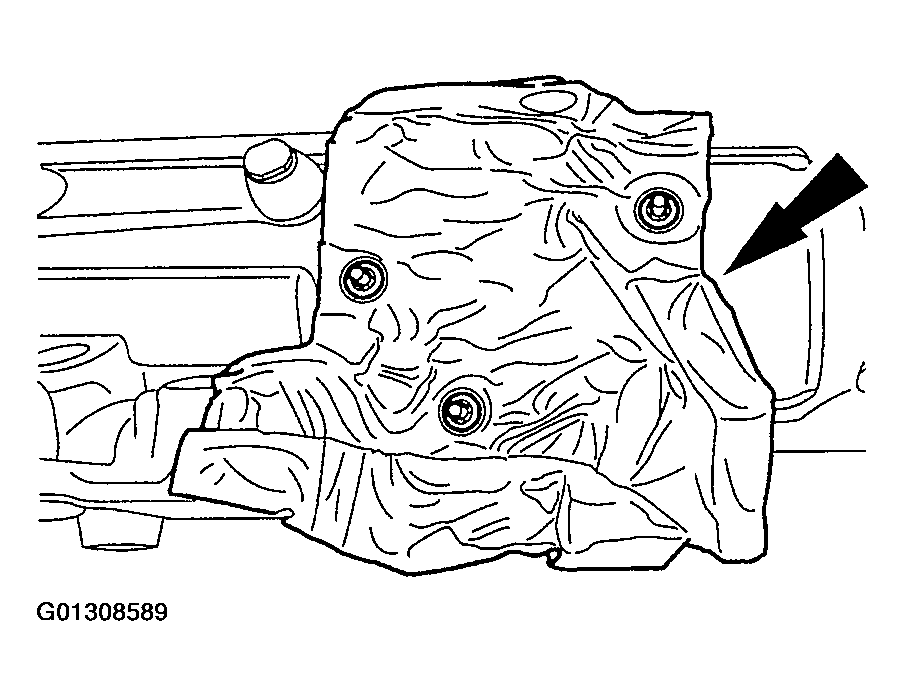

Fig 1: Removing Heat Shield
Courtesy of FORD MOTOR CO.
Disconnect the output shaft speed (OSS) sensor connector.

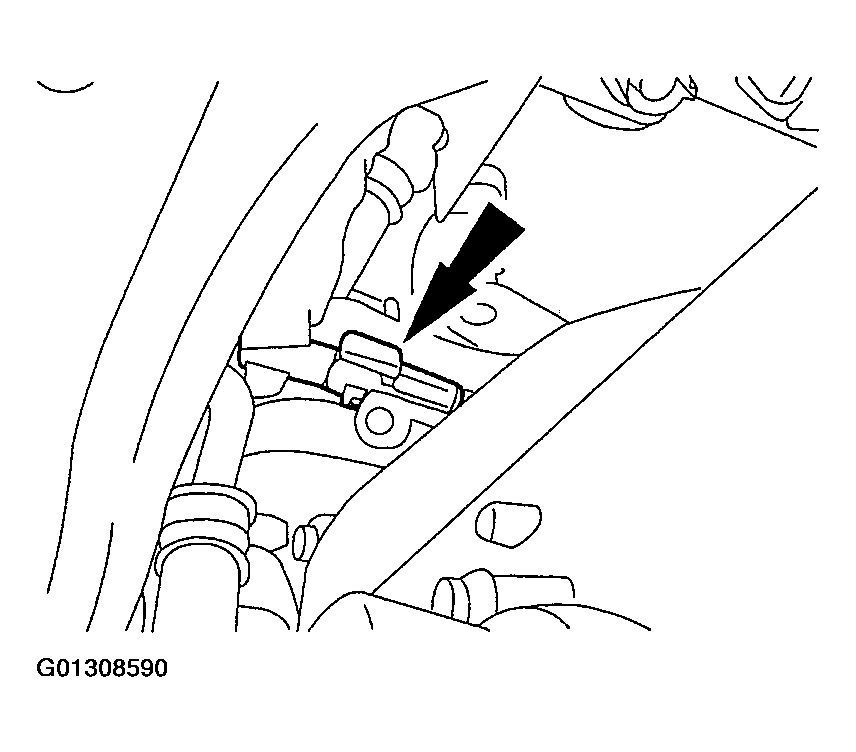

Fig 2: Disconnecting Output Shaft Speed Sensor Connector
Courtesy of FORD MOTOR CO.
Remove the OSS sensor cover.
1. Remove the connector.
2. Remove the bolt.
3. Remove the cover.

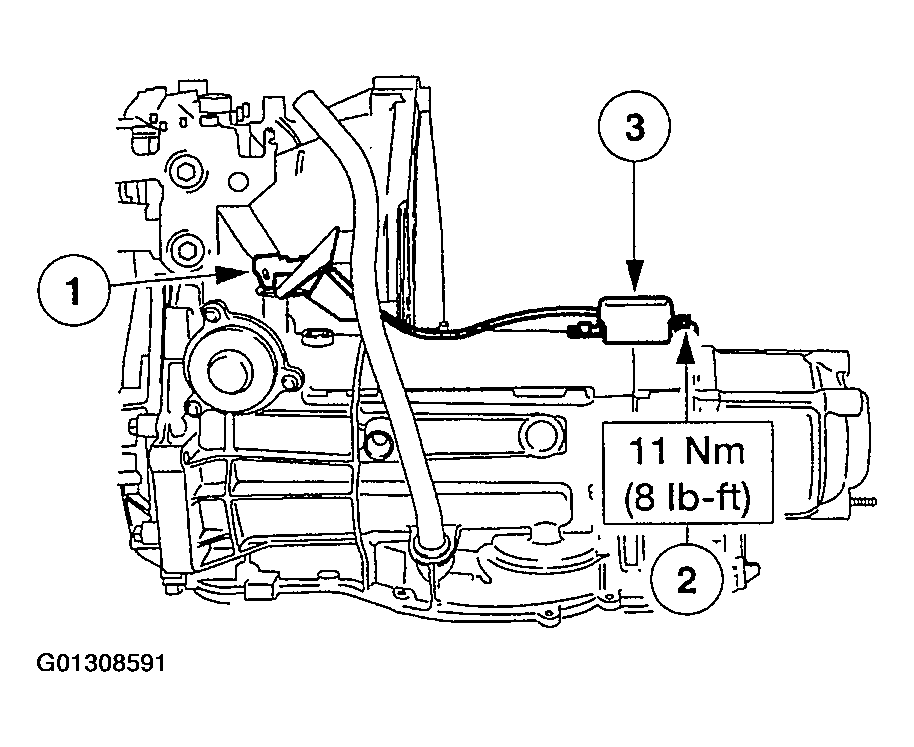

  Fig 3: Removing OSS Sensor Cover
  Courtesy of FORD MOTOR CO.
Remove the OSS sensor.

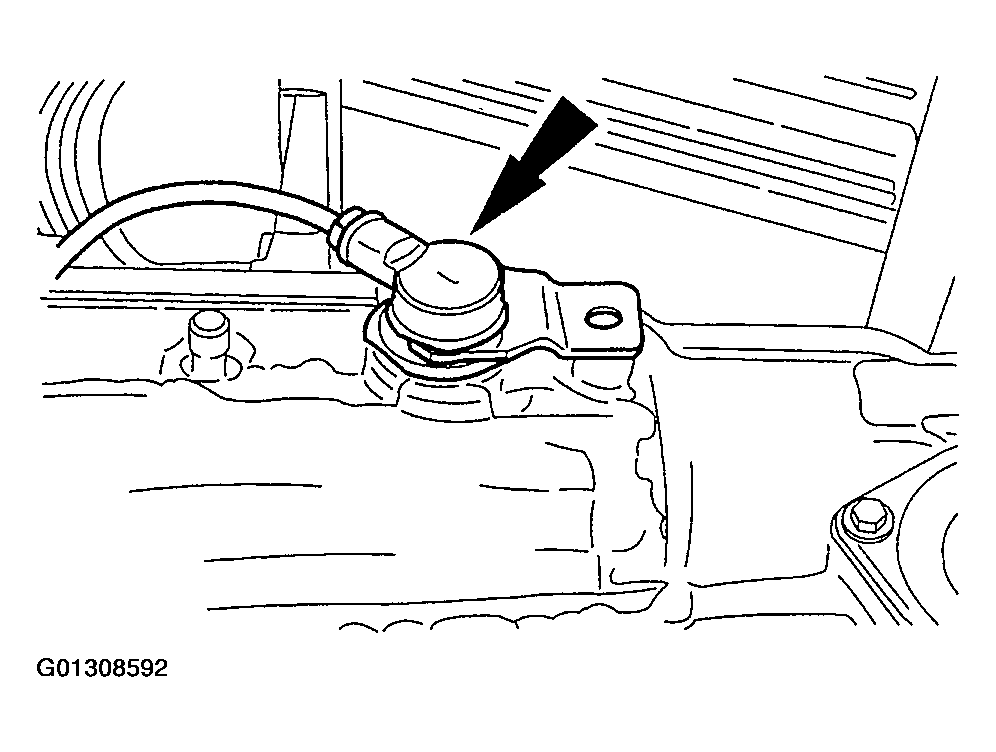

Fig 4: Removing OSS Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
