Automatic Transmission: Removal: Transaxle

Special Tool(s)

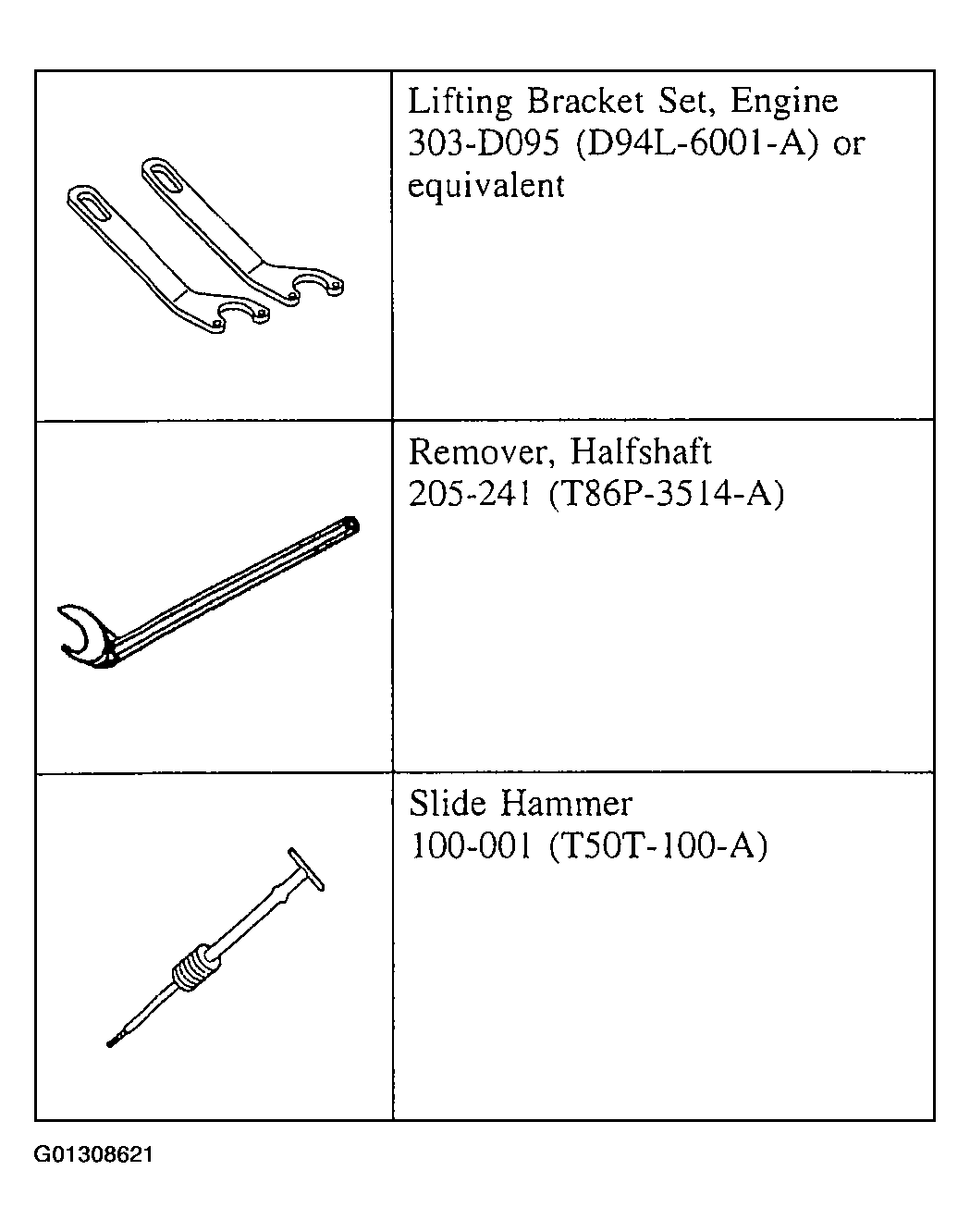

Fig 1: Identifying Special Tools (1 Of 3)
G01308621Courtesy of FORD MOTOR CO.

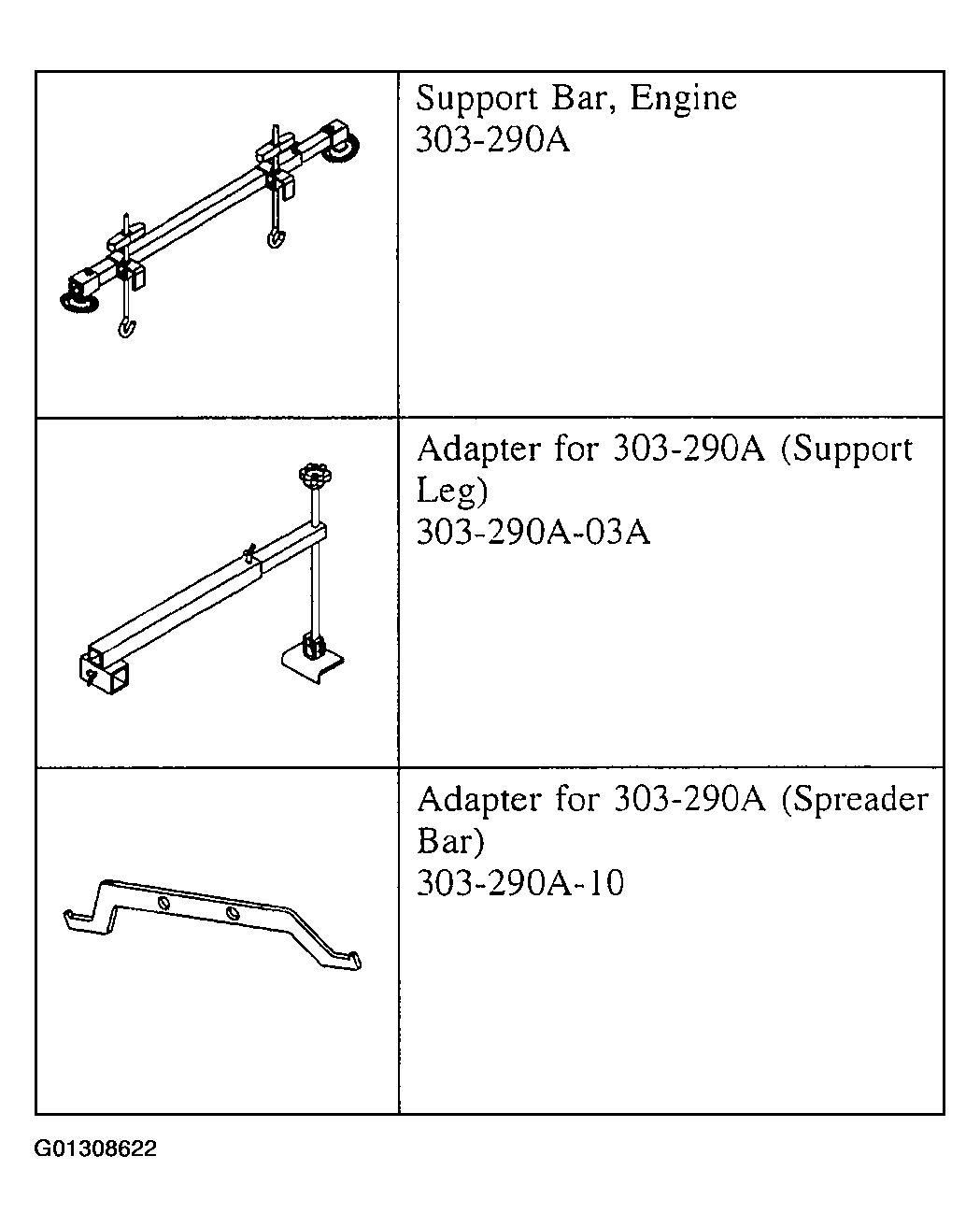

Fig 2: Identifying Special Tools (2 Of 3)
G01308622Courtesy of FORD MOTOR CO.

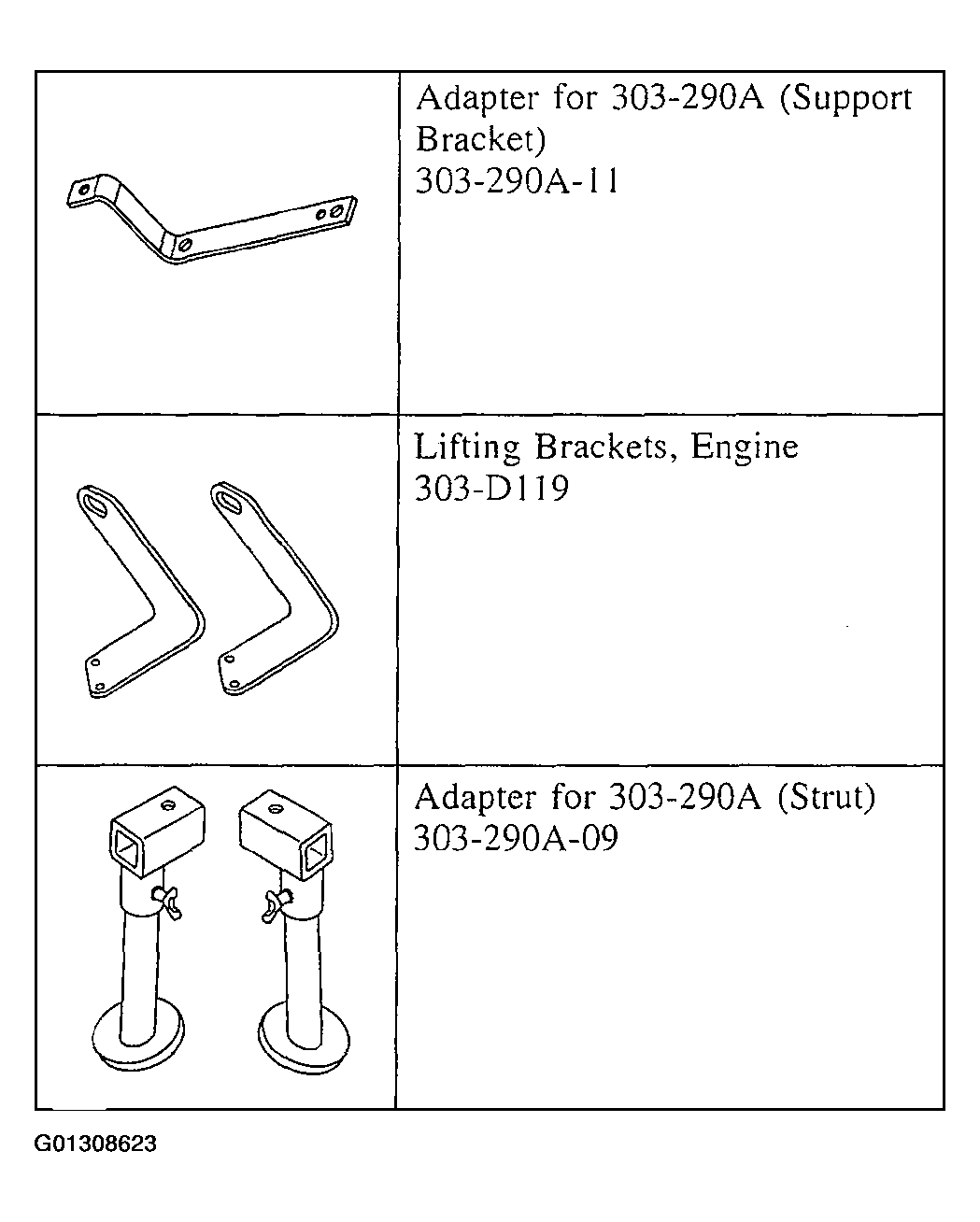

Fig 3: Identifying Special Tools (3 Of 3)
G01308623Courtesy of FORD MOTOR CO.
  1. Remove the air cleaner assembly. .
  2. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy.
  3. Remove the battery and tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  4. Disconnect the electrical connectors.
    1. Disconnect the digital transmission range (TR) sensor electrical connector.
    2. Disconnect the transaxle electrical connector.
    3. Disconnect the wire harness from the bracket.

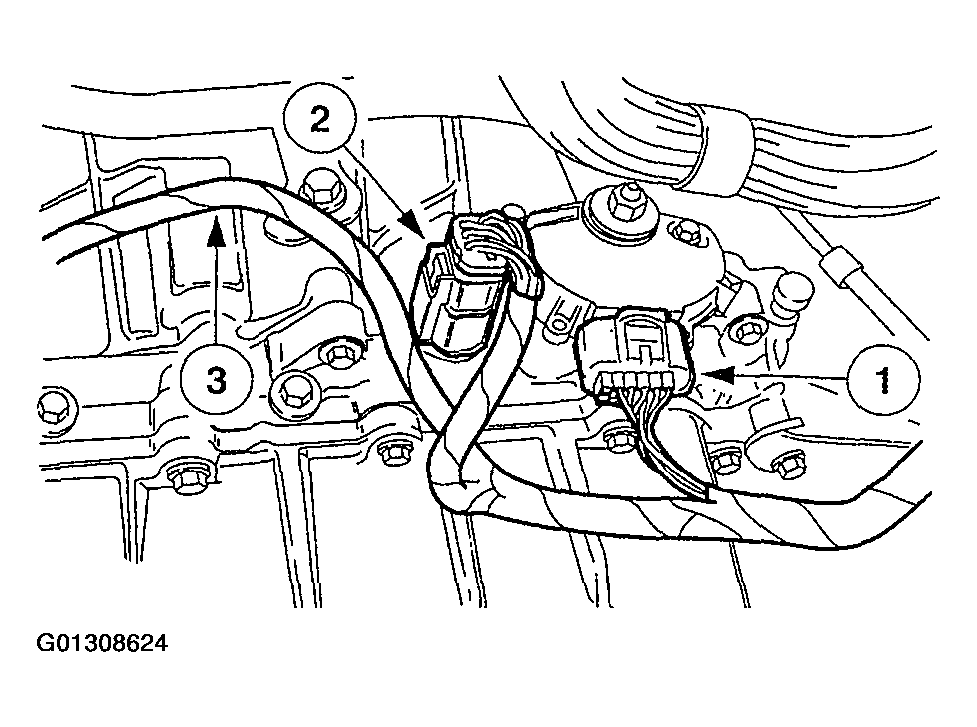

      Fig 4: Disconnecting Wire Harness From Bracket
      G01308624Courtesy of FORD MOTOR CO.
  5. Disconnect the shift cable.

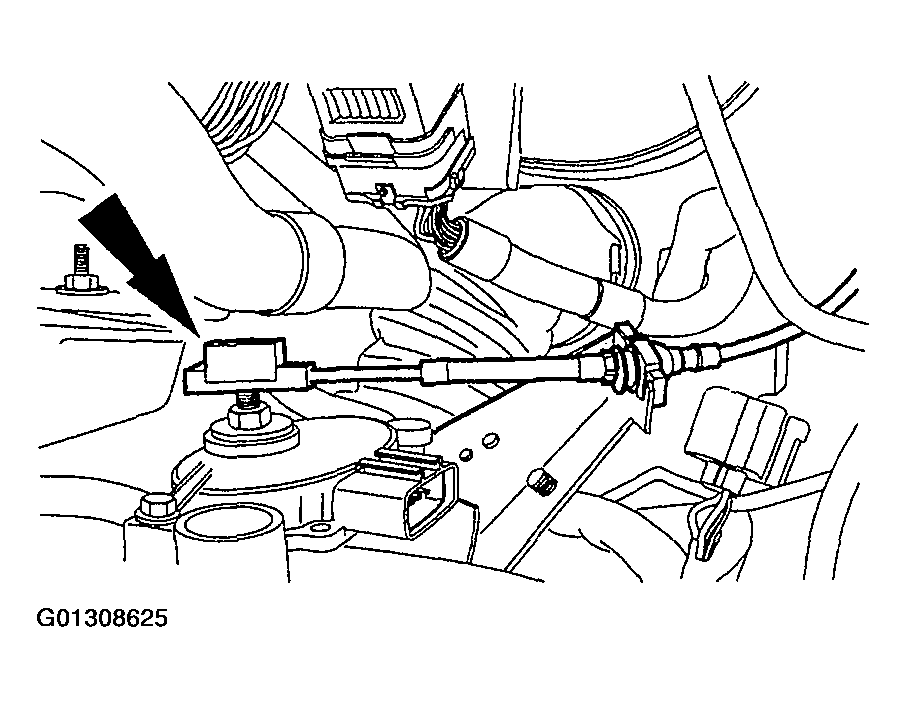

    Fig 5: Disconnecting Shift Cable
    G01308625Courtesy of FORD MOTOR CO.
  6. Remove the cable from the bracket.

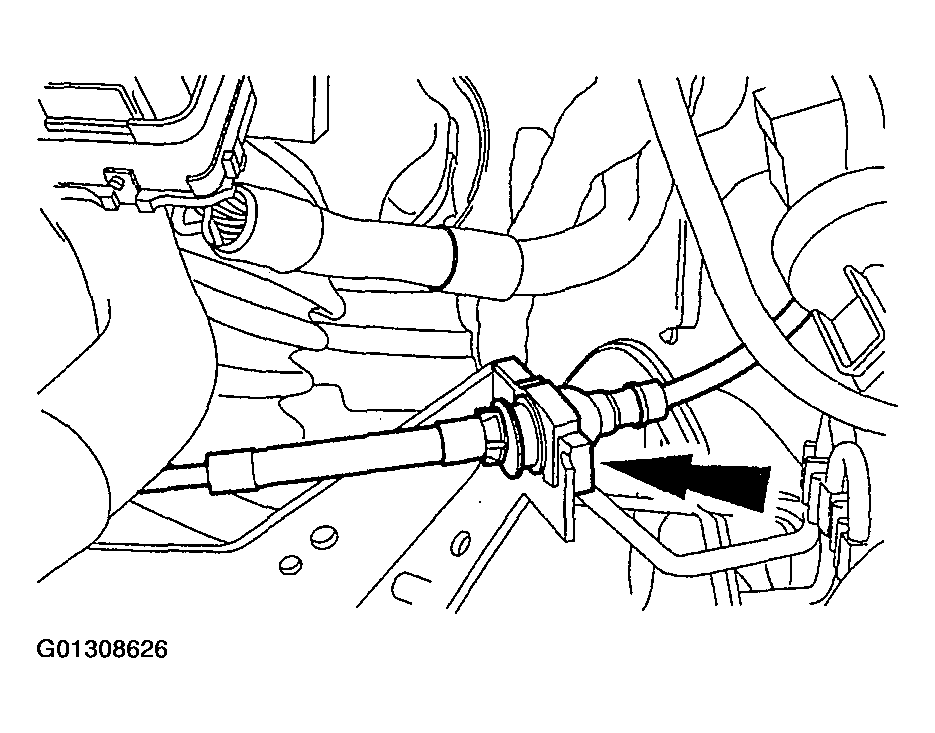

    Fig 6: Removing Cable From Bracket
    G01308626Courtesy of FORD MOTOR CO.
  7. Disconnect the wire harness from the bracket.

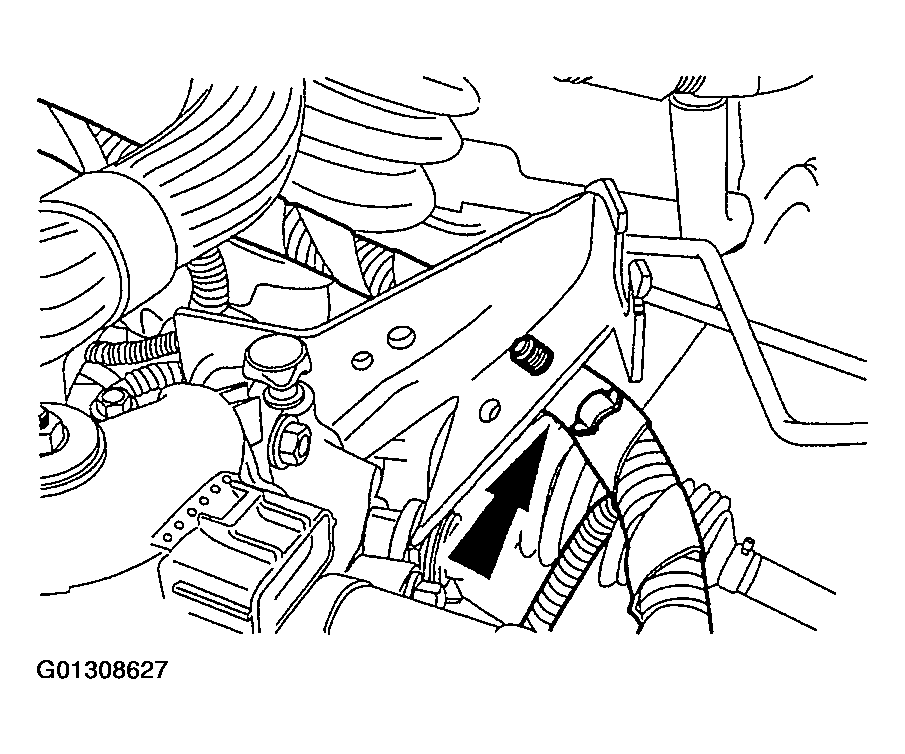

    Fig 7: Disconnecting Wire Harness From Bracket
    G01308627Courtesy of FORD MOTOR CO.
  8. Remove the manual control lever.

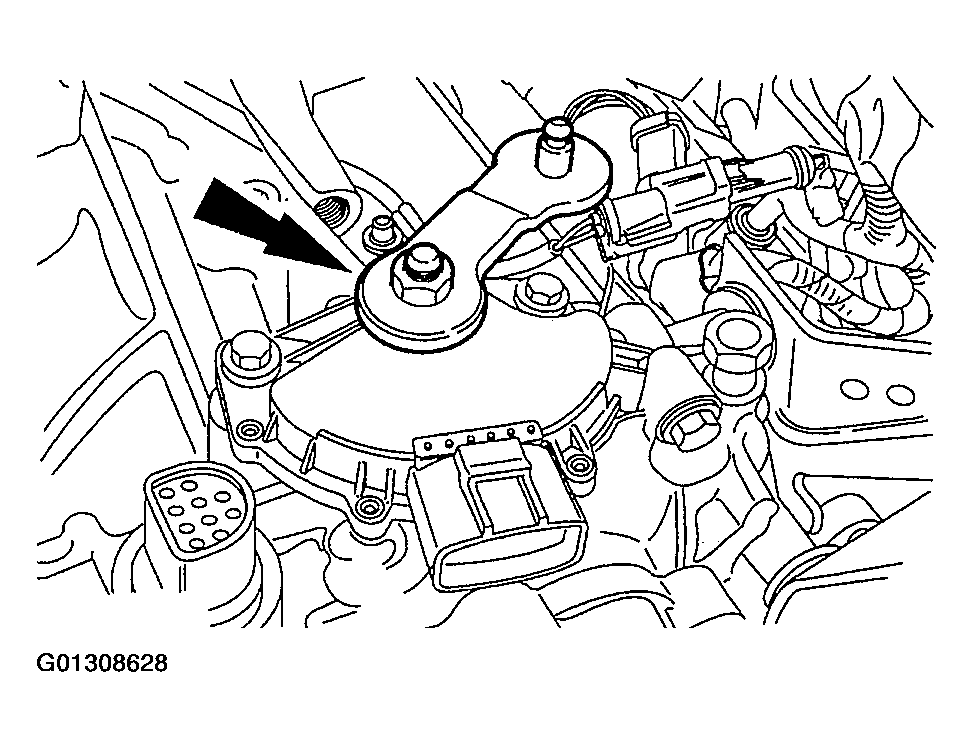

    Fig 8: Removing Manual Control Lever
    G01308628Courtesy of FORD MOTOR CO.
  9. Remove the hood.
  10. Remove the wiper arm and pivot assembly. For additional information, refer to WIPERS AND WASHERS .
  11. Remove the front upper radiator shield.

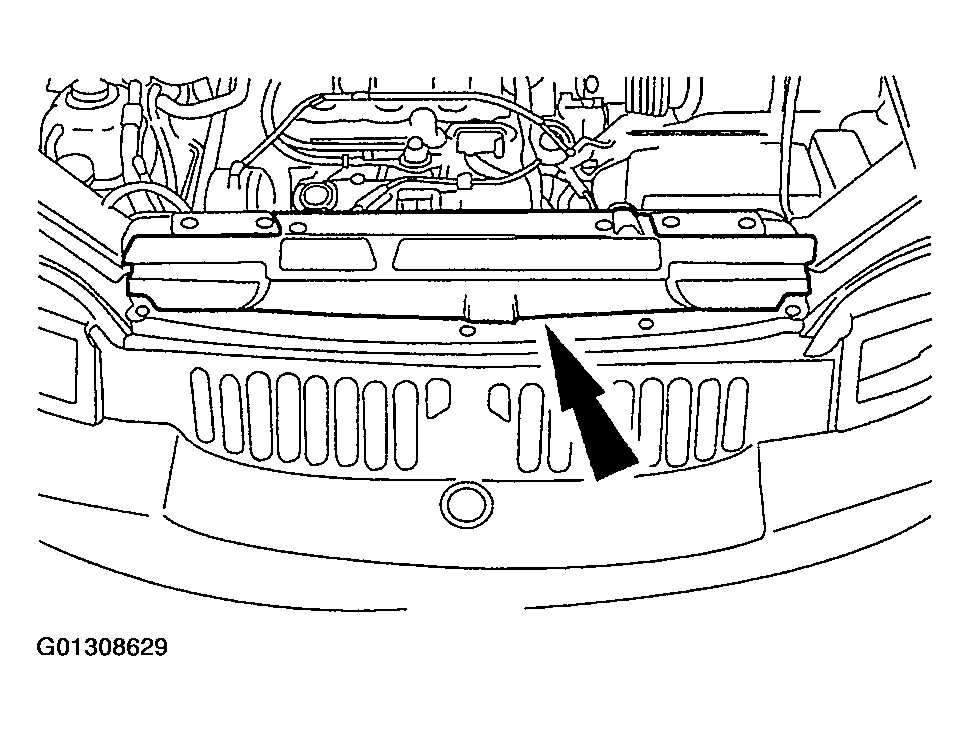

    Fig 9: Removing Front Upper Radiator Shield
    G01308629Courtesy of FORD MOTOR CO.
  12. Install the special tool.

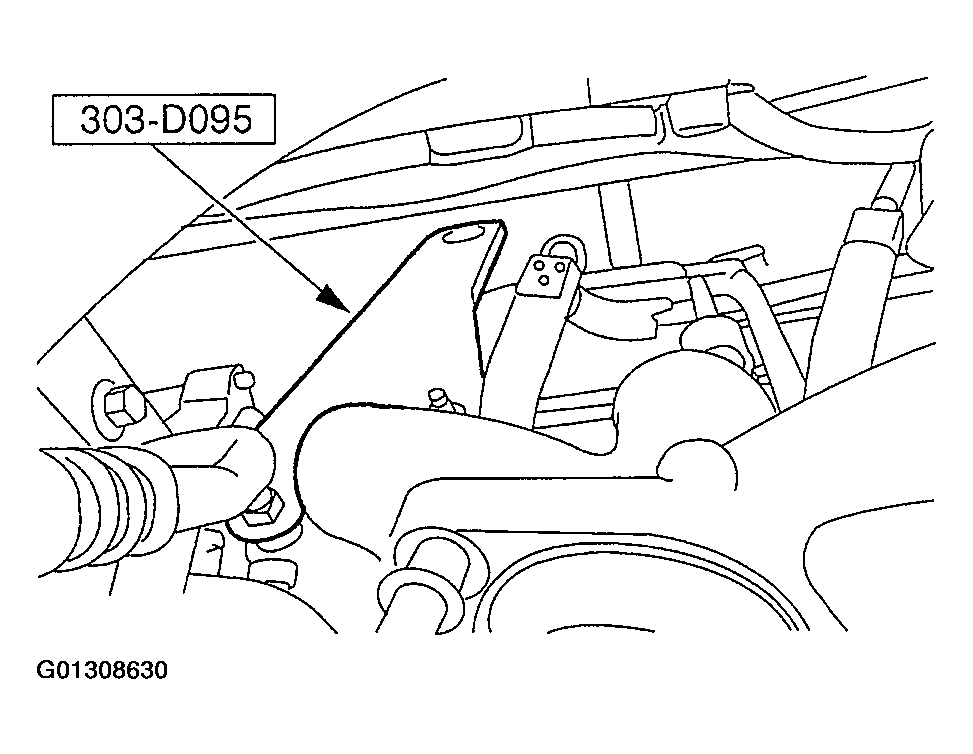

    Fig 10: Installing Special Tool
    G01308630Courtesy of FORD MOTOR CO.
  13. Install the special tool.

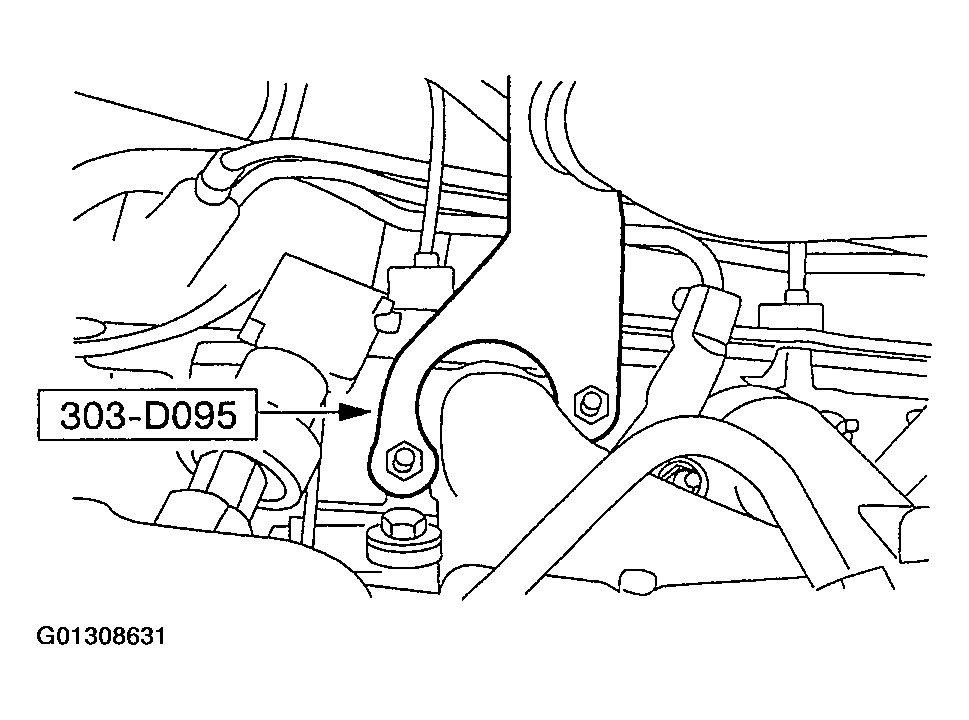

    Fig 11: Installing Special Tool
    G01308631Courtesy of FORD MOTOR CO.
  14. Install the special tools.

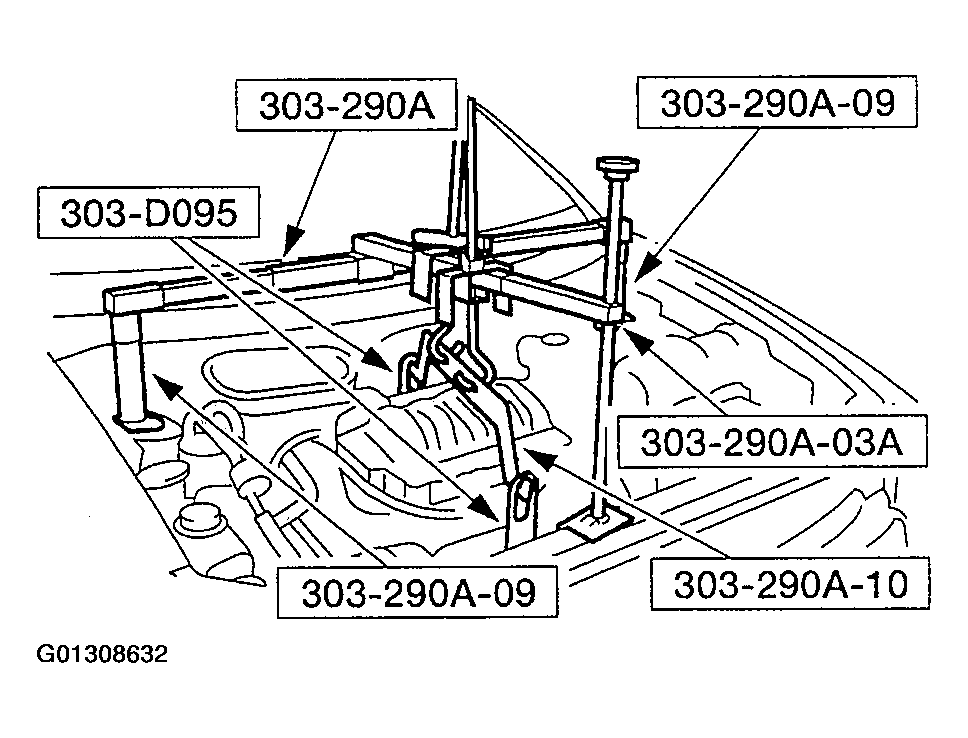

    Fig 12: Installing Special Tools
    G01308632Courtesy of FORD MOTOR CO.
  15. Install the special tool.

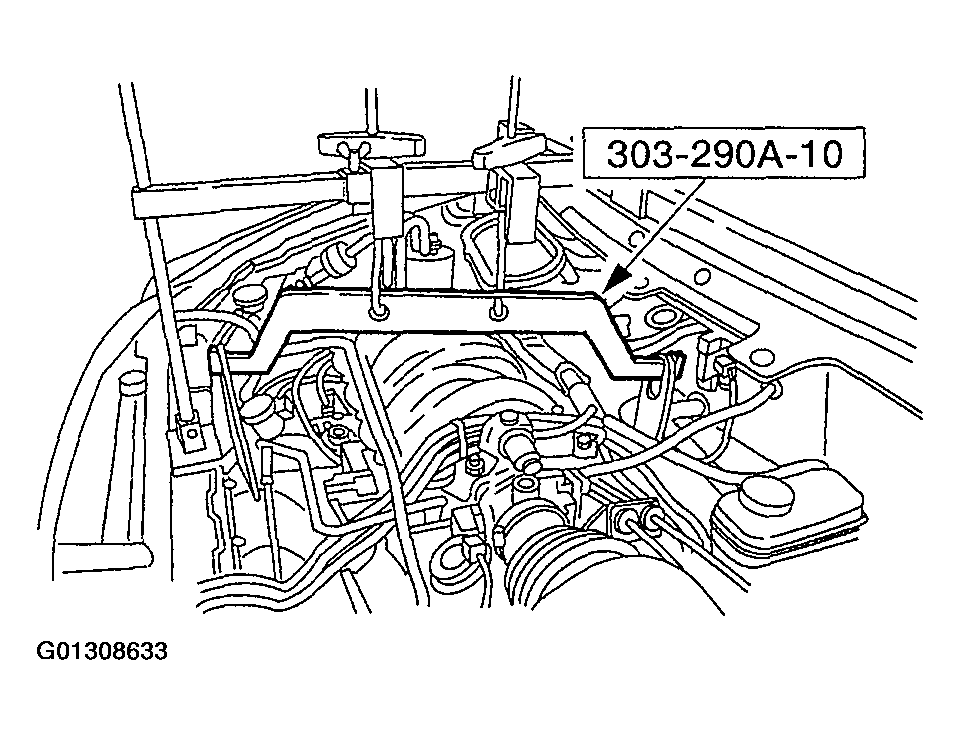

    Fig 13: Installing Special Tool
    G01308633Courtesy of FORD MOTOR CO.
  16. Remove the bolt and the upper fluid filler tube.

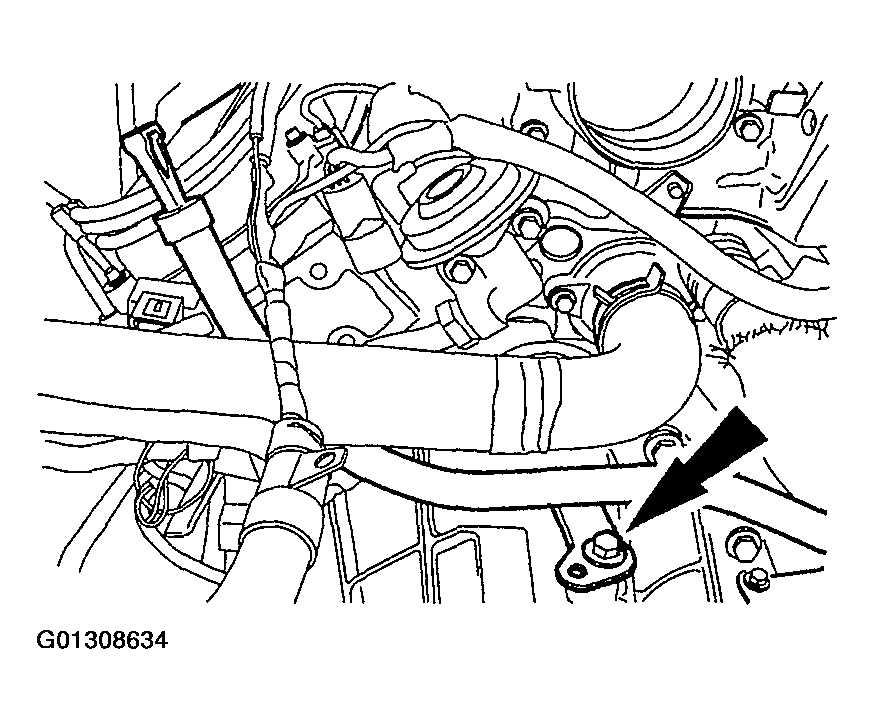

    Fig 14: Removing Bolt And Upper Fluid Filler Tube
    G01308634Courtesy of FORD MOTOR CO.
  17. Remove the clips.

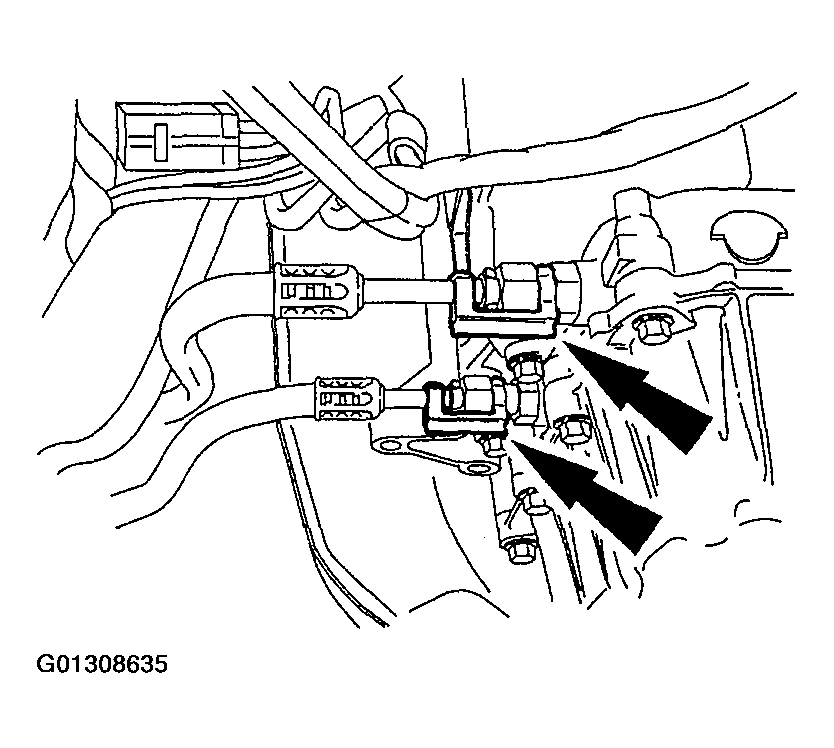

    Fig 15: Removing Clips
    G01308635Courtesy of FORD MOTOR CO.
  18. Depress the tabs on the plastic insert retainer and remove the cooler line from fitting.

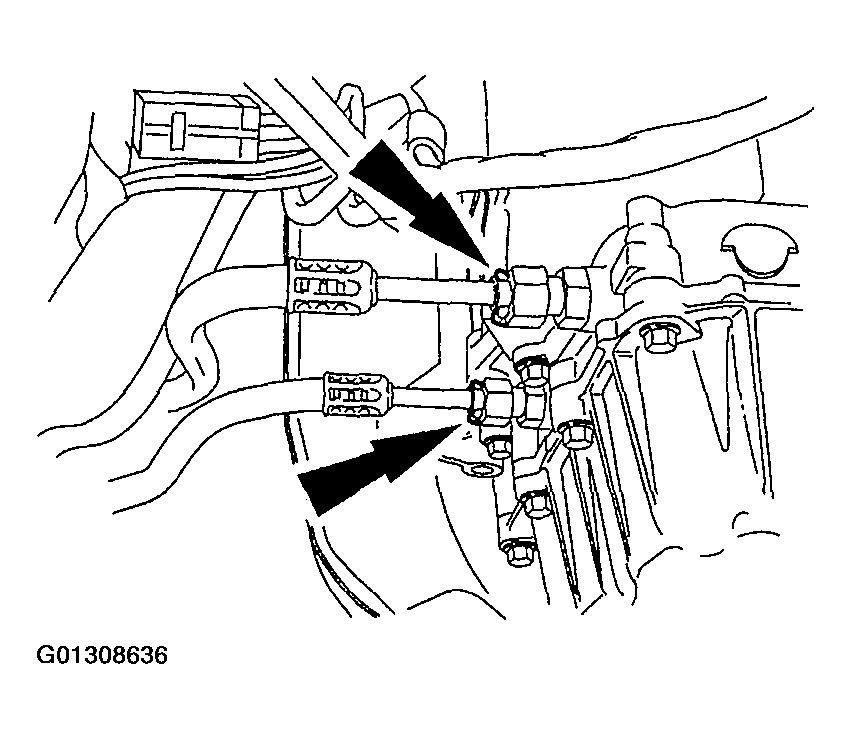

    Fig 16: Removing Cooler Line From Fitting
    G01308636Courtesy of FORD MOTOR CO.

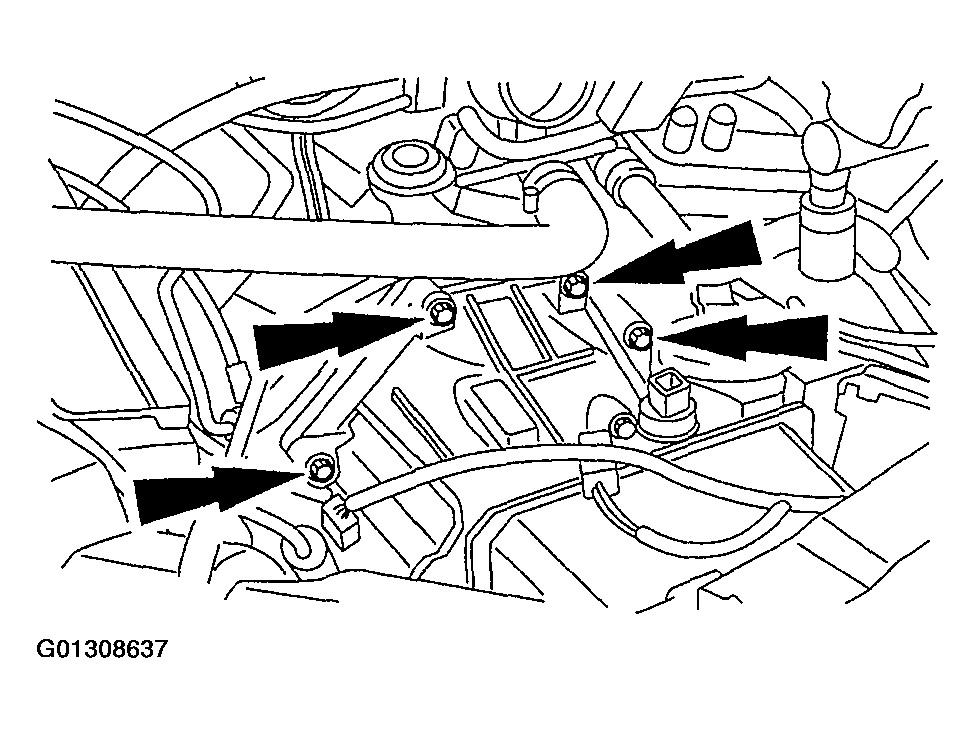

  19. Remove the transaxle retaining bolts.
    Fig 17: Removing Transaxle Retaining Bolts
    G01308637Courtesy of FORD MOTOR CO.
  20. Remove the rear transaxle mount nut.

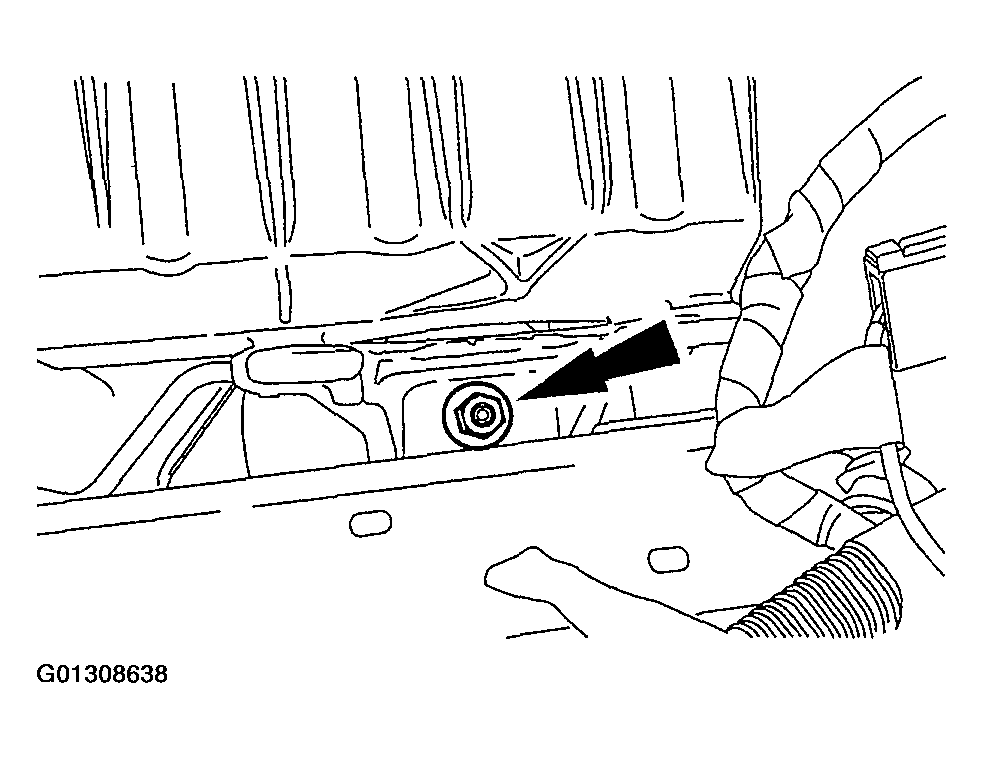

    Fig 18: Removing Rear Transaxle Mount Nut
    G01308638Courtesy of FORD MOTOR CO.
  21. Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
  22. Remove the front wheel and tires. For additional information, refer to WHEELS & TIRES .
  23. Drain the transmission fluid by lowering the transaxle pan.
  24. NOTE: The transaxle fluid pan does not need to be torqued in this step.
  25. Install the transaxle pan.
  26. Remove the three way catalytic converter assembly. For additional information, refer to EXHAUST SYSTEM .
  27. Disconnect the LH knuckle assembly.
    1. Disconnect the LH tie rod assembly.
    2. Disconnect the LH sway bar assembly.
    3. Remove the LH pinch bolt.

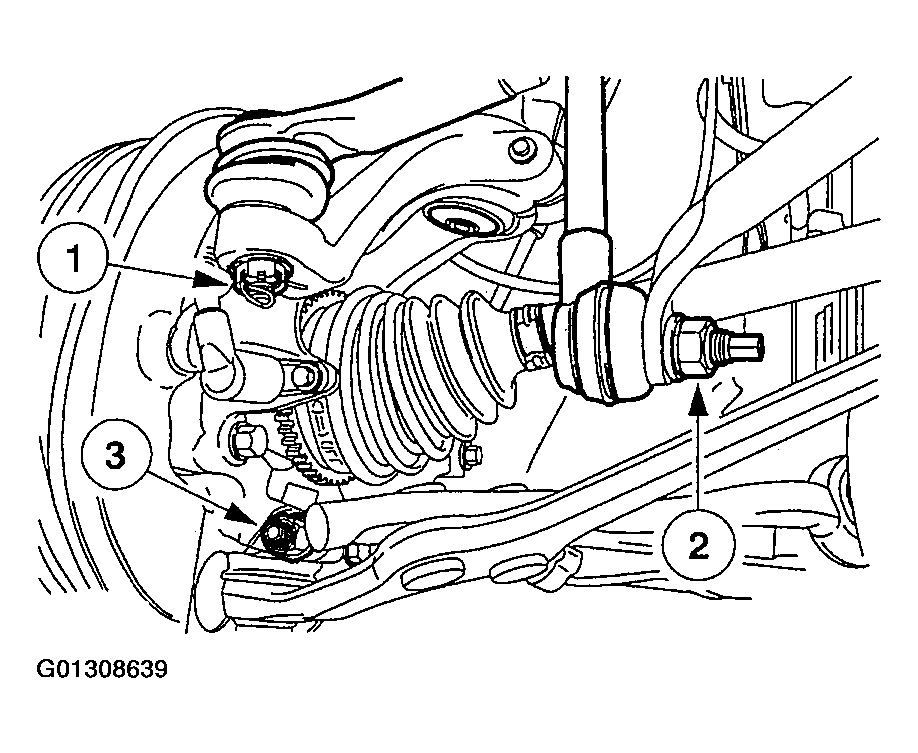

    Fig 19: Disconnecting LH Knuckle Assembly
    G01308639Courtesy of FORD MOTOR CO.
  28. Disconnect the RH knuckle assembly.
    1. Disconnect the RH tie rod assembly.
    2. Disconnect the RH sway bar assembly.
    3. Remove the RH pinch bolt.

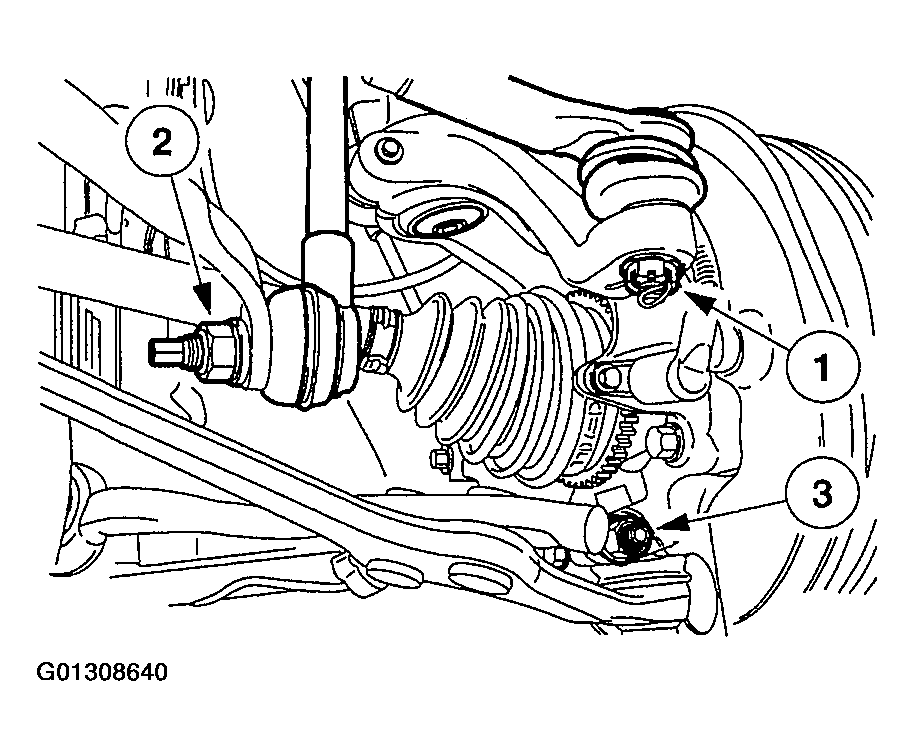

    Fig 20: Disconnecting RH Knuckle Assembly
    G01308640Courtesy of FORD MOTOR CO.
  29. Remove the nuts for the power steering rack.

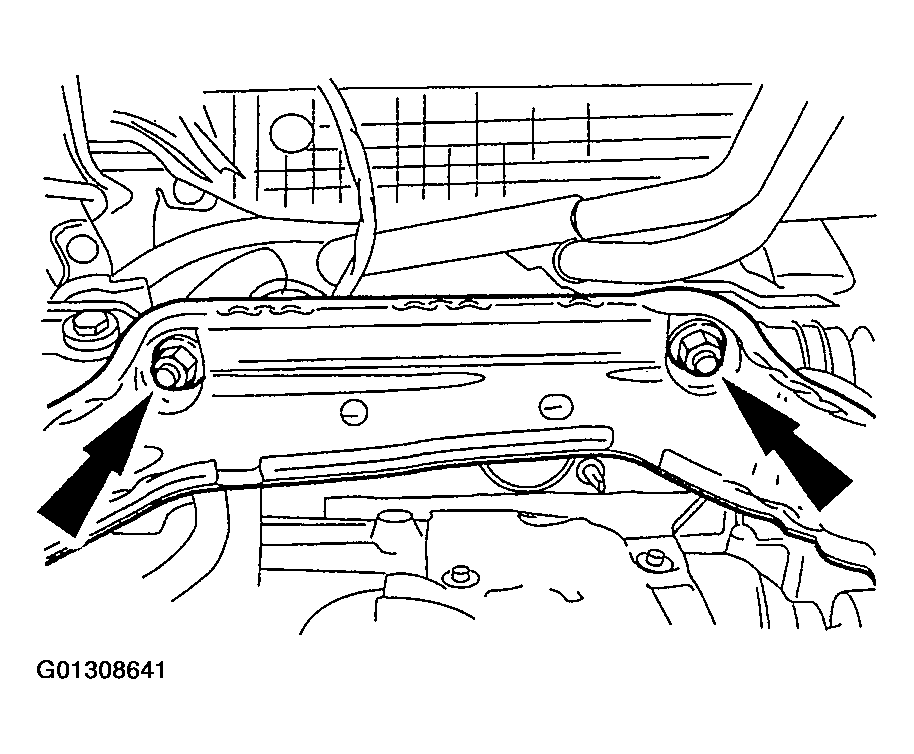

    Fig 21: Removing Nuts For Power Steering Rack
    G01308641Courtesy of FORD MOTOR CO.
  30. Disconnect the retainer for the power steering line.

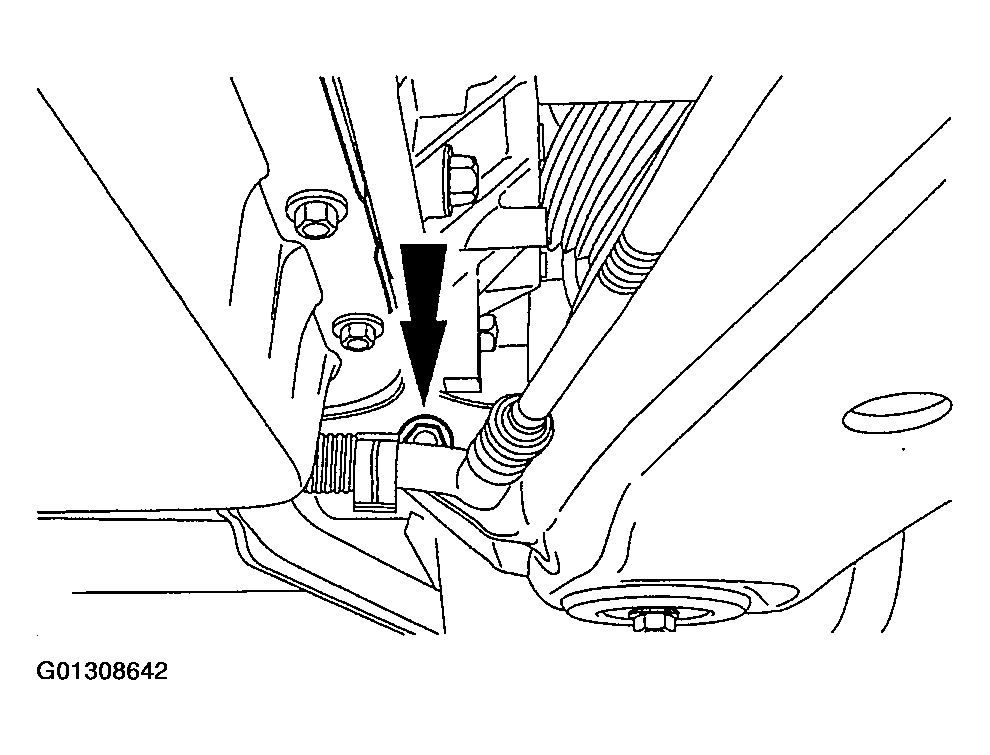

    Fig 22: Disconnecting Retainer For Power Steering Line
    G01308642Courtesy of FORD MOTOR CO.
  31. Disconnect the retainer for the power steering line.
    Fig 23: Disconnecting Retainer For Power Steering Line
    G01308643Courtesy of FORD MOTOR CO.

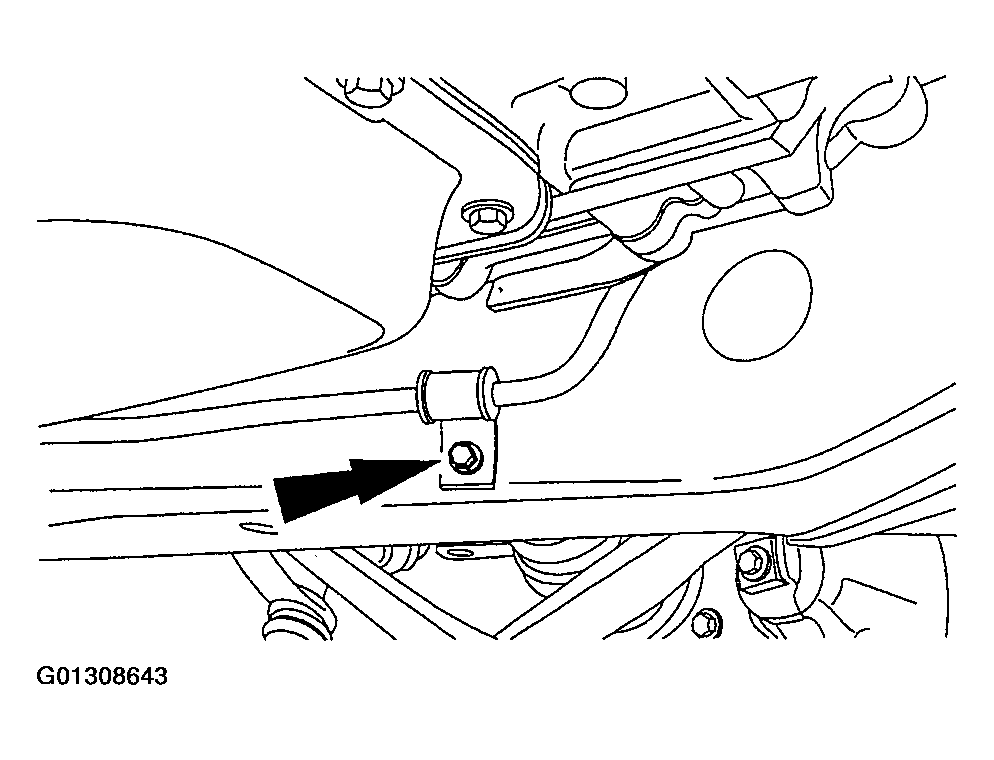

  32. Disconnect the retainer for the power steering line.

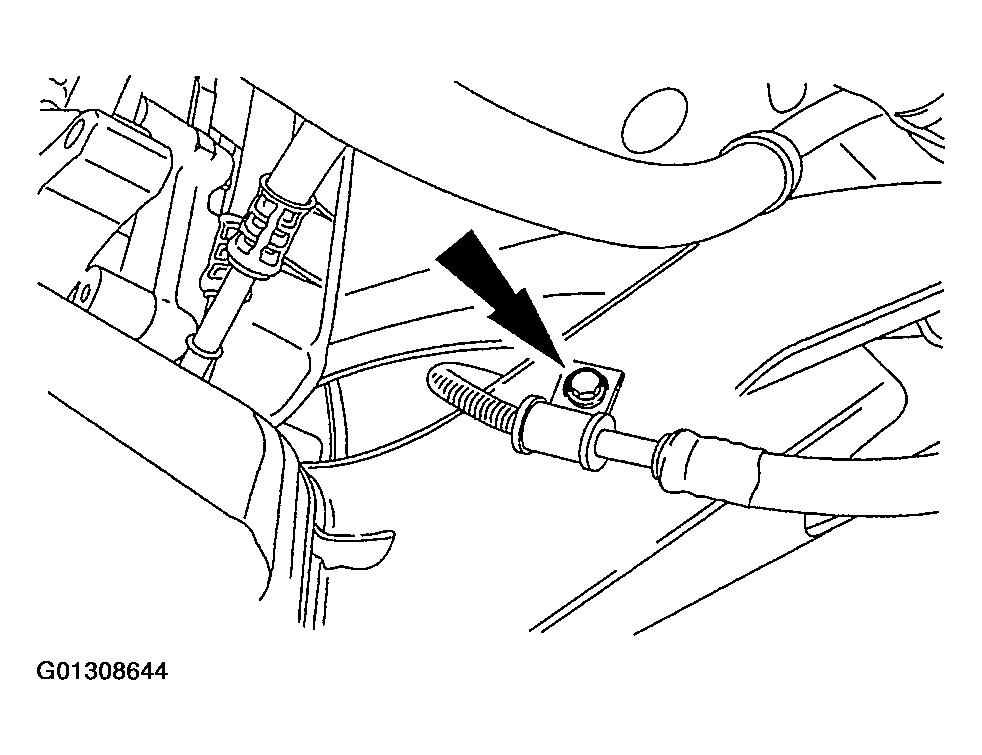

    Fig 24: Disconnecting Retainer For Power Steering Line
    G01308644Courtesy of FORD MOTOR CO.
  33. Remove the front engine mount.

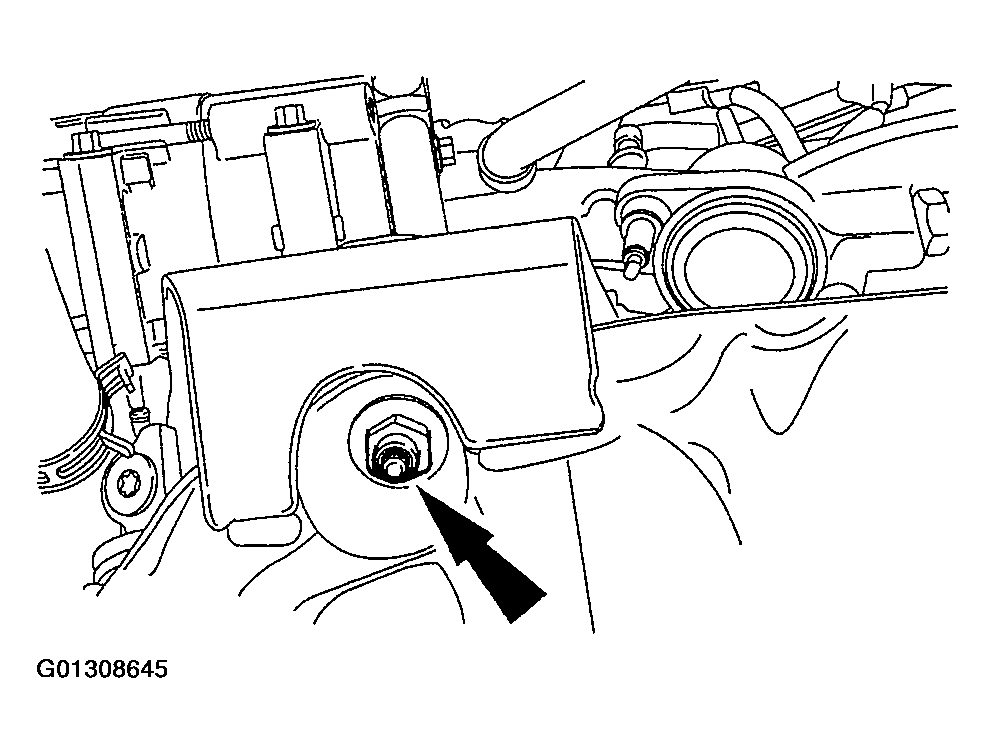

    Fig 25: Removing Front Engine Mount
    G01308645Courtesy of FORD MOTOR CO.
  34. Remove the rear engine mount.

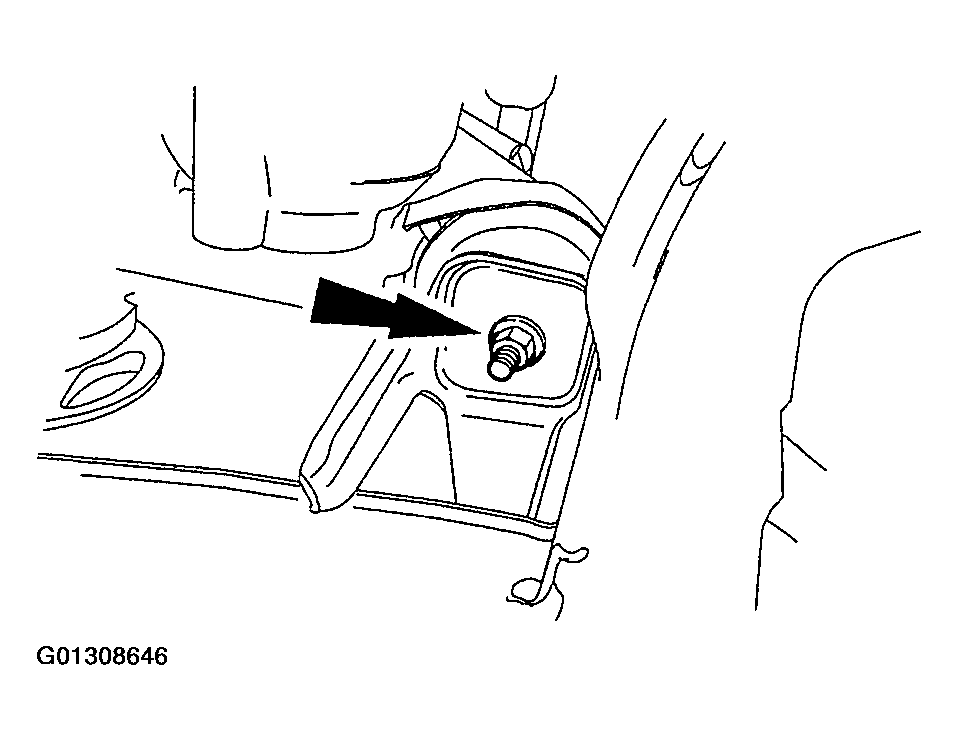

    Fig 26: Removing Rear Engine Mount
    G01308646Courtesy of FORD MOTOR CO.
  35. Position a suitable lift under the vehicle and raise it to the subframe.
  36. Remove the left front subframe bolt.
    Fig 27: Removing Left Front Subframe Bolt
    G01308647Courtesy of FORD MOTOR CO.
  37. Remove the right front subframe bolt.

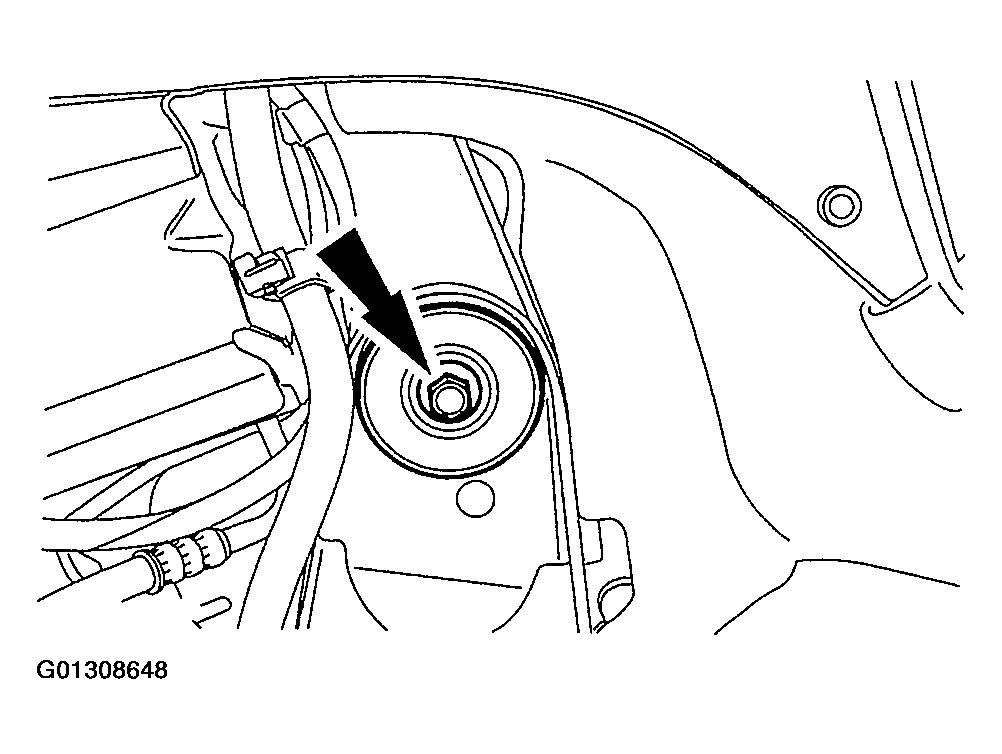

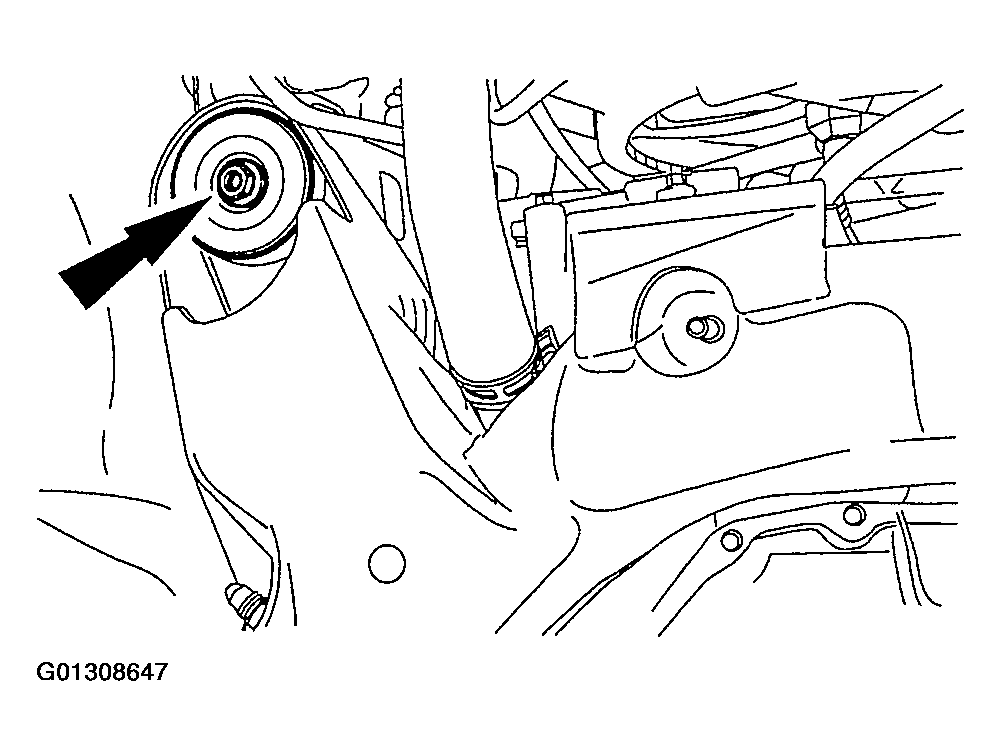

    Fig 28: Removing Right Front Subframe Bolt
    G01308648Courtesy of FORD MOTOR CO.
  38. Remove the left rear subframe bolt.

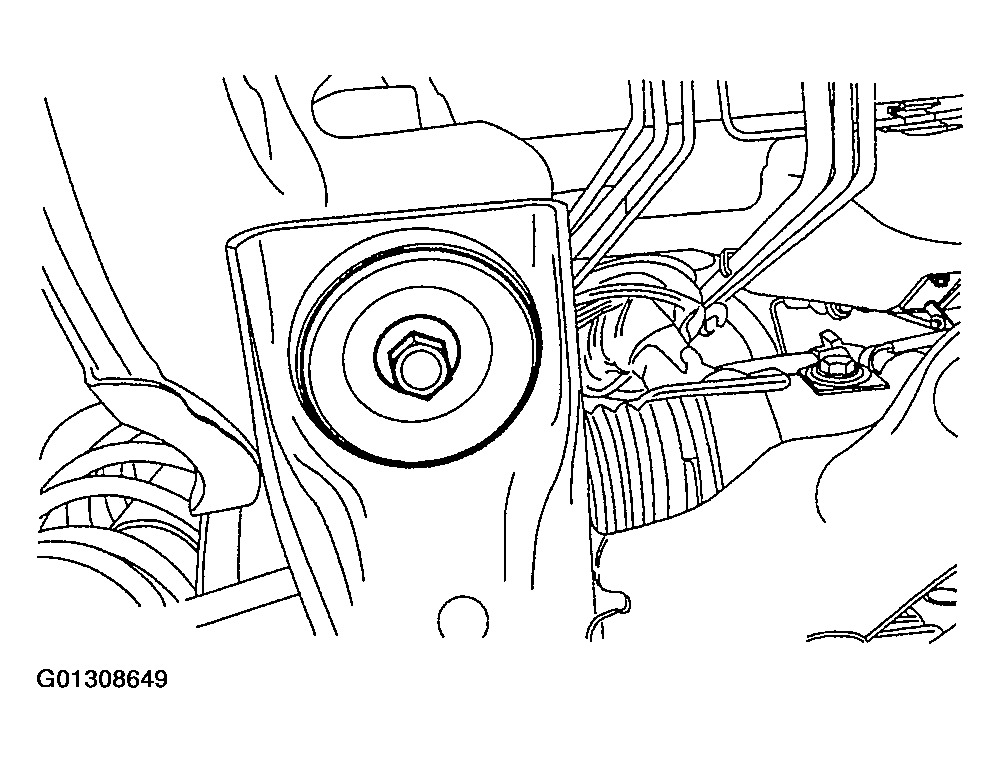

    Fig 29: Removing Left Rear Subframe Bolt
    G01308649Courtesy of FORD MOTOR CO.
  39. NOTE: Disconnect the heat shield from the subframe prior to lowering it from the vehicle.

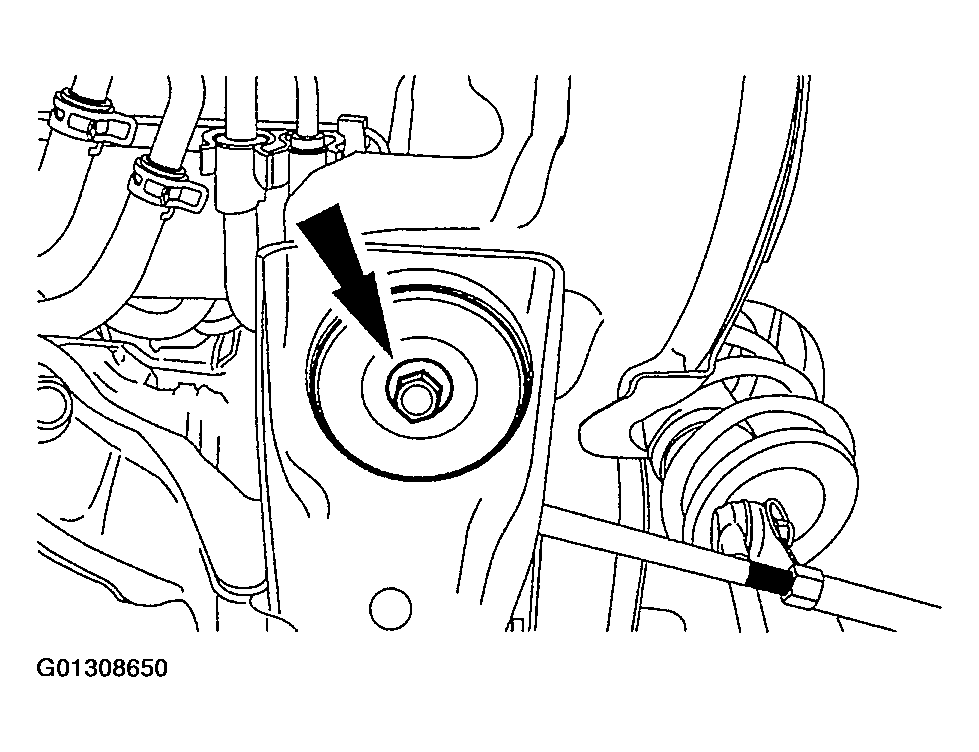

    Fig 30: Removing Right Rear Subframe Bolt And Subframe Assembly
    G01308650Courtesy of FORD MOTOR CO.
  40. Remove the right rear subframe bolt and lower the subframe assembly.
  41. Remove two bolts from the LH sway bar assembly.

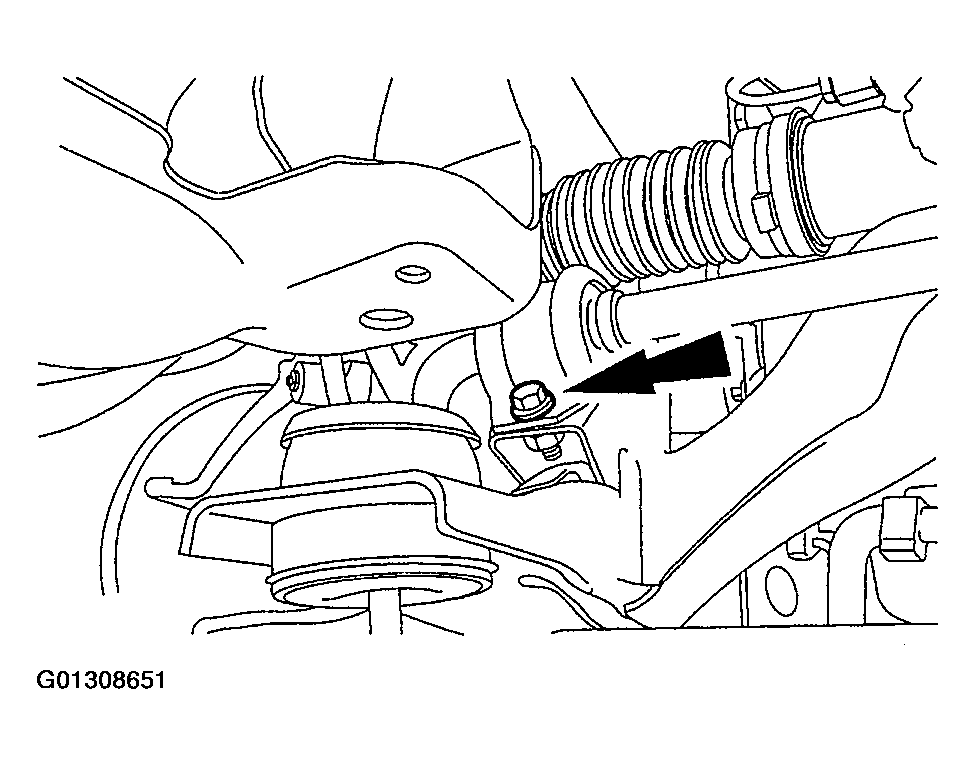

    Fig 31: Removing Bolts From LH Sway Bar Assembly
    G01308651Courtesy of FORD MOTOR CO.
  42. Remove two bolts from the RH sway bar assembly.

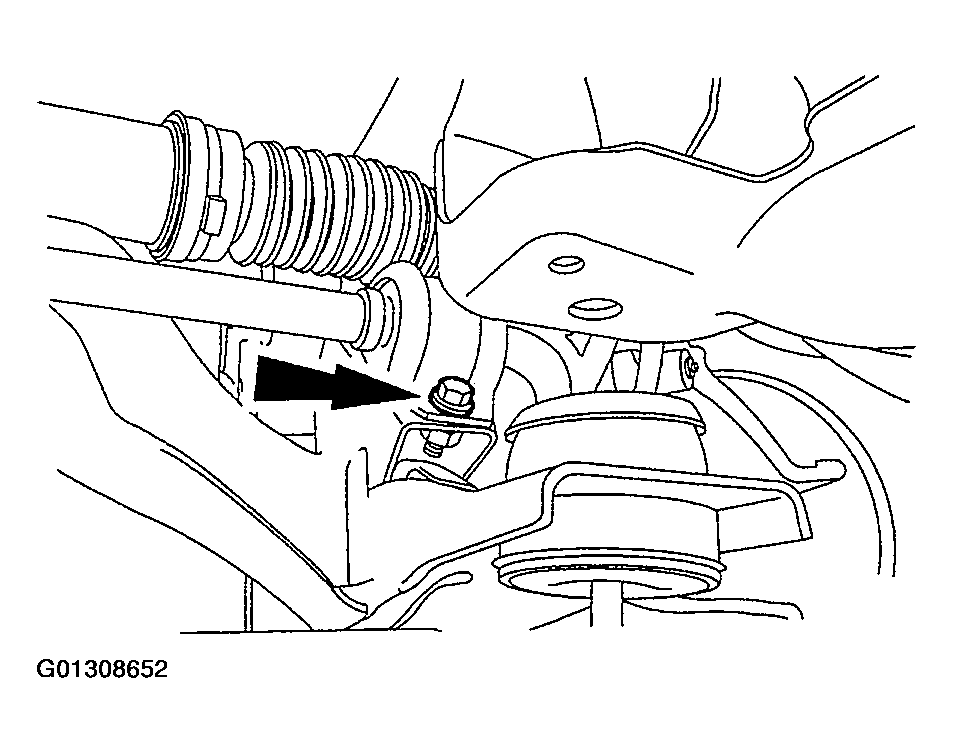

    Fig 32: Removing Bolts From RH Sway Bar Assembly
    G01308652Courtesy of FORD MOTOR CO.
  43. Remove the sway bar assembly.

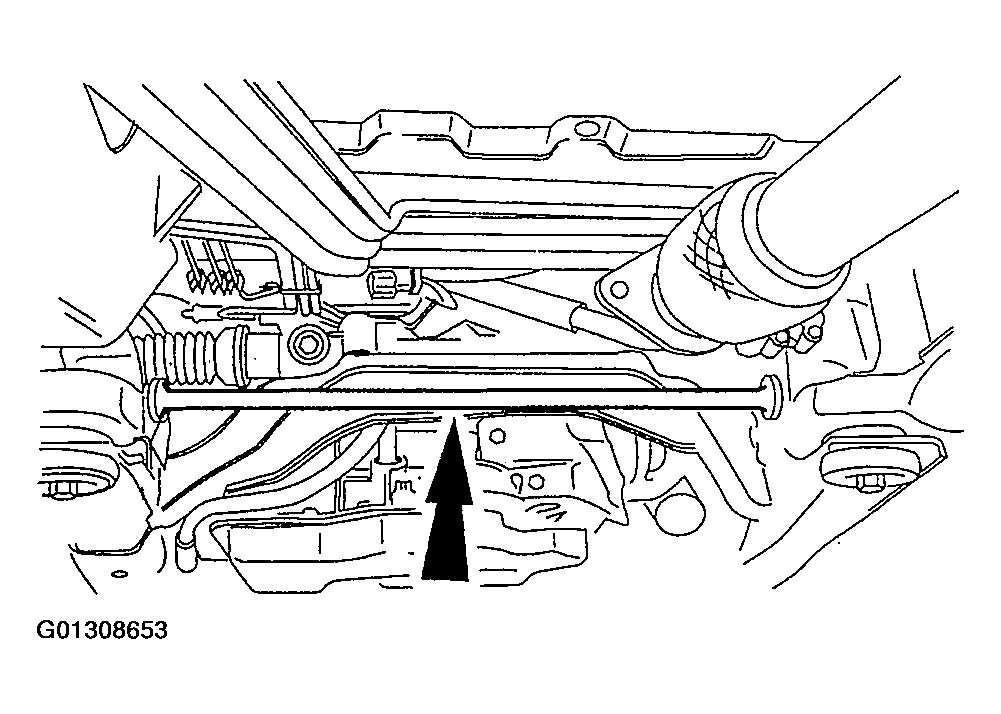

    Fig 33: Removing Sway Bar Assembly
    G01308653Courtesy of FORD MOTOR CO.
  44. Install the special tool.

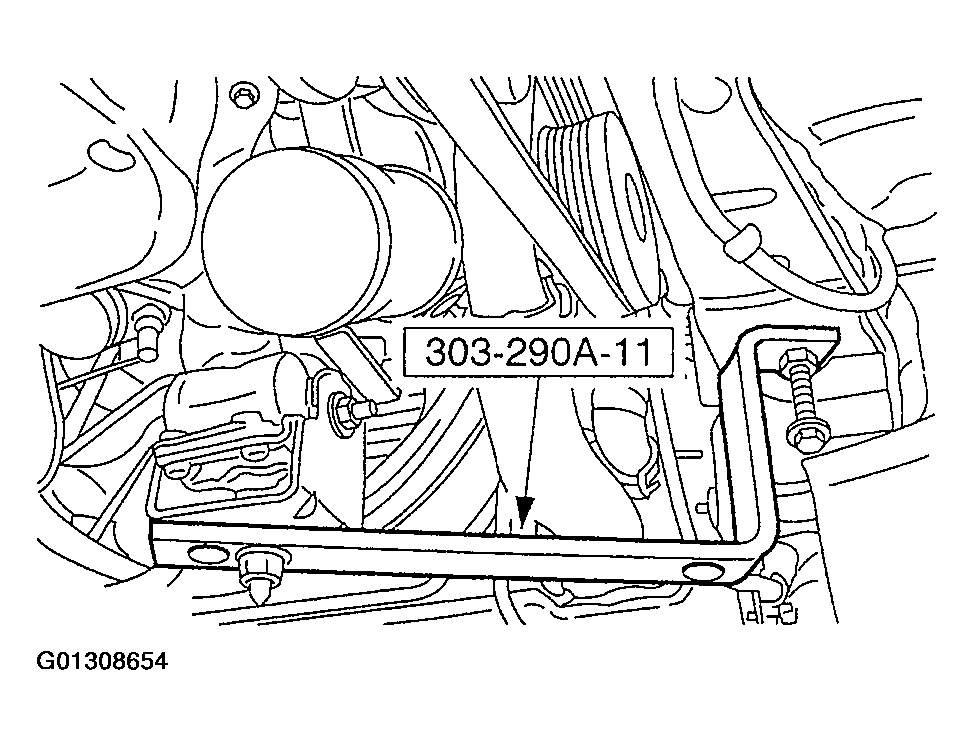

    Fig 34: Installing Special Tool
    G01308654Courtesy of FORD MOTOR CO.
  45. The use of mechanic's wire will aid in holding the power steering rack up in the vehicle.

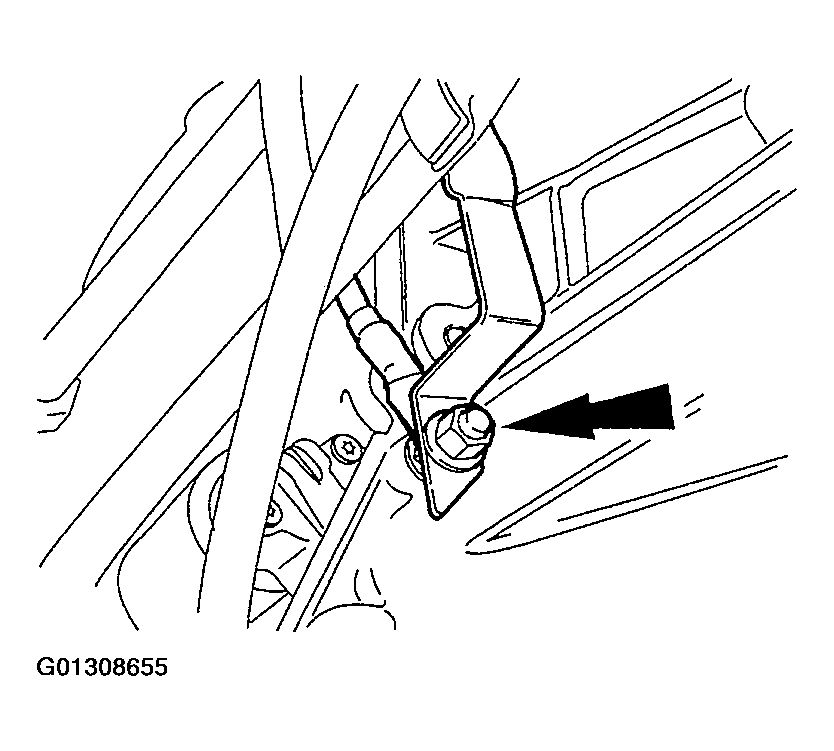

  46. Remove the ground strap and harness bracket.
    Fig 35: Removing Ground Strap And Harness Bracket
    G01308655Courtesy of FORD MOTOR CO.
  47. NOTE: The use of mechanic's wire will aid in positioning the starter out of the way.

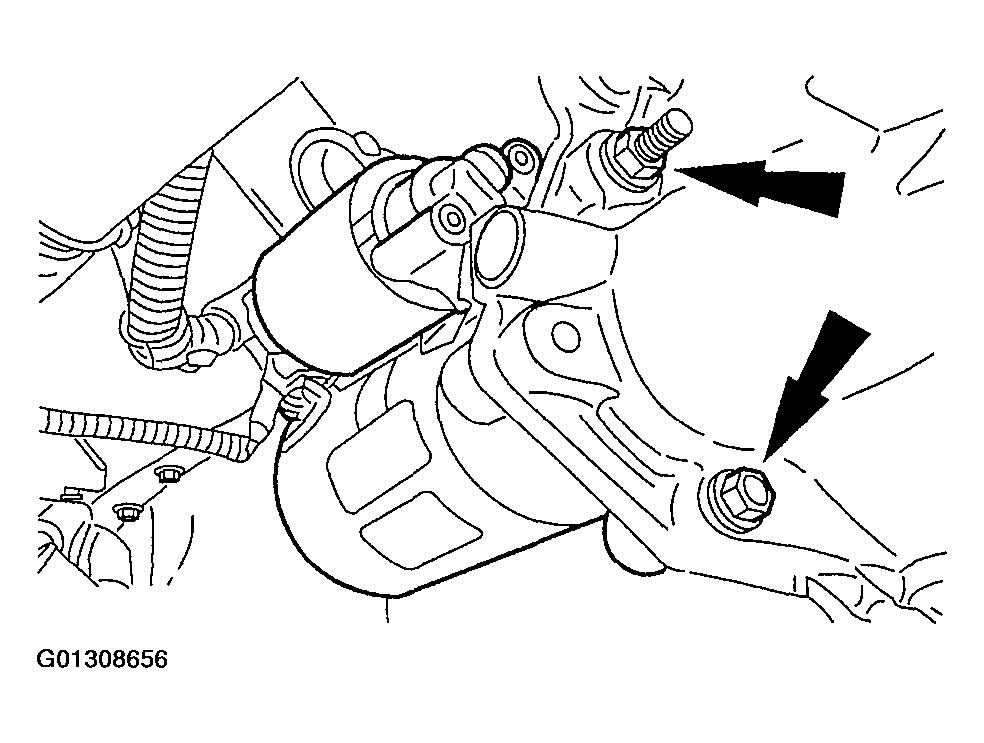

    Fig 36: Removing Starter And Positioning It Out Of Way
    G01308656Courtesy of FORD MOTOR CO.
  48. Remove the starter and position it out of the way.

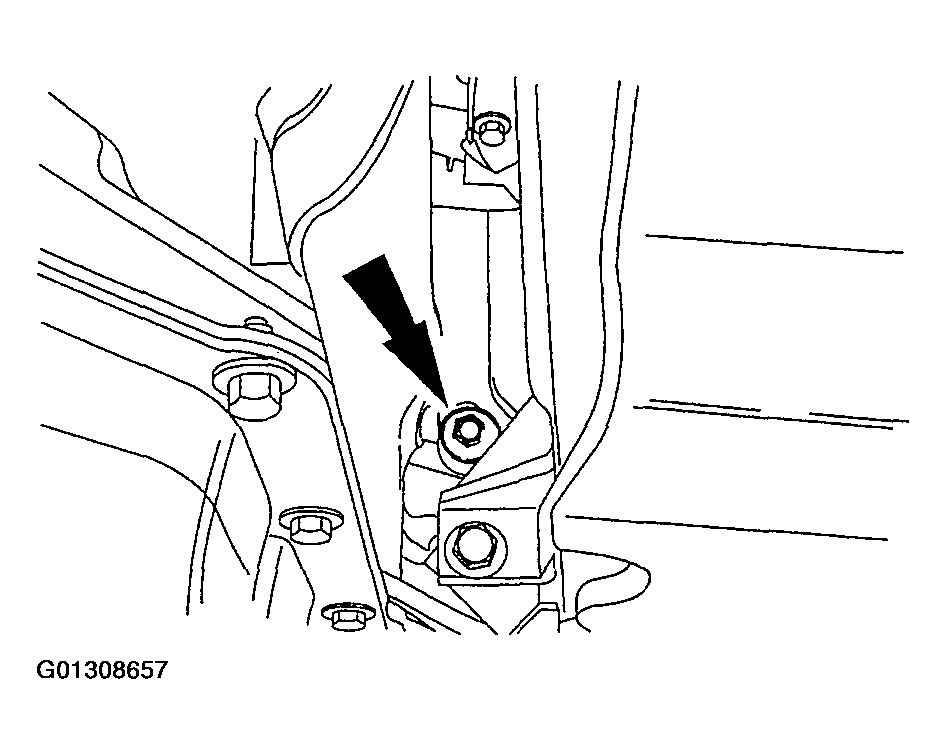

  49. Loosen the inspection cover bolt, and remove the pushpin.
    Fig 37: Loosening Inspection Cover Bolt, And Removing Pushpin
    G01308657Courtesy of FORD MOTOR CO.
  50. Remove both parts of the inspection cover.

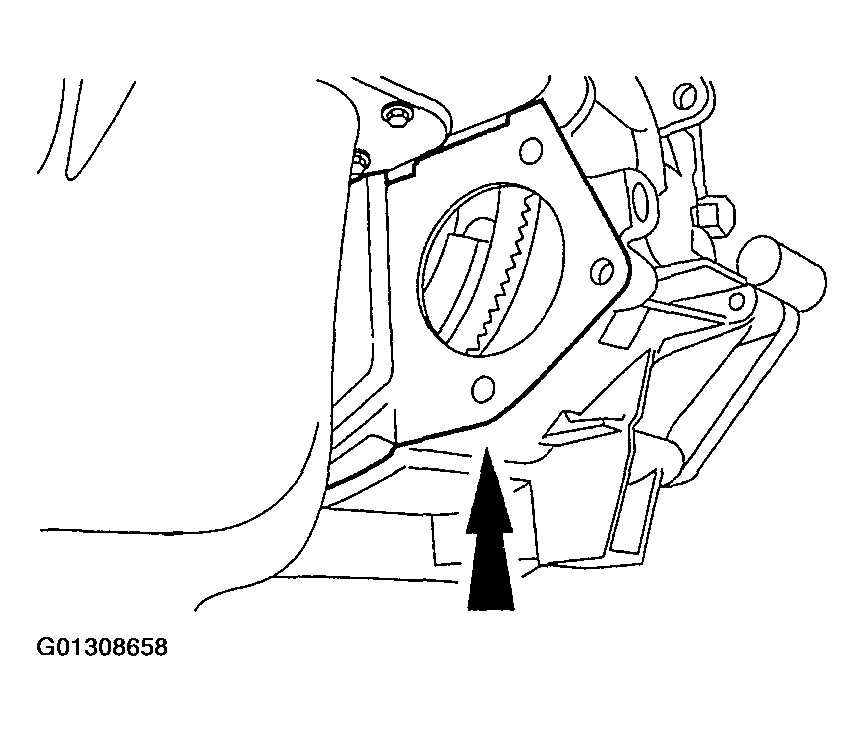

    Fig 38: Removing Both Parts Of Inspection Cover
    G01308658Courtesy of FORD MOTOR CO.
  51. Remove and discard the four nuts.

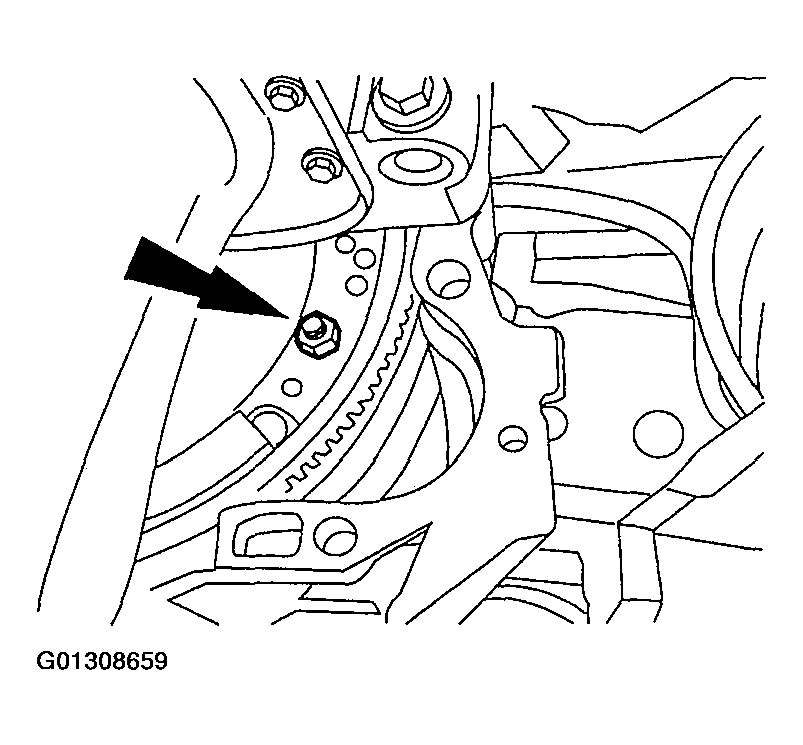

    Fig 39: Removing Nuts
    G01308659Courtesy of FORD MOTOR CO.
  52. NOTE: The use of mechanic's wire will aid in positioning the halfshafts out of the way.

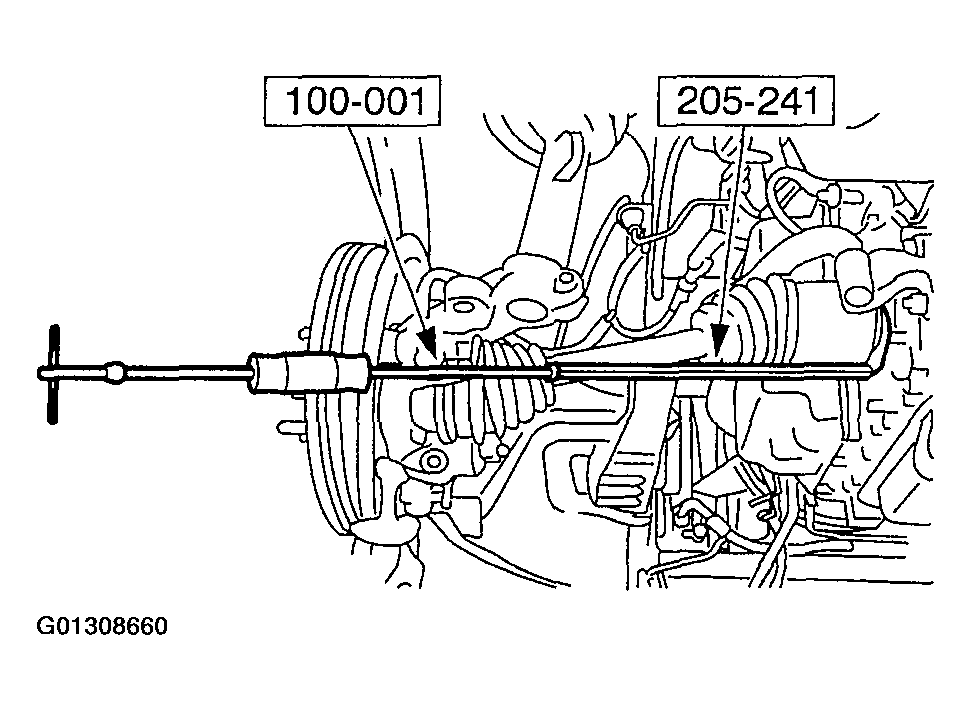

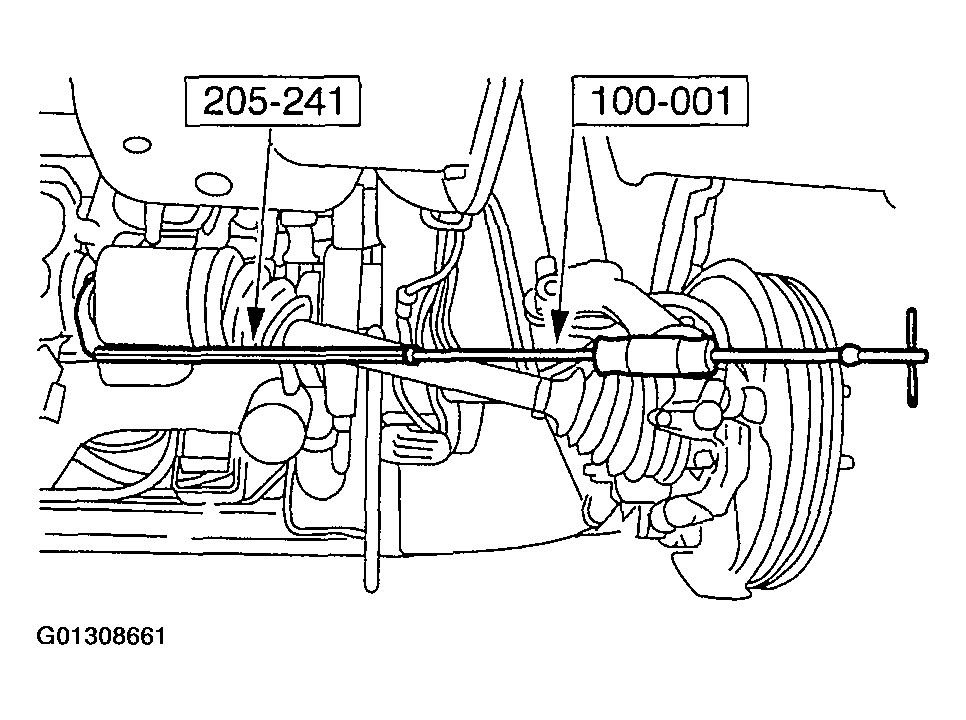

    Fig 40: Removing LH Halfshaft From Transaxle
    G01308660Courtesy of FORD MOTOR CO.
  53. Using the special tools, remove the LH halfshaft from the transaxle and position out of the way.
  54. NOTE: The use of mechanic's wire will aid in positioning the halfshafts out of the way.
    Fig 41: Removing RH Halfshaft From Transaxle
    G01308661Courtesy of FORD MOTOR CO.
  55. Using the special tools, remove the RH halfshaft from the transaxle and position out of the way.
  56. Disconnect the output shaft speed (OSS) sensor connector.

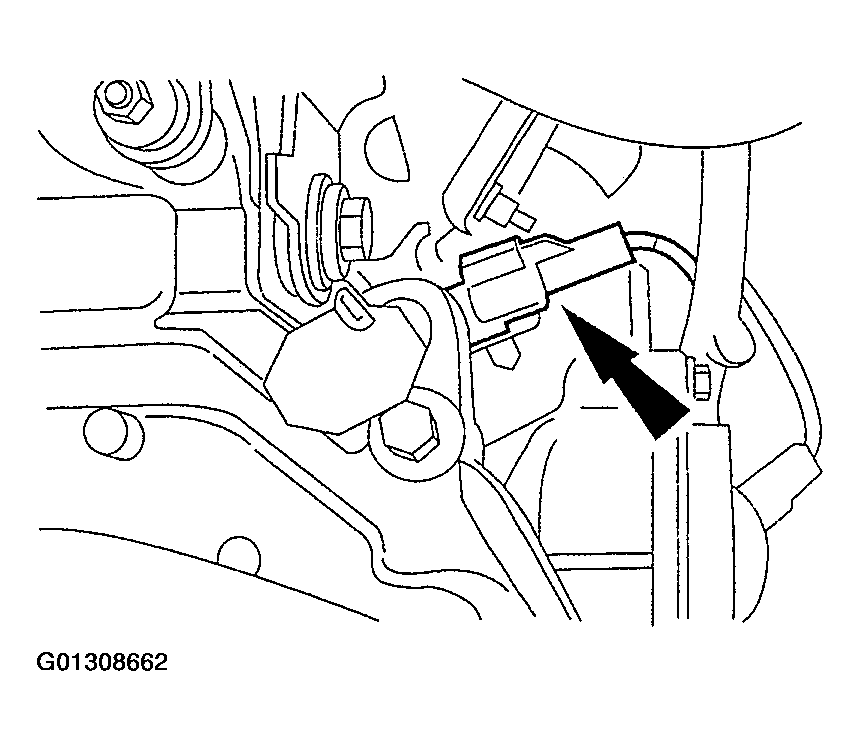

    Fig 42: Disconnecting Output Shaft Speed Sensor Connector
    G01308662Courtesy of FORD MOTOR CO.
  57. Disconnect the turbine shaft speed (TSS) sensor connector.

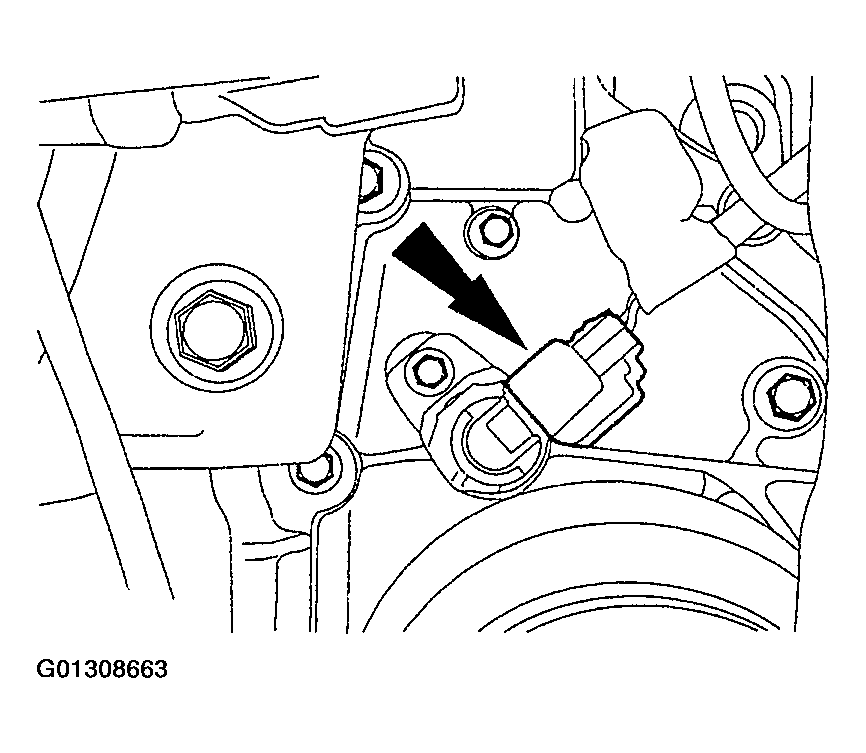

    Fig 43: Disconnecting Turbine Shaft Speed Sensor Connector
    G01308663Courtesy of FORD MOTOR CO.
  58. Position the high lift transmission jack under the transaxle.

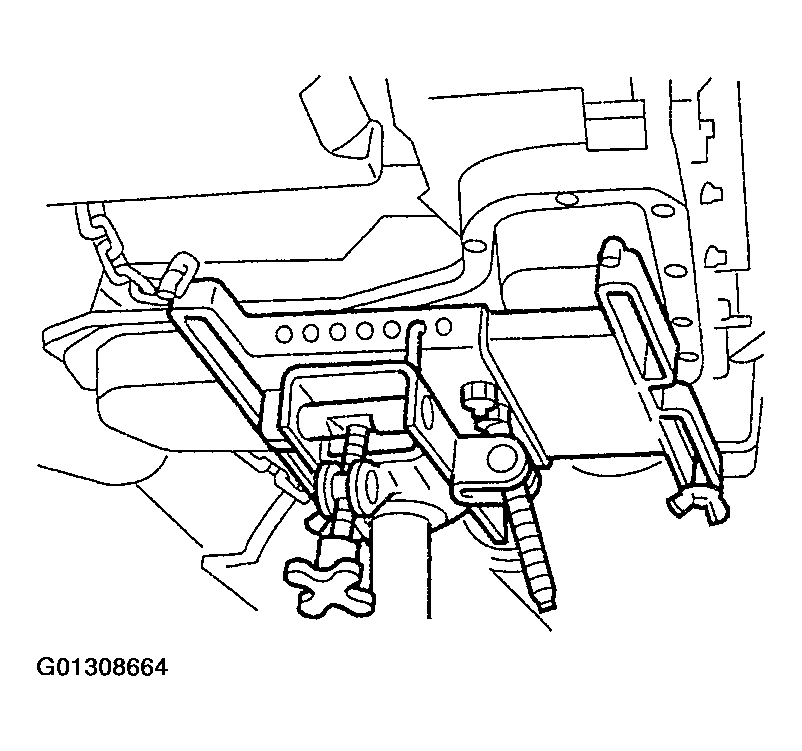

    Fig 44: Positioning High Lift Transmission Jack Under Transaxle
    G01308664Courtesy of FORD MOTOR CO.

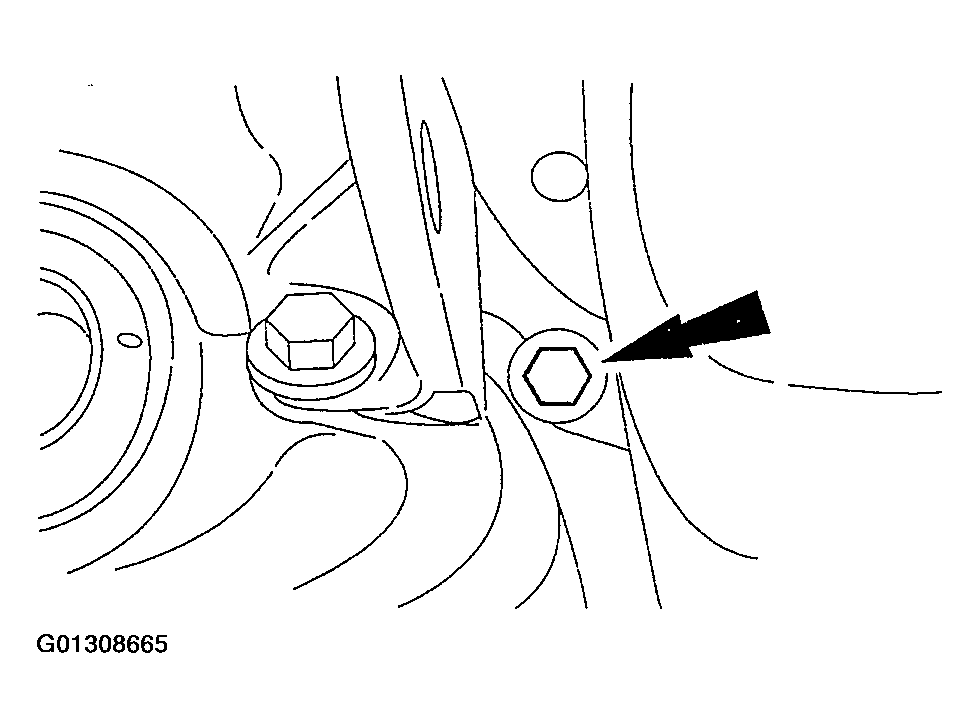

  59. Remove the rear lower retaining bolt.
    Fig 45: Removing Rear Lower Retaining Bolt
    G01308665Courtesy of FORD MOTOR CO.

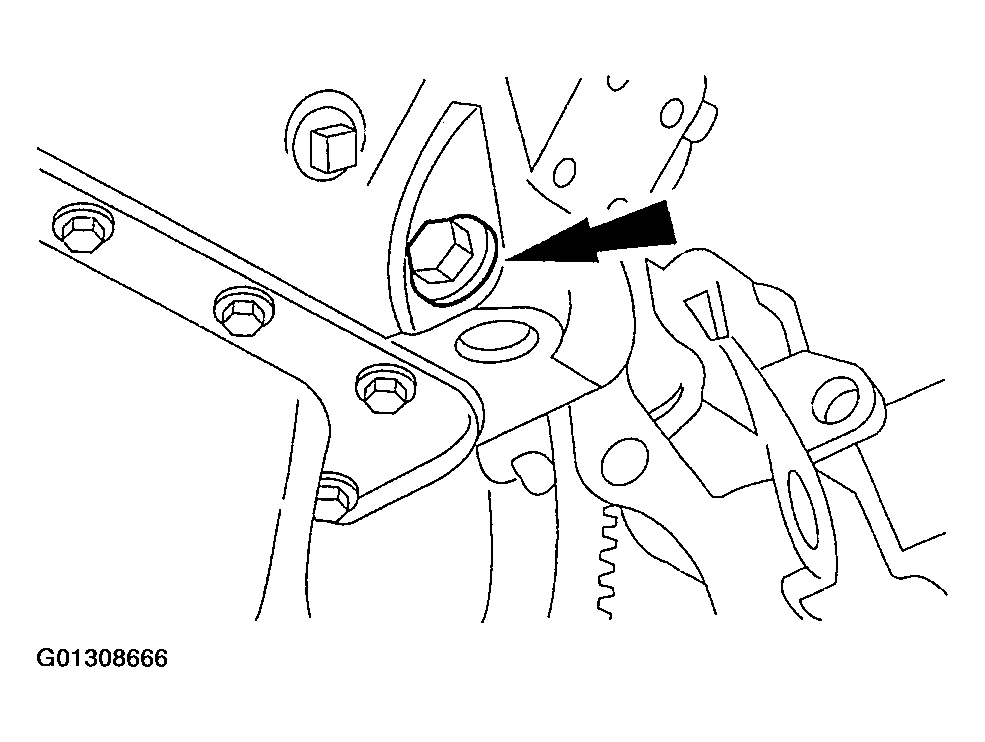

  60. Remove the front lower retaining bolt.
    Fig 46: Removing Front Lower Retaining Bolt
    G01308666Courtesy of FORD MOTOR CO.
  61. Remove the oil pan to transaxle retaining bolt.

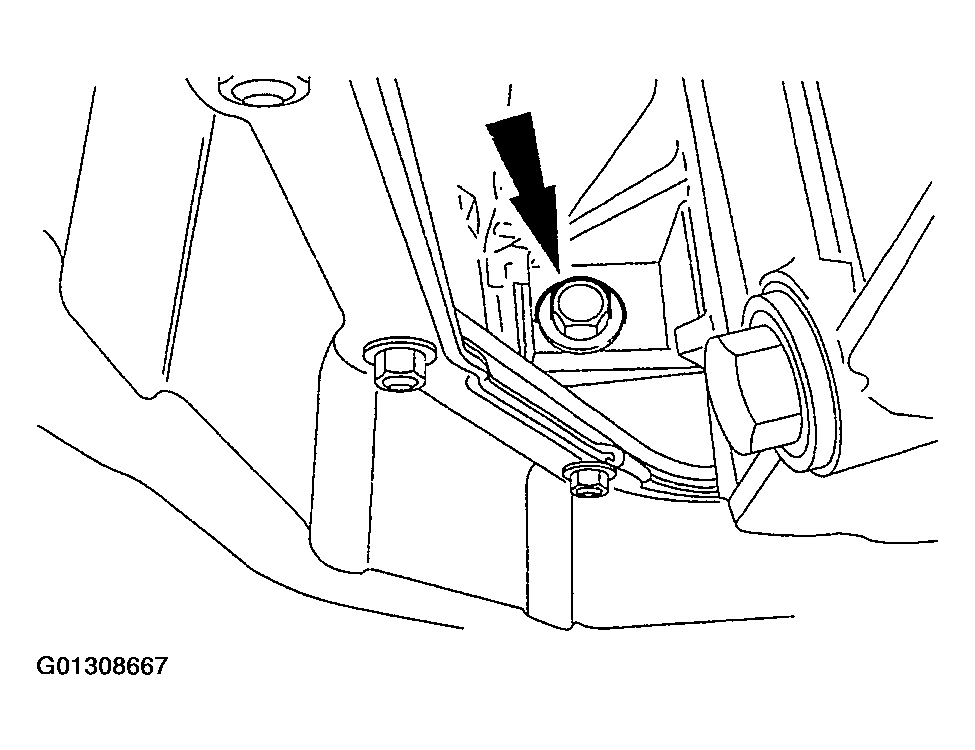

    Fig 47: Removing Oil Pan To Transaxle Retaining Bolt
    G01308667Courtesy of FORD MOTOR CO.
  62. Remove the oil pan to transaxle retaining bolt.

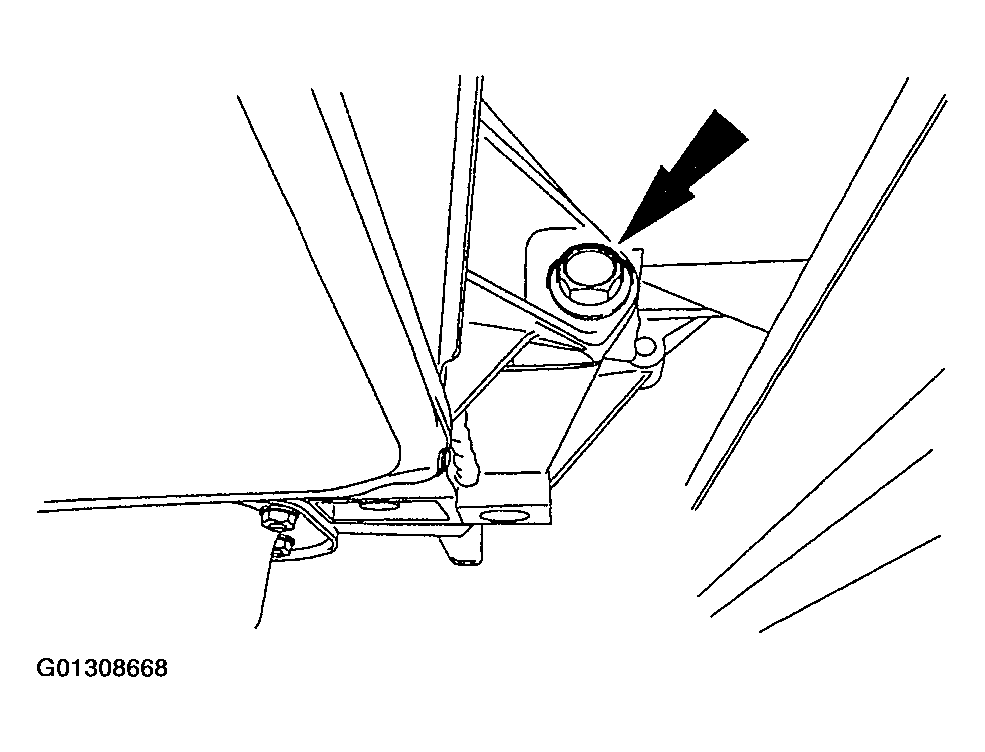

    Fig 48: Removing Oil Pan To Transaxle Retaining Bolt
    G01308668Courtesy of FORD MOTOR CO.
  63. Remove the transaxle retaining bolts.

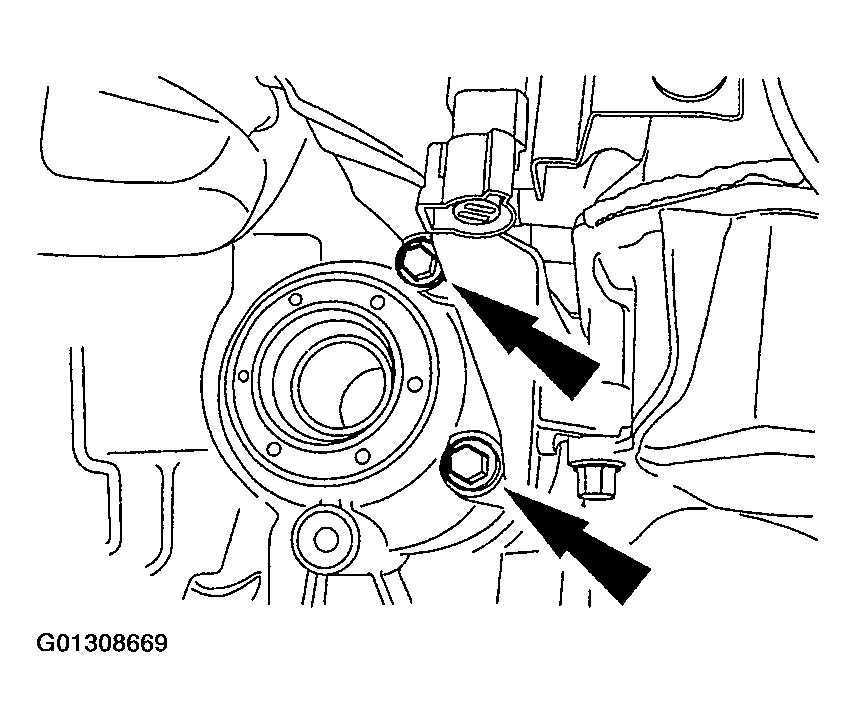

    Fig 49: Removing Transaxle Retaining Bolts
    G01308669Courtesy of FORD MOTOR CO.
  64. Lower the transaxle assembly from the engine compartment.
  65. Remove the bracket.

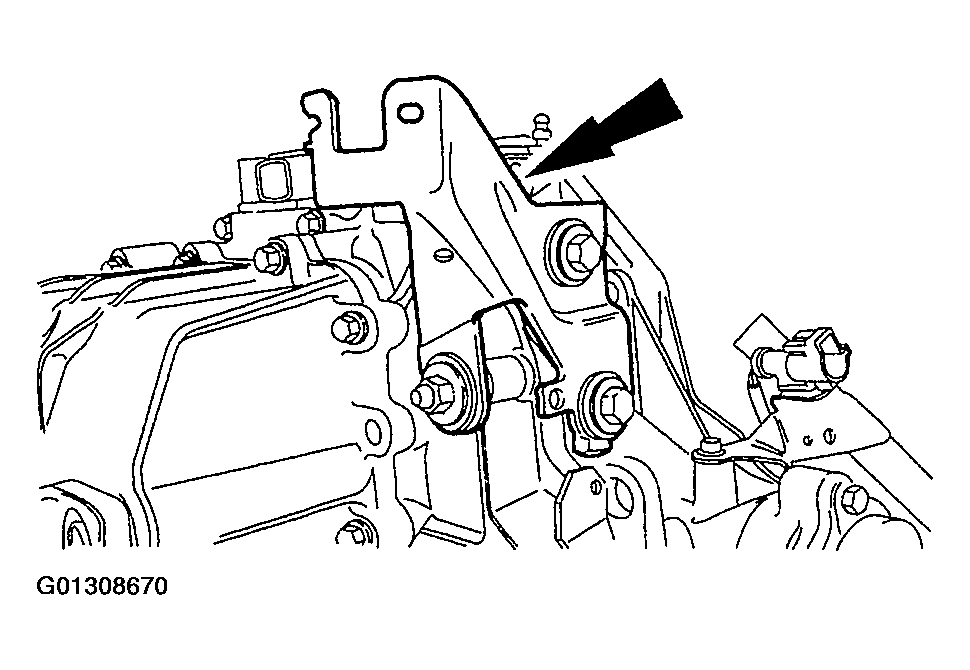

    Fig 50: Removing Bracket
    G01308670Courtesy of FORD MOTOR CO.
  66. Remove the rear support bracket.

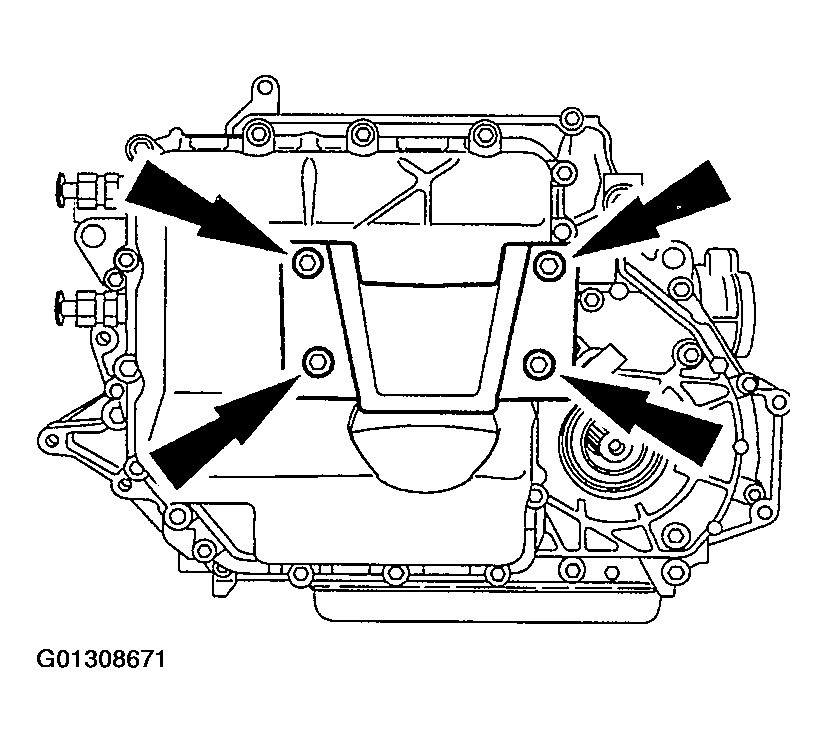

    Fig 51: Removing Rear Support Bracket
    G01308671Courtesy of FORD MOTOR CO.
  67. Carry out the transmission fluid cooler backflushing/cleaning. For additional information, refer to TRANSMISSION FLUID COOLER - BACKFLUSHING AND CLEANING .
