Removal and Installation

Remove the air cleaner outlet tube. .

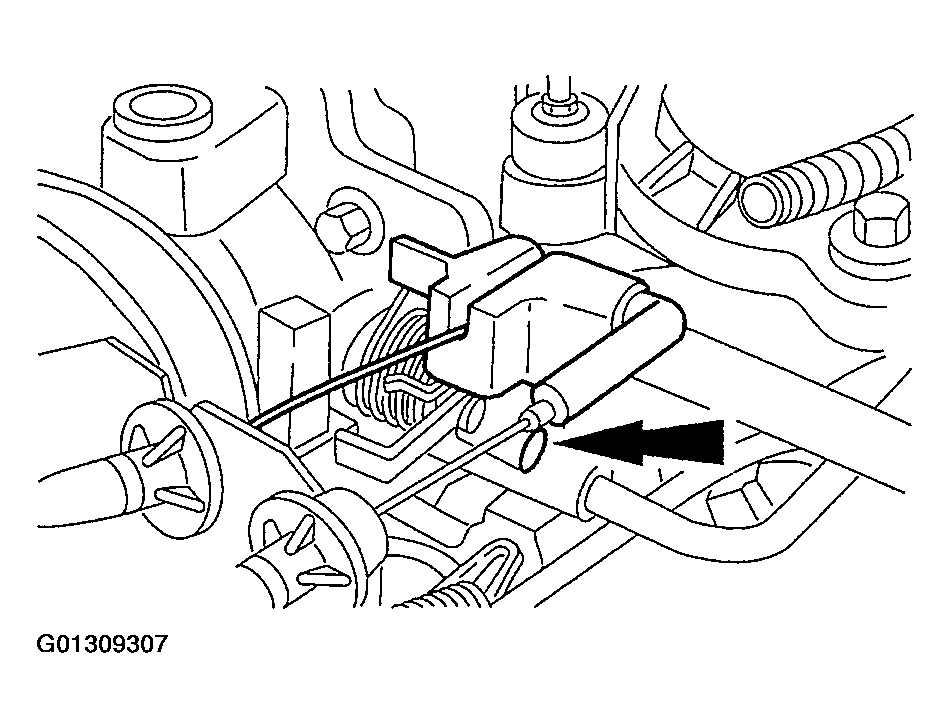

Disconnect the accelerator cable from the throttle lever.

Fig 1: Disconnecting Accelerator Cable From Throttle Lever
Courtesy of FORD MOTOR CO.

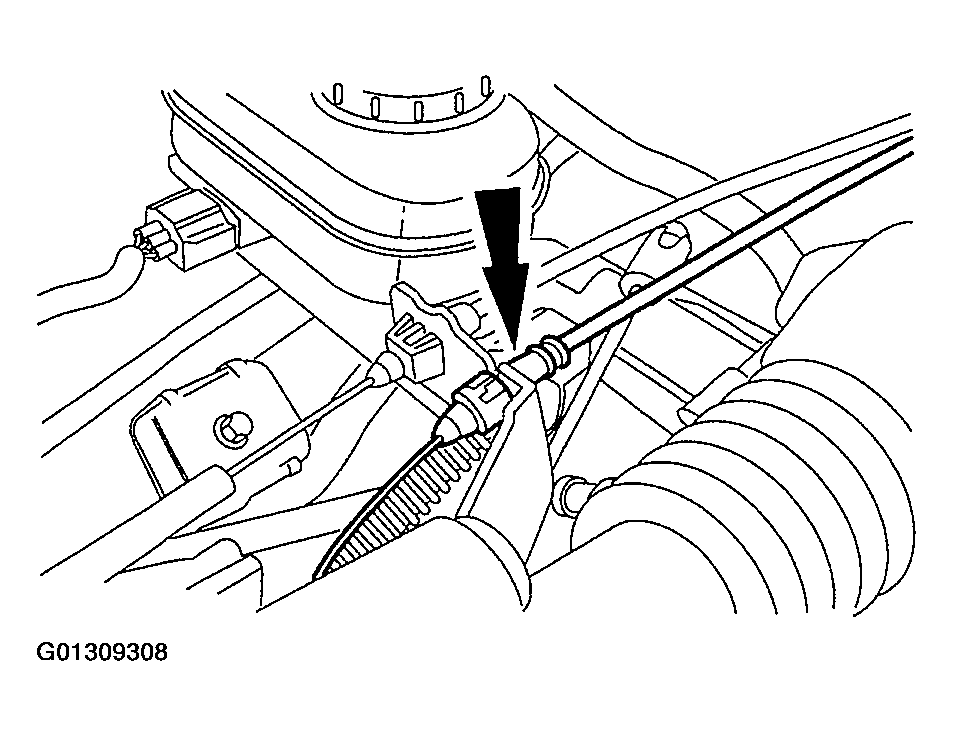

Disconnect the accelerator cable fitting from the accelerator cable bracket.

Fig 2: Disconnecting Accelerator Cable Fitting From Accelerator Cable Bracket
Courtesy of FORD MOTOR CO.
Remove the speed control cable. For additional information, refer to VEHICLE SPEED CONTROL .

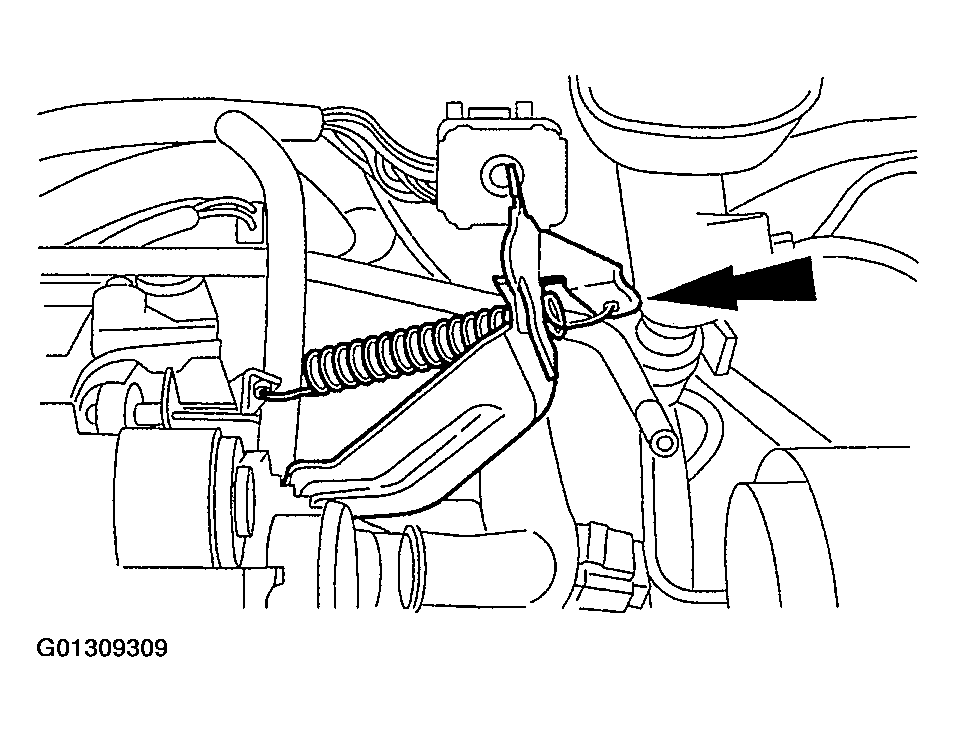

Remove the throttle return spring from the accelerator cable bracket.

Fig 3: Removing Throttle Return Spring From Accelerator Cable Bracket
Courtesy of FORD MOTOR CO.
Remove the bolt and the stud nut and remove the bracket.

Fig 4: Removing Bolt, Stud Nut And Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
