Removal & Installation (M/T)

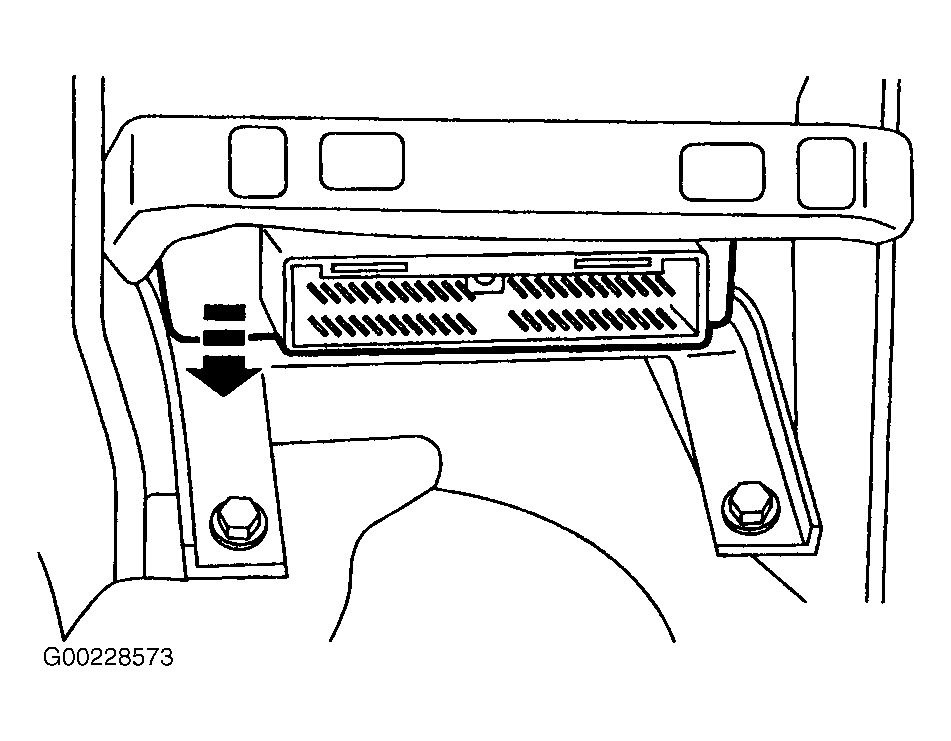

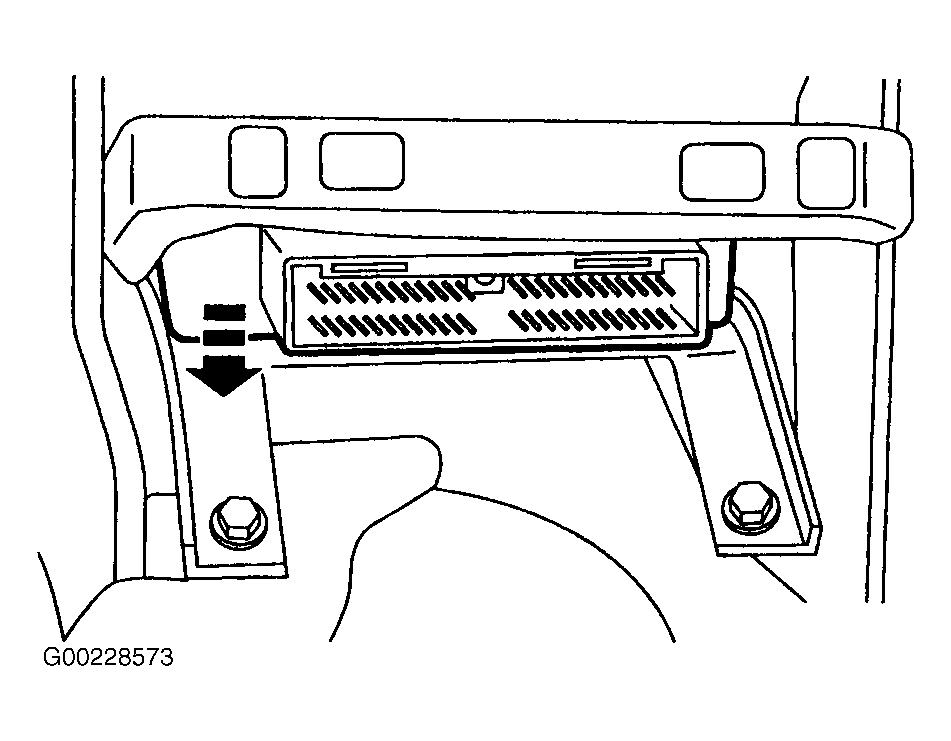

Disconnect negative battery cable. Remove parking brake and shifter consoles. Remove shifter knob and boot. Loosen PCM connector retaining bolt, located in center of instrument panel, below center console. Slide PCM out. See Figure. To install, reverse removal procedure.
