Ignition Switch

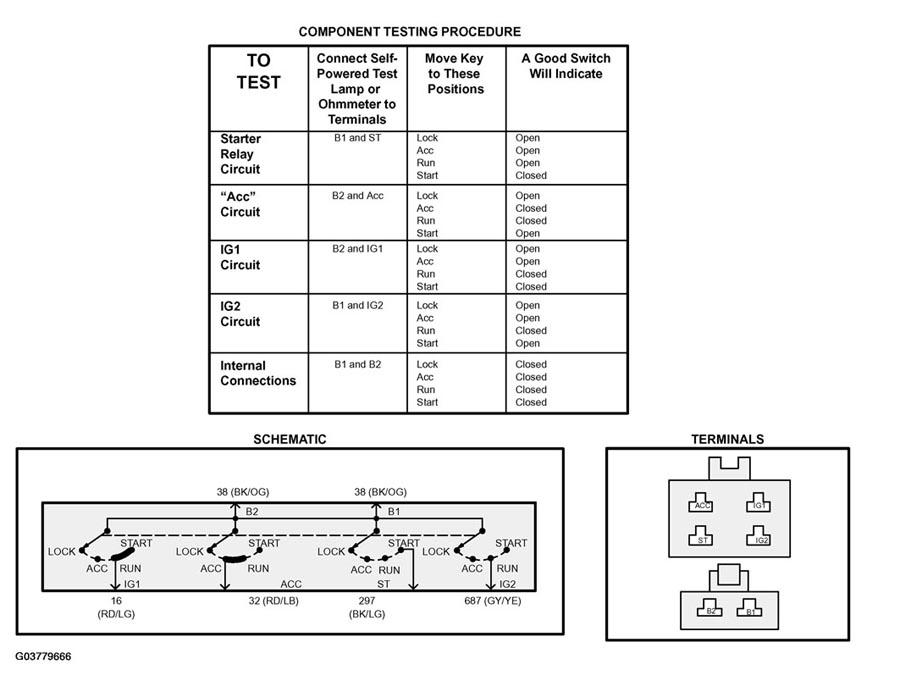

Fig 1: Ignition Switch - Component Testing
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
