Master Window/Door Lock Switch

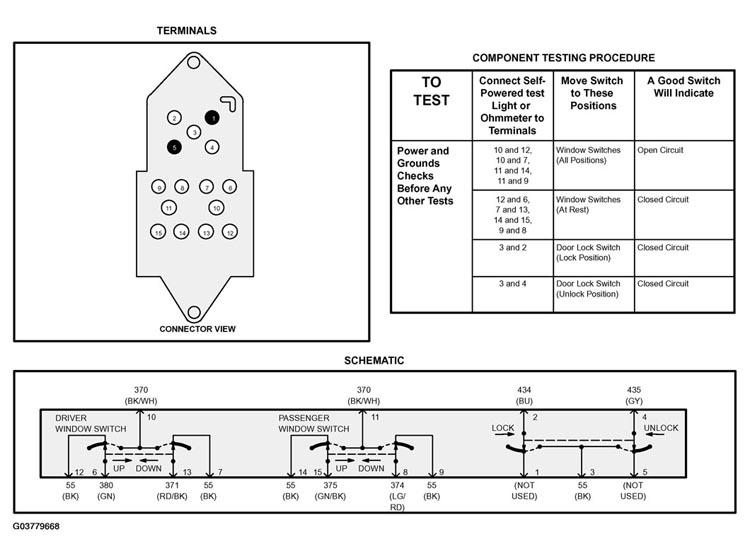

Fig 1: Master Window/Door Lock Switch - Component Testing
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
