Micro ISO Relay

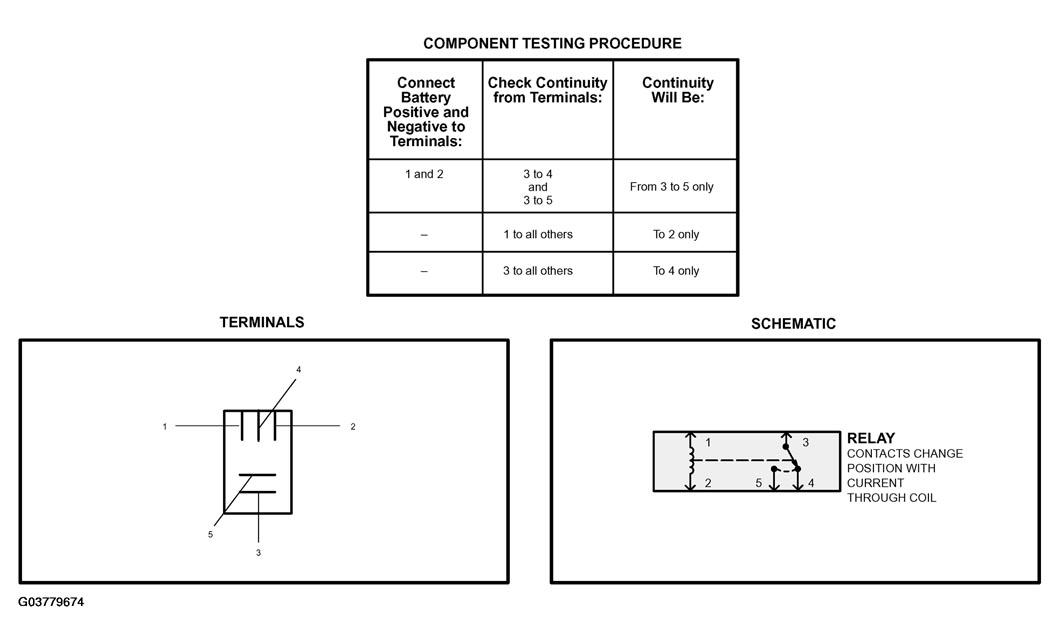

Fig 1: MICRO ISO Relay - Component Testing
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
