Component Locations

NOTE: For location of central junction box, relay box, data link connector and remote anti-theft personality module, refer to illustration. See Fig 1 -Fig 3 .
COMPONENT LOCATIONS

Component Location
Central Junction Box Under Left Side Of Instrument Panel
Data Link Connector Under Left Side Of Instrument Panel, To Left Of Steering Column
Door Lock/Unlock Relay Behind Passenger's Kick Panel
Luggage Compartment Relay Behind Right Rear Luggage Compartment Trim Panel
Relay Box Behind Left Side Of Instrument Panel
Remote Anti-Theft Personality Module Behind Right Rear Quarter Panel
Fig 1: Locating Central Junction Box & Relay Box
G00032180Courtesy of FORD MOTOR CO.
Fig 2: Locating Remote Anti-Theft Personality (RAP) Module & RAP Module Components
G00107993Courtesy of FORD MOTOR CO.

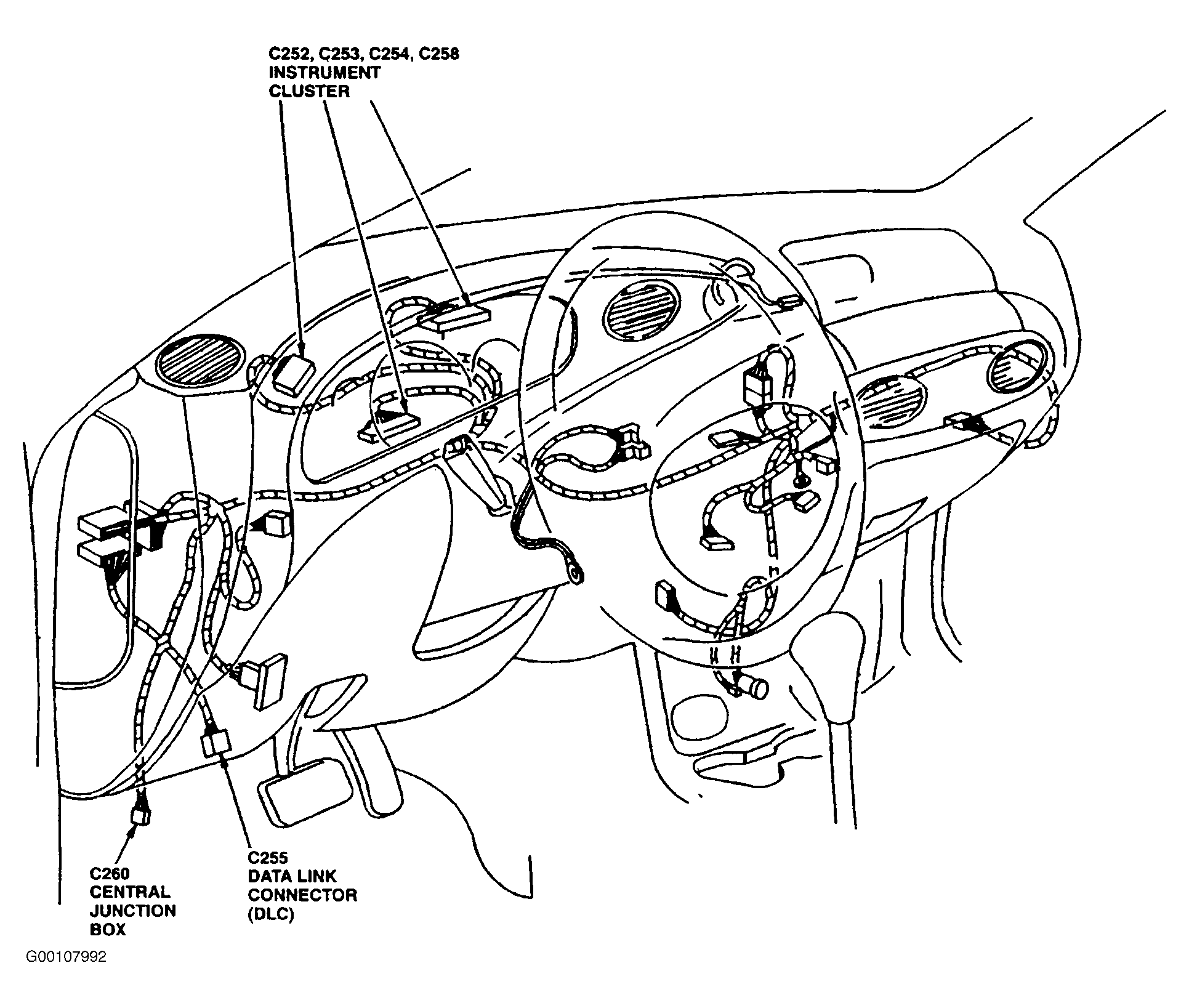

Fig 3: Locating Data Link Connector
G00107992Courtesy of FORD MOTOR CO.
