Seat-Rear Cushion Assembly: Disassembly

Press the rear seat cushion locks and remove the rear seat base.

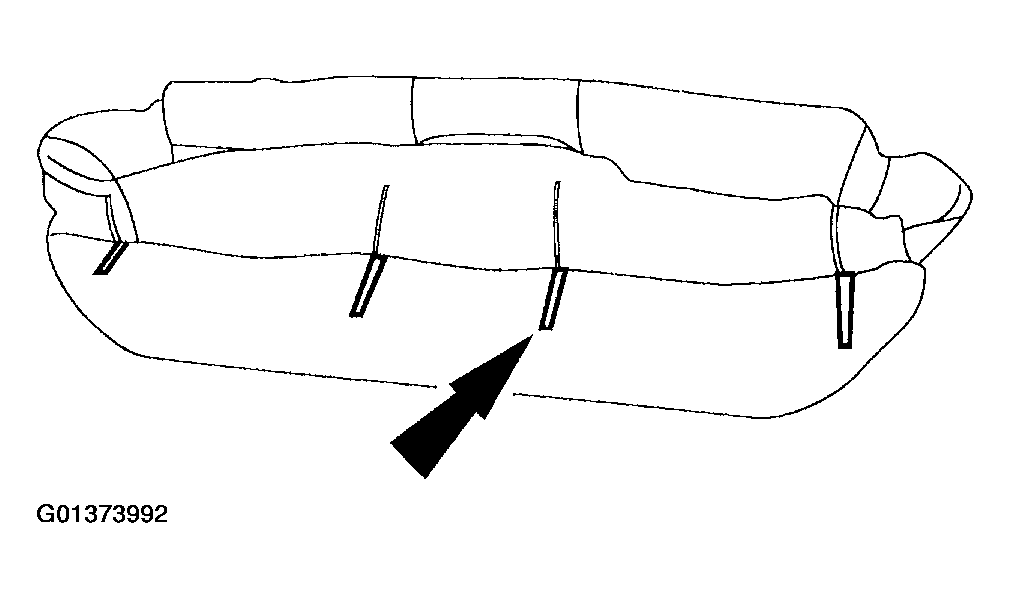

Fig 1: Removing Rear Seat Base
Courtesy of FORD MOTOR CO.
Remove the 31 hog rings.

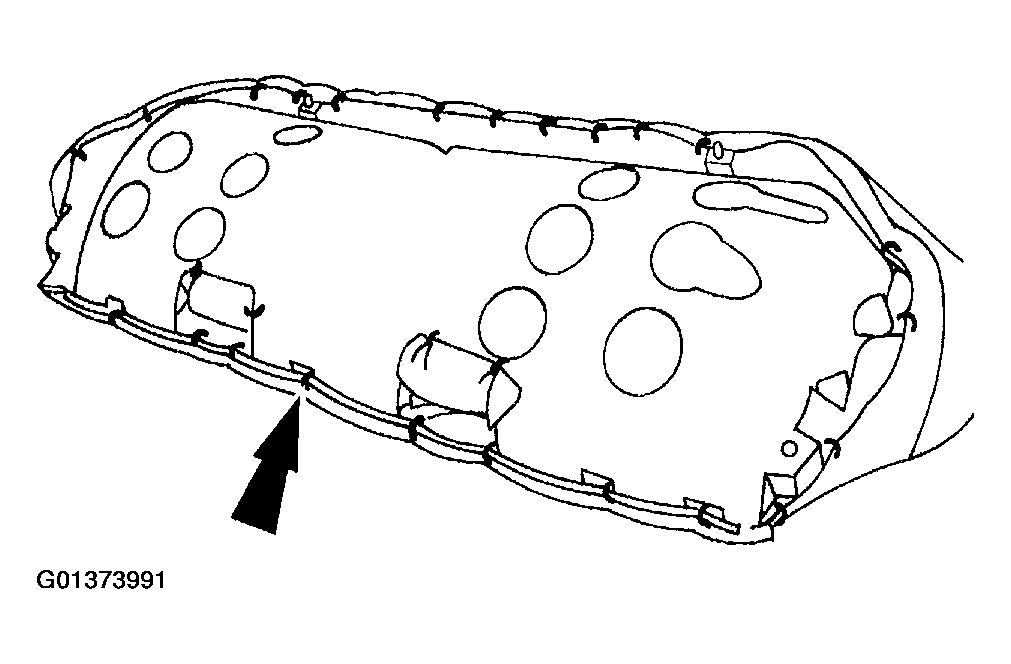

Fig 2: Removing Hog Rings
Courtesy of FORD MOTOR CO.

CAUTION: Use care when separating the seat cushion trim cover from the hook and loop strips or the hook and loop strips may be torn from the seat cushion foam.

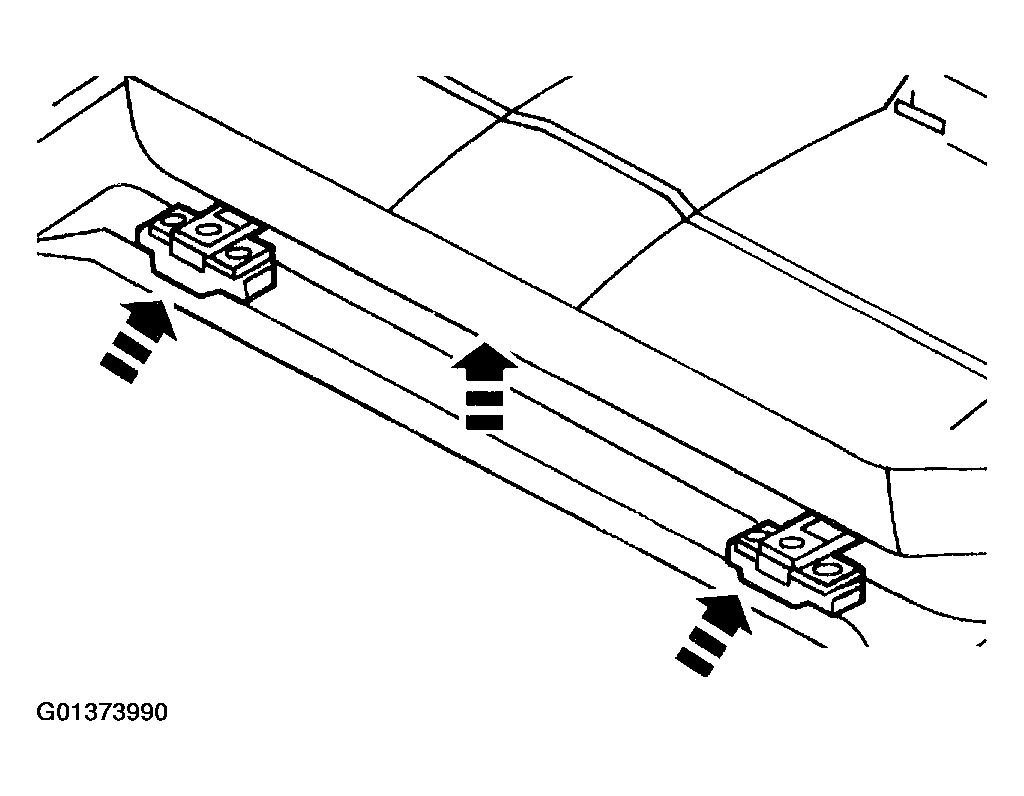

Fig 3: Removing Rear Seat Base Trim From Hook And Loop Strips

Courtesy of FORD MOTOR CO.

Remove the rear seat base trim.
- Separate the rear seat base trim from the hook and loop strips.
