Seat-Rear, 60/40 Split: Assembly

  1. If equipped, install the seat back release knob.
    1. Install the seat back release knob.
    2. Install the speed nut.

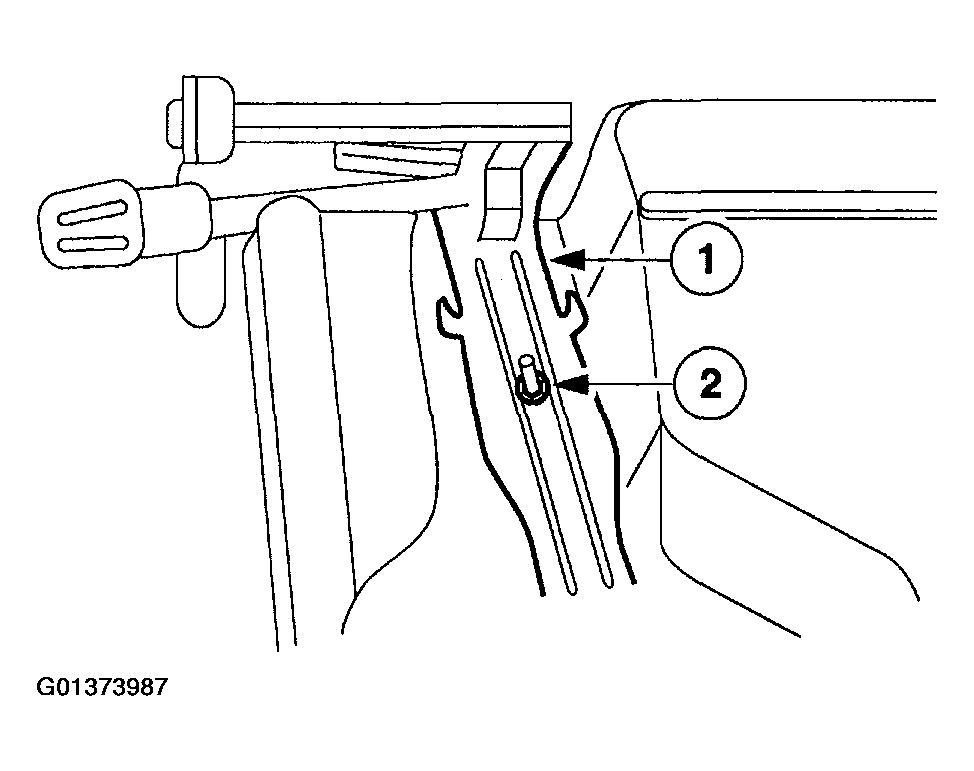

    Fig 1: Installing Seat Back Release Knob
    G01373987Courtesy of FORD MOTOR CO.
  2. Install the rear seat back pad.

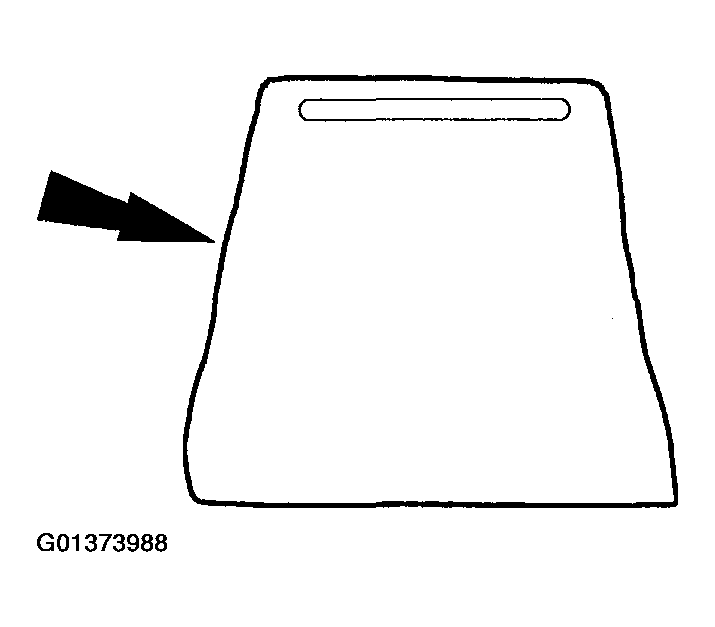

    Fig 2: Installing Rear Seat Back Pad
    G01373988Courtesy of FORD MOTOR CO.
  3. If equipped, install the seat back release knob guide.

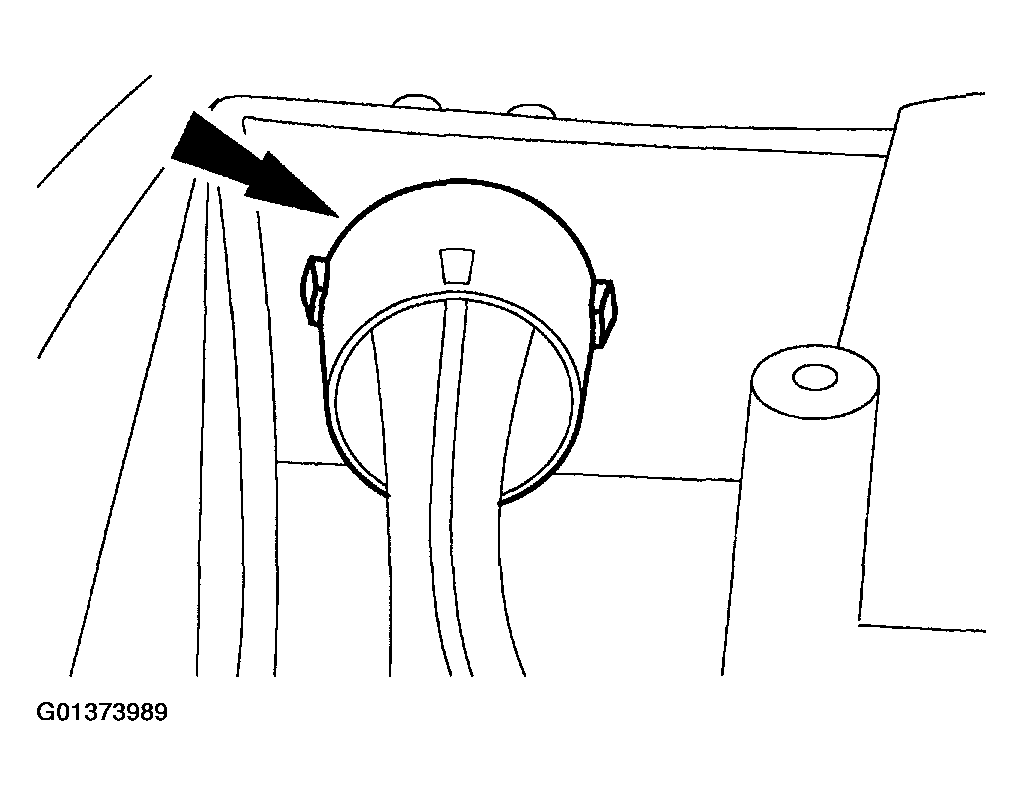

    Fig 3: Installing Seat Back Release Knob Guide
    G01373989Courtesy of FORD MOTOR CO.
  4. Install the rear seat back latches; refer toLATCH-REAR SEAT, 60/40 SPLIT 0 Split
