Seat-Rear, 60/40 Split: Disassembly

NOTE: 60 percent portion shown, 40 percent similar.
  1. Remove the rear seat latches; refer to LATCH-REAR SEAT, 60/40 SPLIT .
  2. If equipped, remove the seat back release knob guide.
    1. Squeeze the tabs.
    2. Remove the seat back release knob guide.

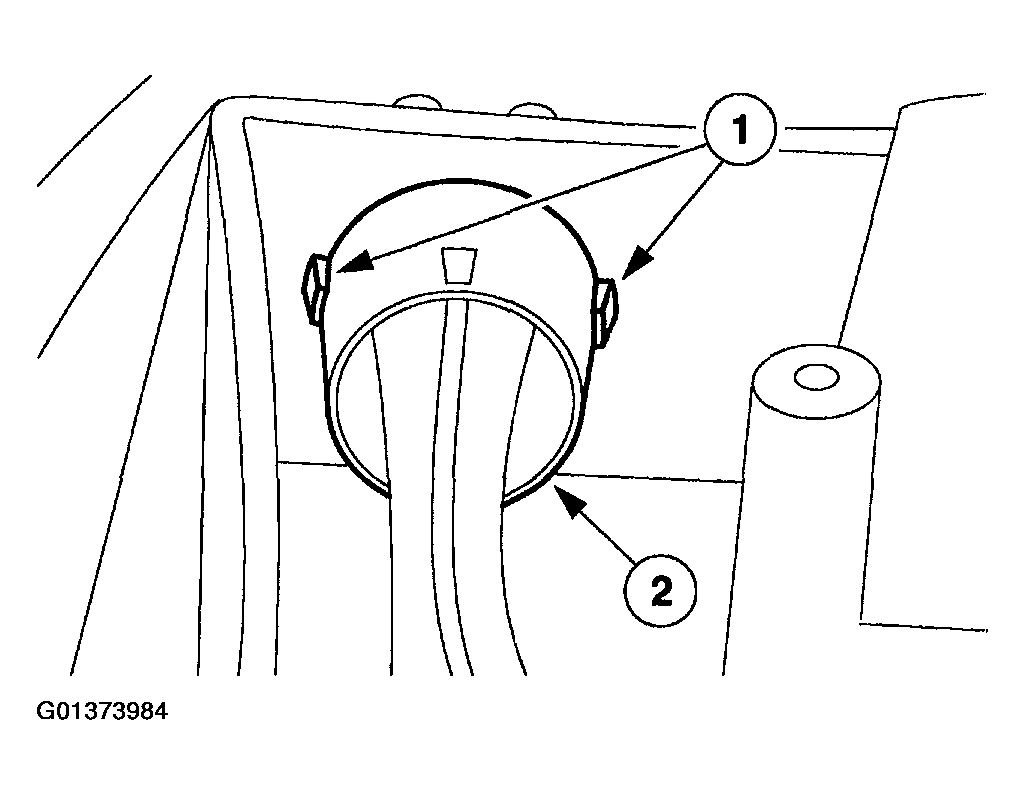

    Fig 1: Removing Seat Back Release Knob Guide
    G01373984Courtesy of FORD MOTOR CO.
  3. Remove the rear seat back pad.
    Fig 2: Removing Rear Seat Back Pad
    G01373985Courtesy of FORD MOTOR CO.
  4. If equipped, remove the seat back release knob.
    1. Remove the speed nut.
    2. Remove the seat back release knob.

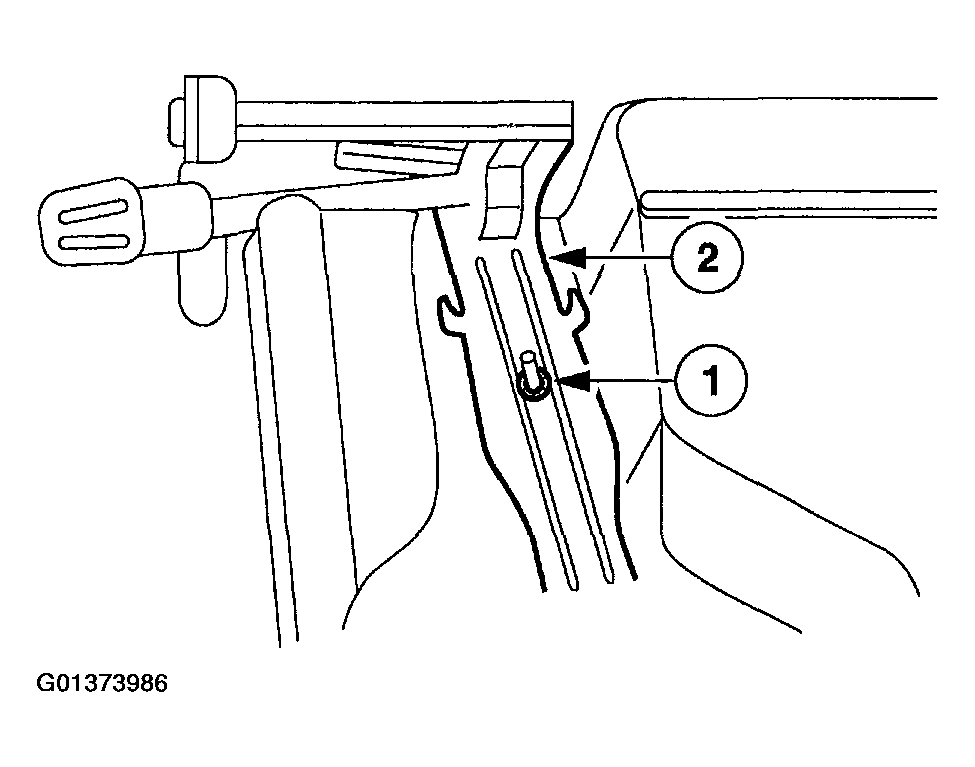

    Fig 3: Removing Seat Back Release Knob
    G01373986Courtesy of FORD MOTOR CO.
