Symptom Chart

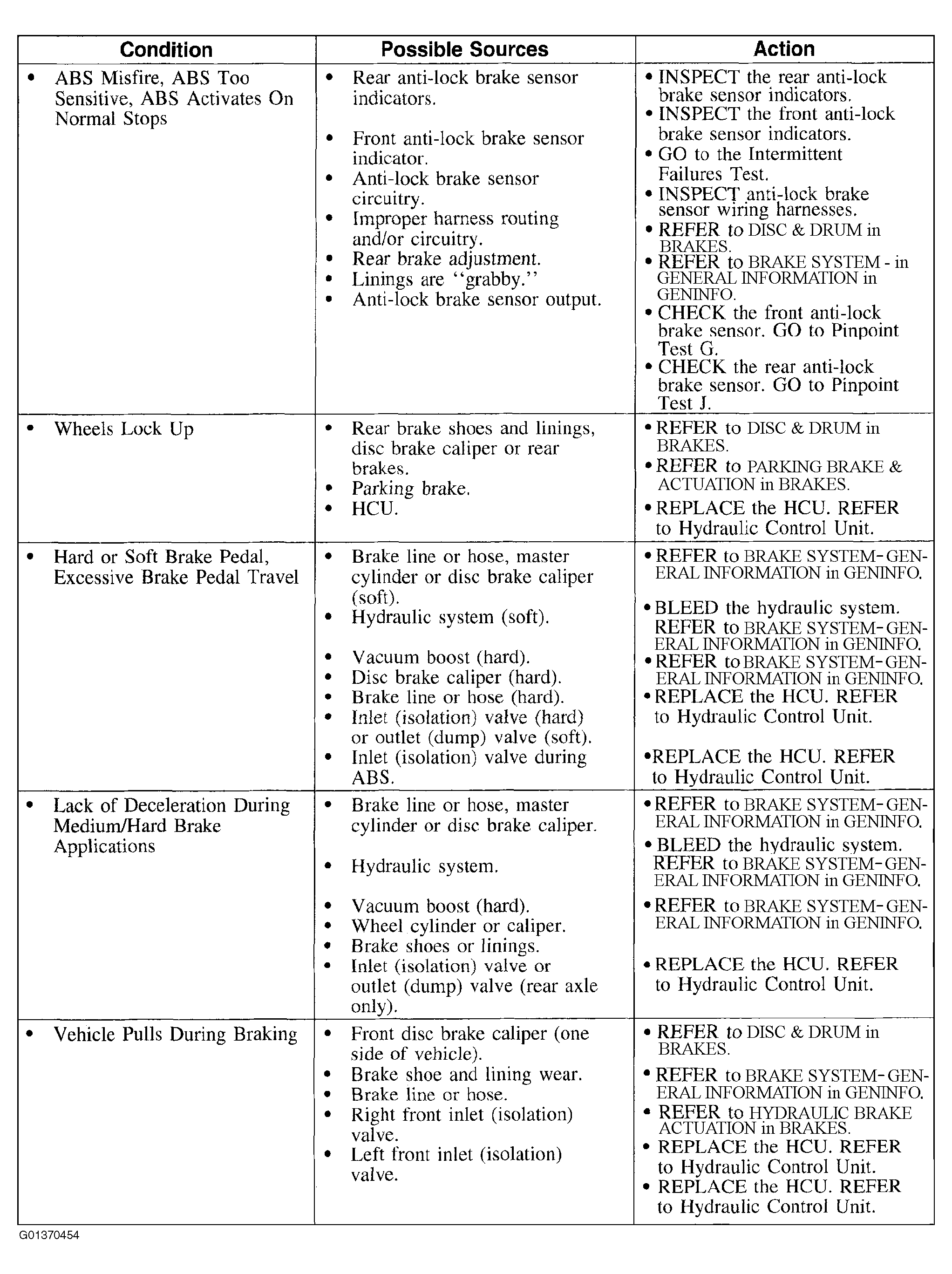

Fig 1: Problem Symptom Chart (1 Of 2)
G01370454Courtesy of FORD MOTOR CO.

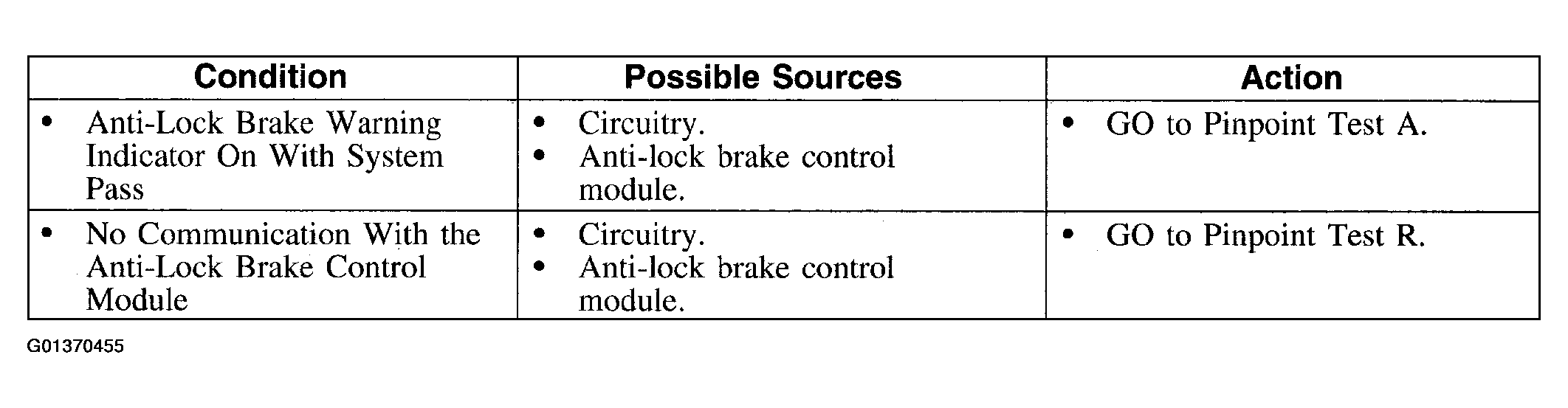

Fig 2: Problem Symptom Chart (2 Of 2)
G01370455Courtesy of FORD MOTOR CO.
