Hydraulic Control Unit: Installation

To install, reverse the removal procedure.
- Bleed the brake system. Refer to BLEEDING--HYDRAULIC SYSTEM .

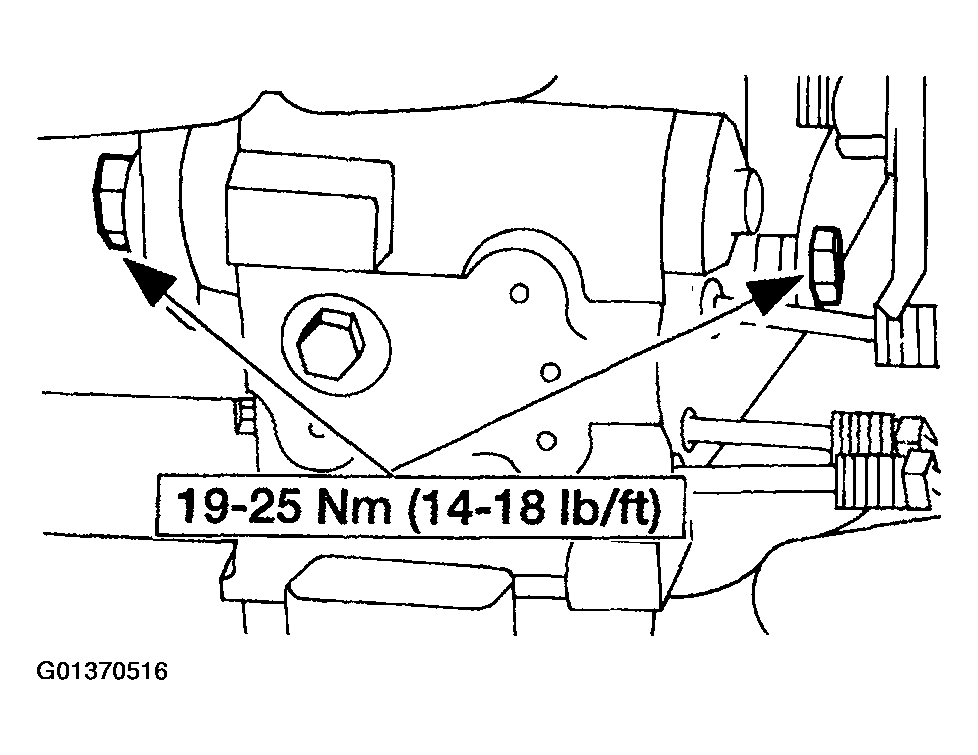

Fig 1: Installing HCU
Courtesy of FORD MOTOR CO.

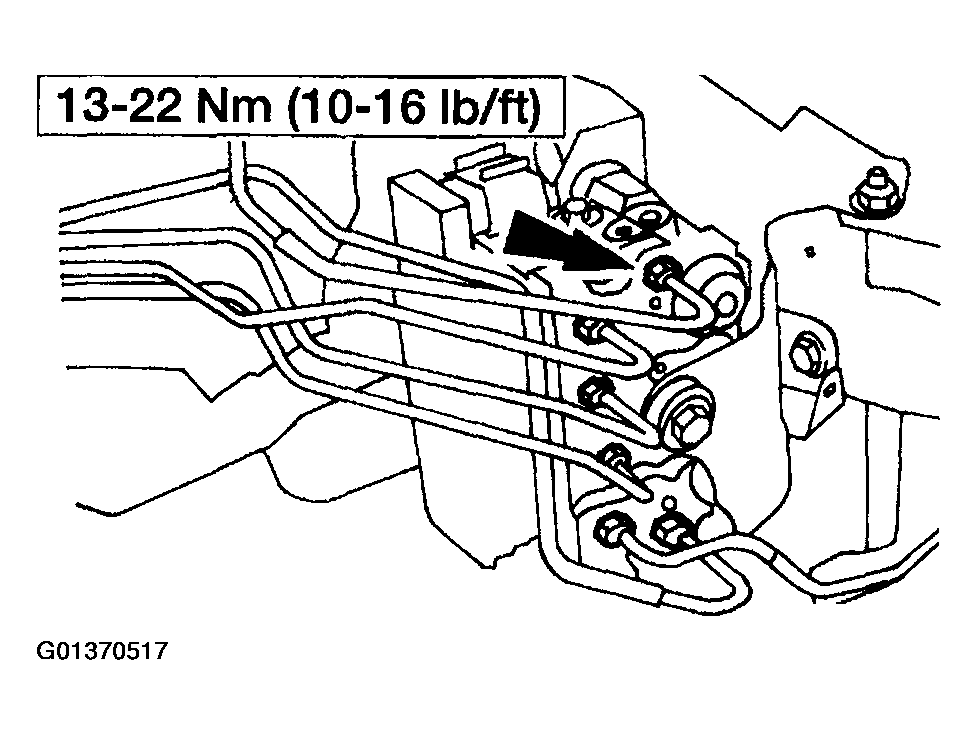

Fig 2: Connecting Hydraulic Brake Lines
Courtesy of FORD MOTOR CO.
