Hydraulic Control Unit: Removal

  1. Remove the battery tray; refer to BATTERY TRAY .
  2. Disconnect the two hydraulic control unit (HCU) electrical connectors.
    3. NOTE: Plug each port to prevent brake fluid from spilling.

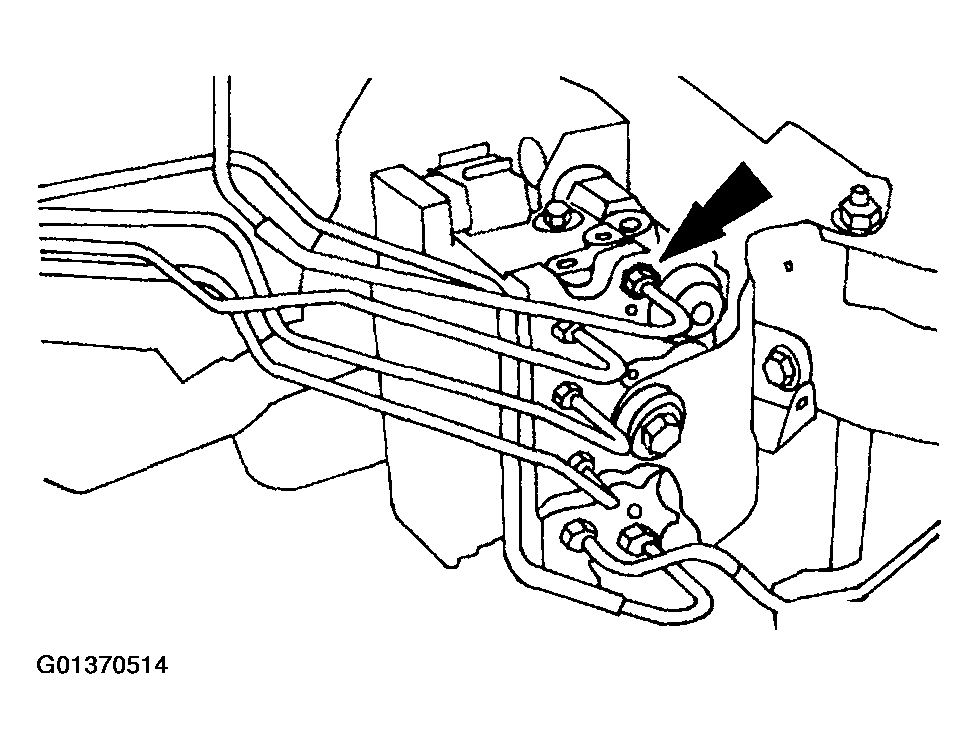

    Fig 1: Disconnecting Hydraulic Brake Lines
    G01370514Courtesy of FORD MOTOR CO.
  3. Disconnect the six hydraulic brake lines.
  4. Remove the HCU.
    1. Remove the bolts.
    2. Remove the HCU.

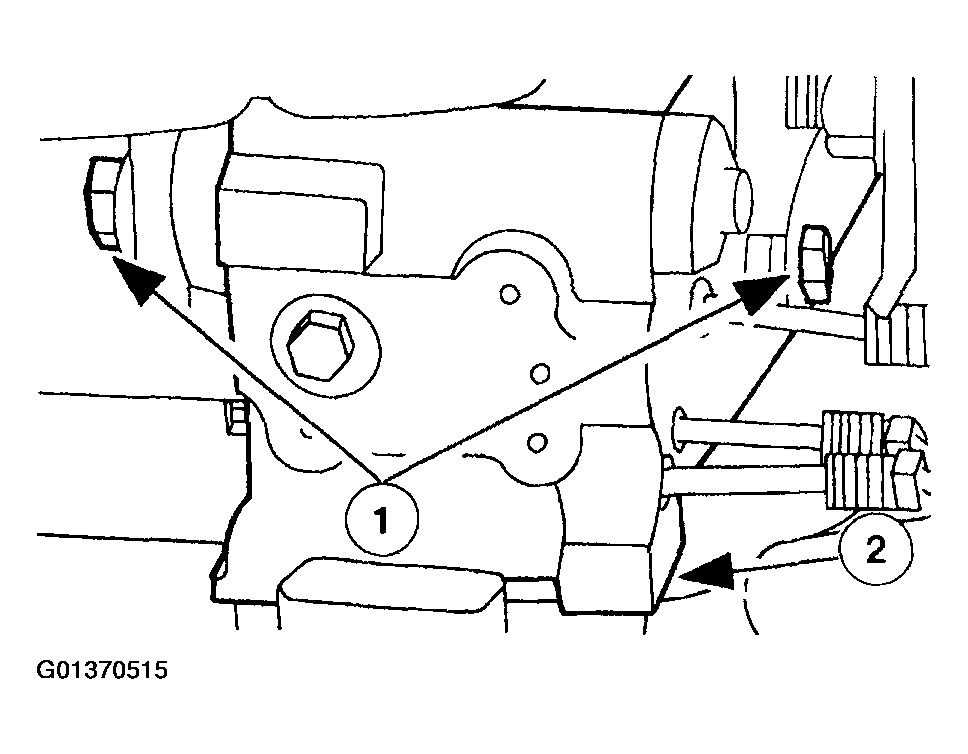

    Fig 2: Removing HCU
    G01370515Courtesy of FORD MOTOR CO.
