Module - Anti-Lock Brake Control: Installation

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be drive 16 km (10 mi) or more to relearn its strategy.
  1. To install, reverse the removal procedure.
    Fig 1: Installing Anti-Lock Brake Control Module
    G01370521Courtesy of FORD MOTOR CO.

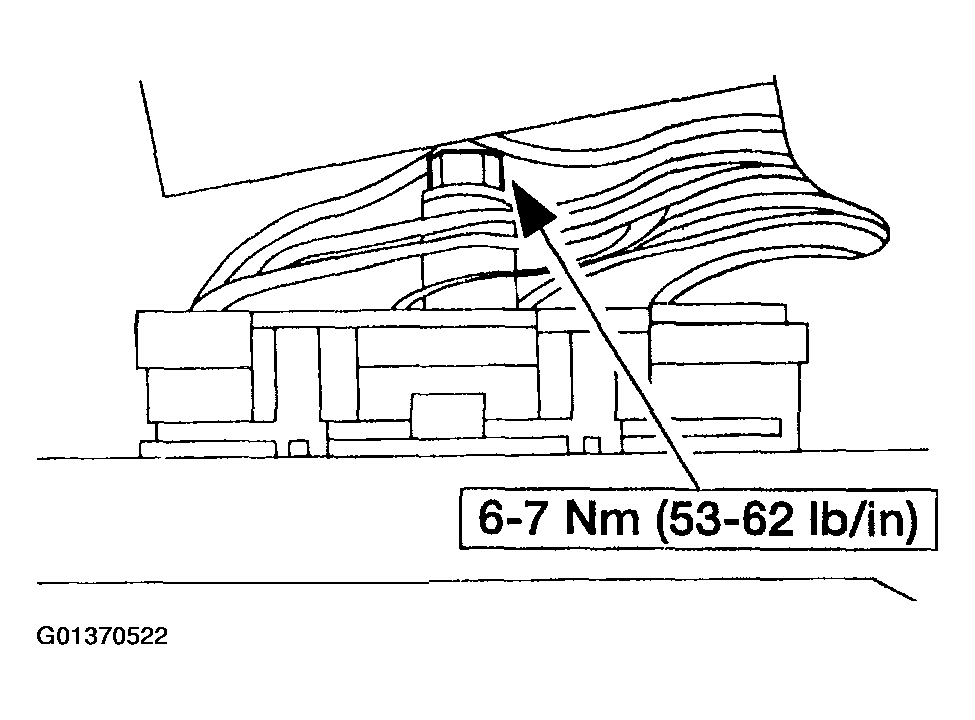

    Fig 2: Connecting Anti-Lock Brake Control Module Electrical Connector
    G01370522Courtesy of FORD MOTOR CO.
