Cylinder Block Distortion

Special Tool(s)

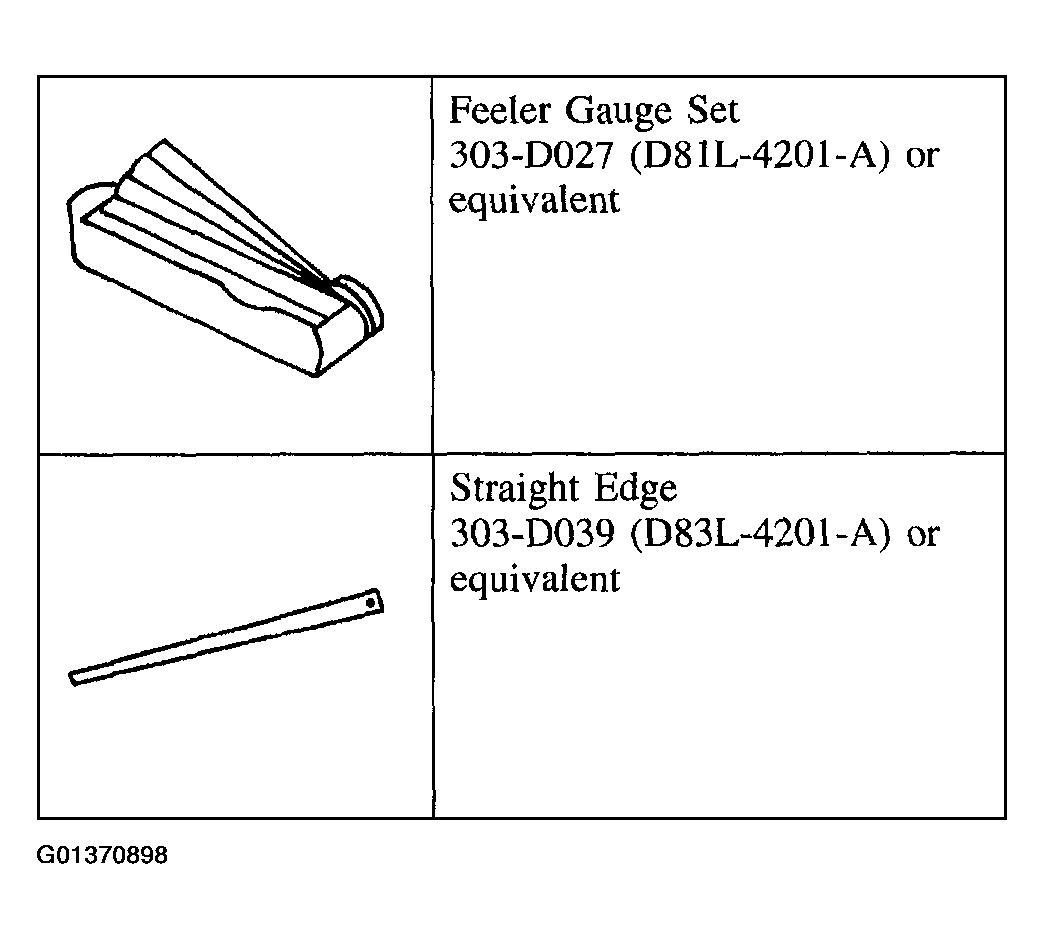

Fig 1: Identifying Special Tool(s)
G01370898Courtesy of FORD MOTOR CO.
  1. Use a straight edge and a feeler gauge to inspect the cylinder block for flatness. If the cylinder block is distorted, install a new cylinder block.

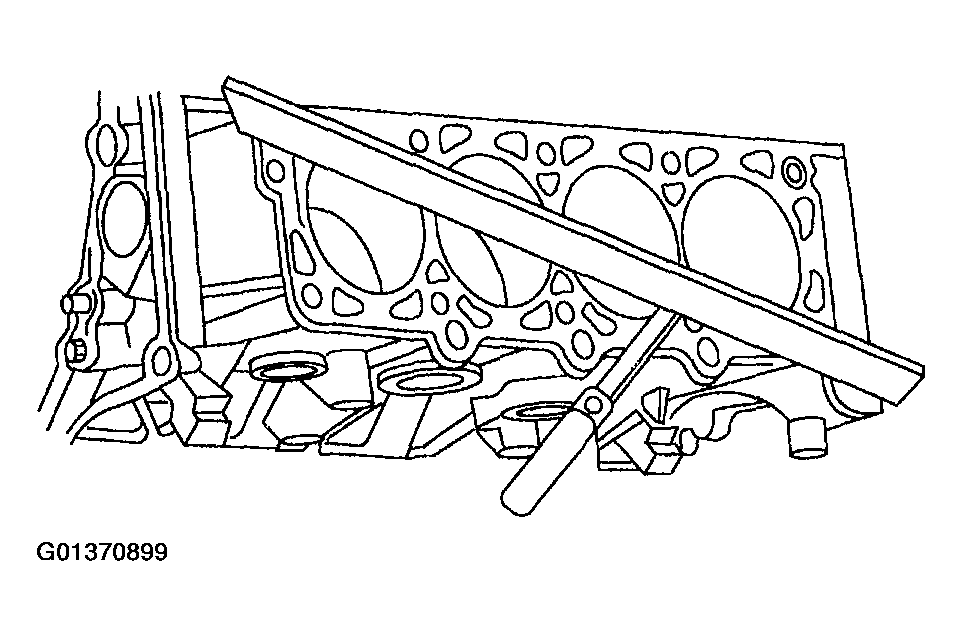

    Fig 2: Measuring Cylinder Block Distortion
    G01370899Courtesy of FORD MOTOR CO.
