Removal And Installation: Pedal: Removal

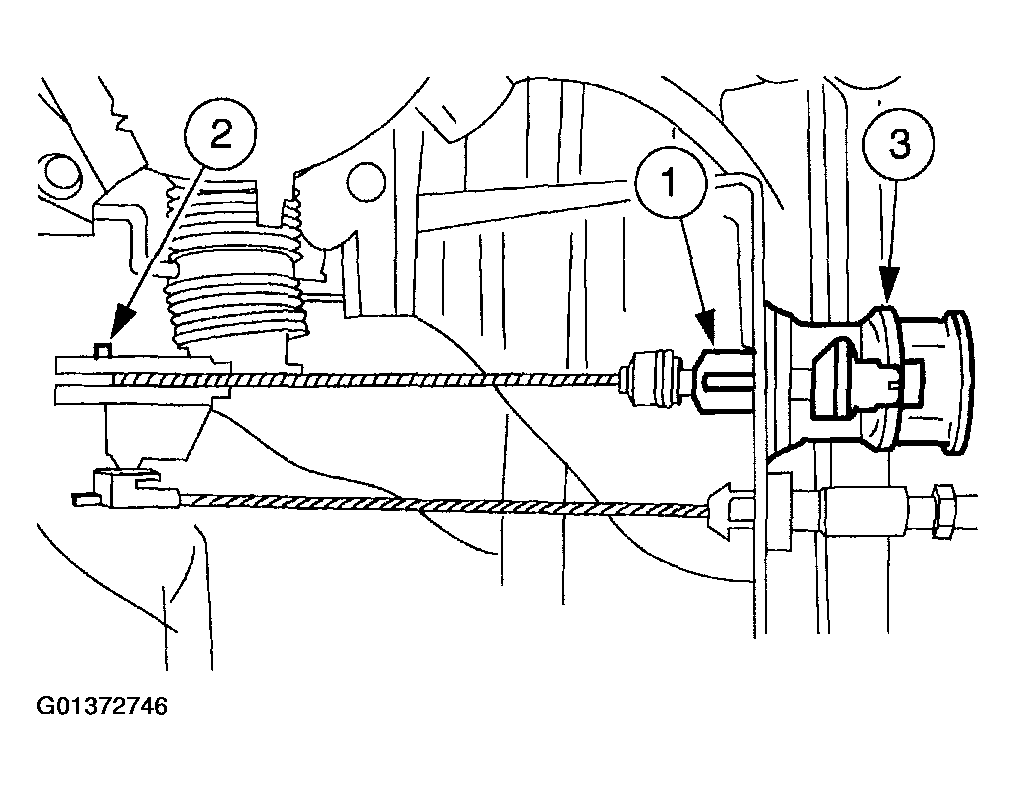

If equipped with 2.0L Zetec, disconnect the accelerator cable from the throttle control lever (9A776) and the accelerator cable bracket (9723).
1. Disconnect the accelerator cable housing from the accelerator cable bracket.
2. Disconnect the accelerator cable housing from the throttle control lever.
3. Position the accelerator cable (9A758) aside.
Fig 1: Disconnecting Accelerator Cable
Courtesy of FORD MOTOR CO.

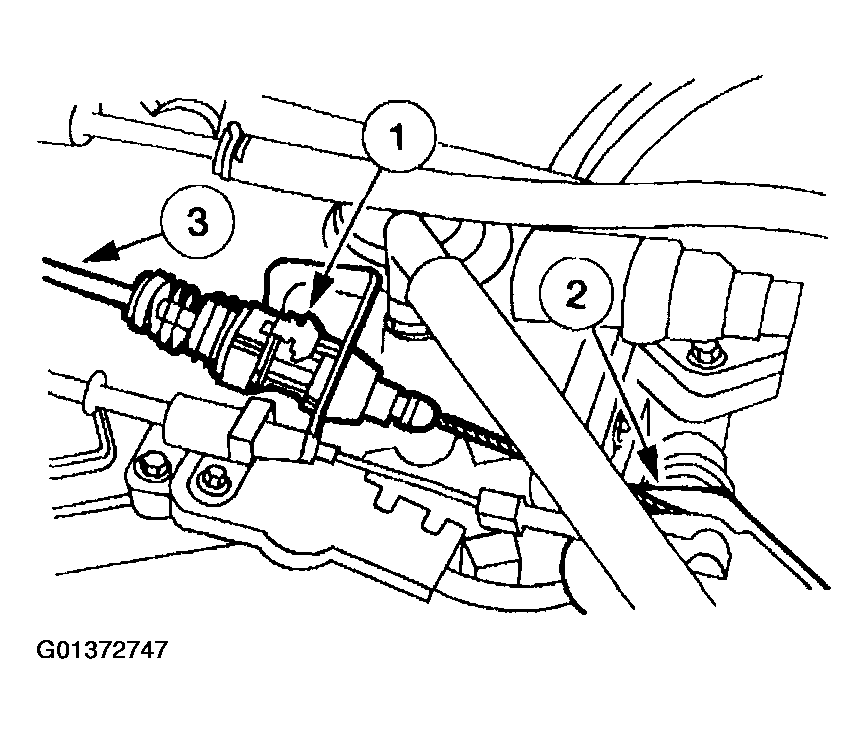

If equipped with 2.0L SPI, disconnect the accelerator cable from the throttle control lever and the accelerator cable bracket.
1. Disconnect the cable housing from the bracket.
2. Disconnect the accelerator cable and from the throttle control lever.
3. Position the accelerator cable aside.
Fig 2: Disconnecting Accelerator Cable
Courtesy of FORD MOTOR CO.

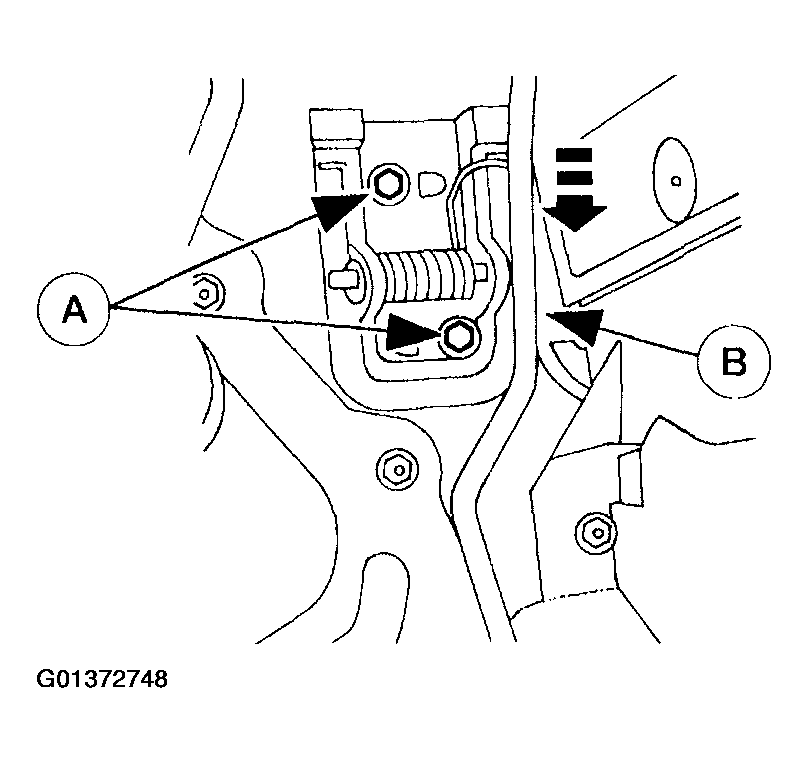

Remove the (A) bolts and lower the (B) accelerator pedal and shaft (9725).

Fig 3: Lowering Accelerator Pedal And Shaft
Courtesy of FORD MOTOR CO.

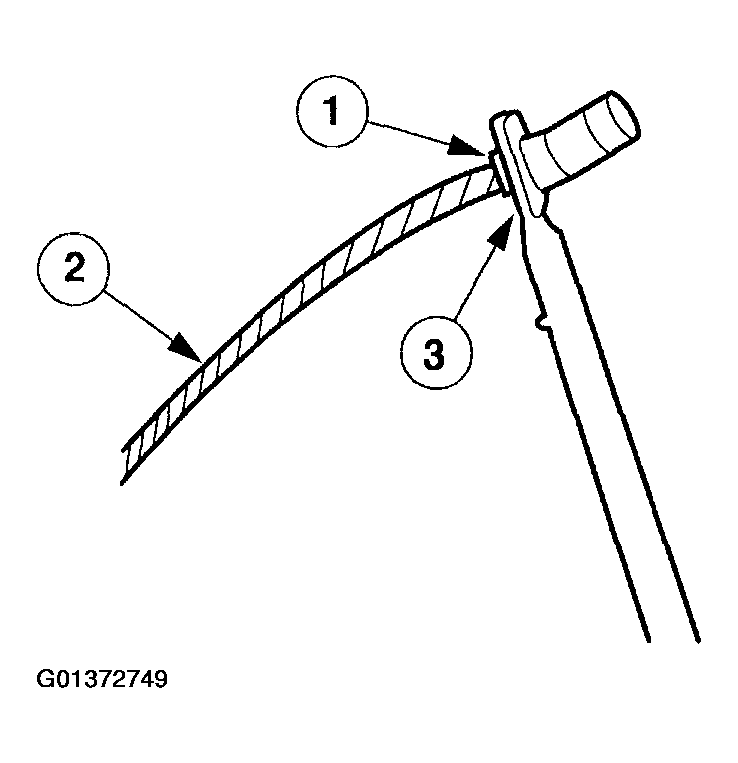

Disconnect the accelerator cable from the accelerator pedal and shaft.
1. Squeeze the cable end locking grommet tabs.
2. Disconnect the accelerator cable.
3. Remove the accelerator pedal and shaft.
Fig 4: Disconnecting Accelerator Cable From Accelerator Pedal And Shaft
Courtesy of FORD MOTOR CO.

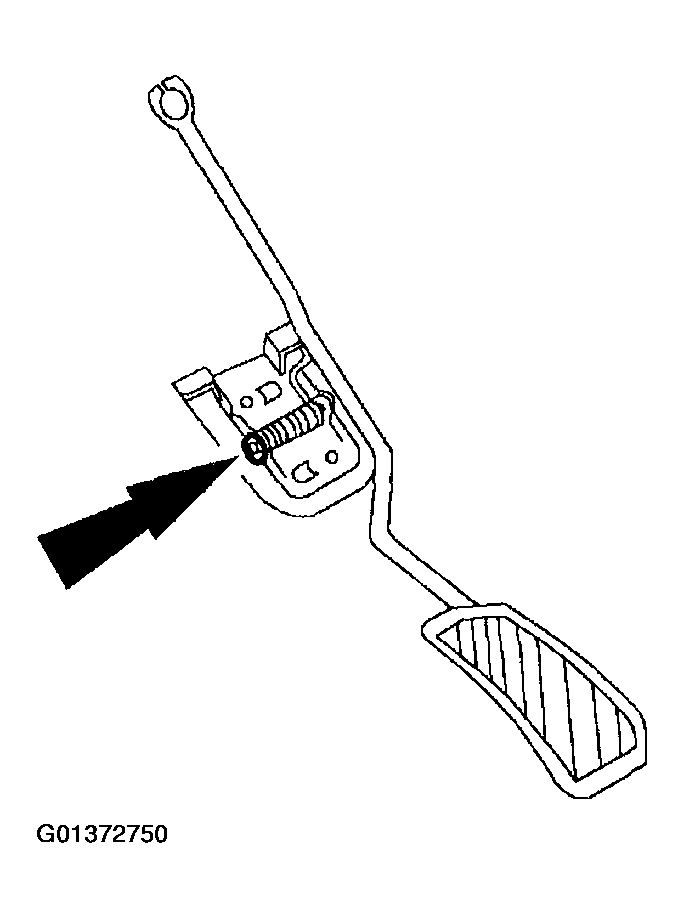

Remove the E-clip.

Fig 5: Removing E-Clip
Courtesy of FORD MOTOR CO.

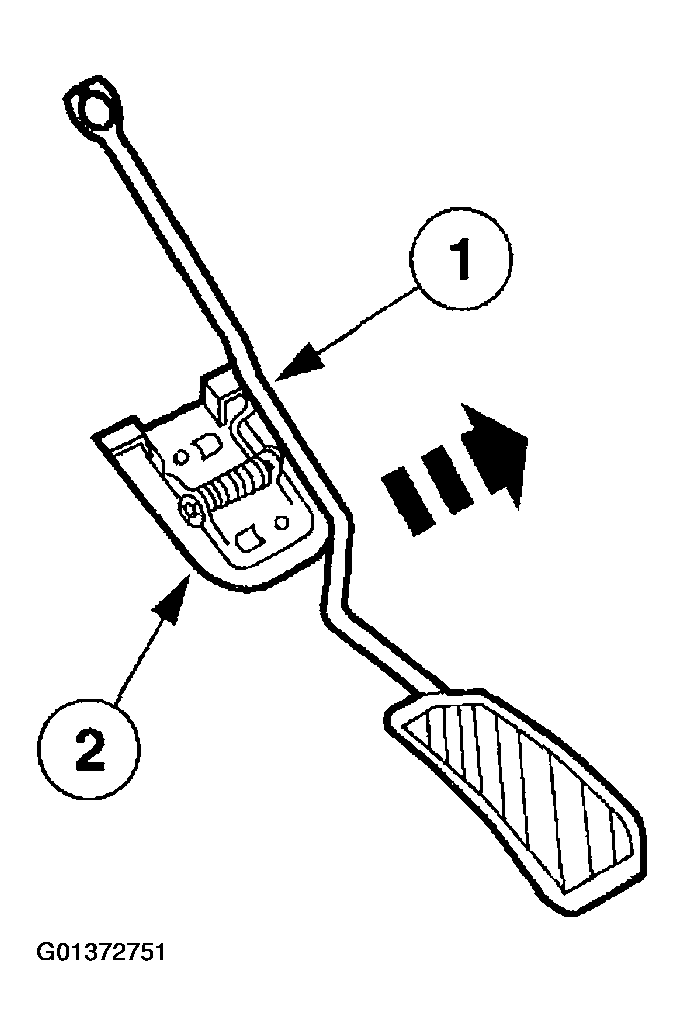

Disassemble the accelerator pedal and shaft.
1. Remove the accelerator pedal and shaft.
2. Remove the accelerator shaft retainer and spring.
Fig 6: Disassembling Accelerator Pedal And Shaft
Courtesy of FORD MOTOR CO.
