Power Circuits

Turn ignition off. Using a DVOM, check for battery voltage between ground and B+ circuit at PCM terminal No. 55 (104-pin PCM), terminal No. B40 (122-pin PCM), terminal No. B45 (150-pin PCM - Focus 2.3L), or terminal No. A44 or B44 (150-pin PCM - all others). See Fig 1-Fig 4 . Turn ignition switch to START or RUN position. Check for battery voltage between ground and specified VPWR circuit at PCM harness connector. See PCM VPWR CIRCUIT TERMINAL IDENTIFICATION  table. If battery voltage is not present, check for an open in VPWR circuit between PCM and PCM power relay. For additional testing procedures, see TEST B: EEC-V POWER RELAY under SYSTEM TESTS in SELF-DIAGNOSTICS - CNG, FLEX-FUEL & GASOLINE article.

PCM VPWR CIRCUIT TERMINAL IDENTIFICATION

Application (1) PCM Terminal No.
Models With 122-Pin PCM B34 & B46
Focus 2.3L With 150-Pin PCM B35 & B36
All Other Models With 150-Pin PCM A32 & A33, Or B32 & B33
All Other Models 71
(1) For PCM harness connector terminal identification, refer to illustration. See Fig 1-Fig 4 .
Fig 1: Identifying PCM Harness Connector Terminals (104-Pin)
G96E29185Courtesy of FORD MOTOR CO.

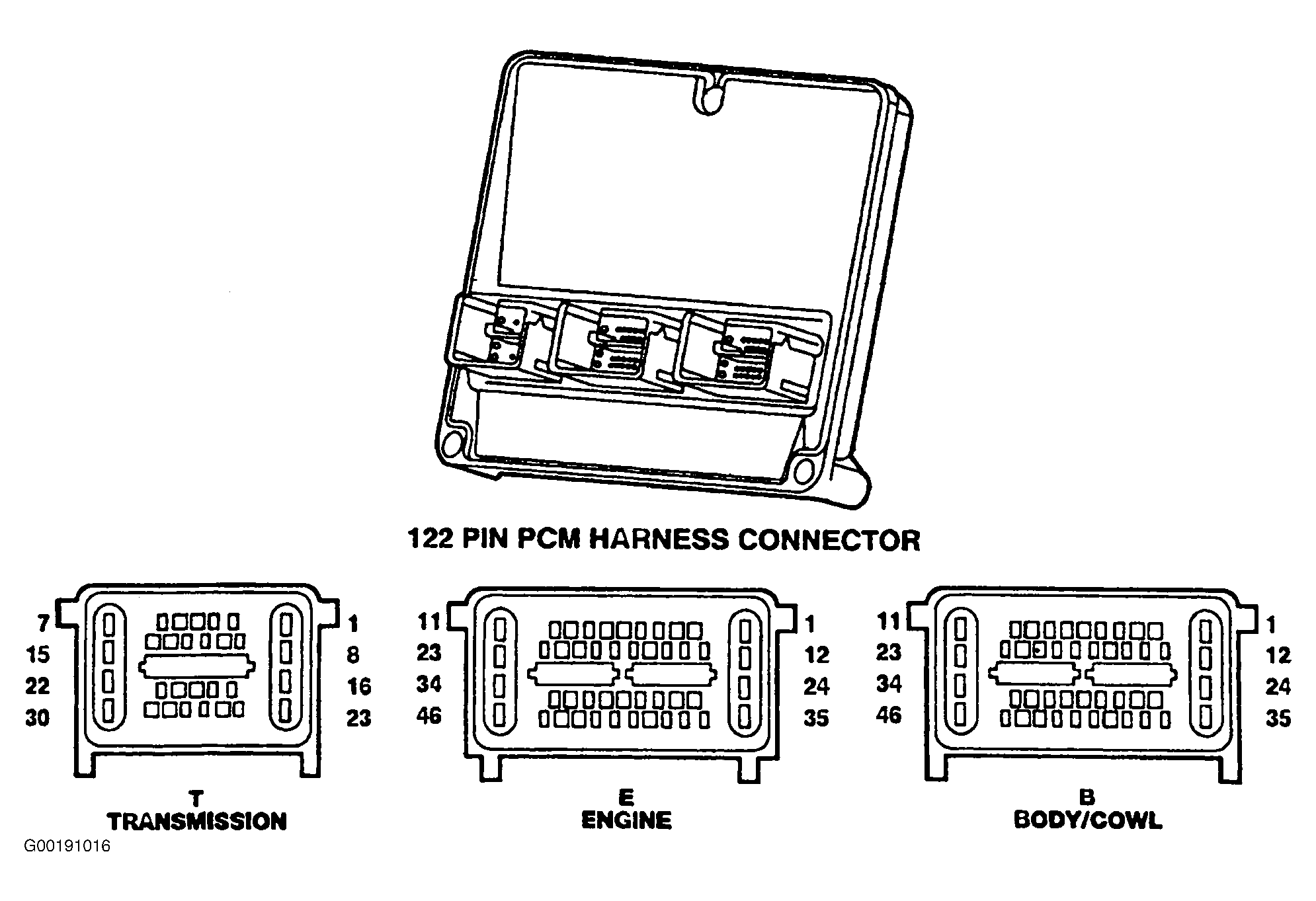

Fig 2: Identifying PCM Harness Connector Terminals (122-Pin)
G00191016Courtesy of FORD MOTOR CO.

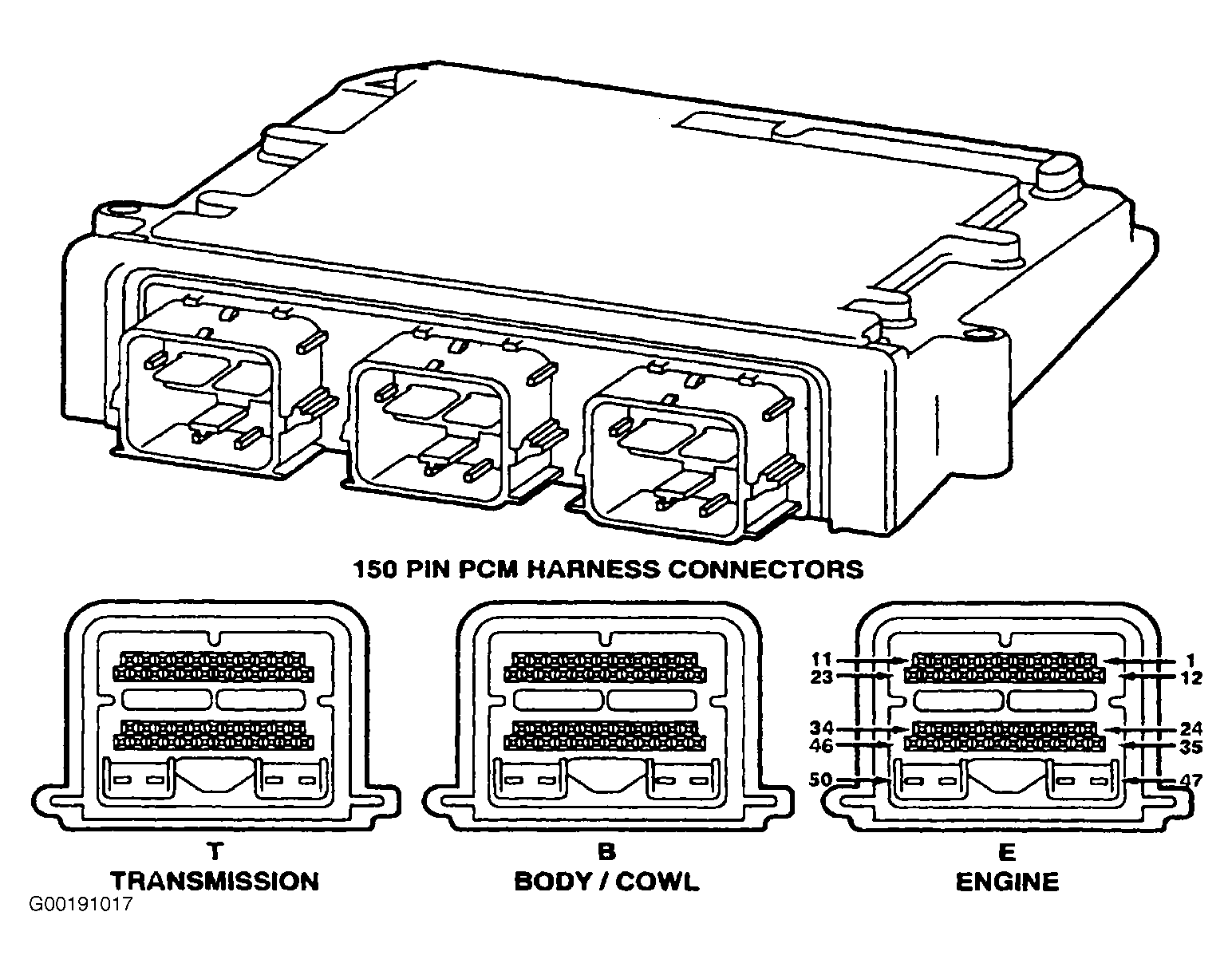

Fig 3: Identifying PCM Harness Connector Terminals (150-Pin - Focus 2.3L)
G00191017Courtesy of FORD MOTOR CO.

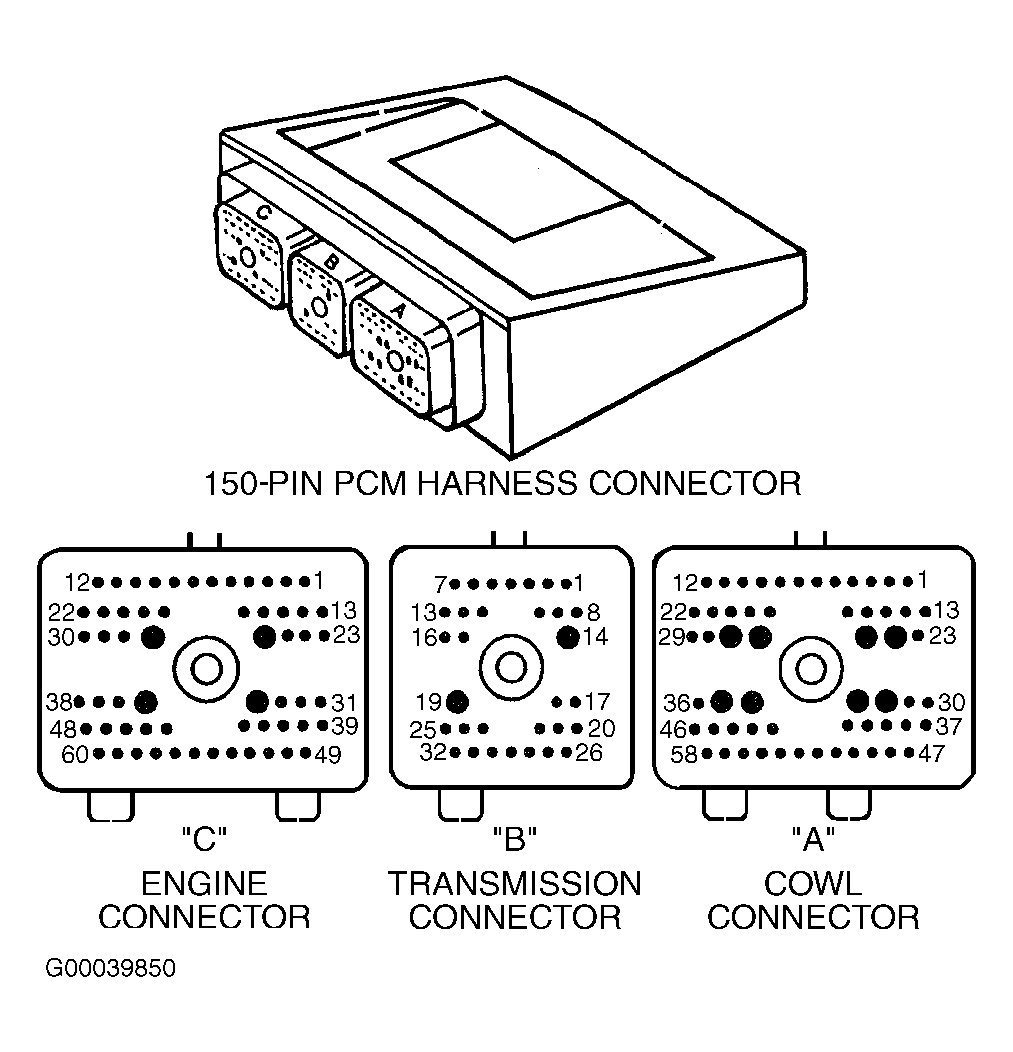

Fig 4: Identifying PCM Harness Connector Terminals (150-Pin - All Others)
G00039850Courtesy of FORD MOTOR CO.
