Anti-Lock Brake Control Module Active Command Index

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

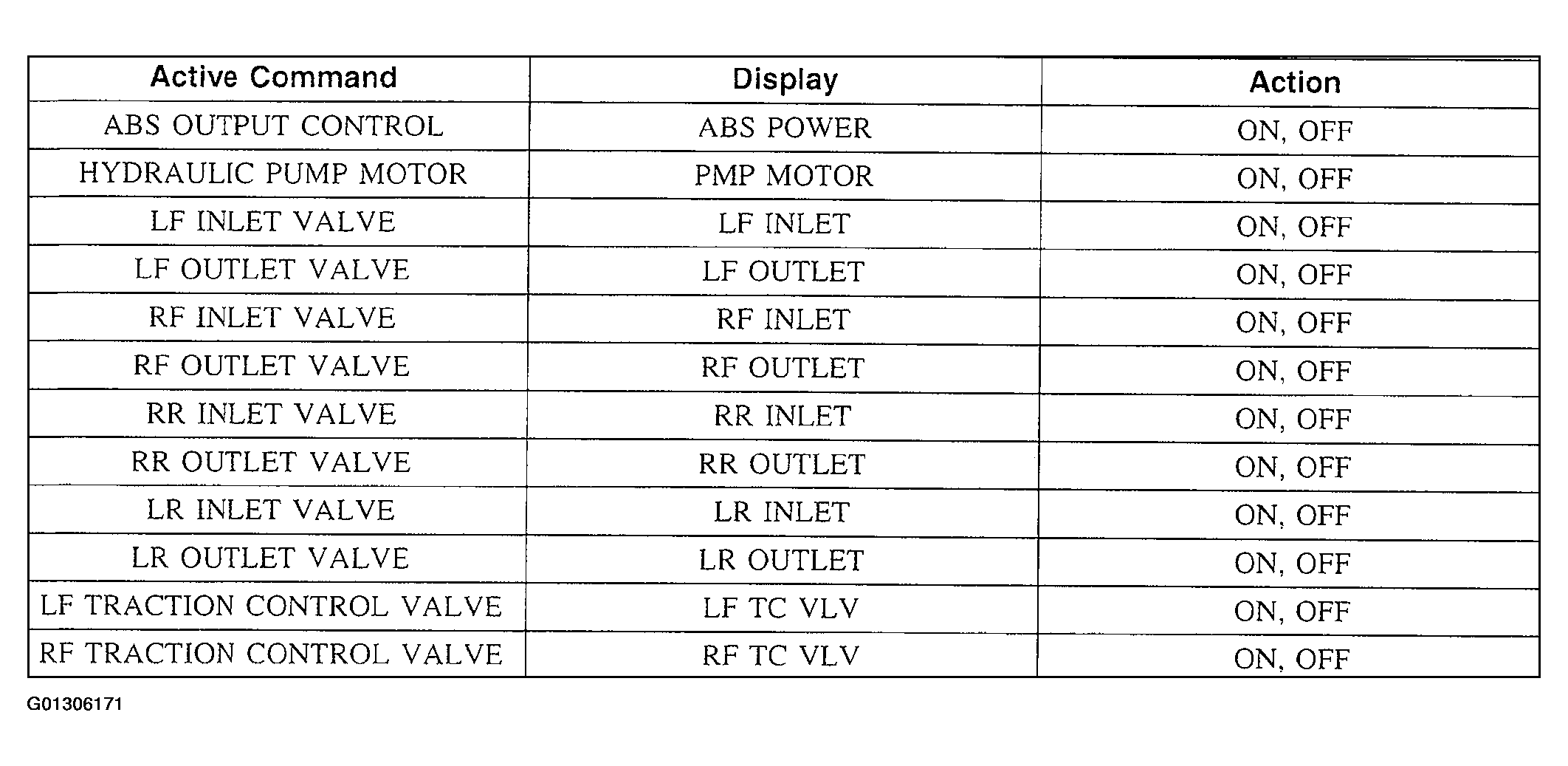

Fig 1: Anti-Lock Brake Control Module Active Command Index
G01306171Courtesy of FORD MOTOR CO.
