Master window/door lock/unlock switch

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

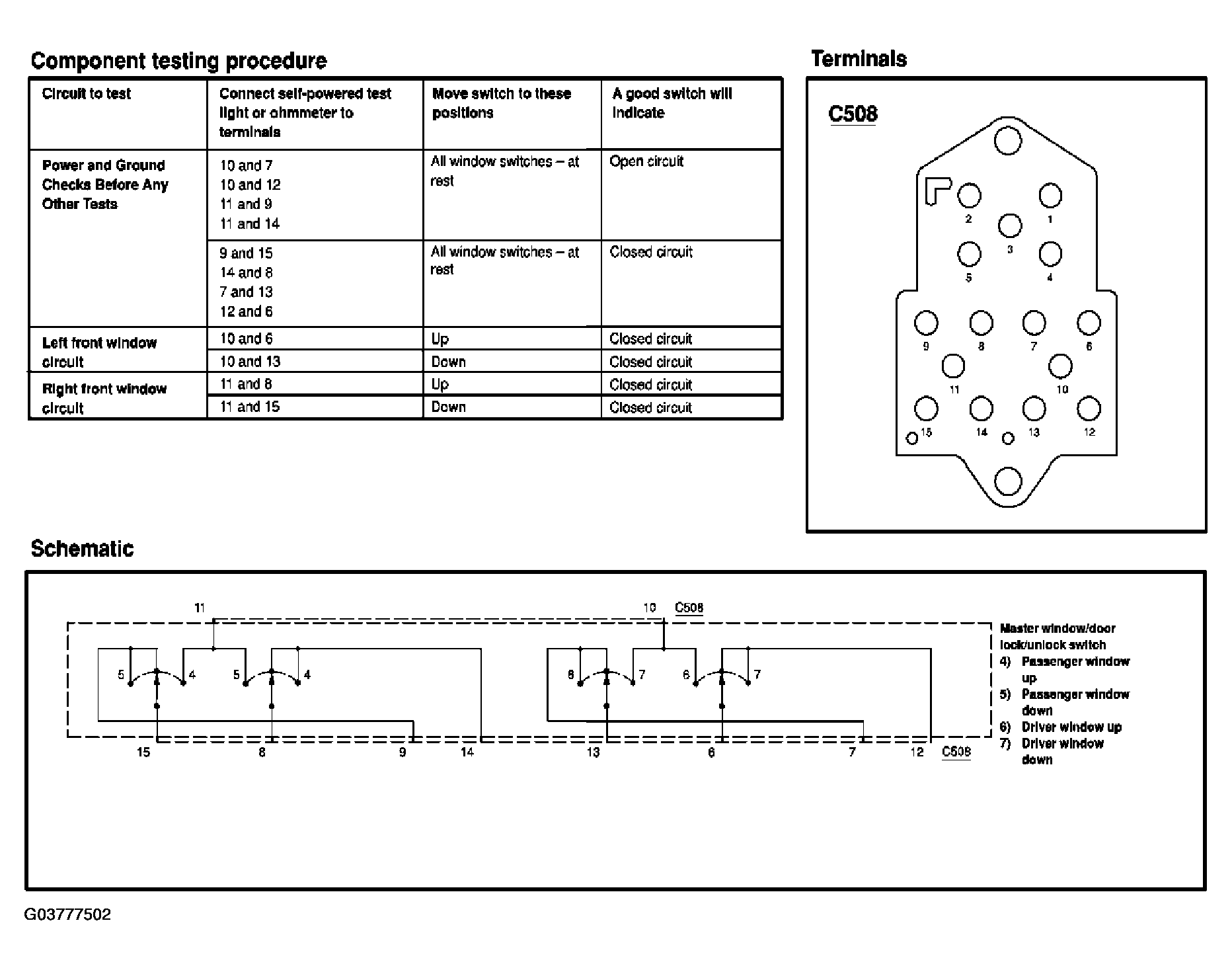

Fig 1: Testing Master Window/Door Lock/Unlock Switch (1 Of 4)
G03777502Courtesy of FORD MOTOR CO.

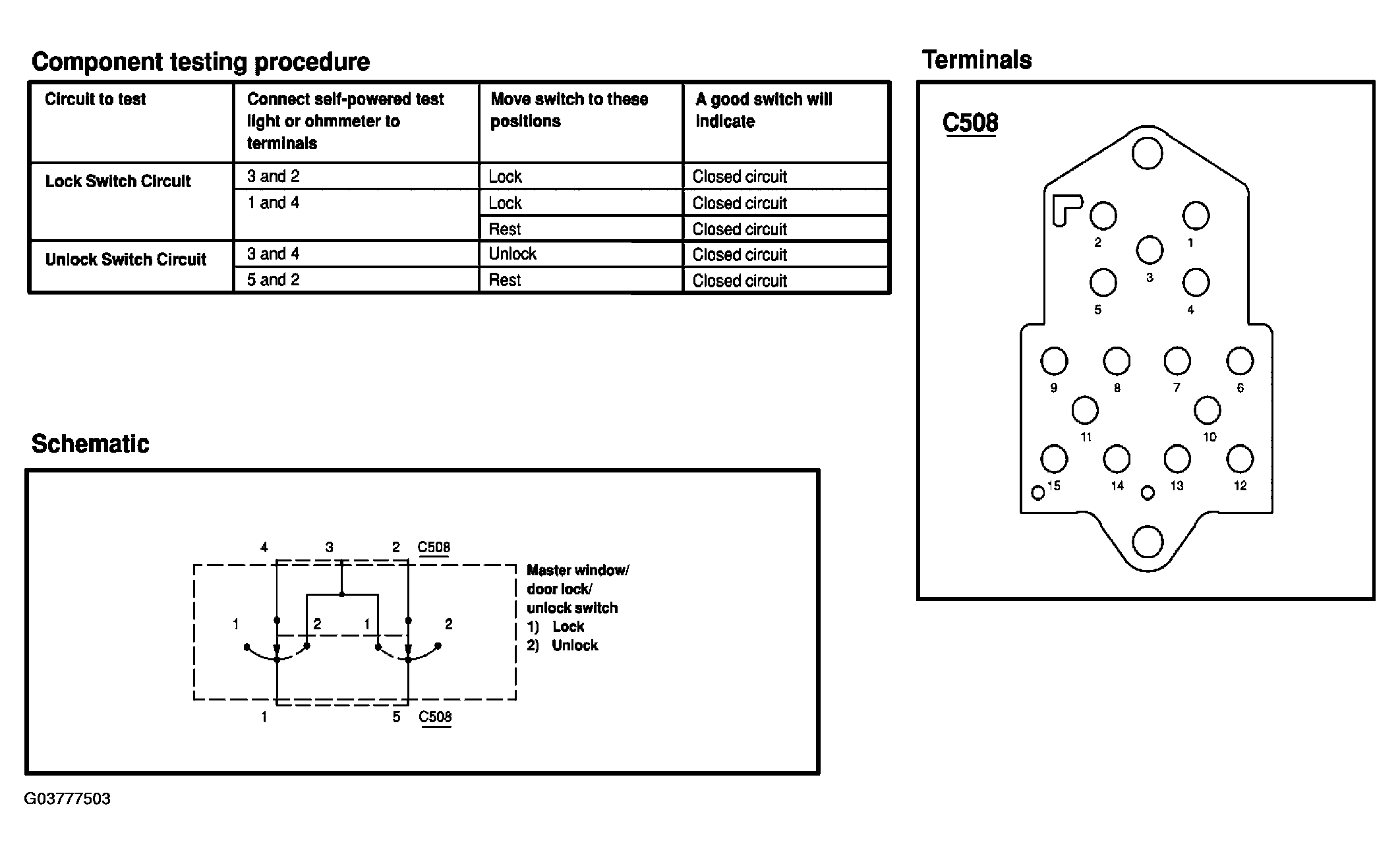

Fig 2: Testing Master Window/Door Lock/Unlock Switch (2 Of 4)
G03777503Courtesy of FORD MOTOR CO.

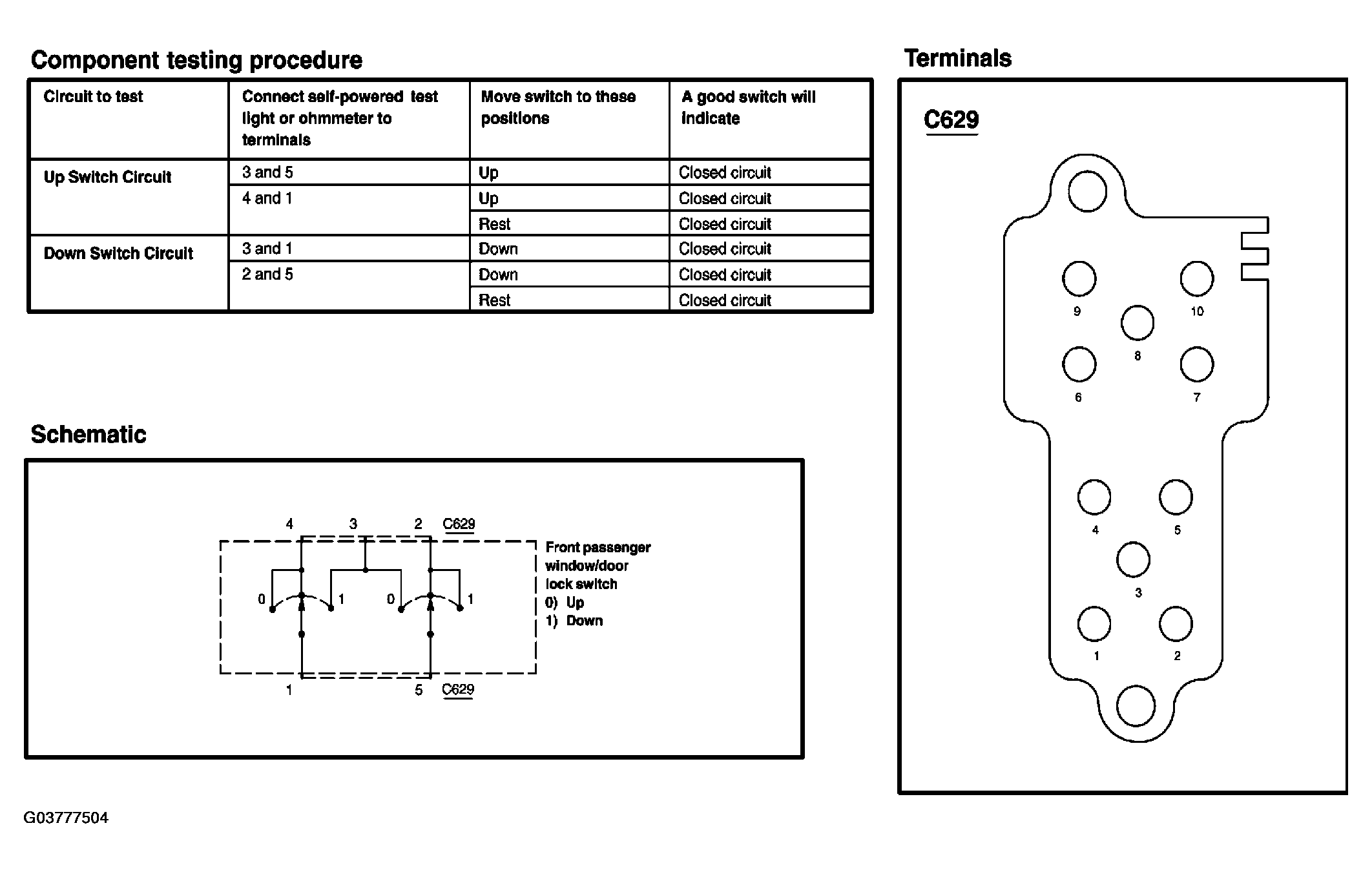

Fig 3: Testing Master Window/Door Lock/Unlock Switch (3 Of 4)
G03777504Courtesy of FORD MOTOR CO.

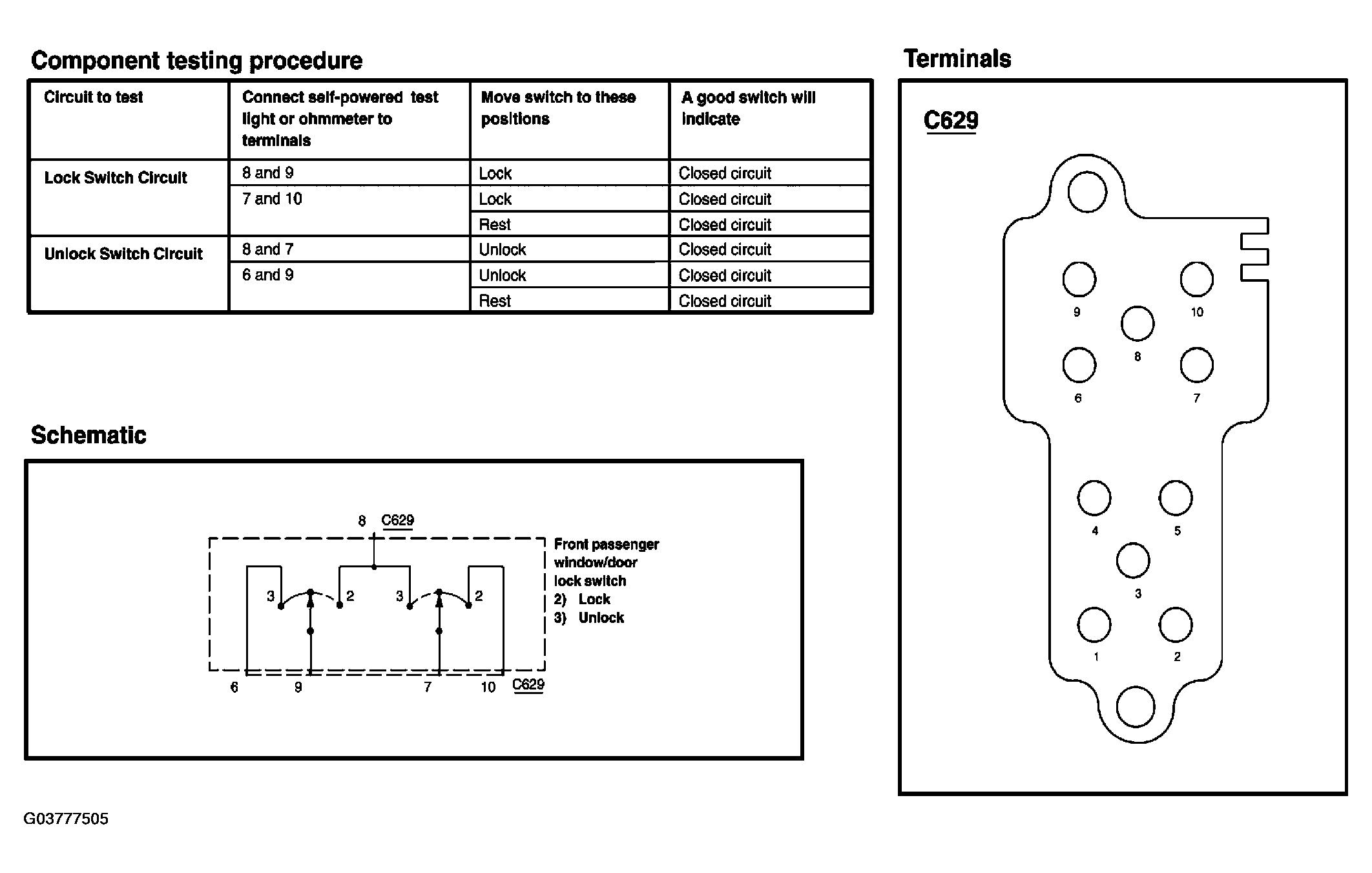

Fig 4: Testing Master Window/Door Lock/Unlock Switch (4 Of 4)
G03777505Courtesy of FORD MOTOR CO.
