Removal And Installation: Column: Installation

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn its strategy.

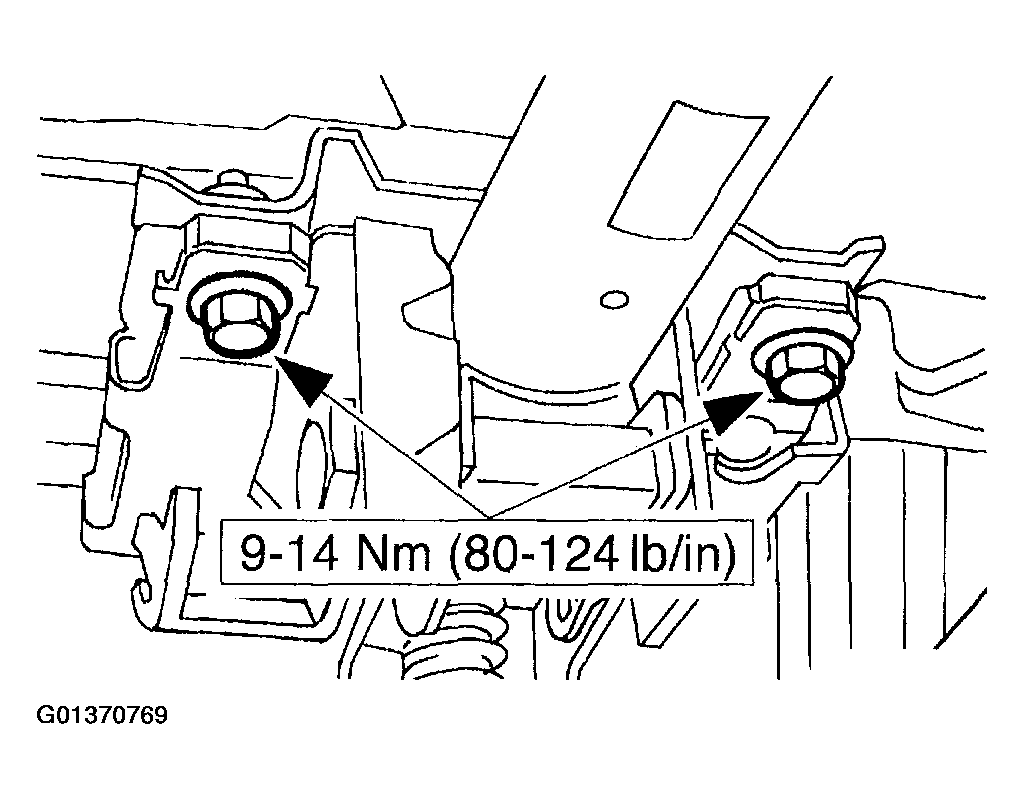

Fig 1: Installing Steering Column Tube

Courtesy of FORD MOTOR CO.

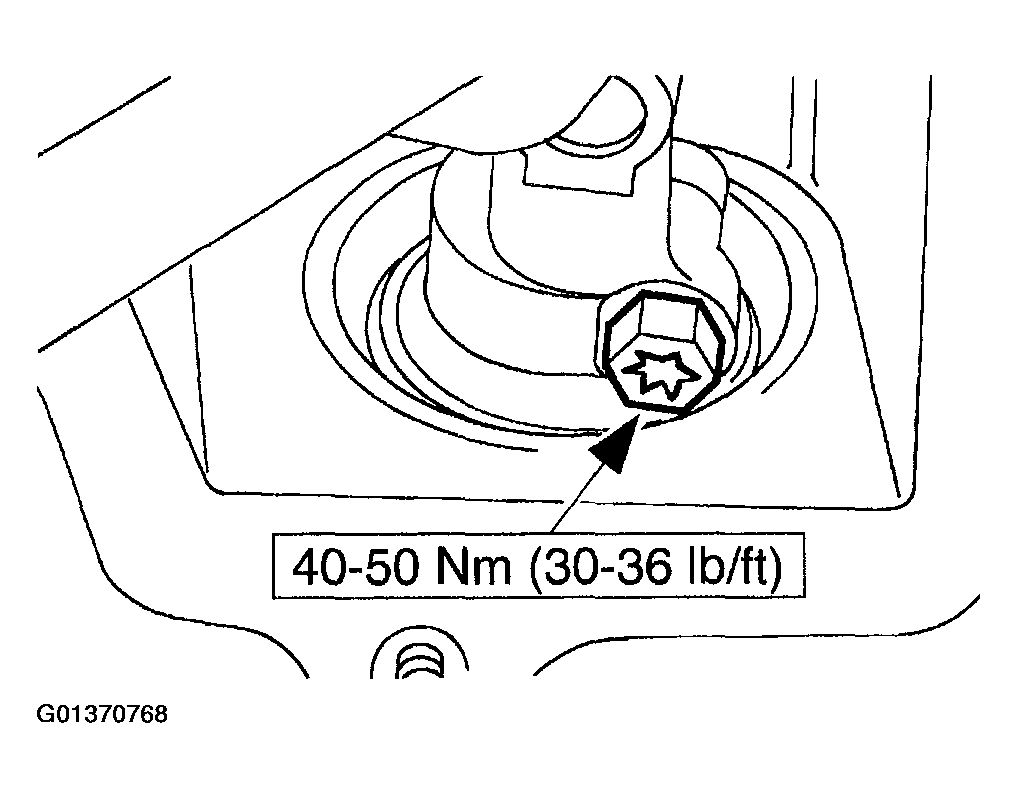

Fig 2: Installing Steering Column Input Shaft Coupling Pinch Bolt

Courtesy of FORD MOTOR CO.

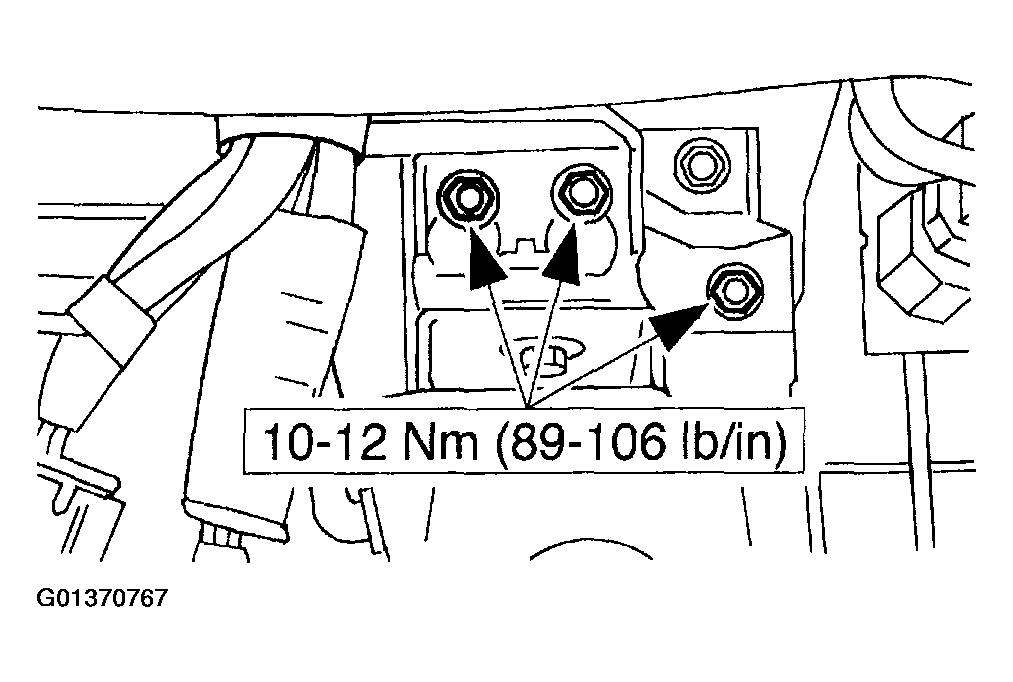

Fig 3: Installing Lower Steering Column Tube

Courtesy of FORD MOTOR CO.

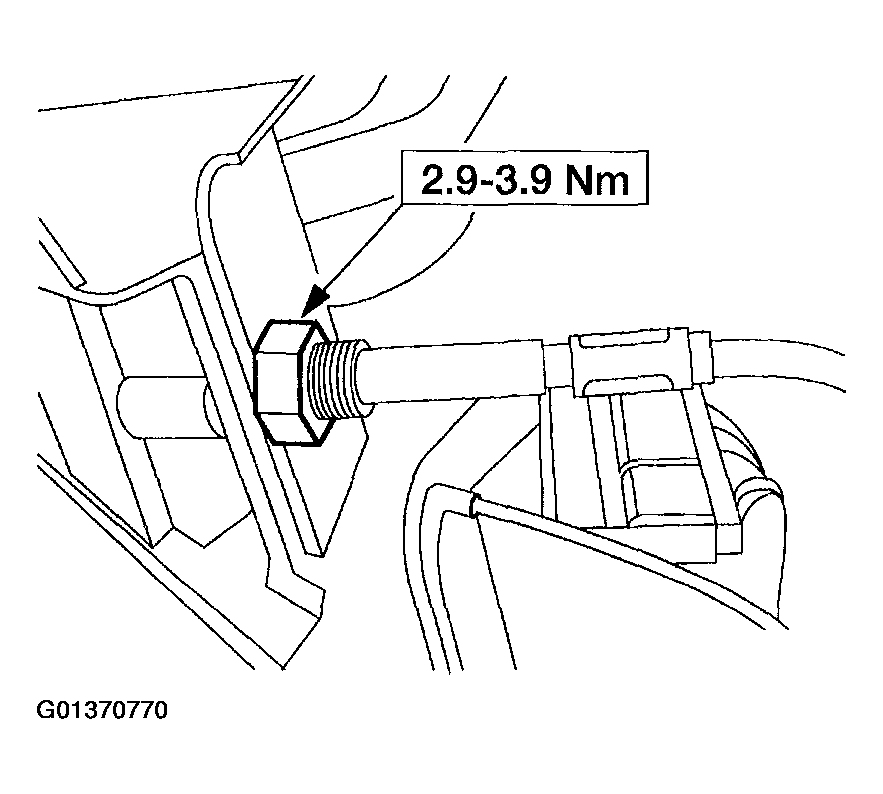

Fig 4: Installing Hood Latch Control Handle And Cable

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
